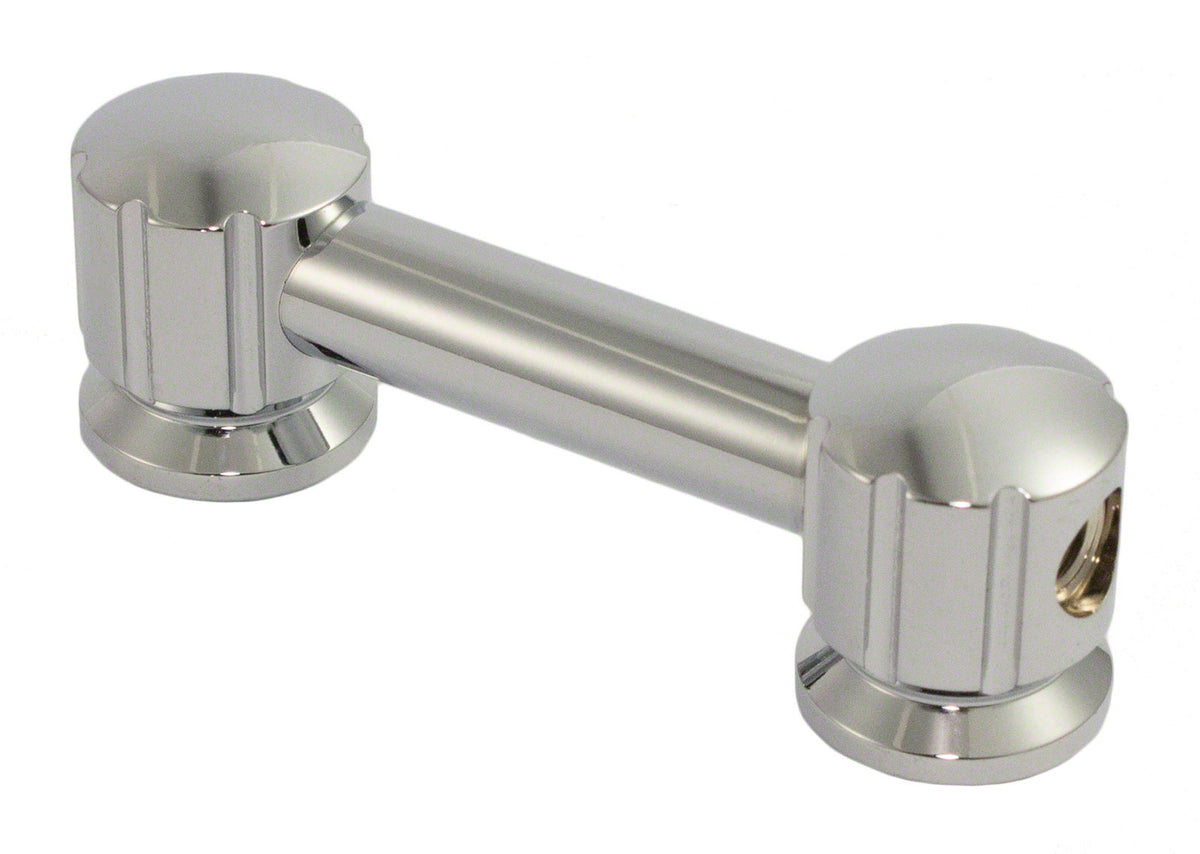

Sparedrum TL8D51 - TUBE LUG - 51MM - DOUBLE ENDED (X1)
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning Within the Range
The tube lug is one of the classic staples of drum hardware: a simple, proven design widely adopted for its reliability. This format is particularly appreciated when seeking a clean look and an easy-to-replace or harmonize part on a kit, while maintaining excellent mechanical stability.
Intended Users of This Drum/Instrument
This lug is aimed at all drummers, from careful beginners to experienced technicians, as well as workshops and custom enthusiasts. It is suitable both for restoration (replacing a damaged lug) and for tom or snare transformation projects. It integrates easily into configurations oriented towards rock, pop, funk, or studio settings, wherever stable tuning and discreet hardware are desired.
Features and Innovations
With its two attachment points for tension rods, this tube lug ensures reliable guidance, limiting micro-movements that can cause tuning tension loss. The supplied insulating rubber serves a dual purpose: it reduces direct metal-to-wood contact and helps preserve the finish or wrap, while contributing to a smoother tightening feel. For installation on a bass drum, it is recommended to use a TLMG lug riser to properly adapt the mounting geometry.
Sound Characteristics
On an acoustic drum, the lug is not a "sound" element in the same way as the shell wood or drumheads, but it influences the overall response through its tuning stability and how it transmits (or decouples) certain vibrations. A brass tube lug provides a sense of solidity and excellent long-term durability, which helps maintain consistent tension, especially on the snare drum.
The included insulating rubber limits direct transmission of vibrations between the hardware and the shell. Practically, this can contribute to a cleaner resonance, with fewer unwanted mechanical noises, and better shell protection during repeated adjustments. The desired result is a drum that remains reliable in tuning without compromising the natural openness of the shell.

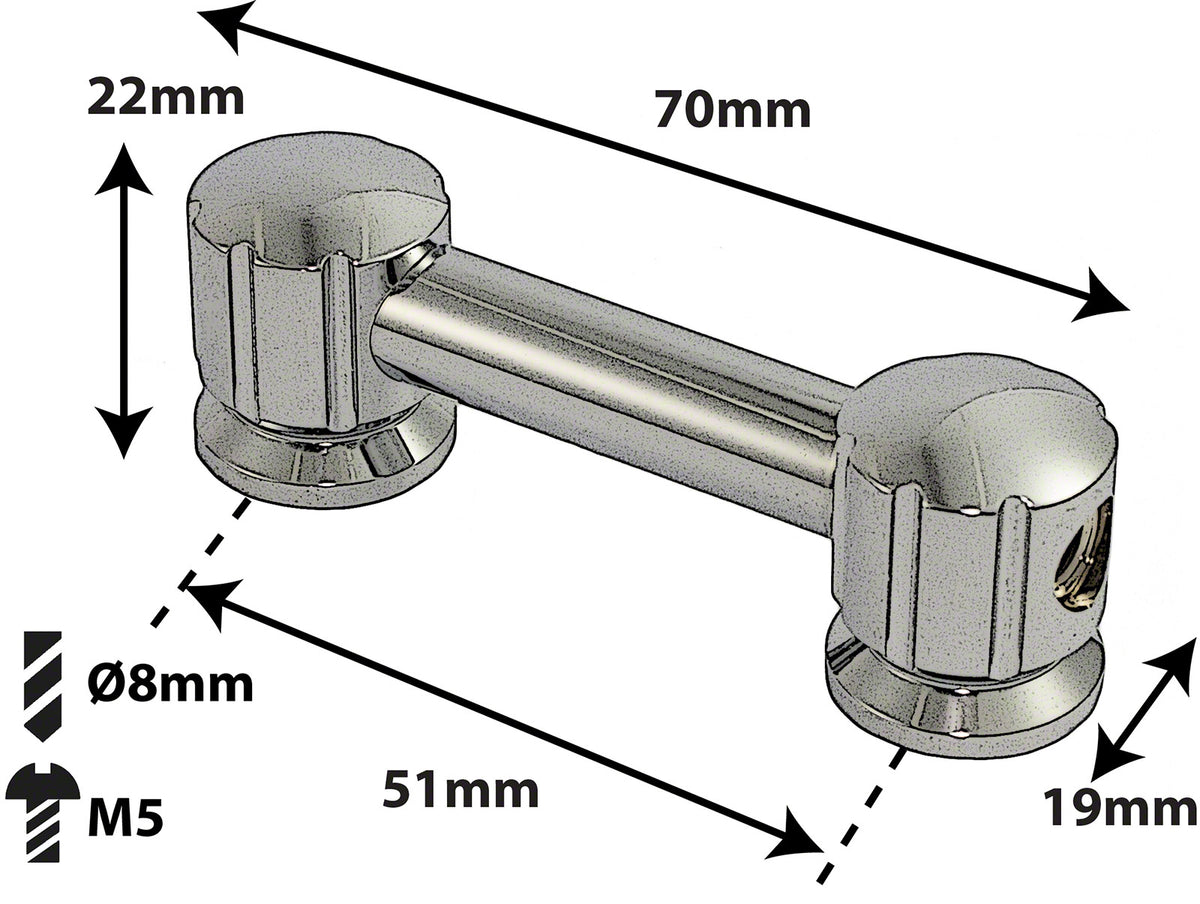

Technical specifications
| Type | tube lug for snare drum and tom |
| Number of attachment points | 2 attachment points for tension rods |
| Center-to-center spacing | 51 mm |
| Drill hole diameter | 8 mm |
| Mounting screw type | M5 |
| Tension rod threading | standard 12-24 (7/32" diameter) |
| Installation note | use the TLMG lug riser for bass drum installation |
| Material | brass |
| Finish | chromed |
| Insulating rubber | included |
| Mounting screws | not included |
Questions frequently asked
What is the center-to-center spacing and what drill hole size is required for this tube lug?
The center-to-center spacing is 51 mm and the required drill holes have a diameter of 8 mm. The mounting is done with M5 screws, not included.
Is the Sparedrum TL8D51 compatible with standard tension rods?
The threading provided is the standard 12-24, with a diameter of 7/32. The two attachment points ensure guidance for two tension rods.
Can this lug be mounted on a bass drum?
For installation on a bass drum, the use of the TLMG lug riser is intended to adapt the mounting geometry.
What material and finish does this tom or snare lug have?
The lug is made of brass with a chrome finish. An insulating rubber is included to limit direct contact between the metal and the shell.
Is the insulating rubber provided with the lug?
Yes, an insulating rubber is included. It helps protect the shell’s lacquer or wrap during tightening. M5 mounting screws need to be supplied separately.
