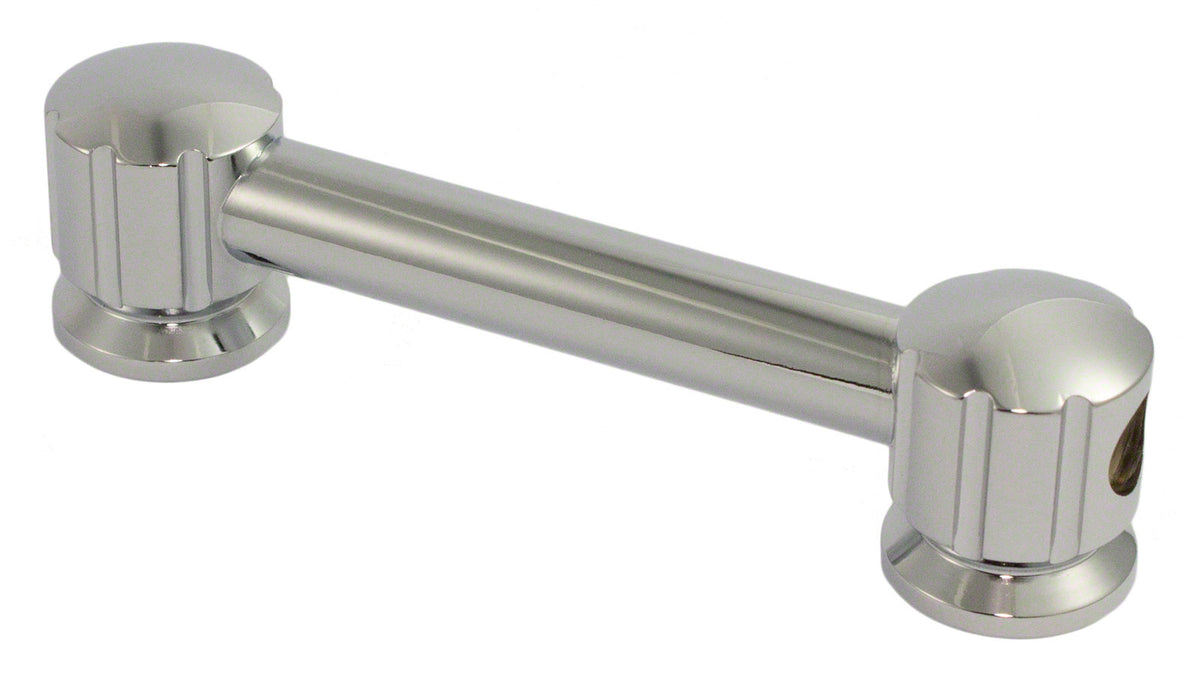

Sparedrum TL8D70 - TUBE LUG - 70MM - DOUBLE ENDED (X1)
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning in the Range
The tube lug is a classic drum hardware component: a simple, proven design that is easy to integrate on snare drums or toms. This model is positioned as a reliable solution for maintenance, kit restoration, or customizing a shell with common drilling measurements.
Who This Drum/Instrument Is For
This lug is suited for all drummers, from beginners refurbishing a tom to experienced technicians or musicians seeking a solid part for a clean setup. It fits all styles (rock, pop, metal, funk, jazz) whenever stable tuning and hardware resistant to repeated tension are needed.
Features and Innovations
With its two tension rod attachment points and standard #12-24 threading, this tube lug is designed for hassle-free integration on many shells. For bass drum installation, it is recommended to use a TLMG lug riser to achieve proper alignment and clearance depending on the hoop and tension rod configuration.
Sound Characteristics
A lug does not add "a sound" like a shell wood does, but it influences the playing feel and resonance clarity through mechanical stability. Here, the isolating rubber helps limit direct vibration transfer between the lug and the shell, which can reduce some unwanted noise and preserve the finish, while promoting more consistent tuning over time.
Technical specifications

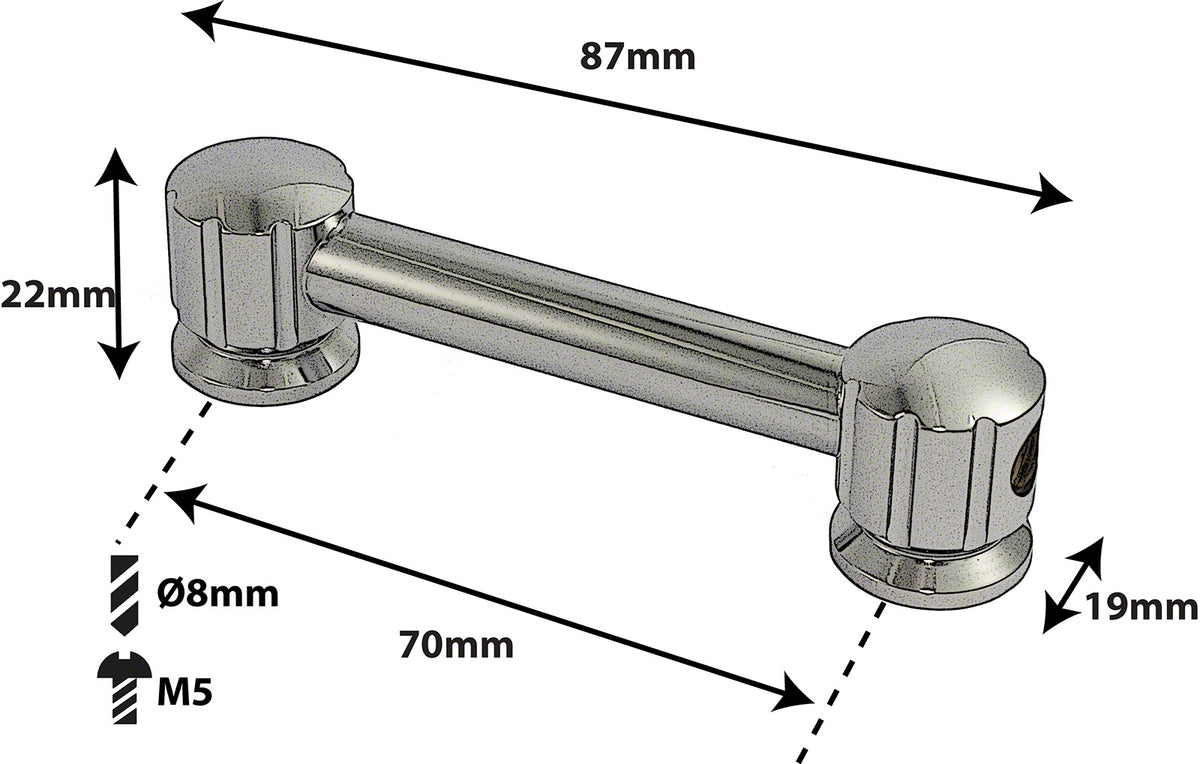

| Center-to-center spacing | 70 mm |
| Drill hole diameter | 8 mm |
| Mounting screw type | M5 |
| Mounting screws | not included |
| Tension rod threading | standard #12-24 (7/32 inch diameter) |
| Attachment points | 2 tension rod attachment points |
| Lug | brass |
| Finish | chrome |
| Isolating rubber | included |
Questions frequently asked
What is the center-to-center distance required to mount this tube lug?
The mounting center-to-center distance is 70 mm. The required drill holes have a diameter of 8 mm, and the mounting screws are M5 size.
Which tension rods are compatible with the Sparedrum TL8D70?
The threading accepts standard #12-24 tension rods, which have a diameter of 7/32 inch. The lug features two tension rod attachment points.
Are the mounting screws included?
The M5 mounting screws are not included.
Can this lug be installed on a bass drum?
For bass drum mounting, it is recommended to use the TLMG lug riser. This accessory ensures the necessary alignment and clearance according to the hoop and tension rods. The shell setup must adhere to the 70 mm center-to-center distance and 8 mm drill holes.
What material and finish does this lug have?
The lug is made of brass with a chrome finish. An isolating rubber is included to limit direct vibration transmission between the lug and the shell.
