Historical Context and Positioning in the Range
The tube lug is one of the classic staples of drum hardware: a format appreciated for its simplicity, compactness, and compatibility with widely used drilling and tension rod standards on snare drums and toms.
Who This Drum/Instrument Is For
This lug is aimed at drummers and technicians, from careful beginners to experienced players, who want to replace a damaged lug, standardize a kit, or improve the reliability of a shell. It suits most uses, from rock to jazz, as long as the spacing and threading match your shell.
Features and Innovations
Designed as a single attachment point for tension rods, it uses M5 mounting screws and 8 mm drilling. The isolating rubber helps preserve shell-to-hardware contact and avoid mechanical noise. Mounting screws not included.
Sound
A well-fitted lug contributes to tuning stability and consistent tension of the tension rods. The included isolator can help reduce unwanted metallic vibrations, resulting in a cleaner shell and better-controlled sustain depending on the setup.

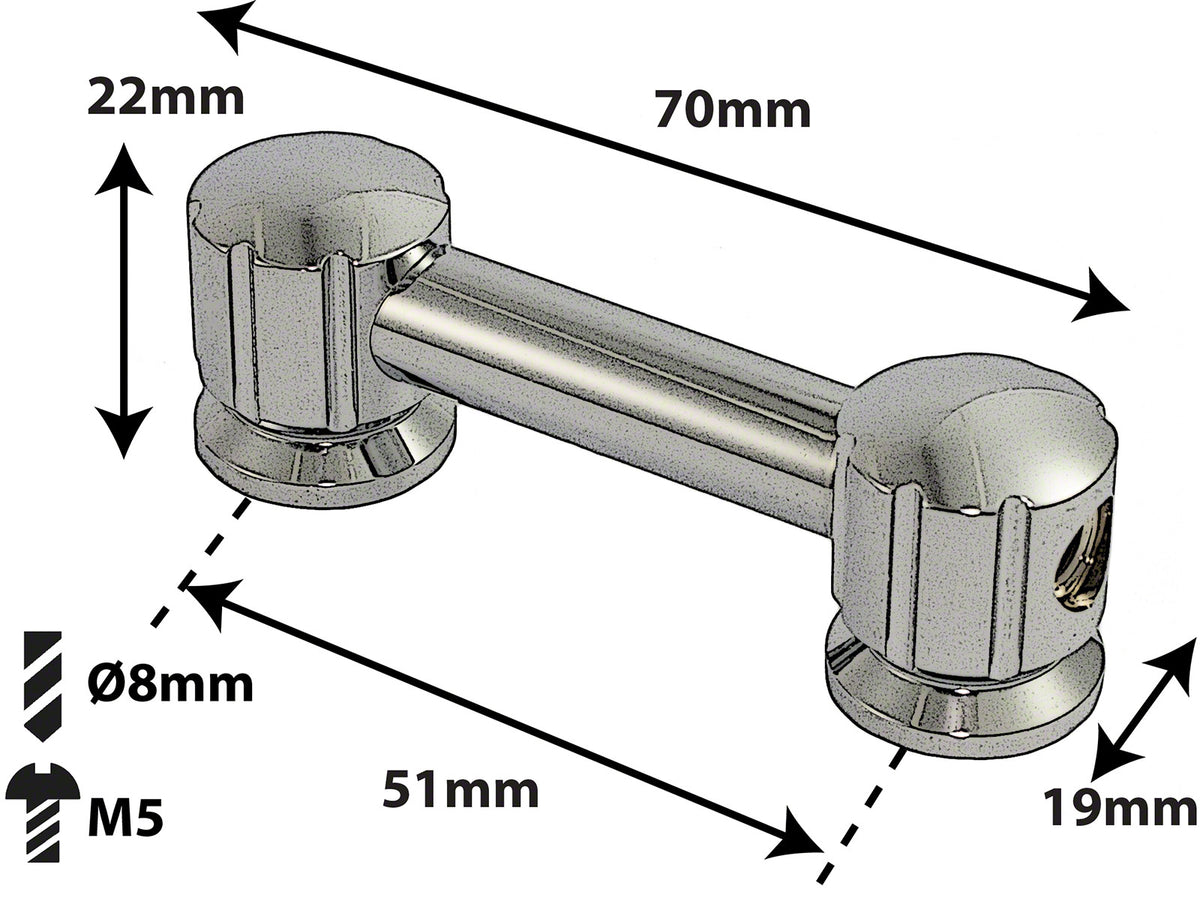

Technical specifications
| Type | tube lug for snare drum and tom (installation possible on bass drum with TLMG lug riser) |
| Center-to-center spacing | 51 mm |
| Drilling diameter | 8 mm |
| Mounting screw type | M5 |
| Mounting screws | not included |
| Tension rod threading | standard #12-24 (7/32" diameter) |
| Material | brass |
| Finish | chrome |
| Isolating rubber | included |
Questions frequently asked
What is the mounting center-to-center distance of this tube shell?
The center-to-center spacing is 51 mm, with 8 mm drill holes.
Which tension rods are compatible with the Sparedrum TL8S51?
The threading is the #12-24 standard, for rods with a 7/32 diameter.
Can this shell be mounted on a bass drum?
It is designed for snare drum and tom mounting. Installation on a bass drum is possible with the TLMG shell riser. Compatibility also depends on the 51 mm shell diameter.
Are the mounting screws included?
M5 mounting screws are not included with the shell.
What material and insulation are used?
The construction is brass with a chrome finish. An insulating rubber is included to limit direct contact between the hardware and the shell.
