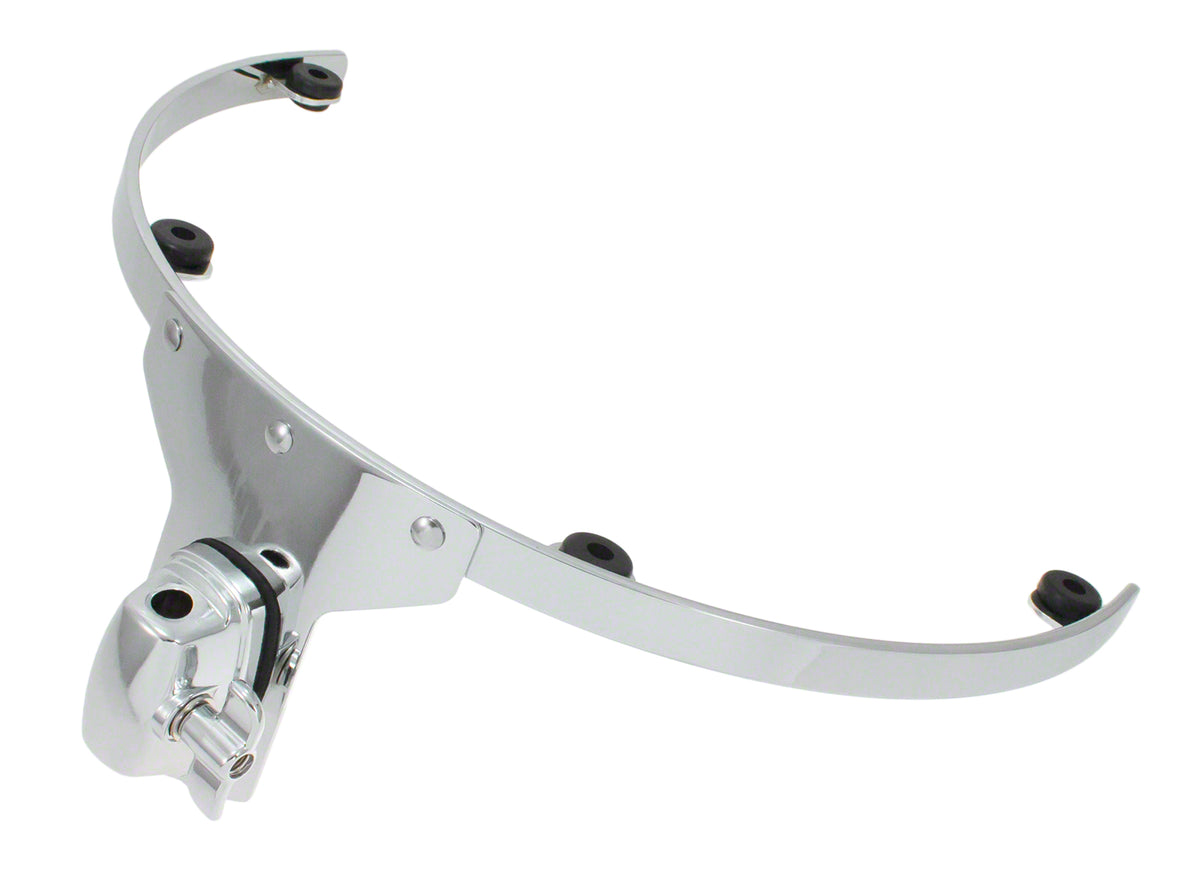

Sparedrum Tom Suspension 14" 8 Tension Rods - Square Plate
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Sparedrum
https://www.sparedrum.com
info@sparedrum.com
------------------------
Safety manager:
VBV International
Email: info@vbvinternational.com
Address:
Historical Context and Positioning in the Range
Rims-type suspension systems have established themselves as a simple and effective solution to improve a tom's resonance by limiting direct contact between the shell and hardware. This suspension for a 14-inch tom follows this logic: an accessory focused on sound performance, designed to enhance openness and consistency of response while maintaining reliable installation on an 8-lug tom.
Who This Drum/Instrument Is For
This suspension is aimed at drummers from beginner to expert levels who want to improve the natural resonance of their 14-inch tom without changing the shell. It is particularly suited to styles seeking a more "open" tom and better note length: rock, pop, funk, fusion, gospel, as well as studio contexts where sound sustain and tuning stability are essential.
Features and Innovations

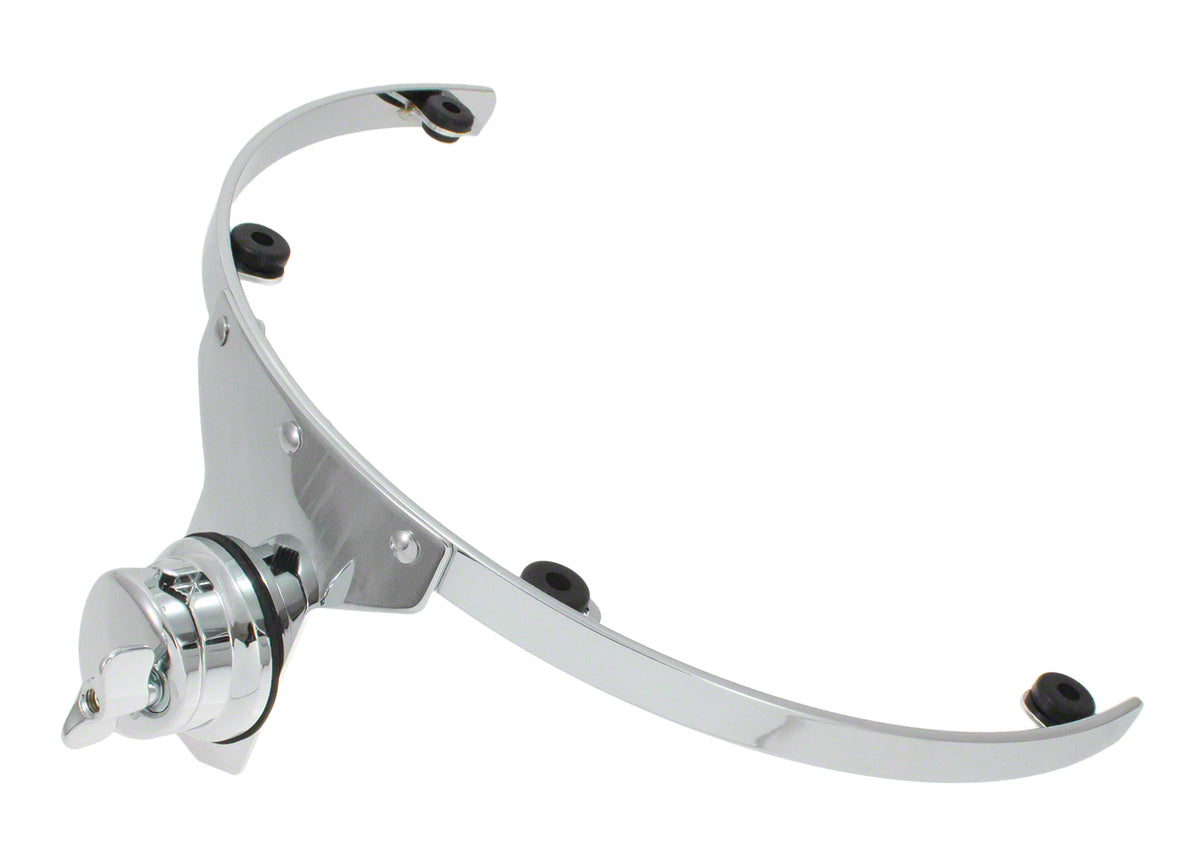

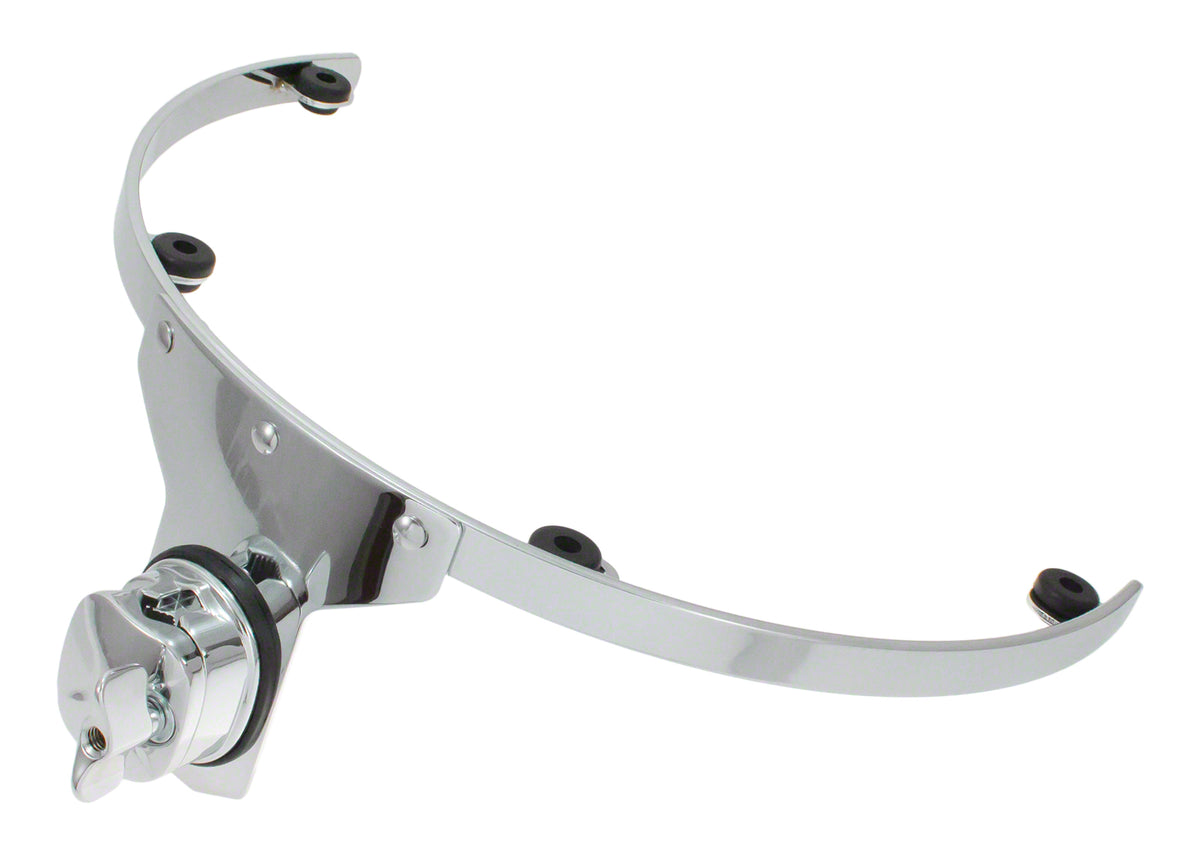

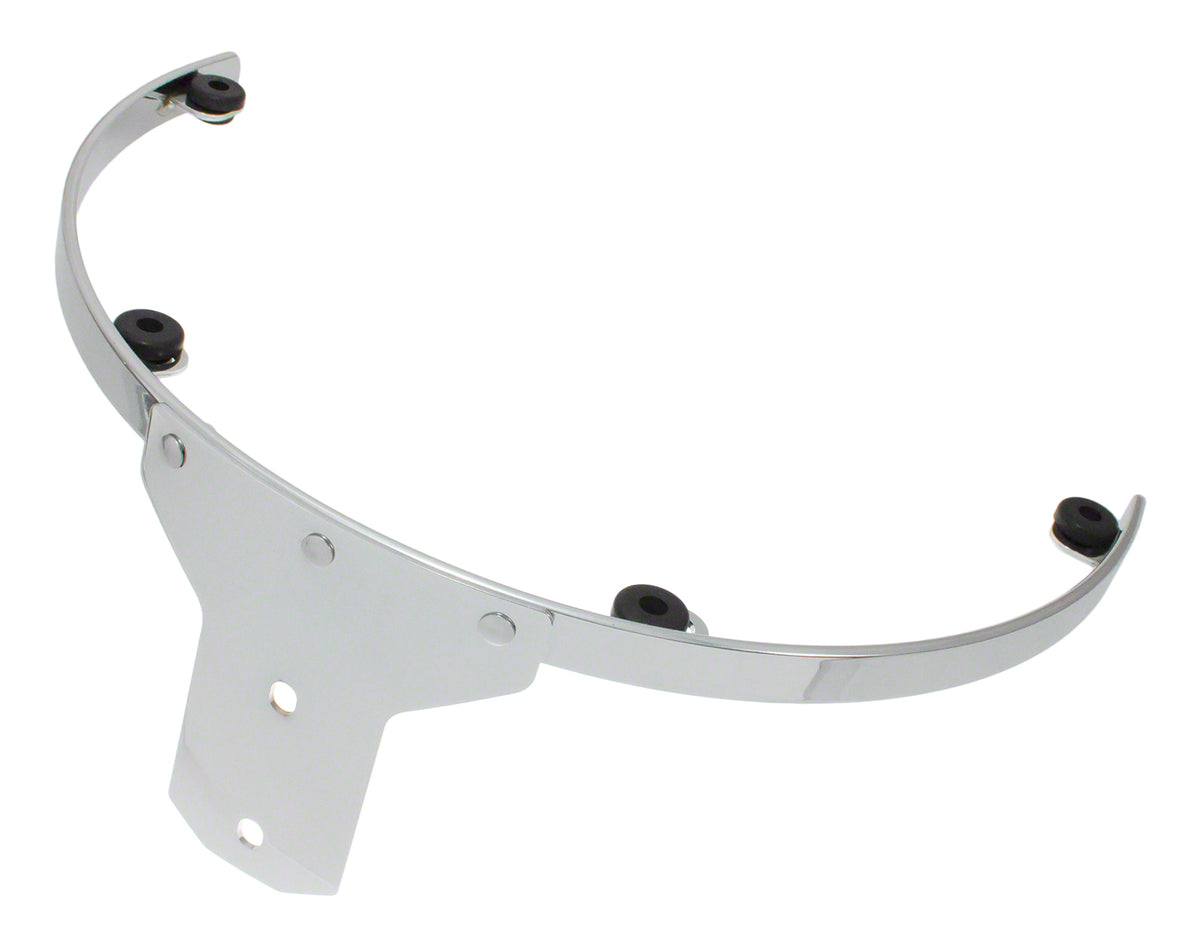

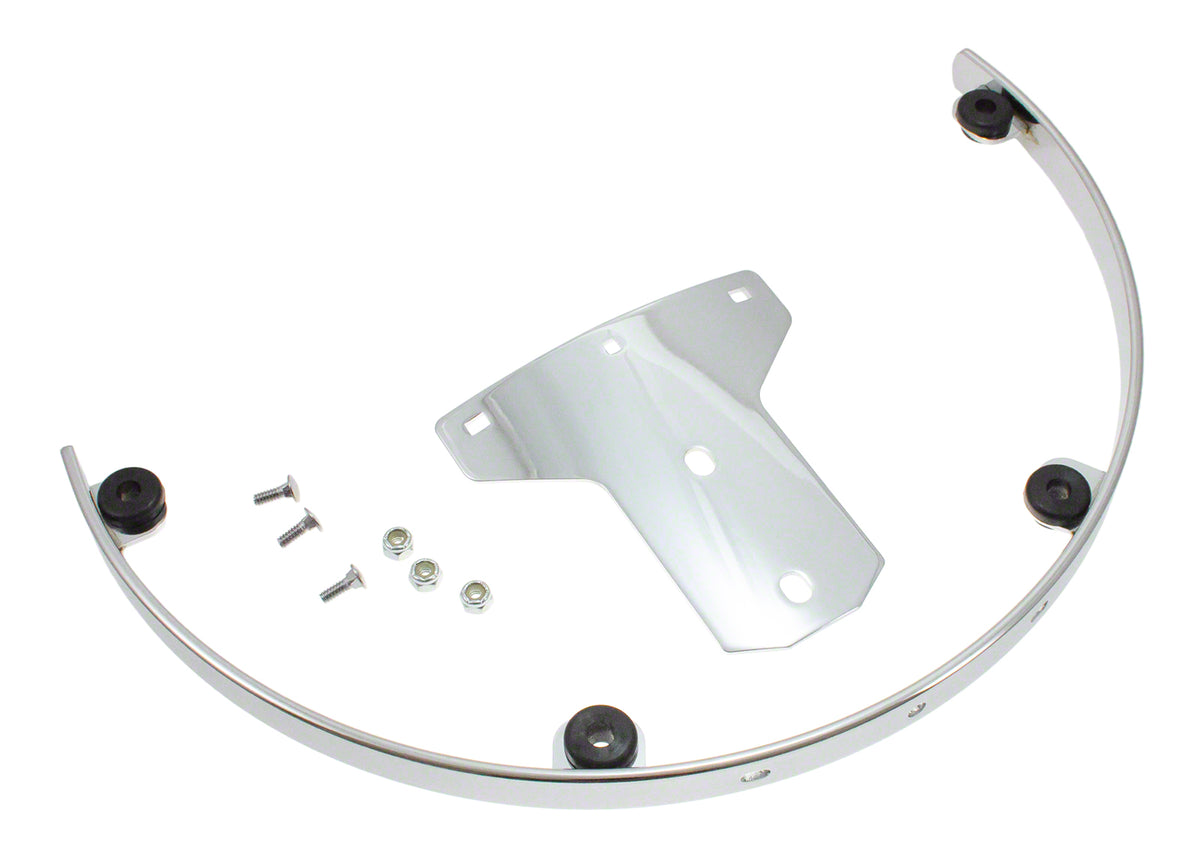

The key strength of this model lies in its 6 suspension points incorporating isolation rubber. While some suspensions use only 2 lugs as support points, this design multiplies contact points to distribute pressure more evenly across the lugs. The result: a more consistent feel of support, better distributed stress, and a configuration designed to preserve the shell's vibrational behavior as much as possible. The square plate facilitates integration with compatible shells, especially the Sparedrum TB4 (recommended).
Sound Characteristics
A suspension does not add "color" to the wood as changing the shell would, but it directly influences how the tom breathes. By limiting mechanical damping, this system helps the shell produce a more open sound, with generally longer sustain and a more natural projection.
Specifically, depending on your tom's wood species, the effect varies: on a maple shell, the suspension will emphasize roundness and fullness, while on a birch shell, it will enhance the sense of a sharp attack while better expressing depth. In all cases, the rubber isolation helps maintain a more consistent response, particularly appreciated at low dynamics and during studio mic recordings.
Technical specifications
| Type | Rims suspension for 14-inch tom | Hole diameter | 8 mm |
| Configuration | 8 lugs | Suspension points | 6 points |
| Compatible with Sparedrum shells | TB4 (recommended), TB5, TB1 | Isolation | isolation rubber |
| Support shell | not included | Material | steel |
| Plate dimensions | 128 x 59 mm | Finish | chrome |
| Plate center-to-center spacing | outside to outside 62.5 mm | ||
Questions frequently asked
Is this suspension compatible with a 14-inch tom with 8 lugs?
This suspension is designed for a 14-inch tom equipped with 8 lugs.
Which Sparedrum shells can accept this square mounting plate?
The Sparedrum TB4 shell is recommended. The TB5 and TB1 models are also listed as compatible. The mounting shell is not included.
What are the dimensions and center-to-center distance of the mounting plate?
The square plate measures 128 x 59 mm. Its outer center-to-center distance is 62.5 mm and the holes have a diameter of 8 mm.
How many suspension points does this Rims system have?
The system uses 6 suspension points with isolation rubber to distribute pressure over the lugs.
What effect does this suspension have on the resonance of a tom?
By isolating the shell from the hardware, the suspension promotes a more open sound and generally longer sustain. The chrome-finished steel structure is designed to minimize mechanical damping of the tom.
