An Installation Mixer Designed for Public Venue Sound Systems
The MZ-223 is a rack-mountable mixer designed for fixed installations where reliable, easy-to-control, and consistent daily audio distribution is required: retail stores, restaurants, bars, hotels, public venues, or leisure spaces. Its "3-zone" logic allows adapting the sound atmosphere to different areas (room, terrace, reception, hallways) while maintaining immediate usability.
Who Is It For and What Are Its Uses?
This mixer is intended for integrators, sound engineers, and operators who want to centralize multiple sources (music, players, turntables, microphones) and easily route them to multiple sound zones. It is also perfectly suited for event hosting: announcements, room microphones, karaoke, or occasional interventions, thanks to its dedicated microphone inputs and Talkover function. The rack format facilitates integration into a technical rack, control furniture, or a counter.
Control, Assignment, and Intelligibility: Essentials for Daily Use
With its 5 stereo line-level inputs, the MZ-223 accommodates classic analog sources (media player, tuner, cassette deck, etc.). Two of these inputs can be switched to Phono to connect a turntable, convenient for venues wishing to maintain vinyl playback without adding an external preamp.

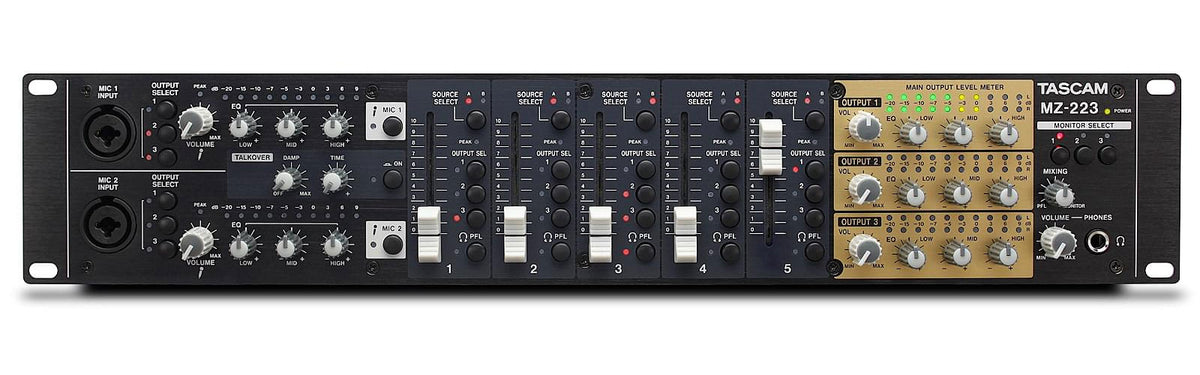

Adjustable Inputs and Immediate Visual Control
Each stereo input features gain control, a peak indicator, and a fader : allowing precise level adjustment, avoiding distortion, and maintaining a comfortable headroom. The 2 mono microphone inputs are also designed for field use, with level control, LED level indication, and a 3-band equalizer to optimize vocal clarity. They are intended for dynamic microphones only, a common choice in installations for robustness and simplicity.
Talkover: Clear Announcements Without Manual Adjustments
In announcement contexts, the Talkover function is a real convenience: as soon as voice is detected, the mixer automatically lowers the music volume based on the vocal level. The result: clearer messages and a more professional broadcast without having to manually lower faders with each speech.

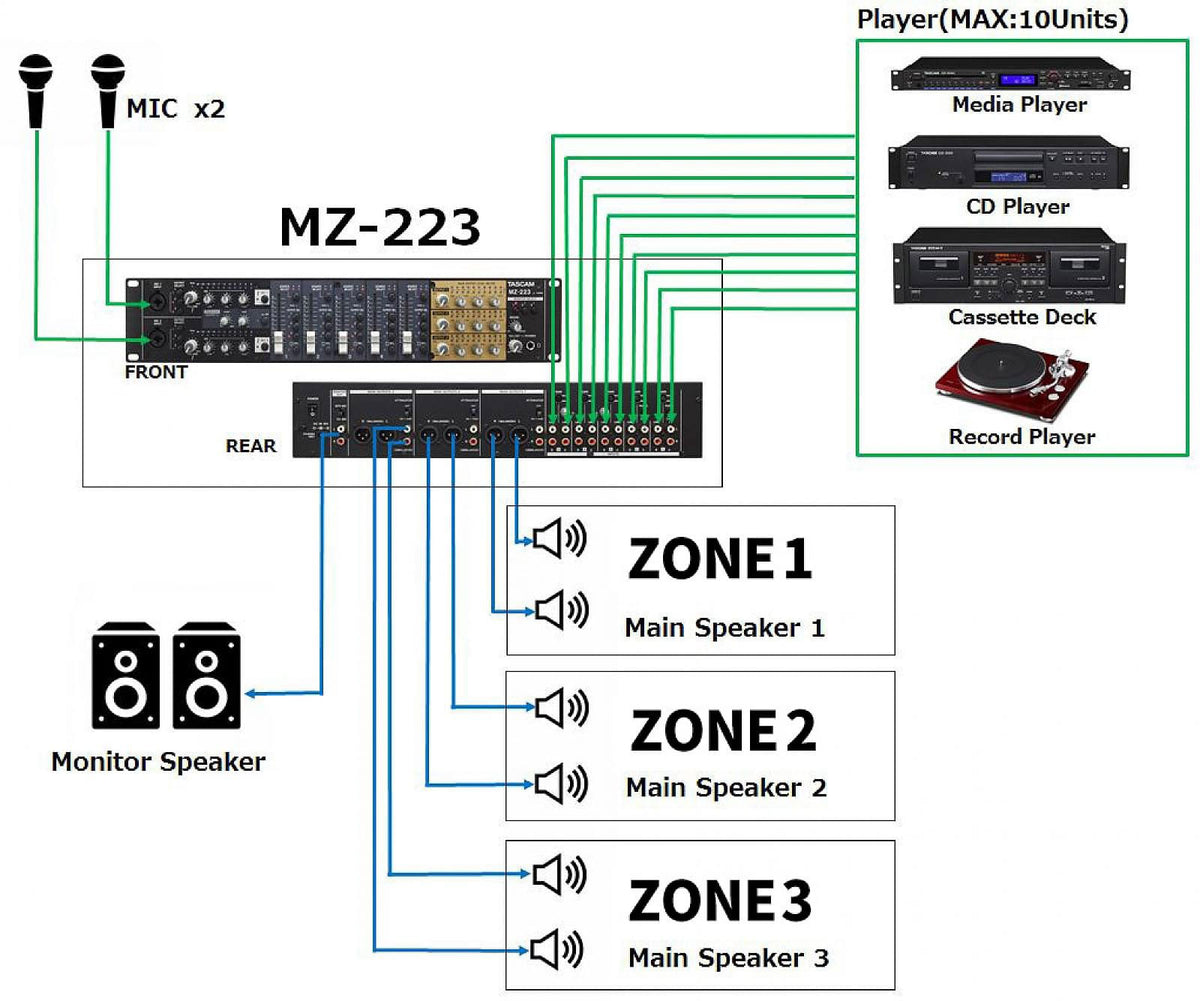

Three Main Zones + Monitoring and Headphones

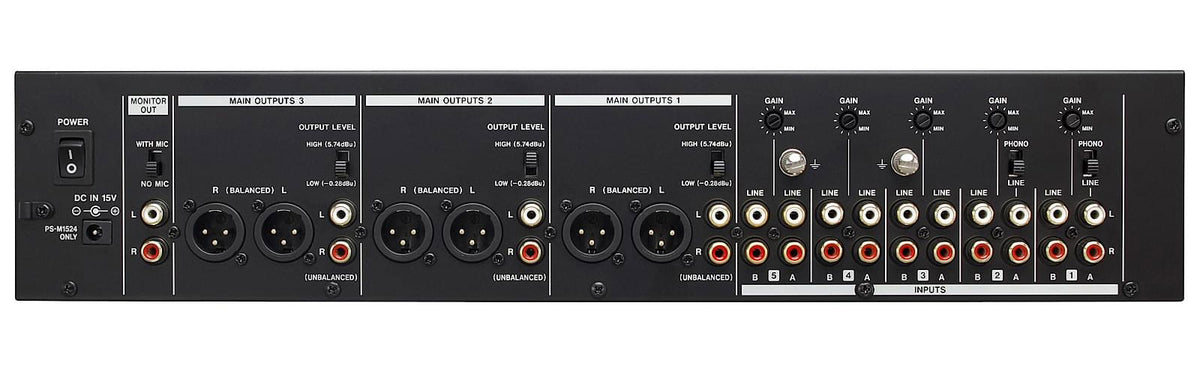

The 3 zone outputs each have their own level control, LED level meter, and 3-band equalizer : allowing you to adjust the tonal balance according to the acoustics of each space (reverberant room, quieter area, outdoor, etc.). An independent Monitoring output is available for the control room, while a headphone output with level control enables pre-fader monitoring of the selected input or one of the main outputs, useful for checking a source or preparing an intervention without disturbing the broadcast.
Technical specifications
| Type | analog Compact |
| USB stereo recording / playback | No |
| Number of faders | 5 |
| Rackable | Yes |
| Headphone output | Yes |
| Applications | background music, voice announcements, sound reinforcement, karaoke |
| Total number of inputs | 7 (5 stereo, 2 mono) |
| Stereo inputs | 5 analog line inputs |
| Phono inputs | 2 stereo inputs switchable to Phono position (for turntable) |
| Microphone inputs | 2 microphone inputs (dynamic microphones only) |
| Controls per stereo input | gain, peak indicator, fader |
| Controls per microphone input | level, LED level indicator, 3-band equalizer |
| Assignment | each input assignable to one zone or all zones |
| Function | built-in Talkover |
| Main zones | 3 zone outputs with level control, LED level indicator, and 3-band equalizer |
| Monitoring output | 1 independent monitoring output |
| Dimensions with feet | 454 x 140 x 180 mm |
| Dimensions with rack ears | 483 x 132 x 120 mm |
| Weight | 4.5 kg |
Questions frequently asked
Does the Tascam MZ-223 support managing three independent audio zones?
The 3 zone outputs each feature volume control, an LED level meter, and a 3-band equalizer. Each input can be assigned to a specific zone or to all zones.
Can turntables be connected to this rack-mountable mixer?
Two of the 5 analog stereo inputs can be switched to Phono mode, allowing direct connection of turntables without an external preamp.
Which microphones are compatible with the microphone inputs?
The 2 mono mic inputs are designed exclusively for dynamic microphones. Each has a level control, an LED indicator, and a 3-band equalizer.
How does the Talkover function work for microphone announcements?
The Talkover function automatically lowers the music level when a voice is detected. The attenuation adjusts according to the vocal level to preserve announcement intelligibility.
What are the dimensions of the rack mixer?
With rack ears, the unit measures 483 x 132 x 120 mm and weighs 4.5 kg. With feet, the dimensions are 454 x 140 x 180 mm. An independent Monitoring output and a headphone output complement the 3 zone outputs.
