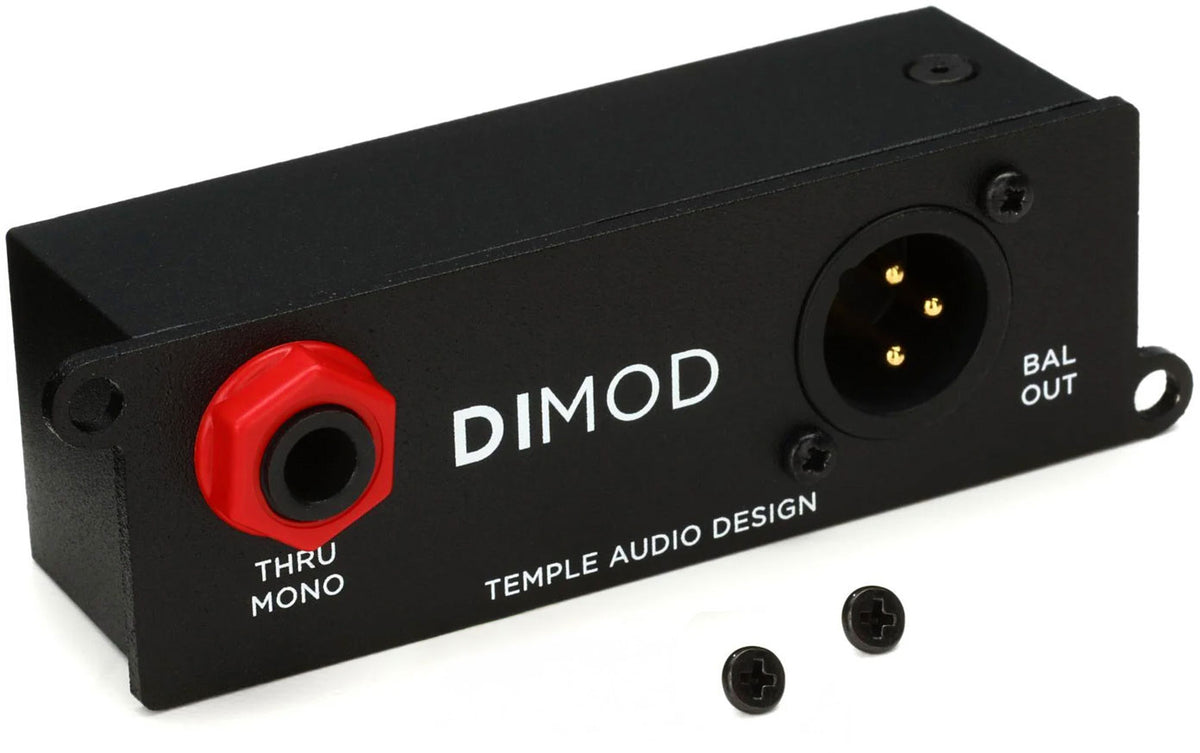

Essential Information About the Temple Audio DI MOD Passive DI Module
- Passive DI in module format to integrate a clean direct output into your Templeboard
- Custom-wound transformer for faithful sound and high-quality isolation

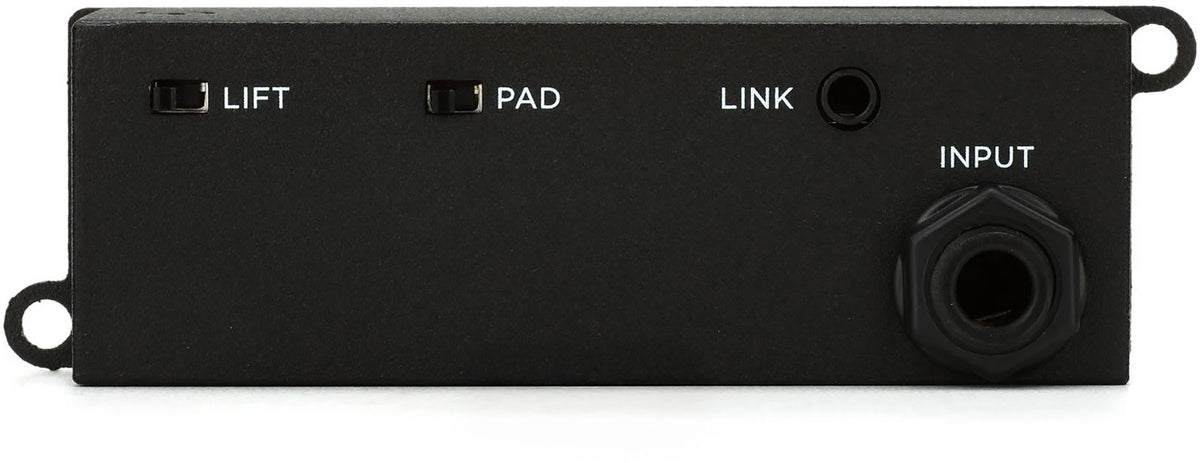

- Ground lift to eliminate unwanted hums, buzzes, and interference
- -15dB pad to control overly strong signals
A Module Designed for the Templeboard Ecosystem
The DI MOD fits within Temple Audio's modular approach: centralizing useful connections on the pedalboard without multiplying external boxes. Once installed in your Templeboard's Modular End Panel, it becomes a reliable and discreet connection point, ready for both stage and studio use.
For Guitarists, Bassists, and Pedalboard Users Who Want a Simple and Effective DI
This module is aimed at musicians who want to send a direct signal to a front of house console or a DAW, while keeping clean wiring on the pedalboard. Ideal for setups where stability, quick installation, and reduction of unwanted noise are priorities.
Technical specifications
| Effects | Bass Preamp / DI Box |
| Technology | Analog |
| Use | Pedalboard |
Questions frequently asked
Is the Prod Passive DI Module compatible with a Templeboard?
This module installs in the Modular End Panel of a Templeboard to centralize the DI connection directly on the pedalboard.
Is the -15 dB pad suitable for high-level signals?
The -15 dB pad allows attenuation of high-level sources before sending the direct signal.
How to eliminate a ground loop on a pedalboard?
A ground lift is integrated to help resolve ground loop issues. The custom wound transformer contributes to signal isolation. This passive design aims to preserve the character of the instrument.
Can the Thru jack be used as an input?

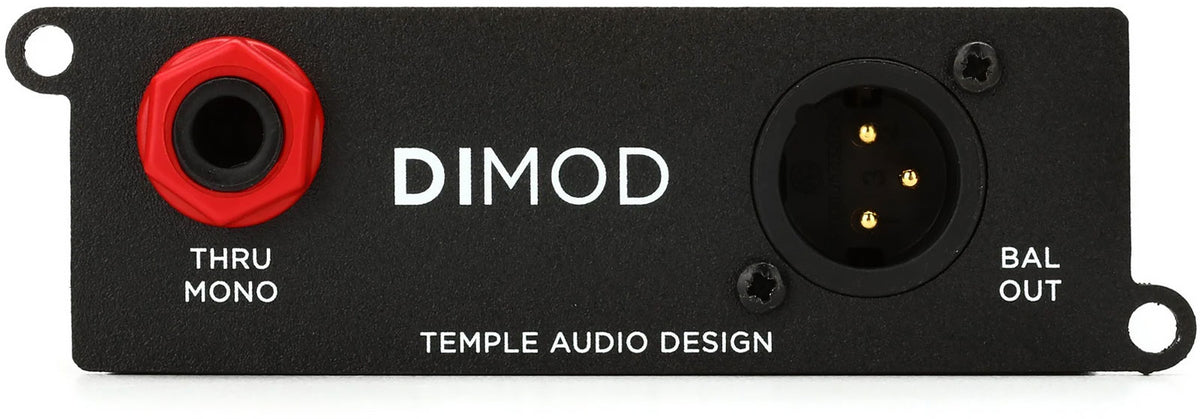

The Thru jack on the front panel can also be used as an input, notably to send a dry DI signal to the front of house or recording.
Is this DI suitable for guitar and bass to a mixing console?
Designed for guitarists and bassists, this analog module allows sending a direct signal to a front of house console or a DAW.
