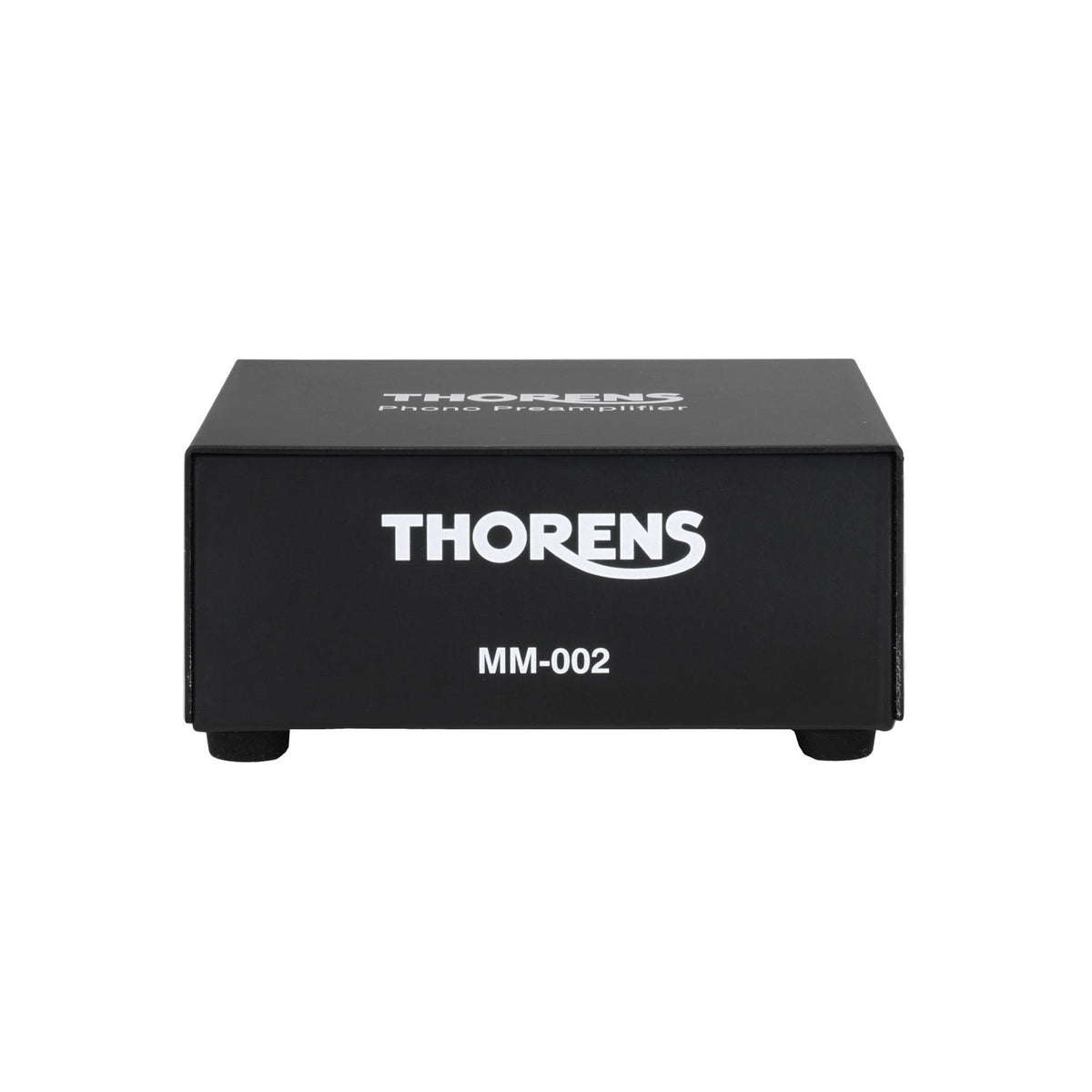

Thorens MM-002
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the MM 24V Phono Preamplifier
Essential Information About the MM 24V Phono Preamplifier
- Designed for vinyl turntables with MM cartridges: moving magnet (MM) compatibility and 47 kOhm input impedance for easy pairing with most cartridges.
- Accurate RIAA correction: RIAA equalization specified with a maximum accuracy of plus or minus 0.3 dB for faithful playback of your records.
- Compact and robust format: metal chassis and front panel, dimensions 100 x 45 x 93 mm, ideal when space is limited in a Hi-Fi setup.

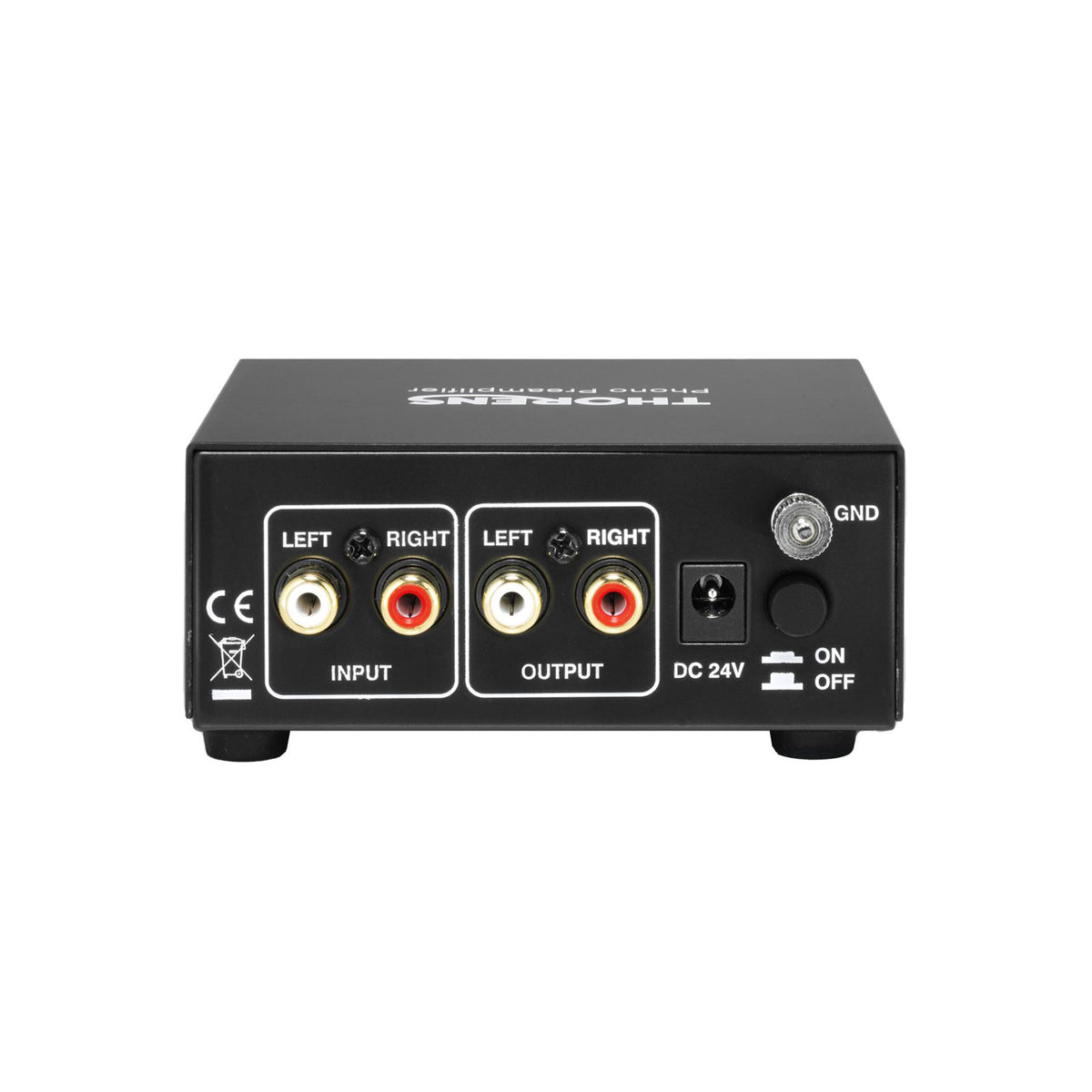

- Immediate connection to a line input: RCA phono input, RCA line output, and ground terminal to reduce hum.
Manufacturer Information
Thorens
https://www.thorens.com
info@thorens.com
------------------------
Safety manager:
SOGETRONIC
Email:
Address:
The Essential Link Between Your Vinyl Turntable and a Line Input
A vinyl turntable delivers a very low-level signal that requires appropriate gain and RIAA equalization before feeding an amplifier, active speakers, or an interface equipped only with "line" inputs. This is precisely the role of a phono preamplifier: to boost the signal level and restore the tonal balance imposed by record cutting. With its 40 dB gain and input level adapted to MM cartridges, this model belongs to the category of direct, efficient, and easy-to-integrate solutions designed to bring your vinyl setup back to life without relying on a dedicated phono input on the amplifier.
Who Is This Phono Preamp For?
This preamplifier is aimed at vinyl enthusiasts using a turntable equipped with a MM cartridge who want to connect it to a line input (AUX, LINE, CD, TAPE, RCA input of powered speakers, etc.). It is suitable both for a first Hi-Fi system and for a more advanced setup, as long as you are looking for a compact and low-noise solution capable of preserving the dynamics and details of your pressings. The presence of a ground connection is a real advantage for stabilizing the setup and reducing hum, especially with turntables sensitive to ground loops.
Technical specifications
| Chassis and front panel material | metal | RIAA accuracy | plus or minus 0.3 dB max. |
| On/off switch | on the rear panel | Signal-to-noise ratio | greater than 86 dB (MM) |
| Compatibility | moving magnet (MM) | Distortion | less than 0.015 percent |
| Input sensitivity | 3.14 mV | Connections | 1 RCA Phono input, 1 RCA Line output, 1 ground connection, 1 24V DC power connector |
| Gain | 40 dB | Power supply | separate, 24V DC / 630 mA |
| Impedance | 47 kOhms (MM) | Dimensions (W x H x D) | 100 x 45 x 93 mm |
| Capacitance | 220 pF | Weight | 0.292 kg (excluding the power supply) |
| Frequency response | 10 Hz to 50 kHz (minus 3 dB) | ||
You will also like
Tangent
TANGENT AMPSTER BT II
Thorens
MM-008
Ortofon Hifi
2M BLUE
Ortofon Hifi
2M RED PREMOUNTED
Yourban
Getone 70 Black
Ortofon Hifi
2M BLUE VERSO
Ortofon Hifi
CONCORDE MUSIC RED
Yourban
Getone 70 Green
Questions frequently asked
Is the Thorens MM-002 compatible with an MC cartridge?
This model is designed exclusively for moving magnet (MM) cartridges, with an input impedance of 47 kOhms and a capacitance of 220 pF. It has no indicated MC compatibility.
How to connect a turntable to active speakers with this preamp?
The turntable connects to the phono RCA input, then the line RCA output is connected to the line input of the active speakers. A ground terminal allows connection of the turntable’s ground wire to reduce hum.
What gain is offered for an MM cartridge?
A gain of 40 dB is applied to the MM signal, for an input sensitivity of 3.14 mV. This level is suitable for connection to an AUX, CD, TAPE, or LINE input.
Is the RIAA equalization accurate on this phono preamp?
The RIAA equalization has a precision of plus or minus 0.3 dB maximum. The frequency response extends from 10 Hz to 50 kHz at -3 dB, with distortion below 0.015%.
What are the enclosure dimensions and its power supply?
The enclosure measures 100 x 45 x 93 mm and weighs 0.292 kg excluding power supply. A separate 24 V DC power supply is provided, while the power on-off switch is located at the rear.
