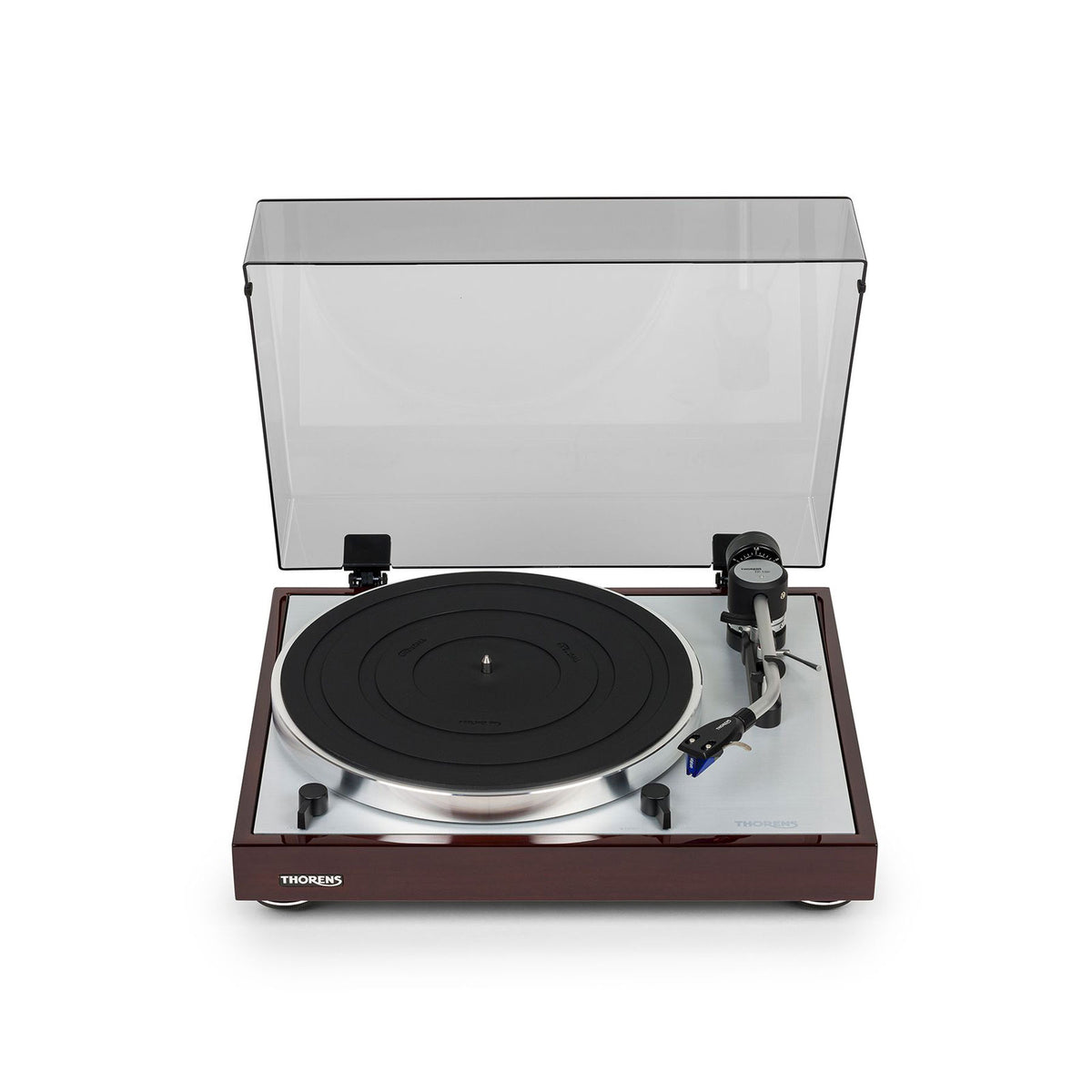

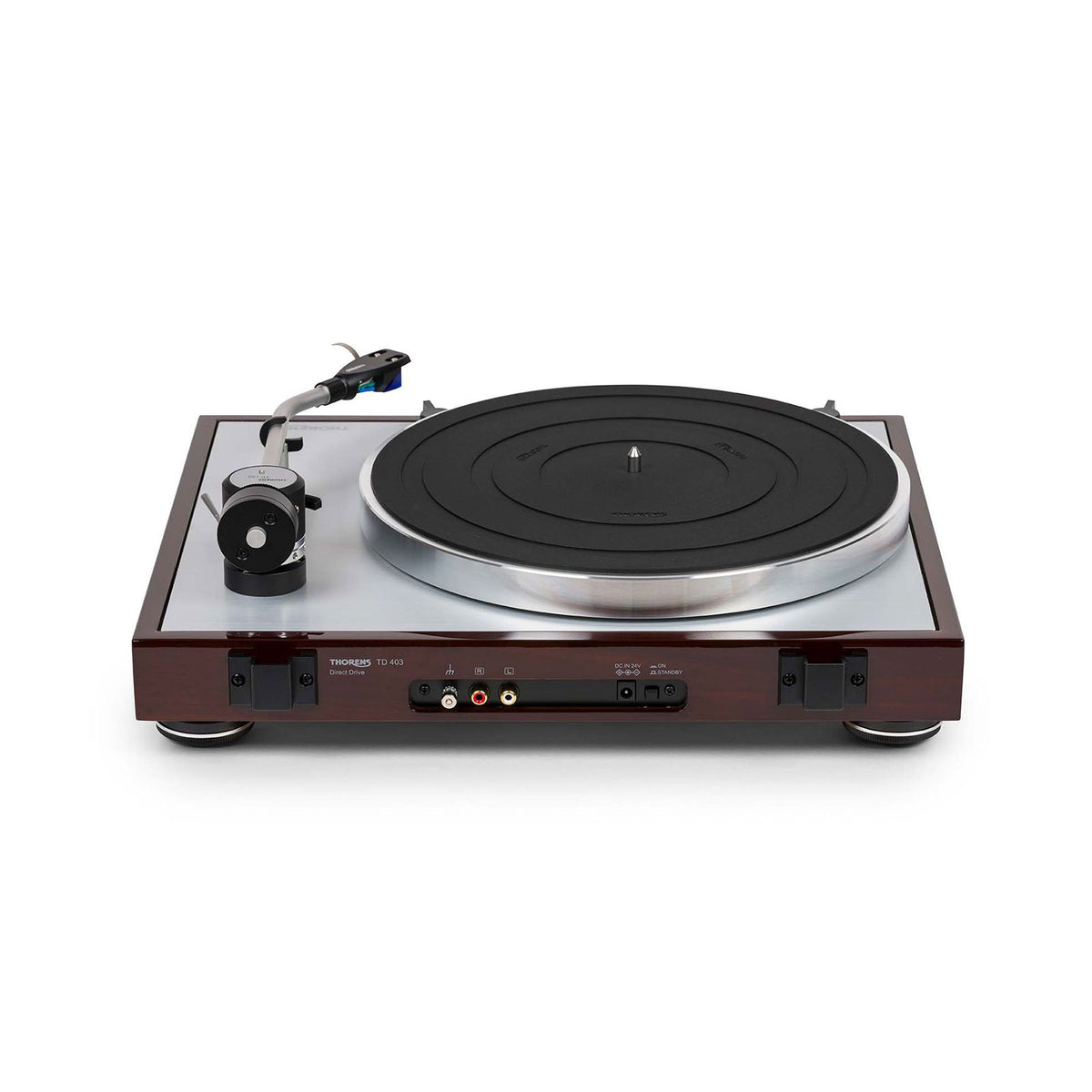

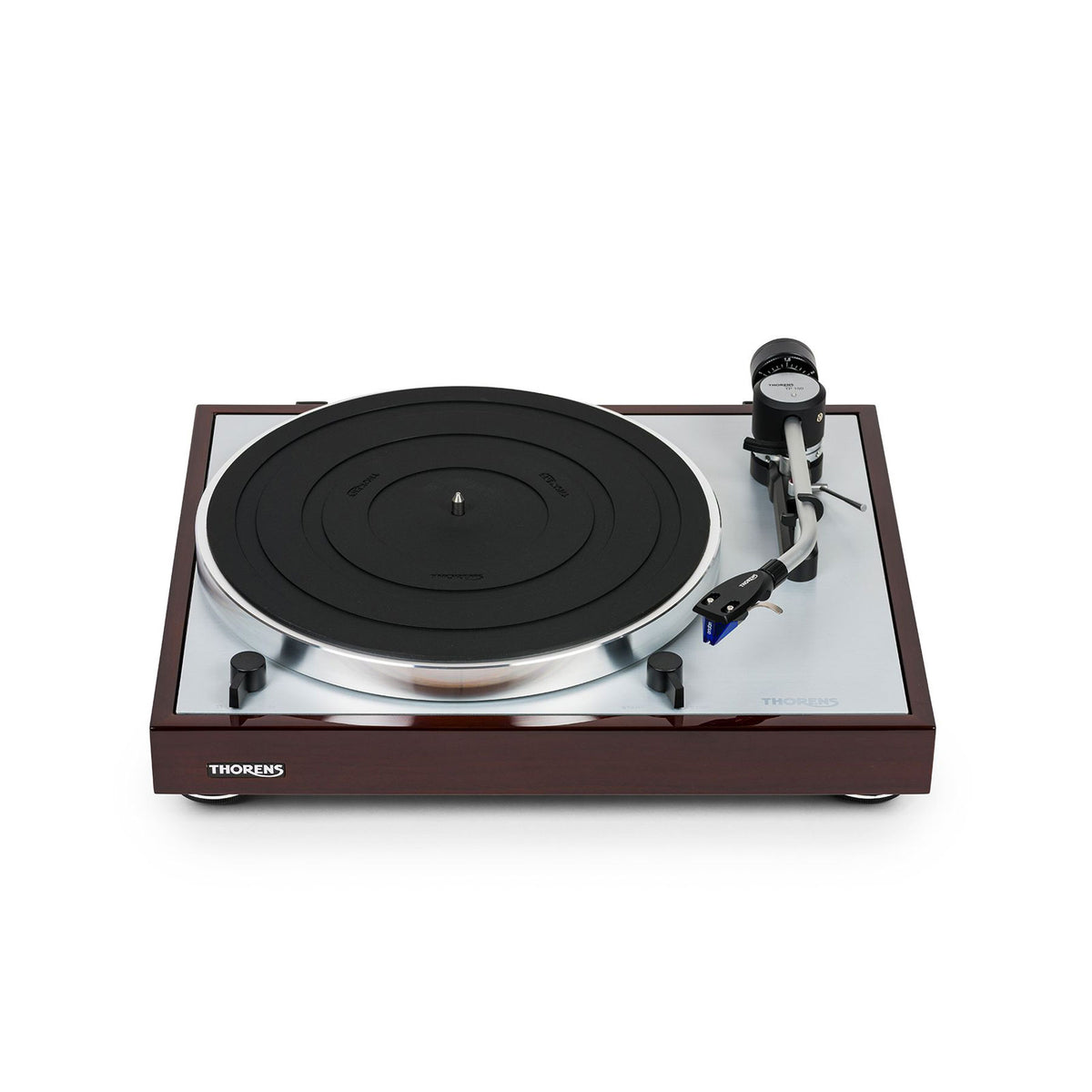

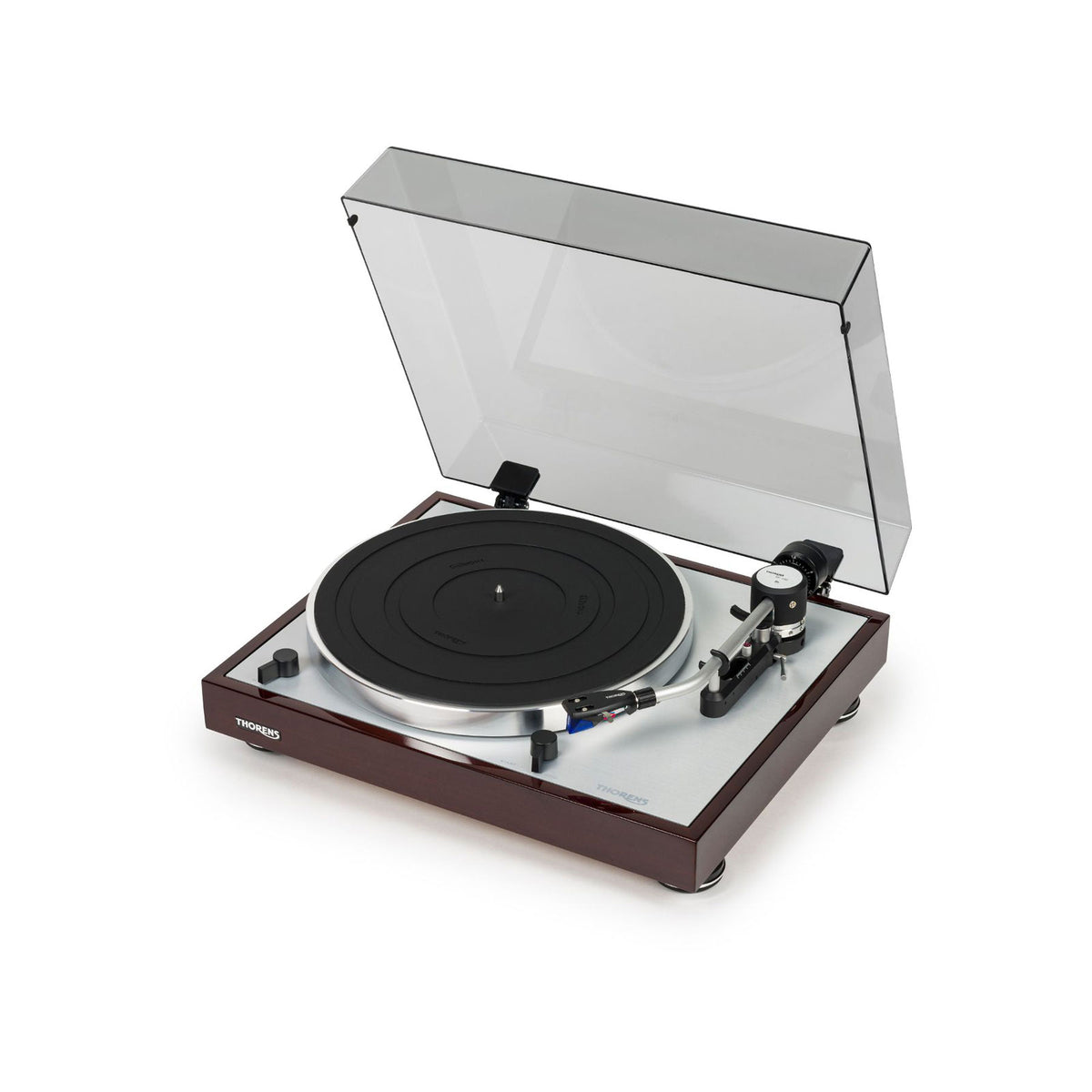

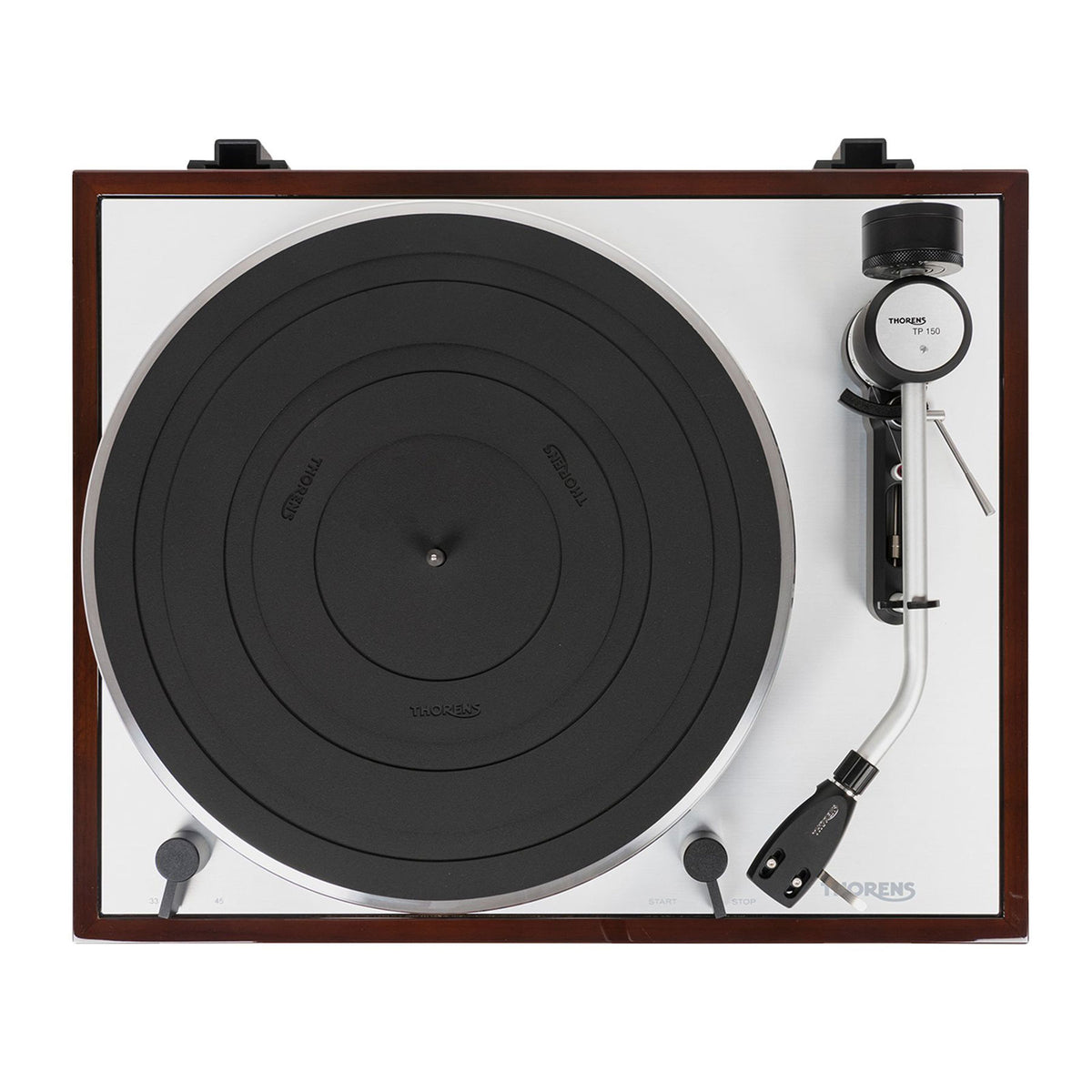

Thorens TD 403 DD Walnut
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Thorens
https://www.thorens.com
info@thorens.com
------------------------
Safety manager:
SOGETRONIC
Email:
Address:
A Modern Hi-Fi Turntable Designed for Stability and Musicality
This manual turntable positions itself as a device oriented towards hi-fi listening, with a design focused on rigidity and rotational consistency. The MDF chassis surround and the die-cast aluminum platter form a coherent base to limit unwanted vibrations and promote clean, stable, and nuanced sound reproduction.
The choice of a lacquered Walnut plinth finish combined with a gray body provides a look that is both warm and contemporary, easy to integrate into a living room, dedicated listening space, or a refined vinyl setup.
Who Is It For and What Are Its Uses?
This model is aimed at vinyl enthusiasts who want to step up to more precise listening without entering overly complex adjustments. It is well suited for a beginner to advanced hi-fi audience looking for a serious turntable to rediscover their collection, enjoy a more readable soundstage, and gain detail on vocals, cymbals, and textures.
Its manual operation will appeal to those who appreciate the vinyl ritual and direct control over operations (start, stop, speed change). It is ideal for domestic listening (living room, office, dedicated room) and listening studios to check pressings, archive, or compare masters, provided it is paired with a suitable phono preamp.
Features and Innovations
The turntable is based on a direct drive system and simple speed management: 33 1/3 RPM and 45 RPM, with manual switching via a front panel switch. The start and stop of rotation are also controlled by a front panel switch for immediate handling and clear ergonomics.

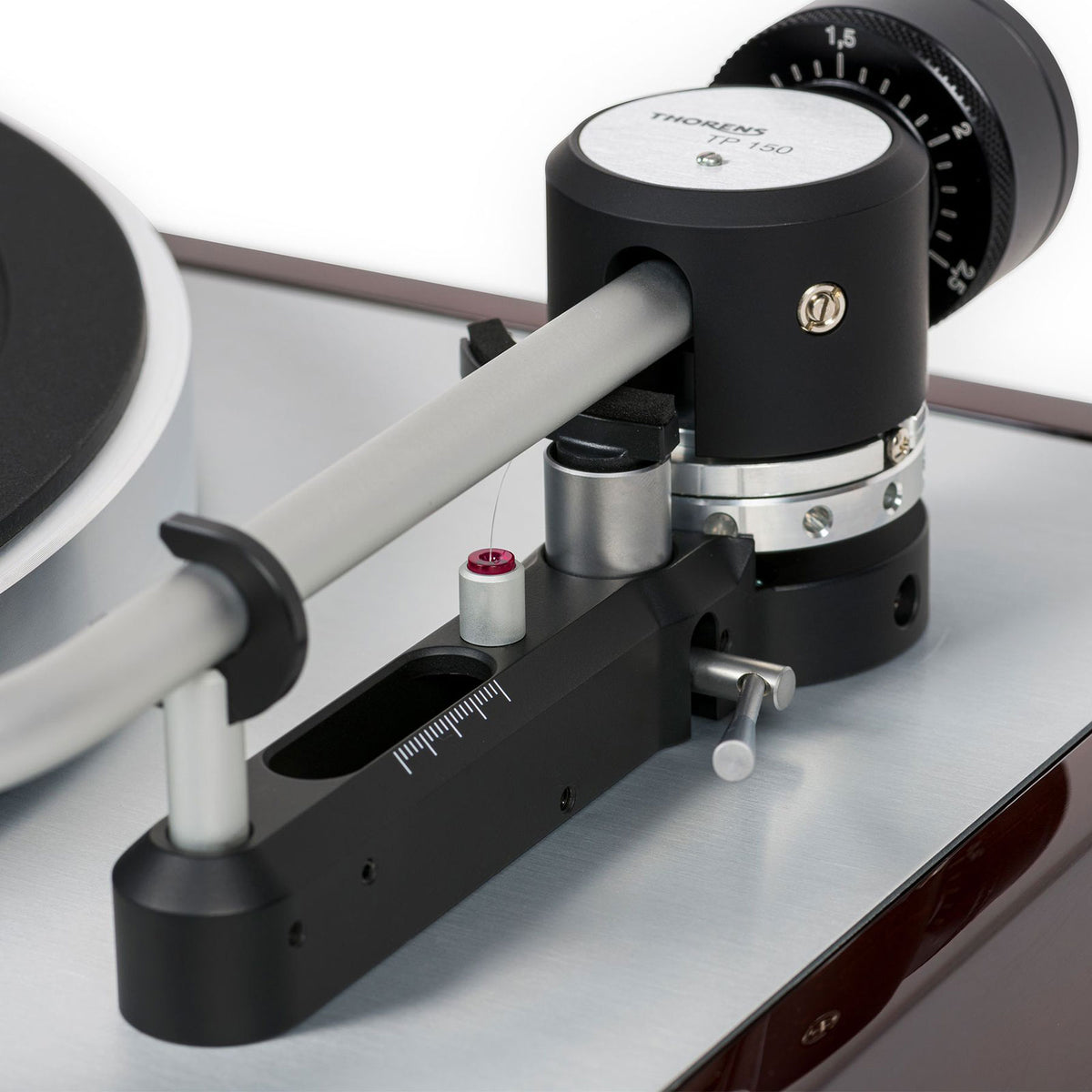

The TP 150 tonearm is equipped with an SME connection ring and a removable headshell, a real advantage for maintenance, system upgrades, or preparing a second headshell to alternate between different cartridges. The magnetic anti-skating contributes to better groove tracking, with a more balanced channel output and better stylus wear control when properly adjusted.

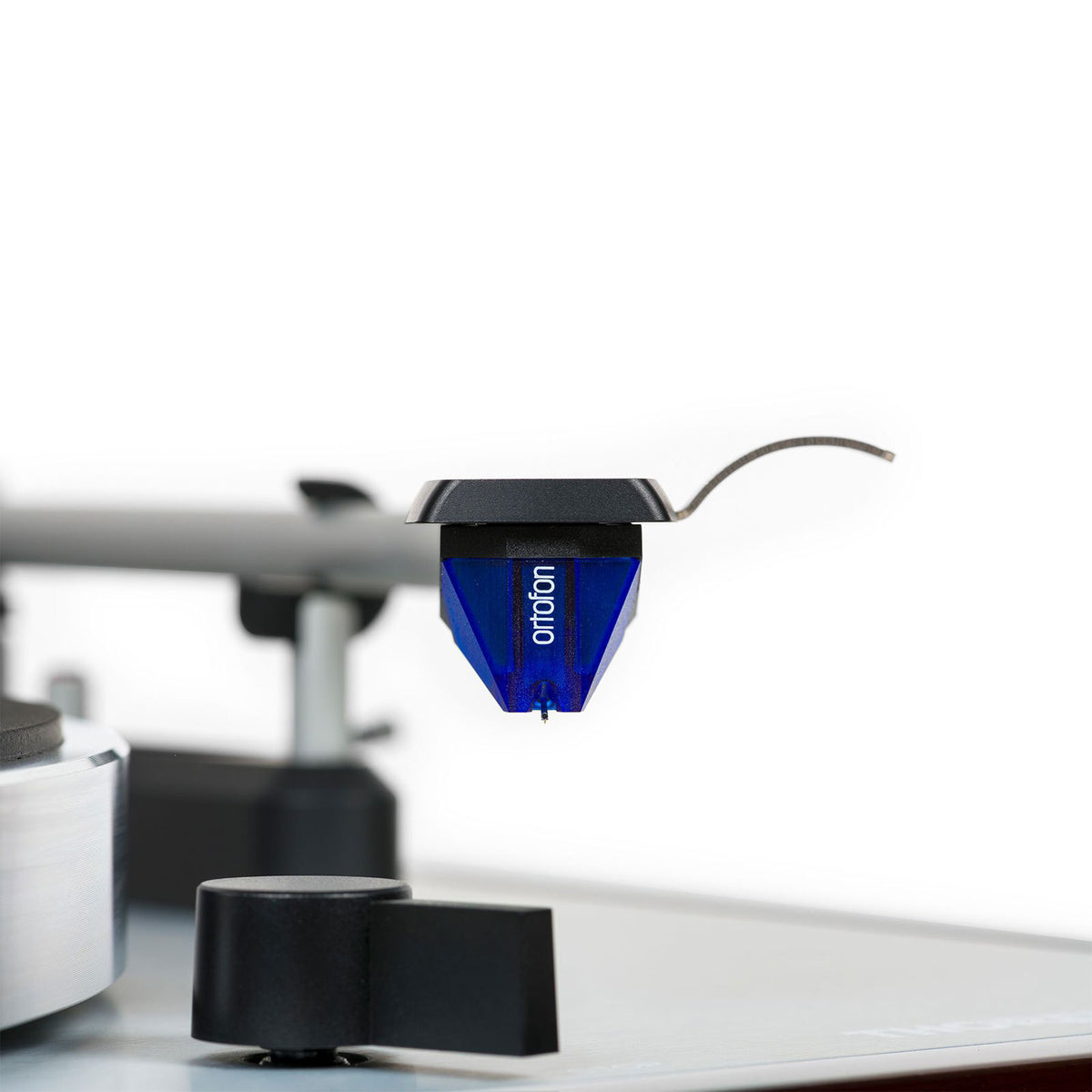

The supplied cartridge is an Ortofon 2M Blue with a 1/2" mount, featuring a moving magnet (MM). Its nude elliptical diamond aims for a clear gain in definition and finesse compared to simpler profiles, while maintaining versatile musicality. With an output level of 5.5 mV, it easily pairs with most MM phono inputs.
Technical specifications
| Digital conversion | No | Dimension | 12" |
| Bluetooth | No | Outputs | Rca |
| Drive | direct | Color | Grey |
| Platter weight and size | 1.4 kg, 30.48 cm diameter, 22 mm thickness | Stylus radius | r/R 8/18 µm |
| Speed | 33 1/3 RPM, 45 RPM | Tracking force | 1.6-2.0 g (16-20 mN) |
| Speed switching | manual (front panel switch) | Recommended tracking force | 1.8 g (18 mN) |
| Finish | Lacquered Walnut plinths and gray body | Tracking angle | 20 degrees |
| Output level at 1000 Hz, 5 cm/sec | 5.5 mV | Internal impedance | 1.3 kOhm |
| Channel balance at 1 kHz | 1.5 dB | Internal inductance | 700 mH |
| Channel separation | 25 dB (1 kHz) to 15 dB (15 kHz) | Recommended load | 47 kOhm / 150-300 pF |
| Frequency response | 20 - 25,000 Hz (-3 dB) | Cartridge mass | 7.2 g |
| Lateral compliance | 20 µm/mN | Dimensions (W x H x D) | 420 x 141 x 360 mm |
| Stylus type | Nude elliptical | Weight | 7.2 kg |
Questions frequently asked
Does the Thorens TD 403 DD Walnut have a built-in phono preamp?
No built-in phono preamp is specified. The RCA outputs therefore require a MM phono input or an external phono preamp compatible with the Ortofon 2M Blue cartridge.
Which cartridge is supplied with this Thorens turntable?
The turntable is equipped with an Ortofon 2M Blue moving magnet cartridge, featuring a nude elliptical diamond. Its output level is 5.5 mV and the recommended tracking force is 1.8 g.
Is it easy to change cartridges on the TP 150 tonearm?
The TP 150 tonearm has a removable headshell and an SME mount ring. It is therefore possible to prepare a second headshell to switch between several cartridges with a 1/2" mount. The supplied cartridge has a mass of 7.2 g.
Does the turntable play both 33 and 45 RPM records?
Playback of 33 1/3 and 45 RPM records is supported, with manual switching via a selector on the front panel.
What materials and dimensions does the TD 403 DD feature?
The chassis combines lacquered walnut plinths with a grey body, while the die-cast aluminum platter measures 30.48 cm in diameter and weighs 1.4 kg. The overall dimensions are 420 x 141 x 360 mm with a total weight of 7.2 kg.
