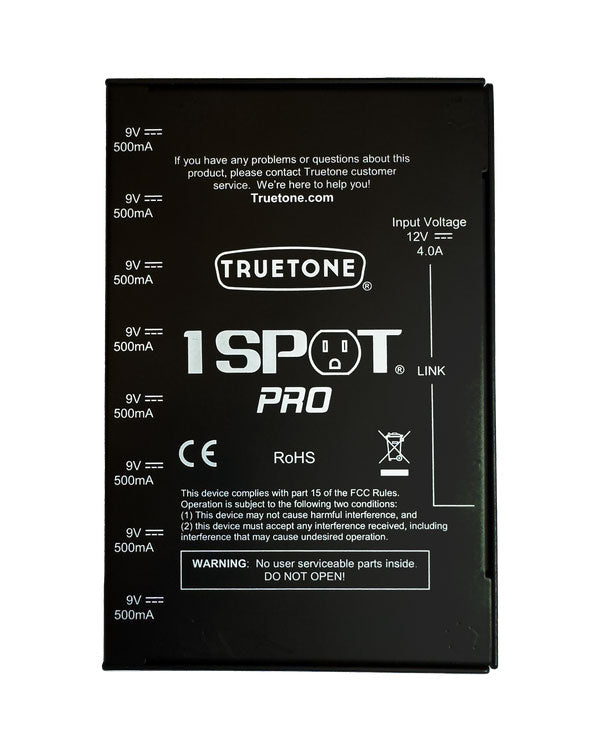

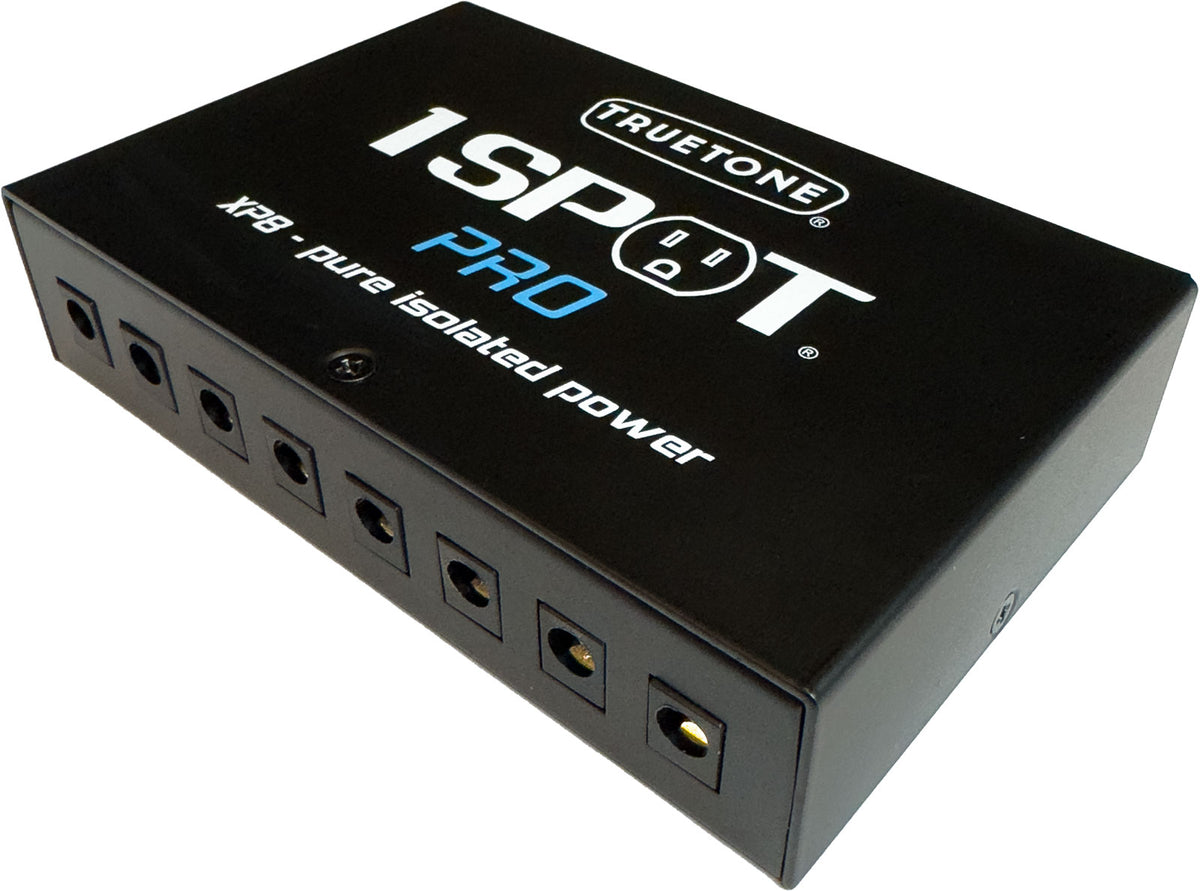

Truetone 1 Spot Pro XP8-PS
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Truetone
https://www.truetone.com
------------------------
Safety manager:
Filling Distribution
Email:
Address:
A Silent and Scalable Pedalboard Power Extension
The 1 Spot Pro XP8-PS is designed for guitarists and bassists who want clean, reliable power that's easy to integrate into their pedalboard. With its isolated outputs, each effect receives stable current, which helps reduce hum, hiss, and ground loops, especially when chaining multiple pedals or switching from an amp to an audio interface.
Its low profile makes for discreet installation: Velcro mounting on top to serve as a riser, or mounting underneath most pedalboards to save space and keep wiring neat. As your setup evolves, the 2 linked inputs allow chaining the power supply of a second XP8 or XP5 module via a simple DC cable, without starting from scratch. A solid choice for a quiet stage, convenient transport, and a pedalboard that's always ready.
Technical specifications
| Current | 0.5 A | Category | Multiple power supply |
| Voltage | 9 V | Number of outputs | 8 |
| Type | power extension for pedalboard | Power supply | powered by the CS11 or included adapter |
| Outputs | isolated | Cables | DC cables included |
| Voltage per output | 9V DC | Dimensions | 13.3 x 8.8 x 3 cm |
| Available current | at least 500mA per output | Weight | under 500 g |
| Connectivity | 2 linked input jacks for powering a second XP8 or XP5 via DC cable | Installation | easy Velcro mounting on pedalboard, possible under most pedalboards |
| Compatibility | connects to Truetone power extensions | ||
Questions frequently asked

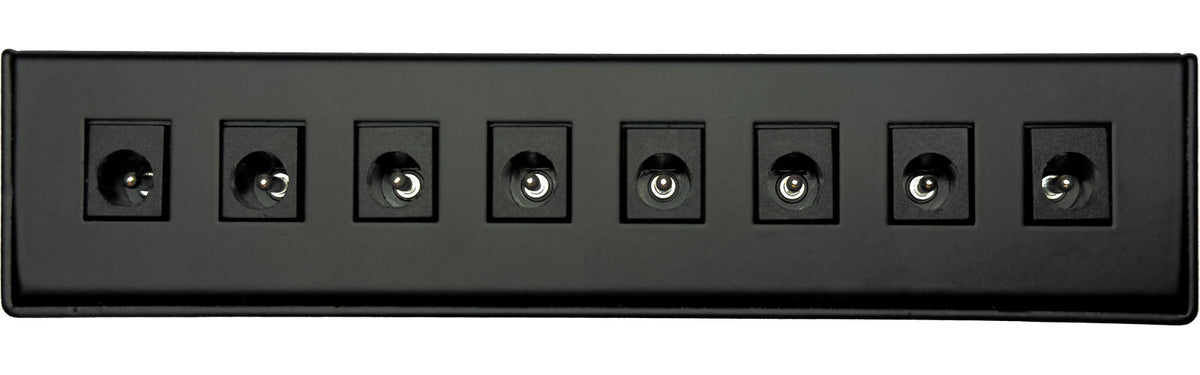

How many pedals can the Truetone 1 Spot Pro XP8-PS power?
This extension has 8 isolated outputs, each delivering 9 V DC with a current of 0.5 A.
Are the outputs of the XP8-PS isolated?
The 8 outputs are isolated so that each pedal receives a stable current. This design helps reduce hum, buzz, and ground loops on a pedalboard.
Can a second power module be added?
Two linked input jacks allow daisy-chaining a second XP8 or XP5 using a DC cable. The power supply can thus be extended without setting up a complete installation from scratch.
Can the XP8-PS be mounted under a pedalboard?
Mounting under most pedalboards is possible thanks to the size of 13.3 x 8.8 x 3 cm. A Velcro attachment also allows installation on top, notably as a riser.

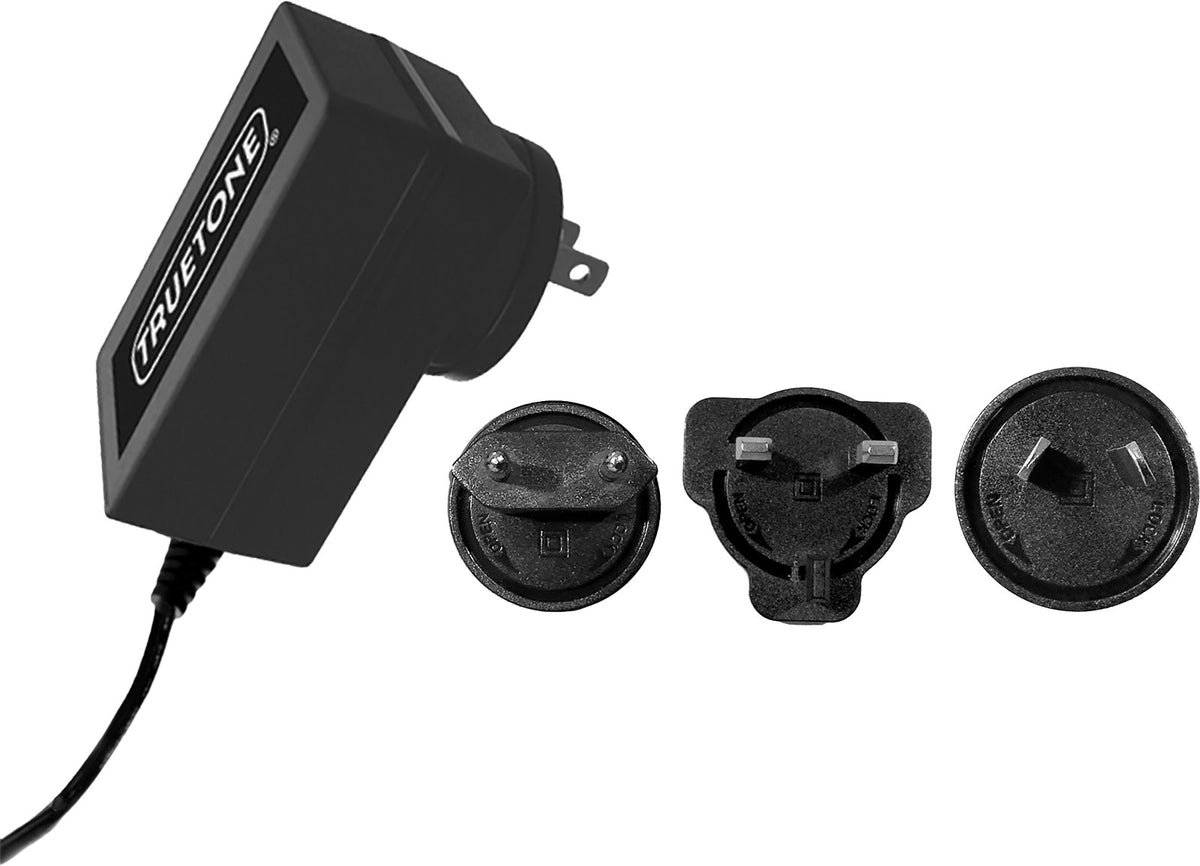

How is this Truetone extension powered?
The extension is powered by a CS11 or by the included adapter. DC cables are provided for connecting the pedals.
