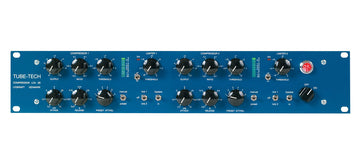

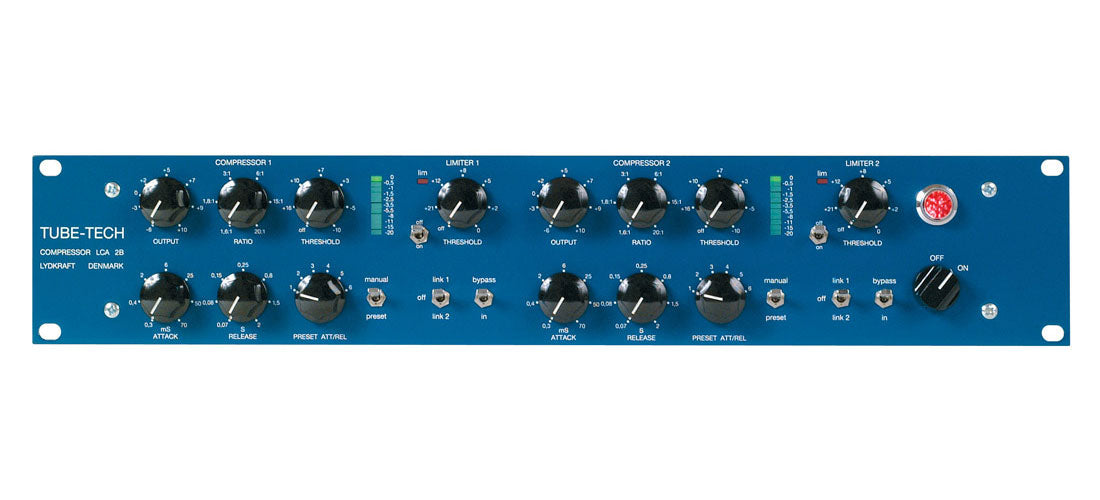

Tube Tech LCA 2B

A Rack Compressor in the Tradition of VCA Control, Enhanced with a Tube Touch

In the world of studio dynamic processing, the VCA architecture is valued for its clean control, consistency, and ability to hold a signal in the mix without crushing it. Here, the approach is complemented by a tube topology designed to add a sense of depth and texture while maintaining the precision expected from a VCA compressor. The result naturally fits into a modern setup: a 2-channel rack unit, ready to integrate into a patch, console, or dedicated recording chain.

Its role is clear: a versatile 2-channel compressor/limiter intended for tracking, mixing, and bus processing, with studio-oriented connectivity and routing (dedicated bypasses, bus interconnection, silent relays, stereo operation capability).

Who Is It For and What Studio Applications?

This compressor/limiter is aimed at users seeking a 19-inch rack tool capable of handling diverse sources, from vocals to electric instruments, including electronic machines and subgroups. The two independently adjustable channels facilitate sessions where quick switching between takes is required or maintaining two processing chains ready (for example: one channel for a main microphone, another for a DI or ambient mic).

In recording, the limiter is especially useful for securing peaks and maintaining a comfortable margin before conversion. In mixing, the compressor helps stabilize dynamics, improve track clarity, and place a source more firmly in the arrangement. When working on stereo content (keyboards, drum buses, effects returns, stems), the stereo linking preserves a stable image without asymmetric pumping between left and right.

Key Features and Ergonomics: A Fast Workflow Without Compromise

Two Separate Bypasses: Control Dynamics Step-by-Step

Having an independent bypass for the compressor and the limiter allows you to listen to your processing in context, step by step. This is a tangible advantage when seeking the right balance between musical control (compression) and protection against overly aggressive transients (limiting). You can also integrate the unit into a hybrid chain and activate only part of the processing depending on the session.

Bus Interconnection and Stereo Linking: Designed for Scalable Setups

For growing studios, the ability to interconnect multiple compressors via two buses simplifies managing grouped processing and routing organization. Combined with stereo linking, this architecture is useful whenever you want to homogenize a set, align dynamic behaviors, or build a coherent chain across multiple units.

Silent Relays: Clean Rack Integration

Click-free input/output relays are a detail that matters in real conditions: quieter changes, more comfortable handling during sessions, and the feeling of a device designed for daily studio use. Add to that the 2U format and controlled weight, and you get easy integration into both mobile racks and fixed racks.

Technical specifications

Frequency response at -3 dB	5 to 40,000 Hz	Output gain	-6 dB to +10 dB
Low Noise	below -85 dBU at 10 dB Gain	Weight	6.5 kg
CMRR	greater than 60 dB at 10 kHz
