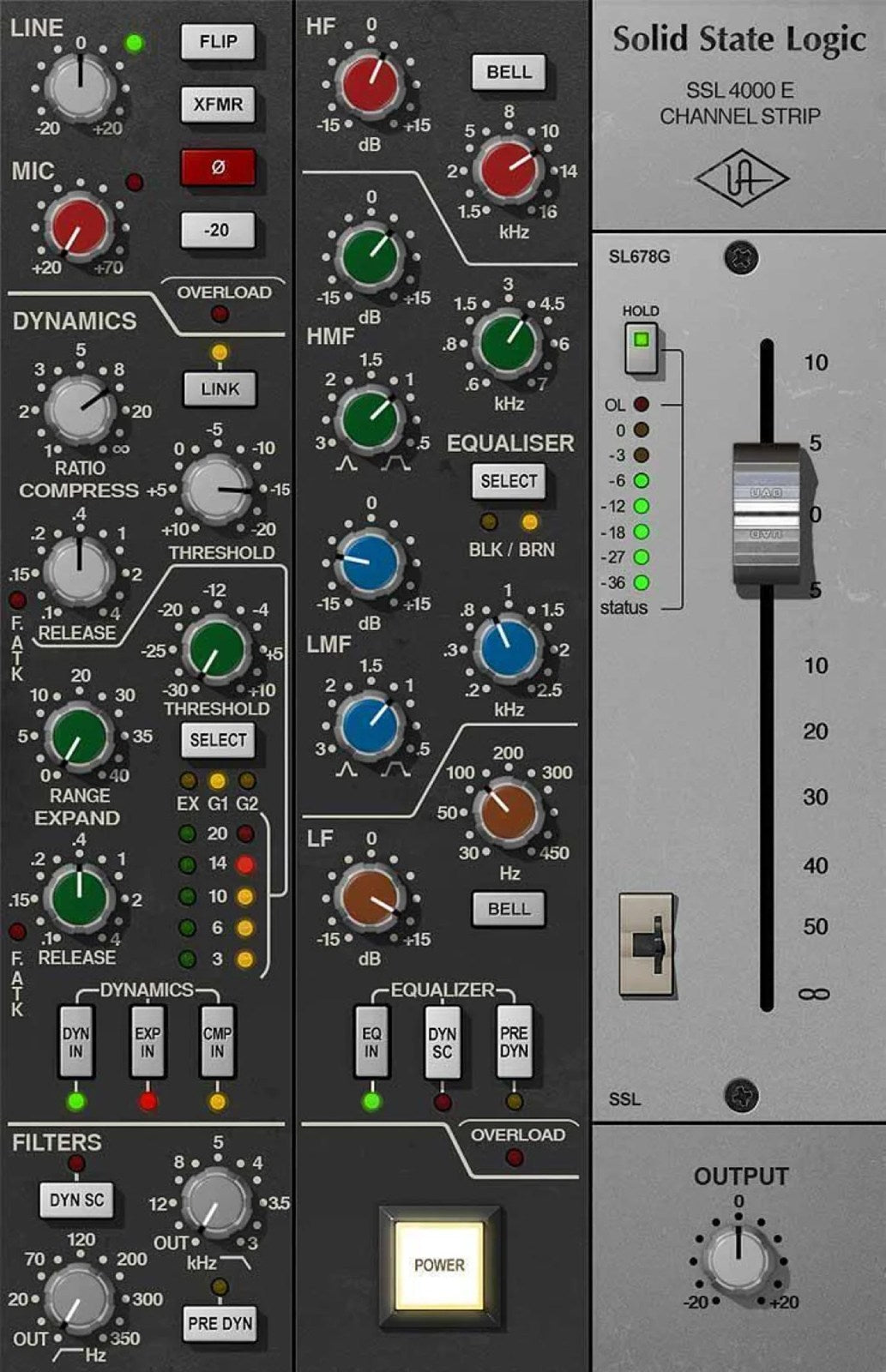

Universal Audio UAD SSL 4000 E Channel Strip

What UAD SSL 4000 E Channel Strip Is For

UAD SSL 4000 E Channel Strip is a channel strip plug-in designed to bring the "console" approach into your DAW: you process each track with a coherent chain (preamp, EQ, dynamics, and filtering) to achieve a more cohesive, punchy, and clear mix. It's a go-to tool for mixing (vocals, drums, guitars, synths, bass) and speeding up decisions thanks to an ergonomics modeled after an SSL channel strip.

Its main appeal is delivering the characteristic vibe of large consoles: tighter transients, presence that sits easily in the mix, and a sense of "glue" between elements. Whether you want subtle control on already solid takes or a more pronounced, compact sound, this channel strip adapts to pop, rock, hip-hop, electronic, funk, or R&B productions.

Main Features

Preamp and analog color of the E series

The plug-in emulates the spirit of the SSL 4000 E input section, with nonlinear behavior designed to add warmth, punch, and a slight controlled edge when pushing the gain. This coloration is especially effective for adding dimension to vocals, solidifying bass, or making a snare stand out without multiplying processing.

With a compatible Apollo setup, Unison integration allows you to experience interactions close to hardware preamps (impedance and gain behavior), handy for real-time recording with a "console" feel from the start.

Two Type E equalizers: "brown" and "black"

The EQ section offers two complementary personalities. The "brown knob" mode is designed for speed: settings that sound natural, perfect for thickening lows, smoothing low-mids, or adding air without getting lost. The "black knob" mode targets more precise intervention, ideal when you need to clean a resonance, refine vocal presence, or tighten a guitar in a dense arrangement.

The typical SSL EQ filters and interactions facilitate effective results: more definition on attacks, better mix clarity, and that "bus-ready" quality associated with studio consoles.

SSL Dynamics: VCA compressor, gate, and creative sidechain

Dynamics are at the heart of the SSL sound. The VCA compressor can provide very transparent control or a more pronounced effect: it can make a vocal "pop," stabilize a bass, add bite to a rhythm guitar, or bring snap to a drum group. The gate helps clean up a take (tom, snare, amp) and achieve a cleaner mix without heavy editing.

Going further, routing options offer timbre variations: place the EQ and/or filters before the dynamics (PRE-DYN) to change how the compressor reacts, or use the dynamic sidechain buttons to make compression frequency-dependent. This is a powerful method to control an overwhelming low end, tame an aggressive frequency range, or let a bus breathe without crushing the rest of the spectrum.

UAD Native, DSP, and mixing presets

In the UAD Native version, the plug-in integrates directly into your audio workstation, with external sidechain capability for modern techniques (ducking, triggered compression, rhythmic effects). If you use the DSP ecosystem, it can also fit into a UAD-2 workflow and includes a SSL E Channel Strip Legacy "DSP-lite" plug-in to multiply instances in large projects.

To get started quickly, artist presets are included, useful as starting points on vocals, drums, bass, or instruments. The idea is simple: find coherent settings, then fine-tune by ear depending on the take and arrangement.

Technical specifications

Type

Full software

Downloadable

Yes

macOS	macOS Catalina 10.15, Big Sur 11, Monterey 12, Ventura 13, or Sonoma 14	Channel strip inspired by the SSL 4000 E console	preamp, EQ, filters, VCA compressor, gate
Windows	Windows 10 or Windows 11 (64-bit editions)	Two Type E equalizer types	242 "black knob" and 001 "brown knob"
macOS CPU	Intel, AMD, or Apple silicon processor	Advanced dynamic routing	PRE-DYN (placing EQ/filters before dynamics)
Windows CPU	Intel or AMD processor	Dynamic sidechain via filters	frequency-dependent compression (EQ, filters, or both)
