Universal Audio Volt 4 Gen 2

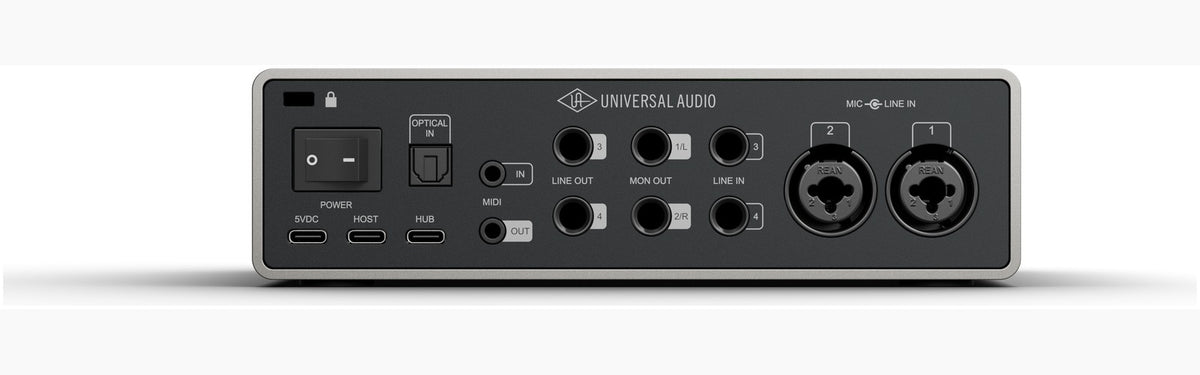

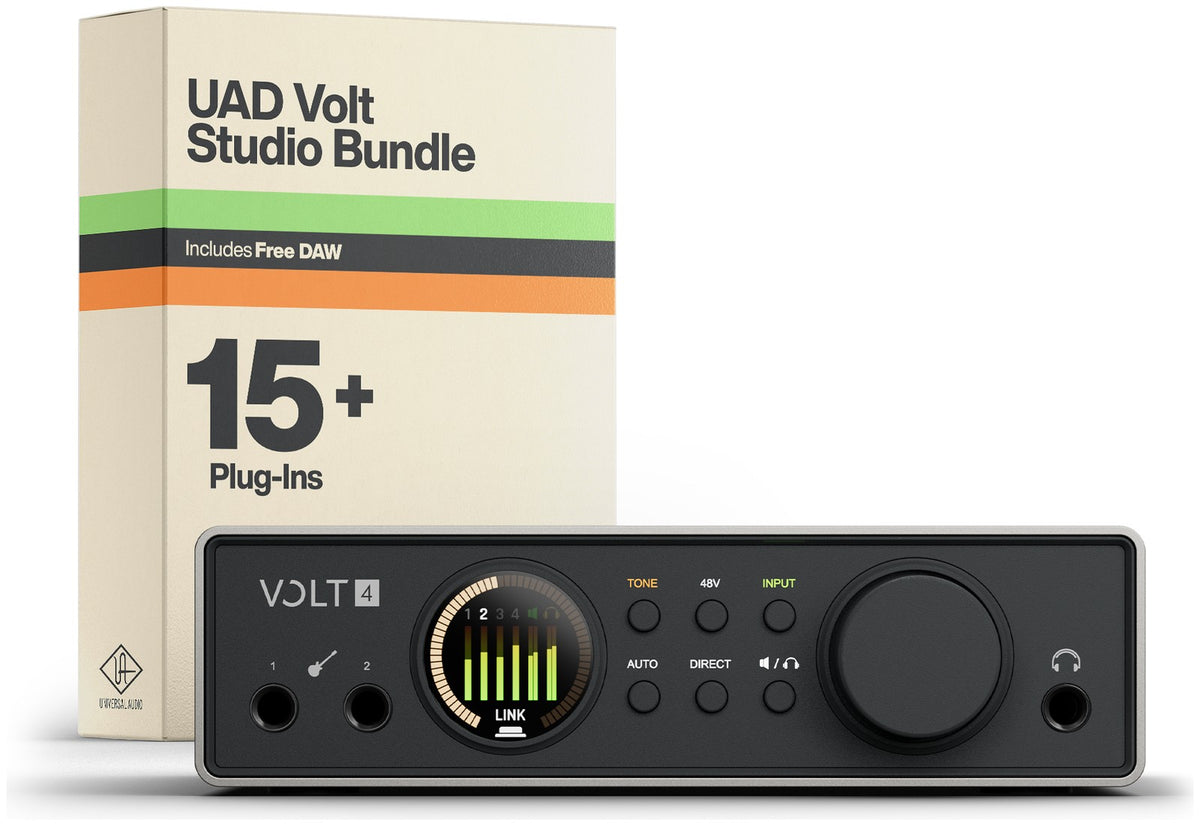

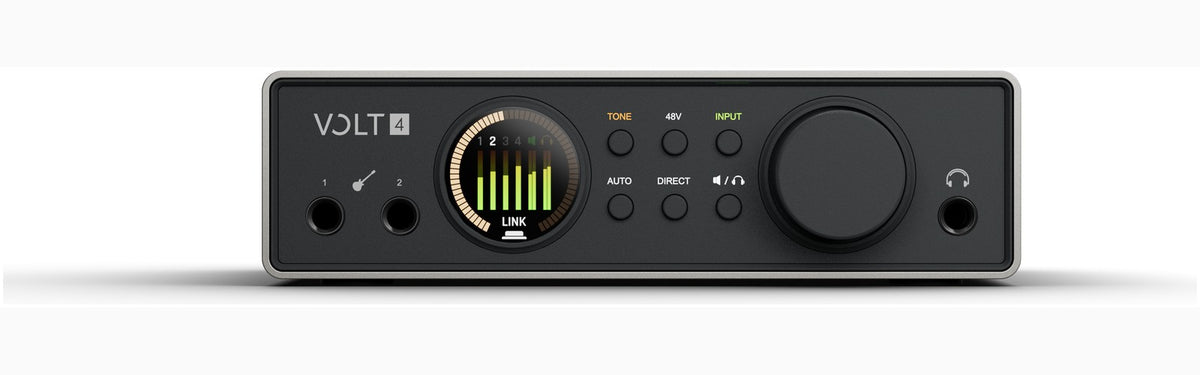

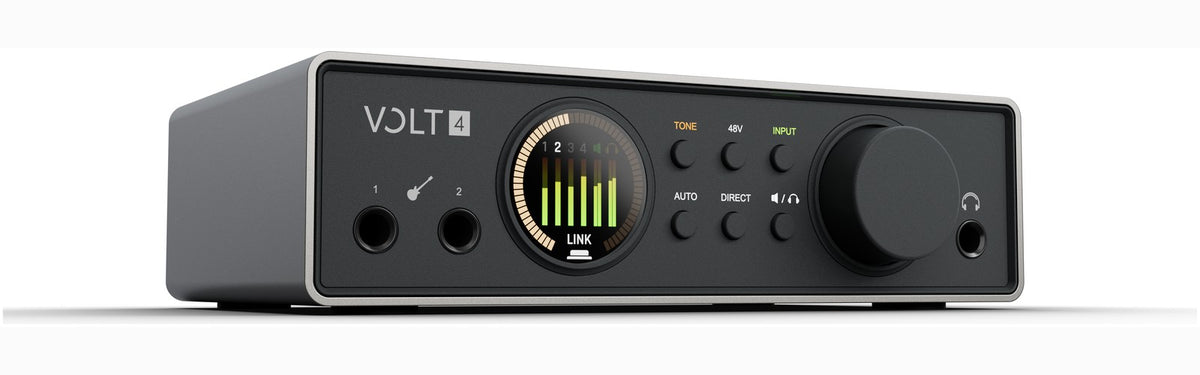

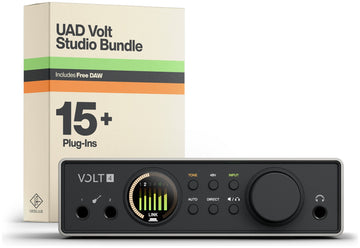

The essentials to know about the Universal Audio Volt 4 Gen 2 USB audio interface: studio-quality 32-bit / 192 kHz with two mic preamps offering 60 dB of gain and Tone Shaping modes-Warmth, Focus and Shine. Expandable 12-input / 6-output configuration: mic, line and Hi-Z inputs, ADAT or S/PDIF expansion, MIDI and integrated loopback. Record with greater peace of mind thanks to Auto-Gain and clip protection, viewable on the color Smart Display. A complete mobile studio, USB-powered and supplied with LUNA as well as a wide selection of UAD plug-ins, virtual instruments and production tools. The Volt 4 enters Generation 2 with smarter control The Universal Audio Volt 4 Gen 2 continues the legacy of the Volt interfaces, designed to bring an authentic studio sound to mobile and home studio setups. Developed by the team behind the Apollo interfaces, it retains the series' direct, musical approach while adding control features designed to help you record faster. This new generation stands out in particular for its color Smart Display, Auto-Gain and clip protection functions, as well as more ambitious connectivity including ADAT expansion, loopback and a USB hub. The Volt 4 Gen 2 is therefore a particularly complete entry point into the Universal Audio ecosystem for producers who want to evolve their setup without sacrificing simplicity. A USB interface designed for producers, musicians and content creators With its two preamps, four analog inputs and digital expansion options, the Volt 4 Gen 2 is equally suited to the singer-songwriter recording vocals and guitar and the beatmaker surrounded by synths, drum machines and MIDI controllers. The front-panel Hi-Z instrument inputs let you connect a guitar or bass directly, without an external DI box. It also finds its place in a ho

Technical specifications

Compatibility	PC, Mac, iPad	Number of outputs	6
Sampling frequency	192 kHz	Color	Grey
Max resolution	32-bits	Nominal mode power consumption (Wh)	4 W
Headphone outputs	Yes

USB audio interface	12 simultaneous inputs / 6 outputs	Instrument inputs 1-2	frequency response of 20 Hz - 20 kHz, plus or minus 0.02 dB
Digital audio resolution	32-bit	Mic inputs 1-2	frequency response of 20 Hz - 20 kHz, plus or minus 0.08 dB
Supported sample rates	44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz	Line inputs 1-4	frequency response of 20 Hz - 20 kHz, plus or minus 0.05 dB
Preamp modes	Warmth, Focus and Shine	Digitally controlled gain	60 dB on the instrument and mic inputs, as well as on line channels 1 and 2
ADAT	8 channels at 44.1 and 48 kHz, 4 S/MUX channels at 96 kHz, 2 S/MUX channels at 192 kHz	Line and monitor outputs 3-4	frequency response of 20 Hz - 20 kHz, plus or minus 0.05 dB, A-weighted dynamic range of 126 dB
S/PDIF	2 channels at all supported sample rates	Headphone output	frequency response of 20 Hz - 20 kHz, plus or minus 0.08 dB, A-weighted dynamic range of 116 dB
