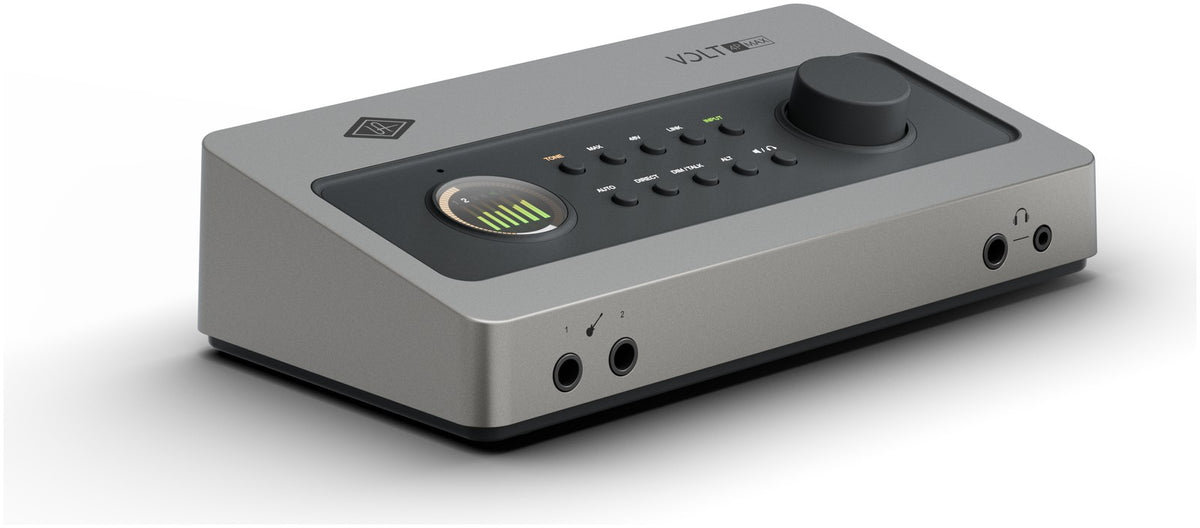

Universal Audio Volt 4P Max

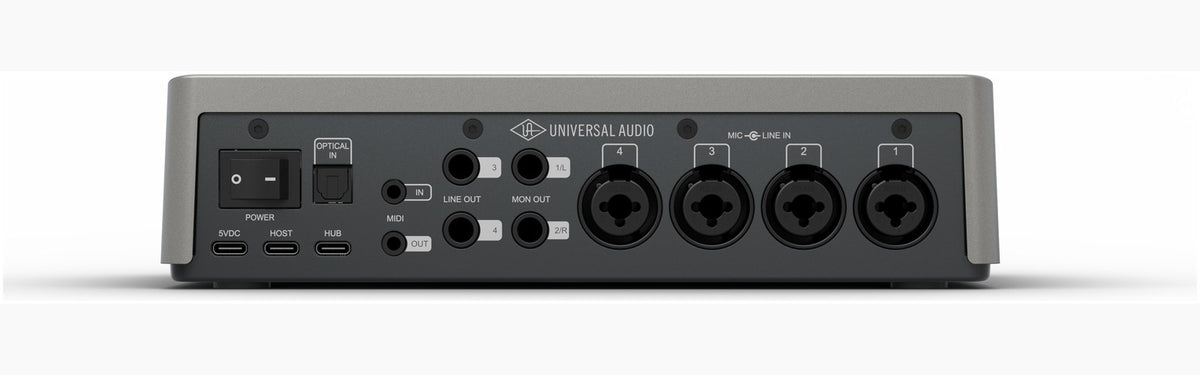

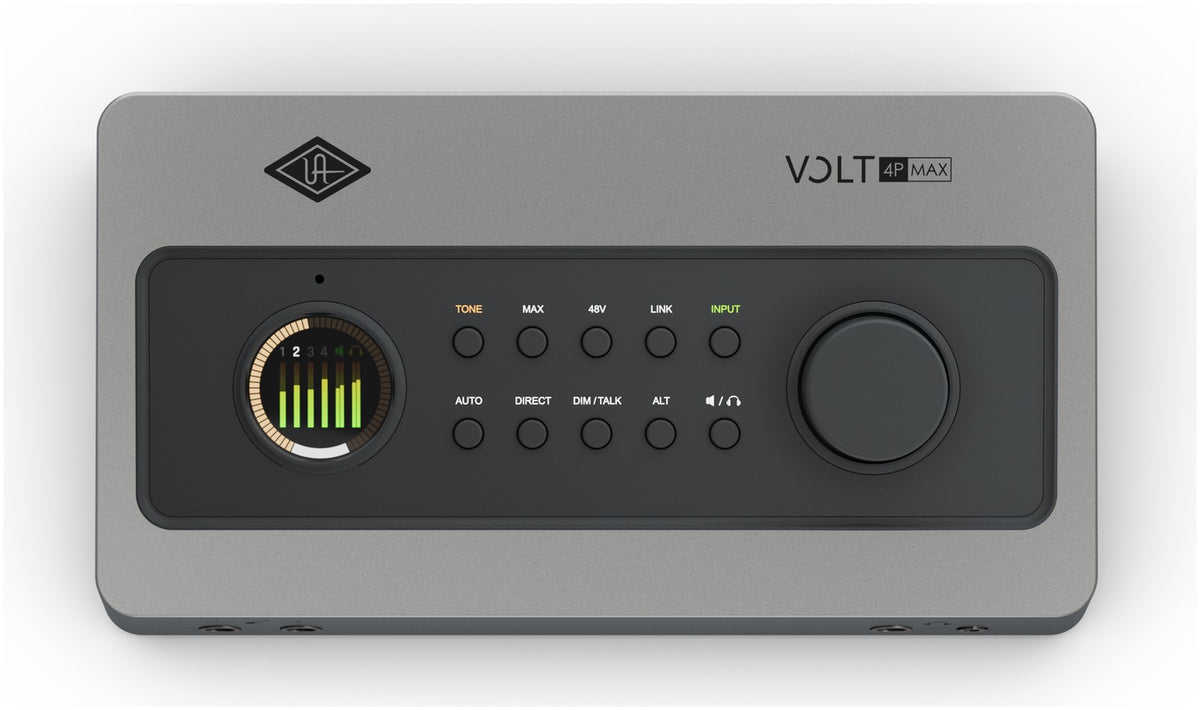

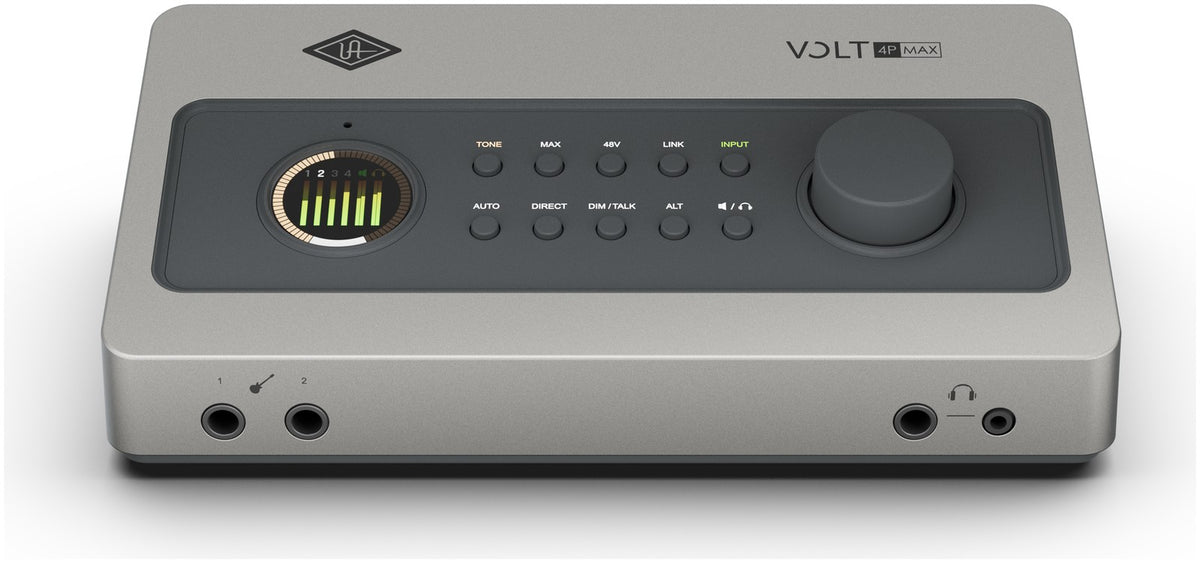

The essentials to know about the Universal Audio Volt 4P Max USB audio interface Four Tone Shaping microphone preamps with 60 dB of gain and three harmonic characters to shape the source from the moment it is recorded. Integrated Max processor: six compression settings inspired by studio processing to give vocals and instruments control, punch and density. 12-input / 6-output configuration, ADAT expansion, MIDI, two headphone outputs, dual monitor outputs and USB hub for building a complete production setup. 32-bit / 192 kHz converters, color Smart Display, Auto-Gain and anti-clipping protection: a recording chain designed for working quickly without sacrificing detail. The flagship Volt Max model, designed for ambitious sessions The Universal Audio Volt 4P Max sits at the top of the Volt Max range. It retains the brand's direct and accessible approach to desktop USB interfaces, while adding tools usually associated with a more advanced studio environment: four preamps, ADAT digital expansion, management of two pairs of speakers and a talkback mic. Developed by the team behind the Apollo interfaces, this USB audio interface is aimed at creators who want a more refined sound from the moment of recording. Compared with simpler Volt interfaces, the Volt 4P Max stands out with its color display, Max processor, level-safety features and connectivity designed for productions involving multiple musicians. An audio interface for bands, advanced home studios and content creation With its four mic/line inputs and two front-panel Hi-Z instrument inputs, the Volt 4P Max is particularly well suited to recording light drum parts, rehearsals, band demos, multi-voice podcasts or production sessions with synthesizers and acoustic instruments. It allows you to capture multiple sources simultaneously without multiplying peripheral devices.

Technical specifications

Compatibility	PC, Mac, iPad	Number of outputs	6
Sampling frequency	192 kHz	Color	Grey
Max resolution	32-bits	Nominal mode power consumption (Wh)	6 W
Headphone outputs	Yes

Supported sample rates	44.1, 48, 88.2, 96, 176.4 and 192 kHz	Maximum output level	20.2 dBu
ADAT	8 channels at 44.1 and 48 kHz, 4 channels at 96 kHz, 2 channels at 192 kHz	Line output dynamic range	126 dB A-weighted
S/PDIF	2 channels at all compatible sample rates	Maximum headphone output power	45 mW into 32 ohms, 24 mW into 300 ohms
