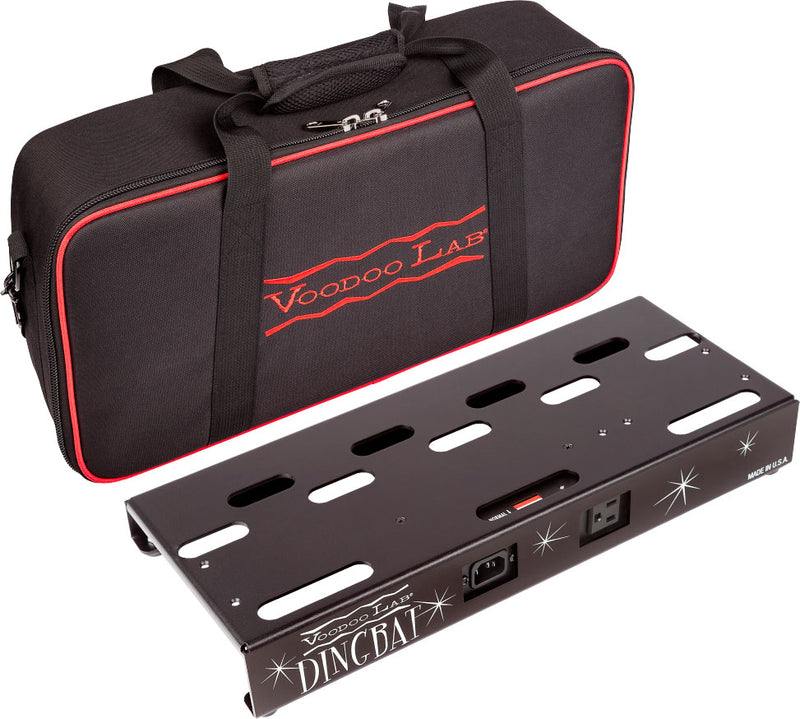

Voodoo Lab Dingbat Small W/PP-2 Plus

A coherent duo in the Voodoo Lab spirit: Dingbat pedalboard and Pedal Power supply

Designed for guitarists and bassists who want a clean, robust, and user-friendly pedalboard, this bundle pairs the Dingbat Small with one of the most widely used multi-output power supplies on stage and in the studio: the Pedal Power 2 Plus. The Dingbat Small follows the brand's "touring" approach: a lightweight aerospace-grade aluminum chassis, made in the USA, and an accessory kit designed to keep your pedals, cables, and power supply perfectly in place. The set allows you to build a compact, scalable pedalboard ready to withstand rehearsals, gigs, and travel.

For whom and for what use? A compact pedalboard for 3 to 5 pedals, ideal for stage, home studio, and rehearsal

The Dingbat Small targets musicians who want a portable format without sacrificing ergonomics. With a surface suited for 3 to 5 pedals, it fits both a minimalist setup (tuner, overdrive, delay) and a versatile configuration (compressor, drive, modulation, delay, reverb). Paired with the Pedal Power 2 Plus, the setup becomes more reliable than a "daisy chain" power supply: each pedal receives a stable voltage and is better protected against unwanted noise, helping to maintain a clean sound, especially with high gain or longer pedal chains.

Stability, silence, and organization: the combination of a lightweight chassis and isolated power supply

Dingbat Small: an aluminum chassis designed for a clean pedalboard

The Dingbat Small frame is made from American 6061-T6 aluminum, an aerospace alloy known for its excellent stiffness-to-weight ratio. The result: a pedalboard that is easy to transport while remaining sturdy enough to withstand heavy use. The compact format encourages clear organization: pedals neatly aligned, cables tidied, and a stable base for standing play without shifting your setup.

To speed up assembly, the Dingbat Small comes with velcro-type adhesive strips and zip-tie type fasteners. This allows you to secure not only pedals but also cables, a tuner, or the power supply. The padded transport case with zip closure effectively protects the entire setup during transit.

Pedal Power 2 Plus: 8 isolated outputs to preserve your pedals' sound

The Pedal Power 2 Plus delivers 9 V and 12 V (depending on the outputs) and offers a total of 8 outputs, with a rated capacity of 1100 mA. Its key feature: each output is isolated from the others to minimize unwanted interactions between pedals (ground loops, hum, hiss, dynamic loss). The power supply filters, regulates, isolates, and protects, securing your pedalboard and helping maintain a cleaner signal, especially when stacking multiple effects or using noise-sensitive pedals.

The output distribution is practical to cover a wide range of pedals: 100 mA outputs for most standard pedals, higher current outputs dedicated to certain devices, and variable voltage outputs for specific needs. The included adapters facilitate integration with most setups.

Technical specifications

Effects	1 row	Use	electric bass, electric guitar
Format	Pedalboard	Color	Black

Type	pedalboard	Voltage	9 V / 12 V
Frame material	lightweight American 6061-T6 aluminum (aerospace quality)	Total current rating	1100 mA
Frame dimensions	457 x 197 mm	Number of outputs	8
Weight	1.2 kg	Outputs 1 to 4	100 mA each, switchable between 9 V or 12 V
Indicative capacity	3 to 5 pedals	Outputs 5 to 6	250 mA each, specially designed for Line 6 products (e.g., POD)
Manufacturing	USA (California)	Outputs 7 to 8	100 mA each, variable voltage from 4 to 9 V
Power supply mounting kit	Voodoo Lab (for external power supply installation)	Functions	filters, regulates, isolates, and protects
Transport	padded case with zip closure	Isolation	each output is isolated from the others
