Voodoo Lab Dingbat Small W/PP-X8

Dingbat Small + Pedal Power X8 : the "pro pedalboard" spirit in a compact format

This pack combines the Dingbat Small, a pedalboard designed to focus on essentials without compromise, and the Pedal Power X8, a modern isolated-output power supply designed to preserve the dynamics and silent operation of your effects chain. The Dingbat features a lightweight and robust aluminum frame, while the X8 stands out with a performance-oriented design (stable power, careful filtering, and controlled background noise) to get the best out of your pedals, even in a compact setup.

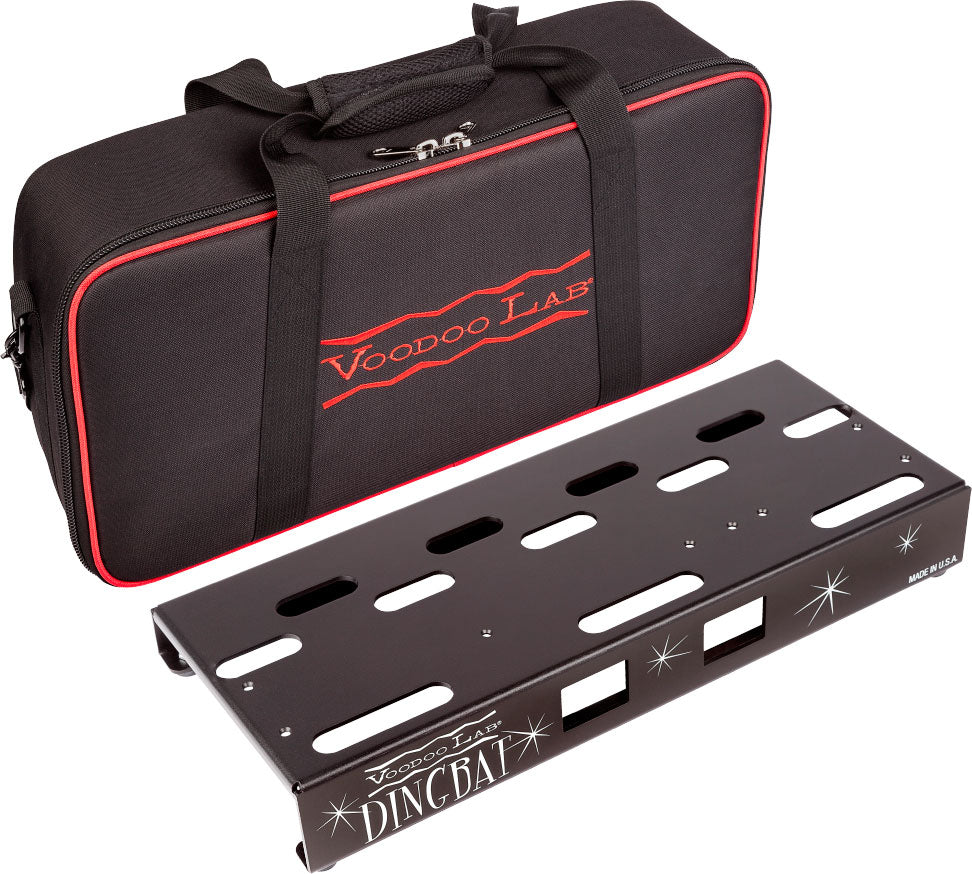

Note: the photo is indicative and may show the pedalboard alone, without the power supply, whereas this set does include the Pedal Power X8 and its mounting accessories.

Who is it for and what uses?

This set is aimed at guitarists and bassists who want a lightweight, quick to set up, and easy to transport pedalboard without sacrificing a power supply worthy of a stage rig. The Dingbat Small format is perfect for an "essentials" setup (overdrive, modulation, delay, reverb, tuner), while maintaining clear organization and easy access to switches.

The Pedal Power X8 is particularly relevant if you use digital pedals (reverb, delay, compact multi-effects, shimmer, etc.) requiring more current, or if you want to reduce hum and interference risks thanks to isolated DC outputs.

Design, assembly, and power supply : a set designed to be clean, silent, and sturdy

Dingbat Small: lightweight, robust, and ready to wire

The Dingbat Small is built around a 6061-T6 American aluminum frame, known for its excellent stiffness-to-weight ratio. With its 457 x 197 mm dimensions, it typically accommodates 3 to 5 pedals depending on their size, while remaining easy to slip into a trunk or carry on your shoulder.

For clean assembly, velcro-type adhesive strips and zip-tie type fasteners are provided, handy for securing power and patch cables. The pedalboard comes with a padded transport case with a zip closure to protect your pedals during transport.

Pedal Power X8: 8 isolated outputs, 500 mA, and a "zero noise" approach

The Pedal Power X8 offers 8 isolated DC outputs each delivering 9 Volts with up to 500 mA. This current reserve powers demanding digital effects and is also suitable for pedals that normally run on batteries. The goal is clear: keep a cleaner signal, limit ground loops, and prevent some pedals from injecting noise into others' power supply.

Voodoo Lab highlights an innovative hybrid DC transformer and an audio-oriented design, with polymer and organic filtering and noise-free linear regulation. The expected result is a stable and silent power supply so your effects chain remains dynamic and defined, whether clean or saturated.

Assembly and mains power: flexible, here or anywhere

Compact and lightweight, the X8 operates worldwide thanks to 100 to 240 Volts AC compatibility. It can be powered via the included power adapter or via the X-LINK port of a Pedal Power 3 or 3 Plus (depending on your setup). For installation under or on the pedalboard, a DC power cable and 3M Dual Lock strips are included, facilitating a durable and neat mounting.

Technical specifications

Effects	Power Supply	Type	sector
Technology	Hybrid	Use	electric bass, electric guitar
Format	Desktop	Color	Black

Material	American 6061-T6 aluminum	Outputs	8 isolated DC outputs
Frame dimensions	457 x 197 mm	Output voltage	9 Volts
Weight	1.2 kg	Current per output	500 mA
Capacity	3 to 5 pedals (depending on size)	Audio design	audiophile-quality power supply
Mounting kit	designed for Voodoo Lab power supplies	Filtering/regulation	polymer and organic filtering, noise-free linear regulation
Accessories included	velcro-type adhesive strips, zip-tie type fasteners	Mains power	100 to 240 Volts AC
Transport	padded case with zip closure	Power supply	via included power adapter or via X-LINK port of Pedal Power 3 and 3 Plus
Made in	USA	Dimensions and weight (without adapter)	14 x 7 x 2.5 cm / 0.25 kg
Note	indicative photo of pedalboard alone, without power supply included	Dimensions and weight of power adapter	10.8 x 4.6 x 3.2 cm / 0.1 kg
Number of outputs	8
