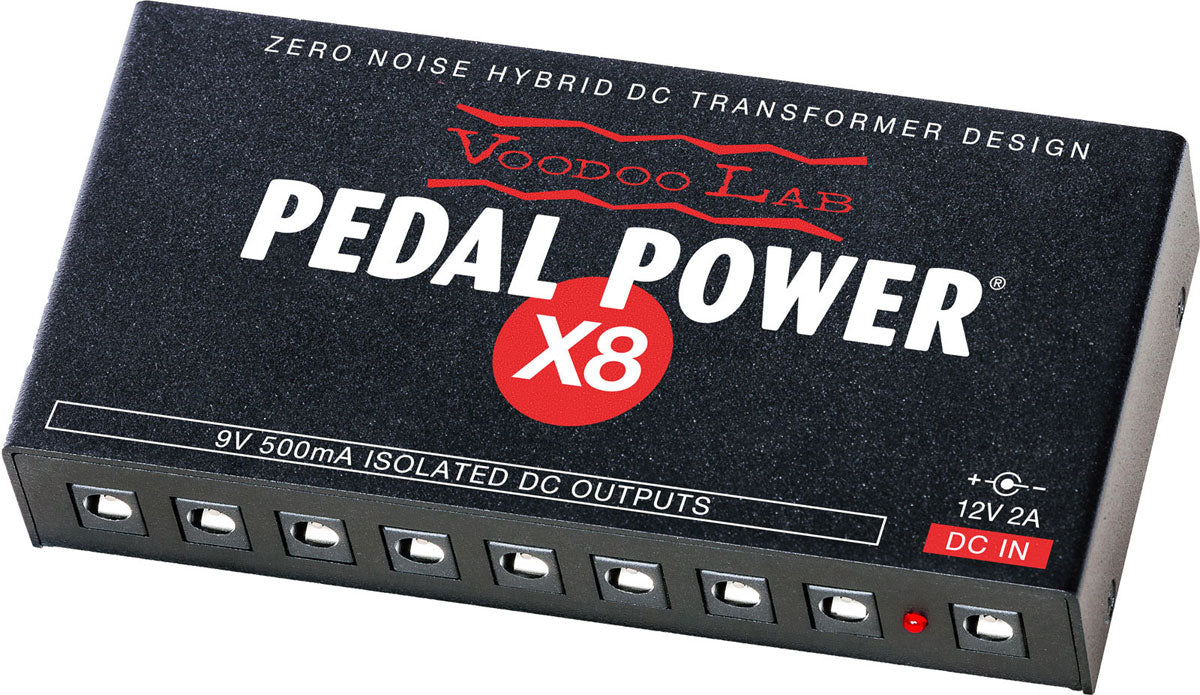

A Power Supply Designed to Unlock Your Pedalboard's Potential
Designed as an "audiophile" power supply for pedals, the Pedal Power X8 combines demanding analog engineering with advanced filtering technology. Its approach targets a simple goal: to provide stable and silent power to reveal the true character of each pedal, without added hiss or loss of definition, even when your chain becomes complex.
Who Is It For and What Are Its Uses?
The Pedal Power X8 is aimed at guitarists and bassists who want a noise-free power supply without compromise, whether for a minimalist pedalboard or a denser setup. It powers both pedals usually run on batteries and high-consumption digital effects, while minimizing ground issues and noise related to shared power supplies.
Silence, Isolation, and Scalability: Key Features
8 Isolated Outputs to Avoid Pedal Interactions
With its 8 isolated DC outputs, the X8 limits ground loops and prevents unintended interactions between effects. The result: a cleaner signal, better clarity, and a reliable power base for sensitive pedals (overdrives, fuzz, compressors) as well as digital processors.
High Current Up to 500 mA per Output
Each output delivers up to 500 mA, allowing you to confidently power the most demanding modern digital effects while maintaining stable power for analog pedals. 18 Volt pedals can also be powered by combining outputs using the brand's adapters.
Two Power Modes: Mains or X-LINK Expansion
In addition to its international operation at 100 to 240 Volts AC, the Pedal Power X8 can be powered via the X-LINK port of the Pedal Power 3 and 3 Plus to add 8 additional isolated outputs to your system without complicating the setup.
Technical specifications
| Current | 0.5 A | Category | Multiple power supply |
| Voltage | 9 V | Number of outputs | 8 |
| International power supply | 100 to 240 Volts AC | Dimensions and weight (excluding power supply) | 14 x 7 x 2.5 cm / 0.25 Kg |
| Current per output | up to 500 mA | Dimensions and weight of power supply unit | 10.8 x 4.6 x 3.2 cm / 0.1 Kg |
Questions frequently asked
How many pedals can the Pedal Power X8 supply power to?
This power supply has 8 isolated DC outputs, allowing up to eight pedals to be powered separately.
Do the outputs provide enough current for digital pedals?
Each output delivers up to 500 mA at 9 V. This current is intended for high-consumption digital effects as well as analog pedals.
How does the X8 reduce noise on a pedalboard?
The isolation of the 8 outputs limits ground loops and interactions between pedals. Advanced filtering is designed to reduce hum and interference related to shared power. This design is suitable for sensitive effects, including fuzz, compressors, and overdrives.
Can pedals be powered at 18 V?
It is possible to power pedals at 18 V by combining outputs with the brand's adapters.
Can the X8 be added to a Pedal Power 3?
The X-LINK port allows this power supply to be connected to a Pedal Power 3 or 3 Plus to add 8 isolated outputs to the system. An international power supply ranging from 100 to 240 V AC is also provided.
