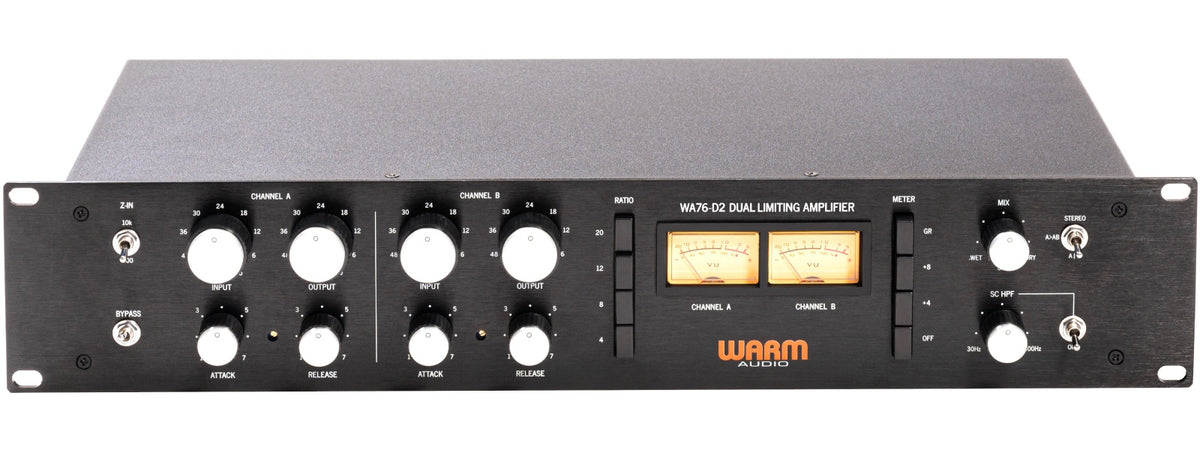

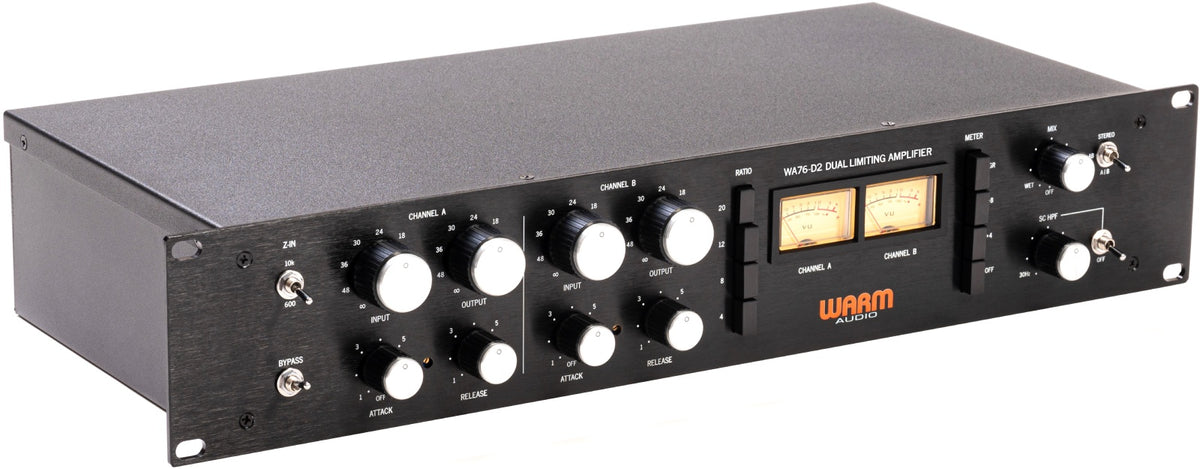

A Legendary "Rev D," Redesigned as a Dual Channel for Modern Workflows
The WA76-D/D2 follows in the footsteps of the most iconic FET compressors in studios, renowned for their speed, musicality, and that slight harmonic density that "glues" a take into the mix. Where vintage units shine with character, this version adds a decidedly practical approach for current recording: two channels ready to work in stereo, routing options adapted for hybrid chains, and features designed to save time during tracking and mixing.
Who Is the WA76-D/D2 For, and In What Applications Does It Make a Difference?
This compressor targets demanding home studios as well as professional control rooms seeking very tight dynamic control without sacrificing the analog feel. On vocals, it excels at stabilizing levels while preserving attack energy; on a snare or drum room, it adds impact and presence; on bass, it locks sustain with authority. In stereo configuration, it becomes a go-to ally for overhead pairs, synths, or a punchy parallel bus.
Key Features: FET Precision, Stereo Flexibility, and Creative Control
Integrated Parallel Compression (Dry/Wet)
The Dry/Wet control allows instant dosing of parallel compression without external patching: perfect for thickening a vocal, widening a synth, or adding density to drums while retaining natural transients.
Sculptable Sidechain and Studio Integration
The variable sidechain high-pass filter (30 to 300 Hz) prevents low frequencies from triggering excessive compression: ideal for preserving the low end of a bass or kick while controlling the rest of the signal. Add to this the external sidechain input for controlled pumping effects or more targeted processing.
Operating Modes and Quick Comparisons
The Stereo Linked, Primary:Secondary, and Dual-Mono modes facilitate adaptation to any session. The True Bypass is designed for immediate A/B comparisons, while the active bypass allows use as a line amplifier, useful for adding gain and an analog signature even without compression.
Technical specifications
| 2-channel operating modes | Stereo Linked, Primary:Secondary, Dual-Mono |
| VU meter options | gain reduction, +8 dB, or +4 dB |
| Variable sidechain high-pass filter | 30 - 300 Hz, 12 dB/octave |
| Attack | 20 µs - 0.8 ms |
| Release | 50 ms - 1.1 seconds |
| Frequency response (+/-1 dB) | 20 - 20,000 Hz |
| Signal-to-noise ratio (SNR) | 86 dB |
| Total harmonic distortion (THD) | -64 dB (at -8 dBu) |
| Dimensions | 483 x 90 x 159 mm |
| Weight | 4.8 kg |
Questions frequently asked
Does the Warm Audio WA76-D2 allow compression of a stereo source?
Both channels offer a Stereo Linked mode, suitable for processing a stereo source. The Primary:Secondary and Dual-Mono modes also allow adapting the operation for two separate signals.
What are the attack and release times of the compressor?
The attack is adjustable from 20 µs to 0.8 ms, enabling control of very fast transients. The release covers a range from 50 ms to 1.1 seconds.
Is parallel compression possible without external patching?
A Dry/Wet control blends the compressed signal with the direct signal without requiring external patching.
Does the sidechain filter prevent the bass frequencies from triggering too much compression?
The sidechain high-pass filter is variable from 30 to 300 Hz with a 12 dB/octave slope. It reduces the influence of low frequencies on compression triggering. An external sidechain input also allows control from a dedicated signal.
What bypass formats and functions are available?
The rack format measures 483 x 90 x 159 mm and weighs 4.8 kg. The True Bypass enables A/B comparison, while the active bypass maintains use as a line amplifier.
