Waves Tract System Calibration

What Waves TRACT System Calibration Is For

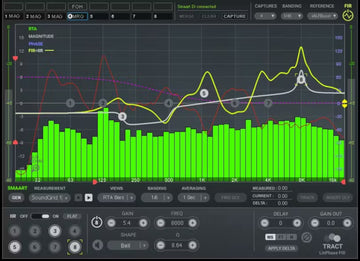

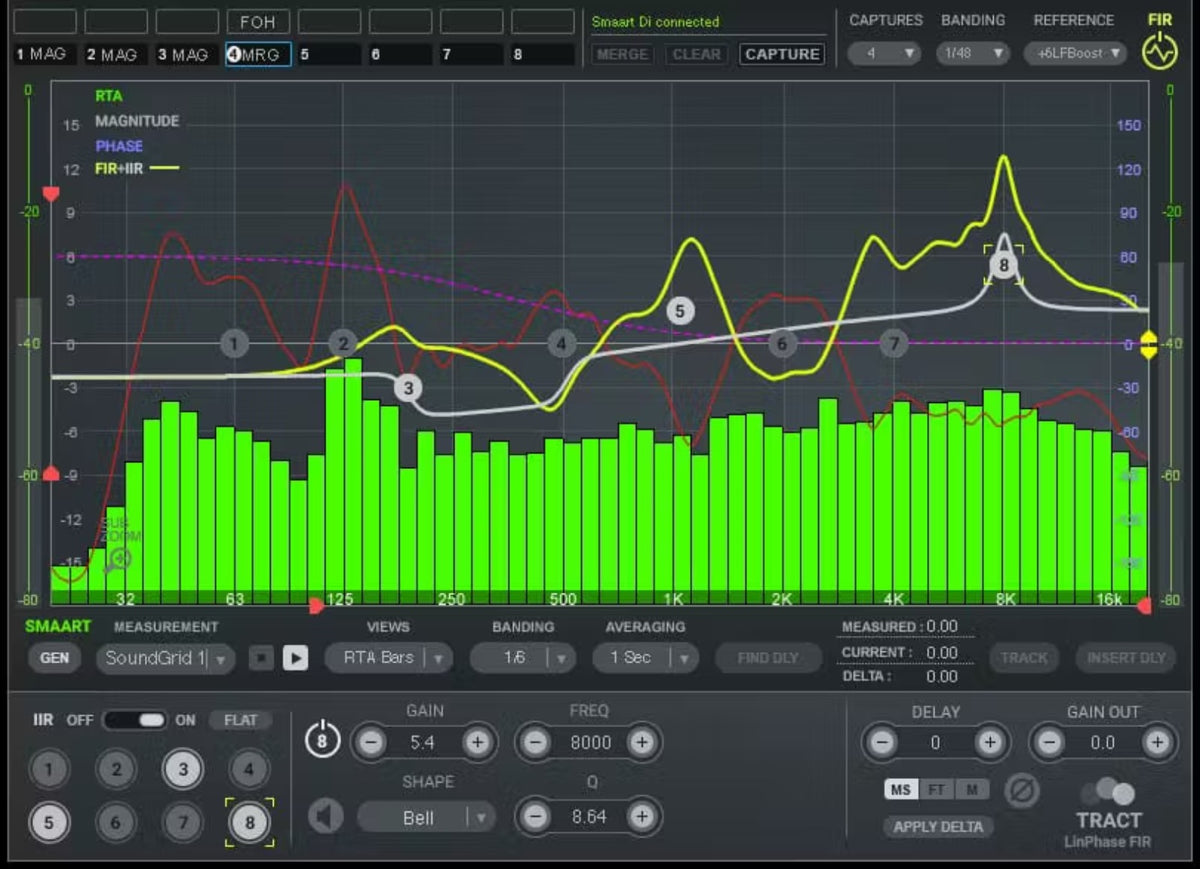

Waves TRACT System Calibration is an acoustic calibration plugin designed to transform a playback or monitoring system into a reliable reference. It analyzes the response of a room and system (speakers, monitors, subs), then generates a corrective curve to reduce frequency imbalances and phase issues. The result: you make more confident mixing decisions, rely less on "ear compensation," and achieve consistent reproduction, whether to correct studio monitors or optimize live sound reinforcement.

Main Features

Measurement and correction: automatic EQ + time alignment

TRACT acts as a "reality equalizer": it reads the room, identifies dips and peaks, then calculates and applies a correction to flatten the response. Time alignment reduces delays between channels (thus minimizing some blurring effects and punch loss related to phase), restoring a clearer and more stable system.

Smaart integration: a pro measurement-oriented workflow

The plugin integrates with Rational Acoustics Smaart v9 (Suite, RT, LE) to leverage an industry-recognized audio analysis tool. This approach facilitates identifying acoustic problems and speeds up setting up a usable calibration, especially in changing environments (rooms, stages, temporary control rooms).

From "sweet spot" to "sweet area" (up to 8 snapshots)

Instead of optimizing a single listening point, TRACT allows capturing up to 8 snapshots of measured response, then merging them into a single correction curve. This method helps smooth variations across an area, useful for shared control rooms, slightly mobile listening positions, or homogenizing audience/stage zones.

Minimal-phase or linear-phase FIR + IIR for fine-tuning

For correction, TRACT offers a choice of FIR curves: minimal-phase for low latency and minimal phase distortion, or linear-phase for maximum phase coherence. You can then complement the correction with up to 8 bands of classic IIR EQ, useful for adapting a target, customizing a reference, and adjusting to the context.

Sub Zoom: precision in the low end

The low-frequency range is often the hardest to stabilize (muddiness, lack of definition, "slow" bass feel). The Sub Zoom function focuses on bass frequencies and aligns subwoofer phase to restore clearer, punchier bass better integrated with the rest of the system.

Technical specifications

Type

Full software

Downloadable

Yes

Quick system calibration	auto-correction EQ + time alignment	Systems	macOS Catalina 10.15, Big Sur 11, Monterey 12, Ventura 13, Sonoma 14
Available IIR EQ shapes	bell, low shelf, high shelf, flat-tops, tilt EQ (variable frequency pivot), Butterworth, Linkwitz-Riley, and more	Memory	8 GB
macOS	VST-3, AU, AAX	Processor	Intel or Silicon architecture
Windows	VST-3, AAX
