Woodbrass UHF-1G-F1 (F1 : 863 MHZ) Wireless Guitar System
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Woodbrass
https://www.woodbrass.com
support@woodbrass.com
------------------------
Safety manager:
Woodbrass.com
Email: support@woodbrass.com
Address:

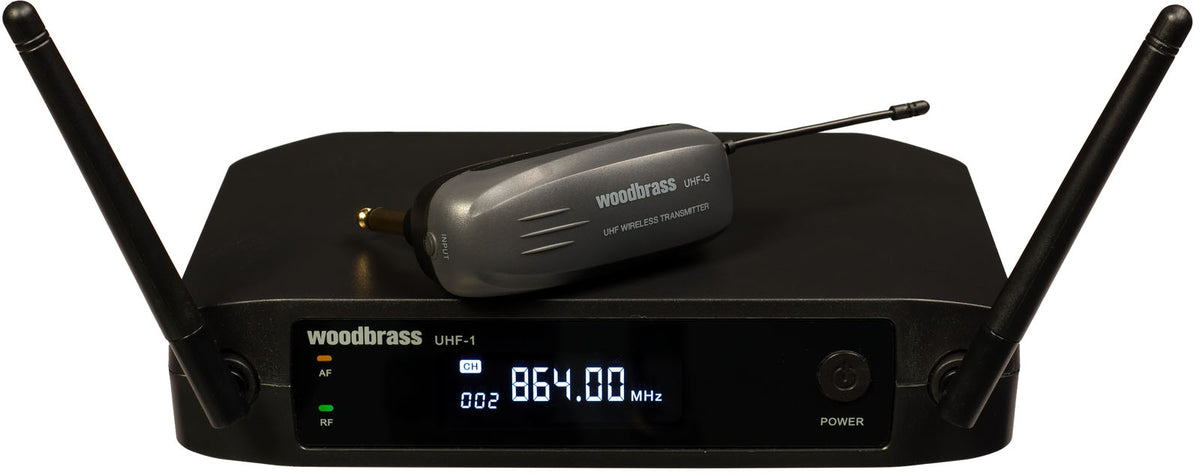

A UHF system designed to get straight to the point
The Woodbrass UHF-1G-F1 is aimed at guitarists and bassists who want to go wireless without complicating their setup. The transmitter plugs directly into the instrument, while the receiver easily fits near an amp, pedalboard, or mixing console thanks to its compact format. The goal is simple: to preserve attack, dynamics, and playing precision while gaining comfort on stage.For stage, rehearsals, and quick instrument changes
Its use is particularly relevant if you move around a lot, switch between several instruments, or need a clean solution for quick setups. The automatic pairing allows you to start without wasting time, and the two connector angles (45deg and 90deg) facilitate adaptation to the shape of the input and strap position, while reducing the risk of false contacts caused by tension on the connector.Connectivity and settings: easy integration into your rig
On the output side, the receiver offers a balanced XLR output to feed a console/DI, as well as a 6.35mm Jack " MIX OUT " output with volume control to manage your level to an amp or effects chain. The diversity technology and auto-squelch function enhance reliability in real conditions by helping maintain a stable signal and limiting unwanted noise when the signal becomes weak or disturbed.Technical specifications
| Category | Complete system | Category | wireless guitar system |
| Number of channels | 4 | Color | Black |
| Directivity | cardioid | ||
| Transmitter range | 50 m | 4 systems usable simultaneously | F1 863 MHz, F2 863.5 MHz, F3 864 MHz, F4 865 MHz |
| Transmitter battery life | 4 hours | Frequency response | 40Hz-20kHz +/- 3 dB |
| Transmitter built-in battery | Li-ion 3.7V 700mAh rechargeable via USB | Signal-to-noise ratio | >96 dB |
| Receiver | balanced XLR output and 6.35mm Jack "MIX OUT" output | Total harmonic distortion | <0.3% |
| Receiver dimensions | width 210 mm (1/2 rack) x height 45 mm (1U) x depth 140 mm (overall width with antennas and volume knob: 160 mm) | Transmission power | 10 mW |
| Antennas | total length 115 mm | Modulation | FM |
| Part deployed perpendicularly above the housing | 88 mm | Reception sensitivity | -96 dBm |
| Weight | 350 g | Includes | 1 guitar transmitter |
Questions frequently asked
What is the range of the guitar wireless system?
The stated range reaches 50 m between the transmitter and the receiver.
Can the receiver be connected to an amplifier or a mixer?
The receiver features a balanced XLR output for a mixer or DI. A 6.35 mm jack MIX OUT with volume control allows sending the signal to an amplifier or effects chain.
What is the battery life of the guitar transmitter?
The transmitter includes a 3.7 V 700 mAh Li-ion battery, rechargeable via USB. The stated battery life is 4 hours.
How many UHF-1G-F1 systems can operate simultaneously?
Up to 4 systems can be used simultaneously on frequencies F1 863 MHz, F2 863.5 MHz, F3 864 MHz, and F4 865 MHz. The F1 version operates at 863 MHz. Pairing is automatic.
Are the connectors compatible with different guitar jack inputs?
Two connector angles, 45° and 90°, are supplied to fit the position of the jack input and strap.
