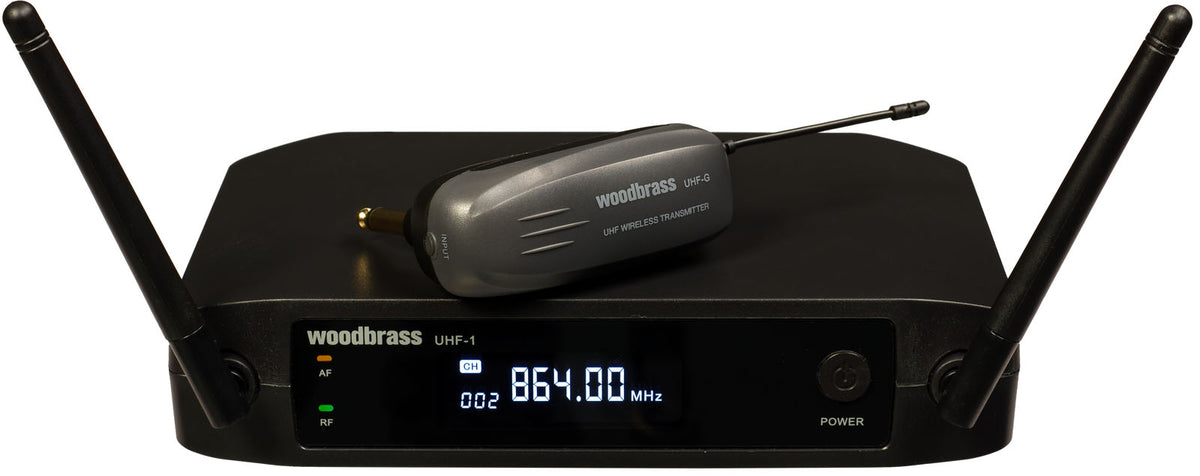

Woodbrass UHF-1G-F2 (F2 : 863.5 MHZ) Wireless Guitar System

A UHF system designed for musicians who want to keep it simple

The UHF-1G-F2 fits into the "plug and play" approach of Woodbrass UHF Wireless systems: a simple, robust, and efficient solution to go wireless without multiplying settings. Supplied with two plug-in 6.35mm Jack adapters (45 deg and 90 deg), it easily adapts to the jack input of most guitars, basses, and electro-acoustic instruments.

For guitar, bass, and electro-acoustic: stage, studio, rehearsal

This UHF wireless system is designed for musicians on the move: electric guitarists, bassists, folk, and electro-acoustic players. The range and stability of the diversity receiver make it a reliable ally for the stage, while the balanced XLR and 6.35mm Jack "MIX OUT" outputs facilitate integration into a pedalboard, mixer, or amp, both live and in the home studio.

UHF stability, rechargeable autonomy, and complete connectivity

The transmitter features a rechargeable Li-ion battery via USB to avoid the hassle of disposable batteries, with a claimed autonomy of up to 4 hours. On the reception side, the diversity receiver offers volume control on the "MIX OUT" output and a balanced XLR output for clean connections, with auto-squelch and interference management to secure transmission. The system allows up to 4 configurations usable simultaneously (F1 to F4) to equip multiple instruments on the same stage.

Technical specifications

Category	Complete system	Directivity	cardioid
Number of channels	4	Category	wireless guitar system
Frequency response	40 Hz - 20 kHz	Color	Black

Transmitter	range 50 m, autonomy 4 h	4 systems usable simultaneously	F1 863 MHz, F2 863.5 MHz, F3 864 MHz, F4 865 MHz
Receiver	diversity	Signal-to-noise ratio	greater than 96 dB
Receiver dimensions	width 210 mm (1/2 rack) x height 45 mm (1U) x depth 140 mm	Total harmonic distortion	less than 0.3%
Total width including antennas and volume knob	160 mm	Transmission power	10 mW
Antennas	total length 115 mm	Modulation	FM
Part deployed perpendicular above the casing	88 mm	Reception sensitivity	-96 dBm
Weight	350 g	Includes	1 guitar transmitter
