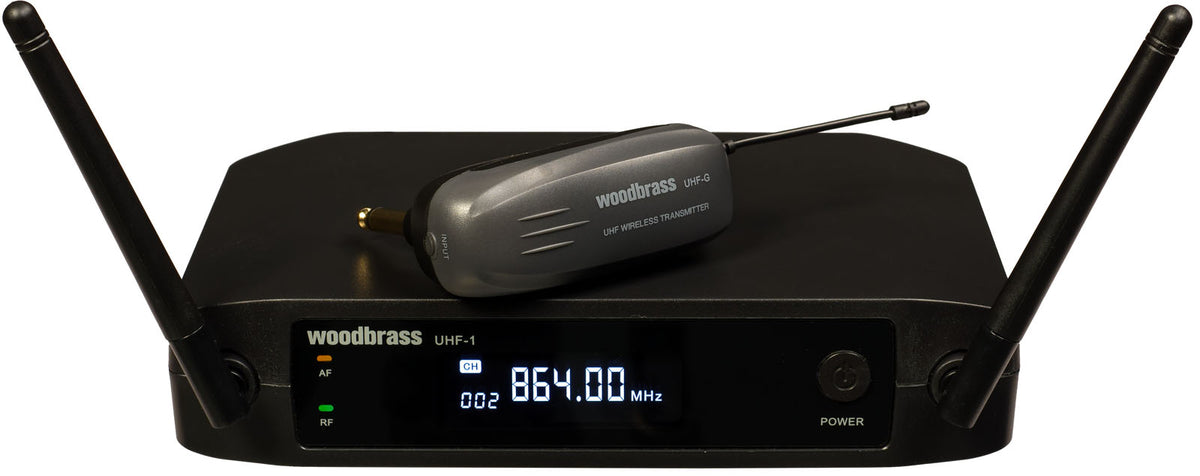

Woodbrass UHF-1G-F3 (F3 : 864 MHZ) Wireless Guitar System
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Woodbrass
https://www.woodbrass.com
support@woodbrass.com
------------------------
Safety manager:
Woodbrass.com
Email: support@woodbrass.com
Address:
A UHF system designed for a simple and reliable stage setup
Designed for guitarists, bassists, and electro-acoustic instruments, the UHF-1G-F3 goes straight to the point: a stable signal, quick startup, and practical format. Its 1U half-rack width receiver naturally fits into a lightweight rig, on stage or in a rack, while maintaining immediate handling.Who is it for, and for what uses?
This wireless system is aimed at musicians who want to replace cables without complicating their audio chain: club concerts, community stages, rehearsals, events, or home studios when mobility becomes a real comfort. And if you play on a stage with multiple instruments, the possibility to use up to 4 systems simultaneously helps organize a clean and coherent setup.Connections, autonomy, and signal management: the essentials for playing with peace of mind
The transmitter integrates a rechargeable Li-ion battery via USB, convenient for chaining sets without relying on batteries. On the receiver side, you have a balanced XLR output and a 6.35mm Jack "MIX OUT" output with volume control, to feed either a mixer, an amp, or a PA system. The diversity technology, combined with auto-squelch and interference rejection, aims to preserve signal continuity and playing dynamics, even when moving on stage.Technical specifications
| Category | Complete system | Directivity | cardioid |
| Number of channels | 4 | Category | wireless guitar system |
| Frequency response | 40 Hz - 20 kHz | Color | Black |
| Transmitter | 50 m range | Signal-to-noise ratio | >96 dB |
| Receiver | diversity | Total harmonic distortion | <0.3% |
| Receiver dimensions | width 210 mm (1/2 rack) x height 45 mm (1U) x depth 140 mm (overall width with antennas and volume knob: 160 mm) | Transmission power | 10 mW |
| Antennas | total length 115 mm | Modulation | FM |
| Part deployed perpendicularly above the housing | 88 mm | Reception sensitivity | -96 dBm |
| Weight | 350 g | Contents | 1 guitar transmitter |
| 4 systems usable simultaneously | F1 863 MHz, F2 863.5 MHz, F3 864 MHz, F4 865 MHz | ||
Questions frequently asked
What is the range of the WoodBrass UHF-1G-F3 guitar wireless system?
The transmitter's stated range reaches 50 m.
Can multiple wireless systems be used simultaneously?
Up to 4 systems can operate at the same time by pairing the frequencies F1 863 MHz, F2 863.5 MHz, F3 864 MHz, and F4 865 MHz.
What outputs are available on the receiver?
The receiver includes a balanced XLR output. A 6.35 mm "MIX OUT" jack output is also present. The level of this output is adjustable via the volume knob.
Is the guitar transmitter rechargeable?
The transmitter features a rechargeable Li-ion battery charged via USB, without the need for disposable batteries.
Can the receiver be rack-mounted?
With its half-width 1U rack format, the receiver measures 210 × 45 × 140 mm, with an overall depth of 160 mm including the antennas and volume knob.
