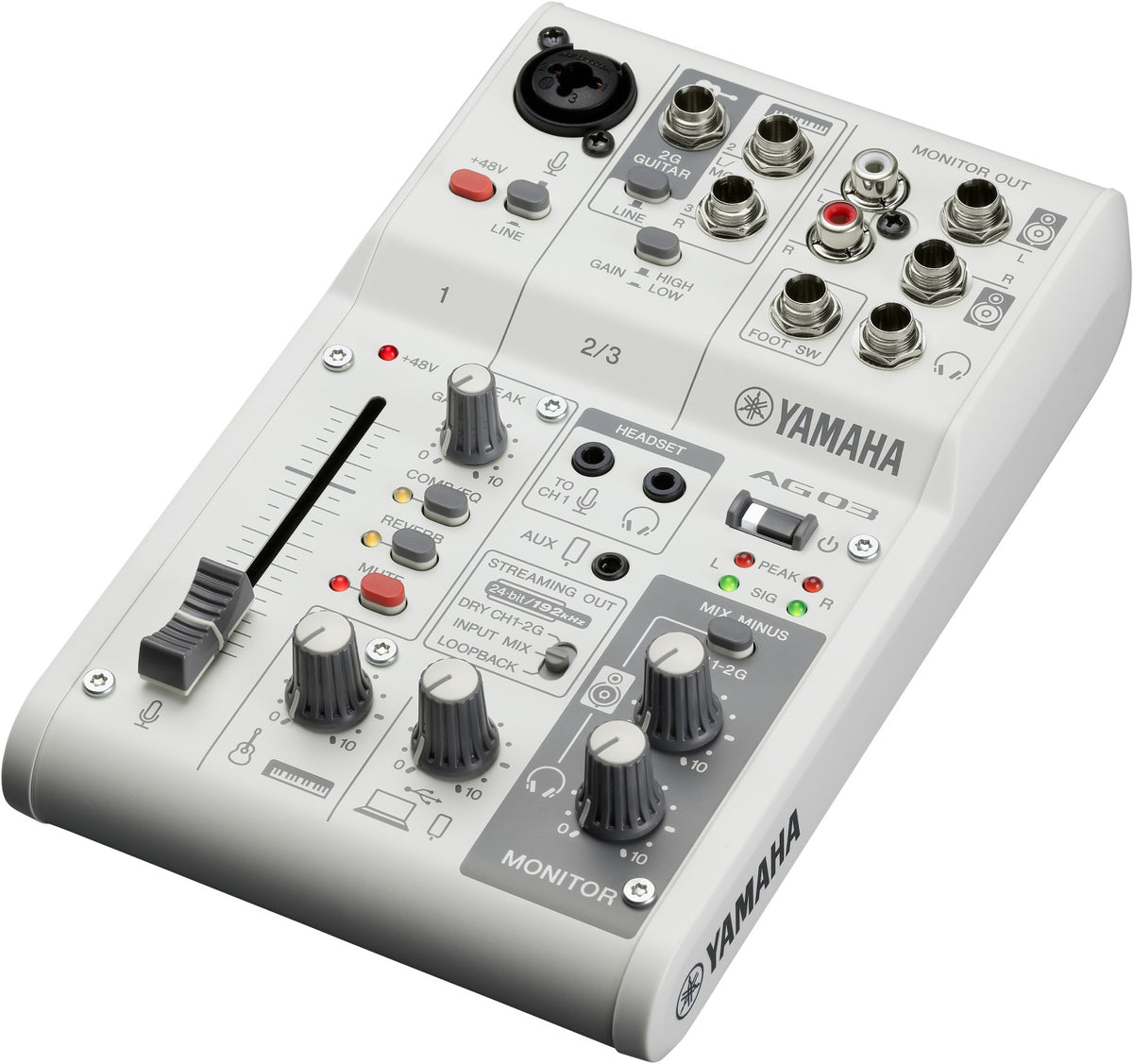

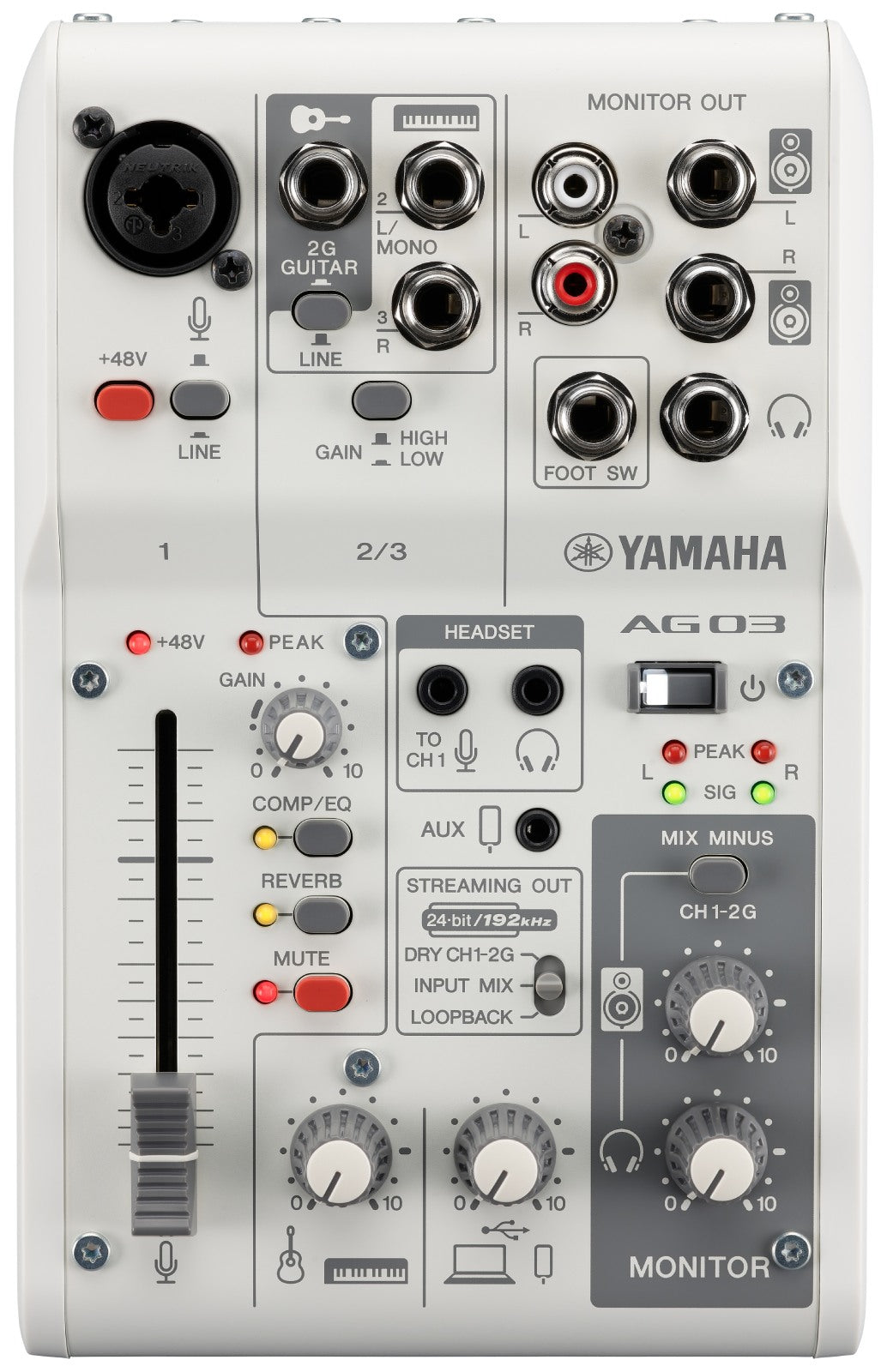

Yamaha AG03 MK2 White

An "All-in-One" Format Designed for Modern Setups (Home Studio, Streaming, Mobile)

This audio interface / mini mixer takes a very straightforward approach: physical control (with a 60 mm fader) and integrated effects, while serving as a USB interface for computer recording. The goal is to offer a single control center for vocals, guitar, or line sources, with a fast workflow: plug in, set the level, apply processing, and record.

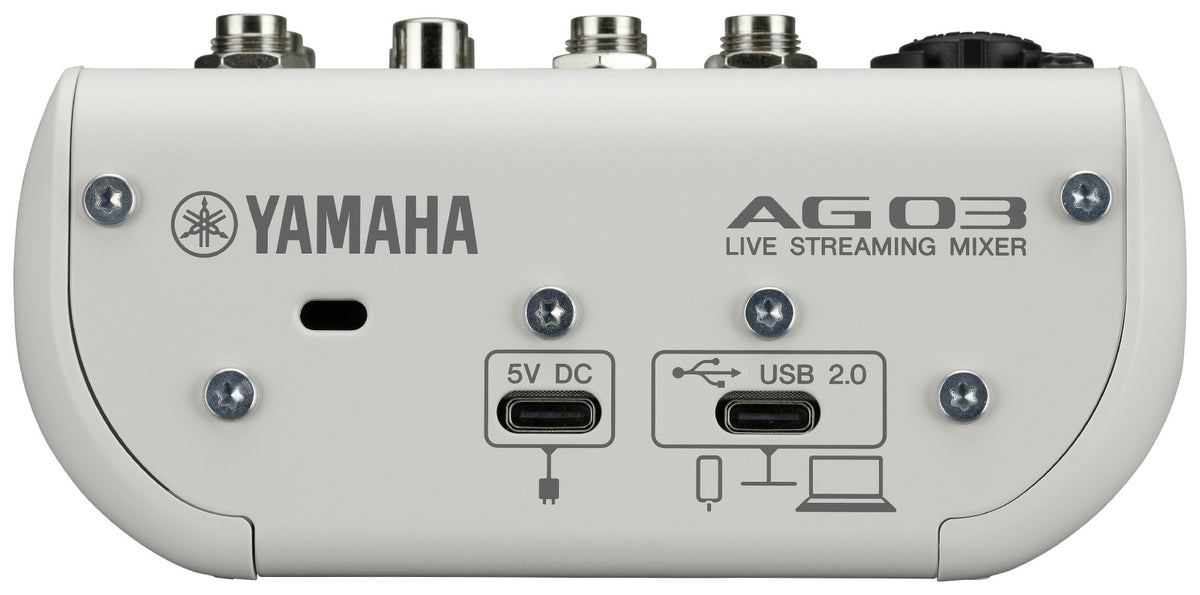

Its compact size and USB-powered design naturally suit small spaces (desk, home studio corner) and mobile configurations. The choice of a USB-C port reinforces this integration logic with current devices, while maintaining simple operation without external power supply.

Who and What It's For: Vocals, Guitar, Streaming, Video Calls, and Content Creation

This model targets musicians and creators seeking a clear and efficient solution to record vocals (condenser or dynamic microphones), plug in a guitar/bass directly, or manage line sources (keyboard, player, external preamp). The 6.3 mm jack and RCA outputs facilitate connection to studio monitors, hi-fi systems, or recording/monitoring setups.

In streaming, podcasting, or video calls, the DSP processing helps stabilize levels and improve intelligibility, while fader control allows immediate adjustments. iPad compatibility (with optional Camera Connection Kit, not included) also opens the door to mobile uses: quick capture, lightweight live sessions, recording on the go, or writing sessions with headphones.

Key Features: Control, DSP, and Comprehensive Connectivity

DSP Processing: A More "Broadcast-Ready" Sound

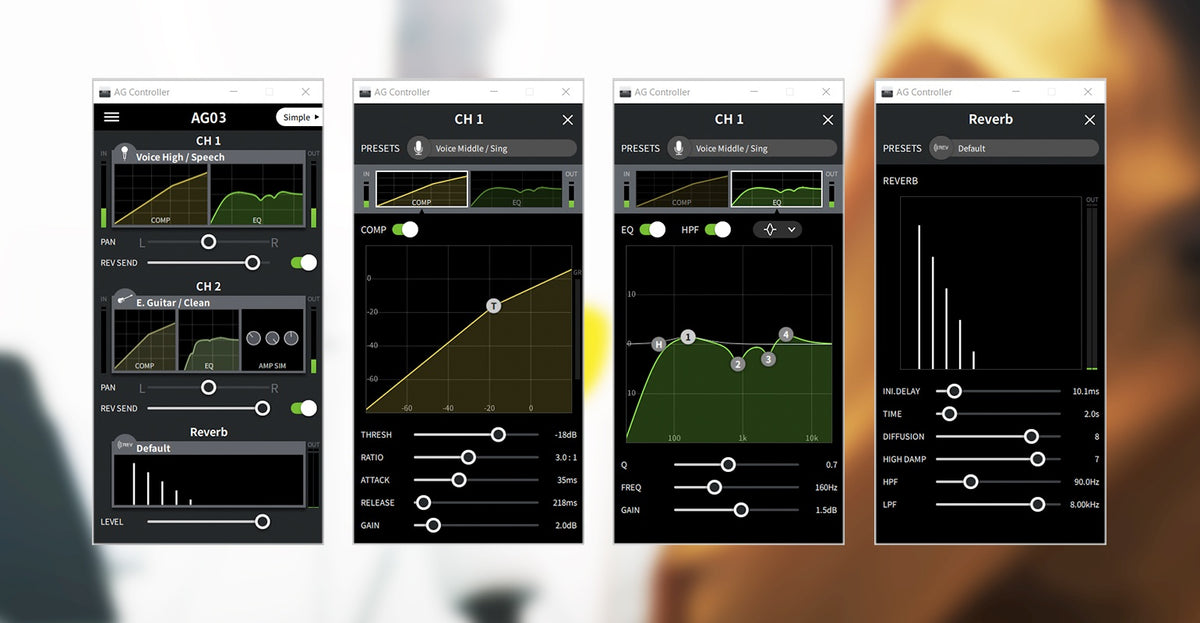

The built-in DSP effects (including compressor, equalizer, and reverb) allow you to sculpt your signal without relying on software. This is especially useful for working with a more flattering listening experience, limiting vocal level variations, or adding a subtle ambiance on headphones. In production situations, it can also speed up decision-making: you validate a sonic intention faster while keeping simple control.

Foot-Controlled FX Bypass: Convenient During Recording

The FX Bypass function can be controlled via an optional footswitch (not included). This provides real comfort for vocal or instrument takes: you instantly compare processed and raw sound without dropping your instrument or interrupting your performance.

Inputs Adapted to Common Sources: Mic, Instrument, Line

For vocals, the switchable +48 V phantom power allows the use of condenser microphones, while the switchable pad attenuator helps manage stronger sources and avoid premature clipping. For guitar and bass, the Hi-Z input ensures proper impedance matching, ideal for recording clean sounds before software processing. Additional line inputs provide the necessary flexibility to integrate a synth, drum machine, or external stereo mix.

Monitoring and Outputs: From Headphones to Speakers

With a 6.3 mm stereo headphone output and line outputs in jack and RCA, you can switch from headphone work to speaker listening instantly. The dedicated 3.5 mm mini-jack connections for earphones/microphone use and the stereo auxiliary input facilitate integrating an external source (smartphone, player, return from another device), useful for rehearsing with a backing track, preparing a live set, or monitoring an audio reference.

Technical specifications

Compatibility	PC, Mac, iOS, Android	Max resolution	24-bits
Sampling frequency	192 kHz	Headphone outputs	Yes

Resolution	24-bit / 192 kHz	Dimensions	129 x 63 x 202 mm
DSP Effects	compressor, equalizer, reverb	Weight	0.8 kg
USB-powered	5V, 500mA	Color	White
Includes	Steinberg Cubase AI
