An Ultra-Compact Hybrid Console
Part of the lineage of small creative consoles, this model combines the convenience of a physical mixer with the precision of an audio interface. Its compact size (155 x 63 x 202 mm) and featherweight of 0.95 kg make it a discreet companion on a desk or on the go, while retaining renowned "SPX" DSP effects and comprehensive connectivity.
Perfect for Creators, Musicians, and Educators
Whether you're hosting a podcast, live streaming, recording a voice-guitar duo, or amplifying an online class, this interface/mixer simplifies the audio chain. The two mic/line inputs accept vocals, instruments, and external sources, while the jack and RCA line inputs accommodate synths, players, or turntables. Dedicated headphone monitoring and line output facilitate speaker playback.
Features Designed to Get Straight to the Point

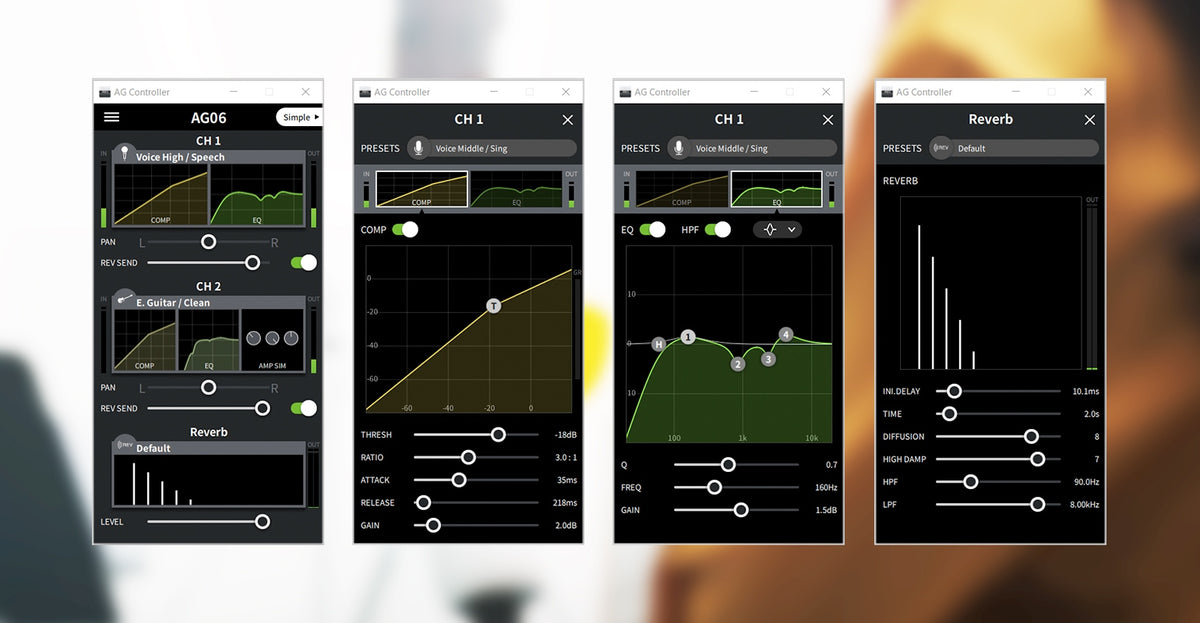

Ready-to-use DSP Effects
Apply a compressor to stabilize vocals, shape the tone with an equalizer, add musical SPX reverb, or use amp simulation for guitar. The effects bypass via optional footswitch allows activation/deactivation with a single step without touching the software.
Flexible Inputs, Professional Power Supply
The two XLR/jack combo inputs accept dynamic and condenser microphones thanks to +48 V phantom power, with a switchable pad attenuator for powerful sources. Input 2 switches to instrument mode for direct connection of guitar or bass.
Mobility and Compatibility

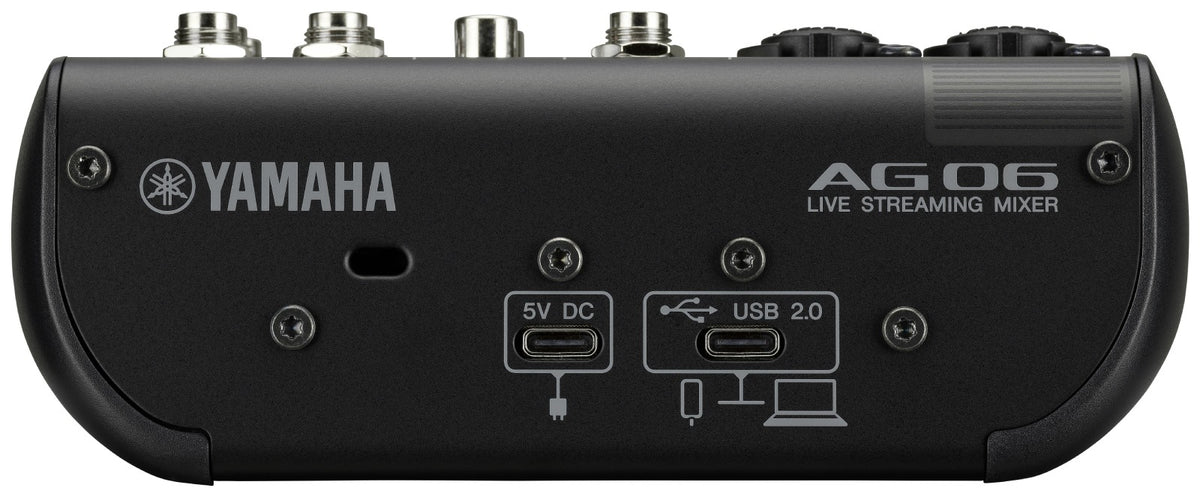

The USB-C connection powers the device (5 V, 500 mA) and handles audio transfer. Compatible with iPad via optional camera connection kit, it integrates seamlessly with both computers and mobile setups. Separate 3.5 mm jacks for headphones and microphone simplify the use of communication headsets.
Technical specifications
| Compatibility | PC, Mac, iOS, Android | Headphone outputs | Yes |
| Sampling frequency | 192 kHz | Nominal mode power consumption (Wh) | 2 W |
| Max resolution | 24-bits | ||
| Resolution | 24-bit / 192 kHz | Headphone jack | 2x 3.5 mm mini-jacks (headphones and microphone) |
| Color | Black | 4 line outputs | 6.3 mm jack |
| DSP effects | compressor, equalizer, SPX reverb, and AMP simulation | Stereo headphone output | 6.3 mm jack |
| 2 mic/line inputs | male XLR/jack combo (input 2 switchable to instrument) | Dimensions | 155 x 63 x 202 mm |
| 2 line inputs | 6.3 mm jack | Weight | 0.95 kg |

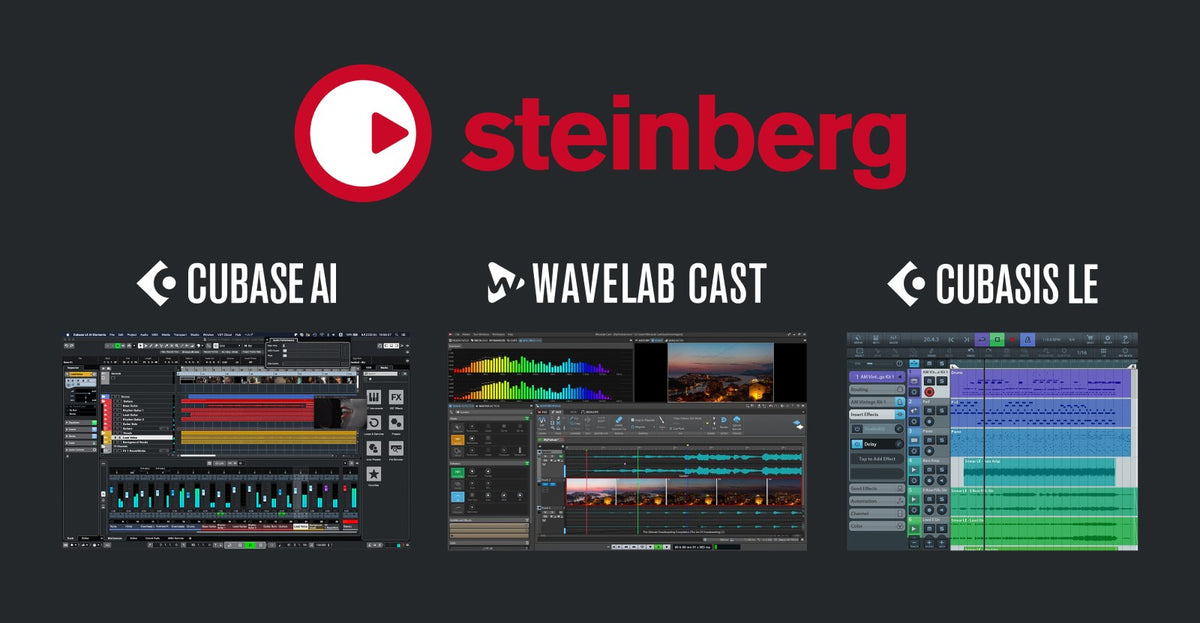

| Auxiliary input | stereo 3.5 mm mini-jack | Included | Steinberg Cubase AI and USB cable |
Questions frequently asked
Is the Yamaha AG06 MK2 Black compatible with iPad and Android?
The announced compatibility covers PC, Mac, iOS, and Android. Using it with an iPad requires an optional camera connection kit.
Can a condenser microphone and a guitar be connected to this mixer?
The two combo XLR/jack inputs accept microphone or line sources, with +48 V phantom power for condenser microphones. Input 2 can be switched to instrument mode for a guitar or bass. An attenuator pad is available to manage high-level sources.
What effects are built into the AG06 MK2?
The DSP includes a compressor, equalizer, SPX reverb, and amp simulation.
What output connectors are available for headphones and speakers?
Four 6.3 mm jack line outputs are provided for speaker monitoring. A 6.3 mm stereo headphone output is available, supplemented by two 3.5 mm mini-jacks dedicated to headset headphones and microphone.
Is the Yamaha AG06 MK2 easy to transport?
With dimensions of 155 x 63 x 202 mm and a weight of 0.95 kg, this model occupies little space on a desk or in a mobile setup. Power is supplied via USB-C at 5 V / 500 mA. A USB cable and Steinberg Cubase AI are included.
