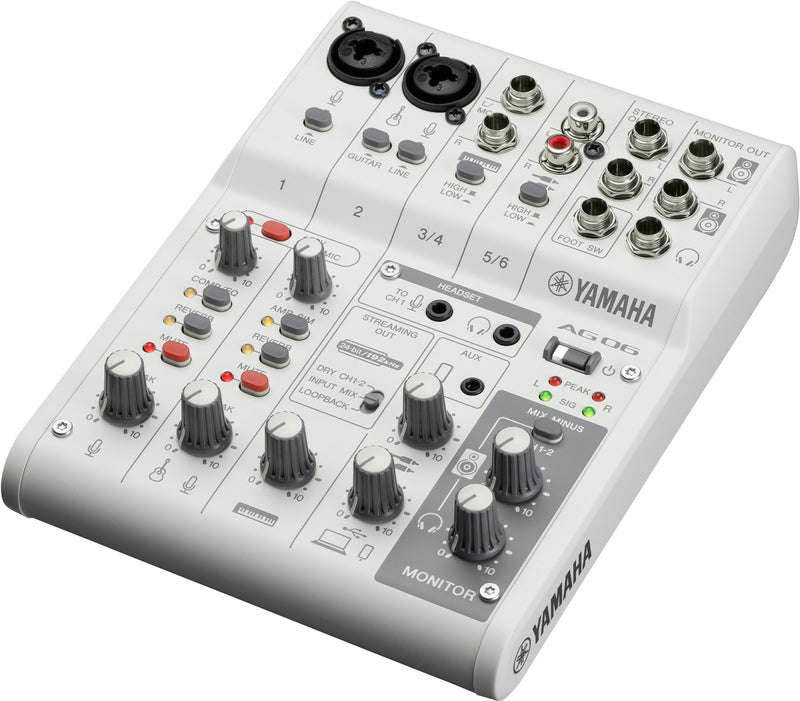

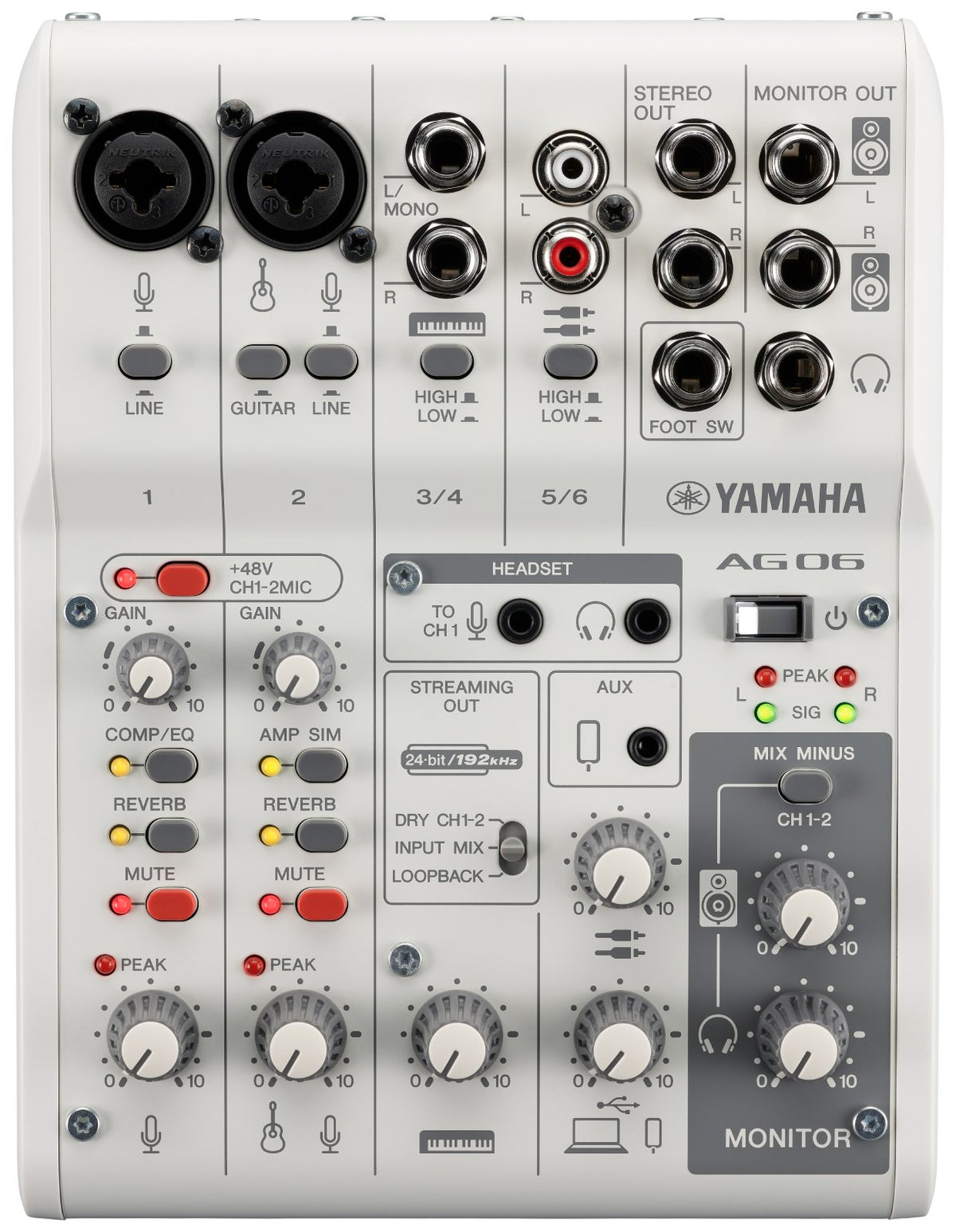

Yamaha AG06 MK2 White

AG06 MK2: The Iconic USB Mixer Formula, Modernized for Today's Setups

The AG series has established itself as a simple and effective solution to combine a small mixing console and a USB audio interface in a compact format. The AG06 MK2 White continues this "all-in-one" philosophy, adapting it to today's uses: content creation, streaming, quick home recording, recorded rehearsals, or mobile setups. This MK2 version emphasizes smoother integration into modern environments thanks to USB-C, while maintaining a very straightforward approach: physical controls, intuitive source management, and ready-to-use signal.

Its white color adds a sober and premium touch, ideal for a production desk, streaming setup, or minimalist studio, without changing the product's DNA: work fast, stay reliable, and keep control over the sound.

A Control Center for Home Studio, Podcast, and Live Streaming

If you are looking for an audio interface that can also serve as a mini-console, the AG06 MK2 White excels in configurations where you need to manage multiple sources in real time. Singer-guitarists can connect a microphone via XLR (with phantom power if needed) and a guitar on the switchable instrument input, while sending comfortable monitoring to headphones and studio monitors.

For content creation, the mixer format is a tangible advantage: you adjust your levels manually, easily combine a voice, an external stereo source (player, keyboard, audio box), and a return from a computer or tablet. For interviews, streaming, and spoken voice, the presence of dedicated mini-jack connectors for headphone/microphone pairs simplifies headset integration, convenient when you need to stay fast and autonomous.

Key Features: Built-in DSP, Instant Control, and Connectivity Designed for Fast Production

DSP Processing: A Sound Ready to Record and Broadcast

The built-in DSP engine allows you to shape your signal without immediately relying on external plugins. Compressor to stabilize vocals, equalizer to clean up or highlight presence, SPX reverb to add depth, and AMP simulation to bring character to a live guitar: the idea is to get a musically usable sound right away, whether for recording, live performance, or broadcasting.

To maintain maximum control in real situations, the effects bypass via optional footswitch becomes a real workflow tool: you can cut processing with a gesture without changing your settings, useful for switching to a more natural "talk" mode, comparing processed to raw sound, or securing a take.

Input and Level Management: Simple, Efficient, Performance-Oriented

With its 2 mic/line inputs in combo XLR/jack format, the AG06 MK2 White adapts to dynamic and condenser microphones thanks to switchable +48 V phantom power. The switchable attenuator pad helps manage stronger sources and preserve a clean headroom to avoid unwanted distortion. Input 2 can switch to instrument mode, allowing you to plug a guitar directly without an extra box, while keeping a compact production chain.

USB-C, iPad, and External Sources: A Versatile Audio Hub

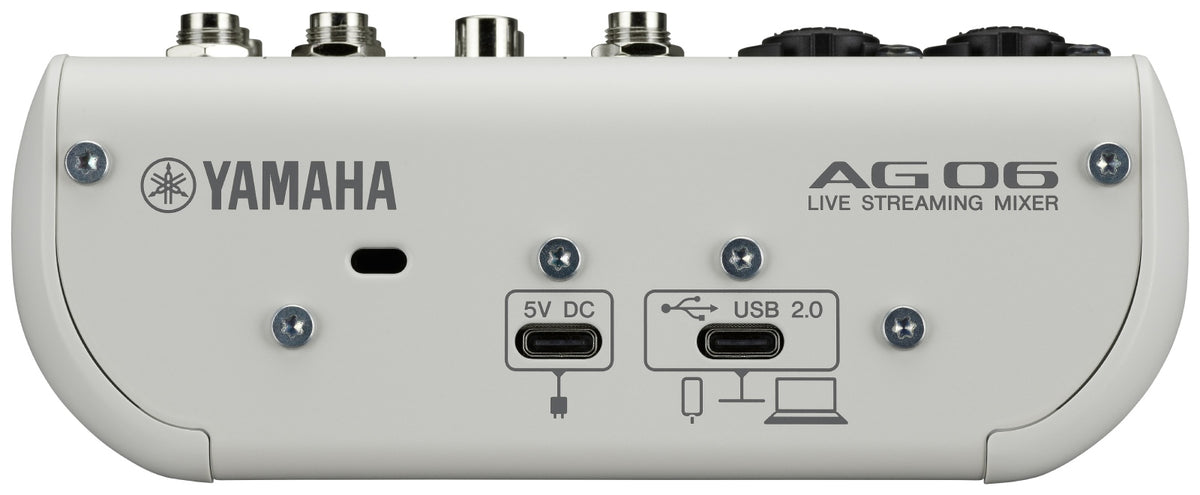

The connectivity of the AG06 MK2 White is designed for hybrid setups. The USB-C simplifies integration with recent computers and allows direct power supply, ideal for a clean and minimal workstation. iPad compatibility (with optional camera connection kit) opens the door to mobile sessions: recording, streaming, or creating on a tablet without reconfiguring your entire environment.

RCA inputs and the mini-jack auxiliary input facilitate adding a stereo source (smartphone, player, backing tracks), while the line outputs in jack format allow powering studio monitors and other destinations depending on your setup. The 6.3 mm jack headphone output ensures clear monitoring, and the dedicated mini-jacks for headphones/microphone are practical for certain streaming and communication uses.

Technical specifications

Compatibility	PC, Mac, iOS, Android	Headphone outputs	Yes
Sampling frequency	192 kHz	Nominal mode power consumption (Wh)	2 W
Max resolution	24-bits

DSP effects	compressor, equalizer, SPX reverb, and AMP simulation	Stereo headphone output	6.3 mm jack

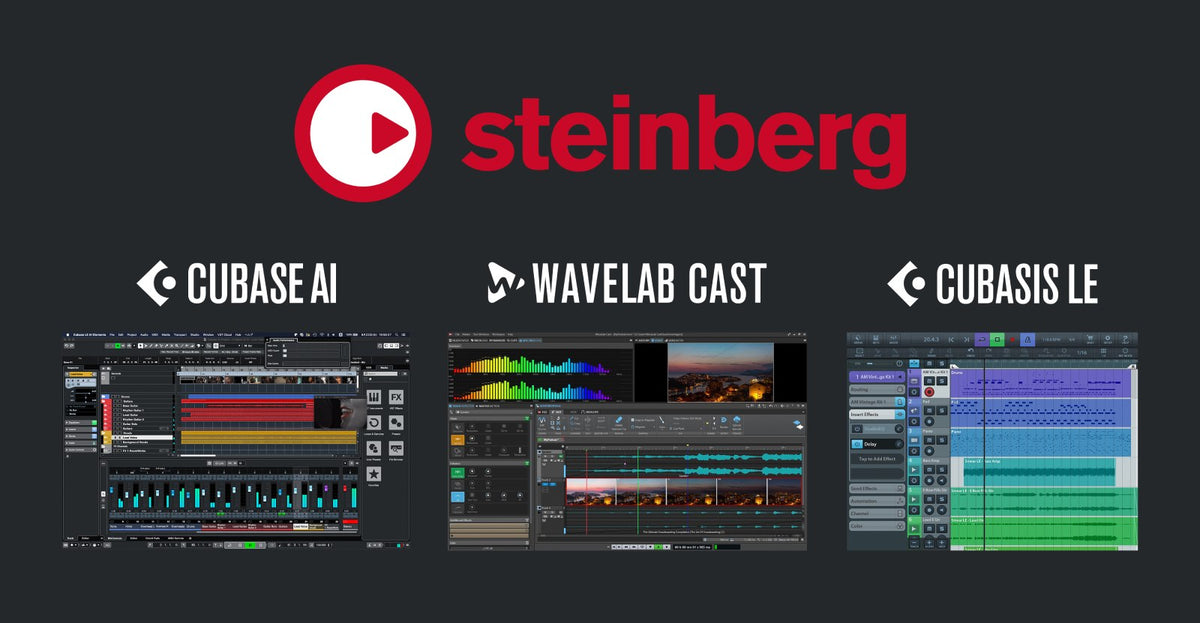

2 mic/line inputs	male XLR/jack combo (input 2 switchable to instrument)	Included	Steinberg Cubase AI and USB cable
2 line inputs	6.3 mm jack	Dimensions	155 x 63 x 202 mm
Auxiliary input	3.5 mm stereo mini-jack	Weight	0.95 kg
Headphone jacks	2x 3.5 mm mini-jack (headphones and microphone)	Color	White
4 line outputs	6.3 mm jack
