Yamaha DXL1K
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the Portable Column Speaker DXL1K
Essential Information About the Portable Column Speaker DXL1K
- 1100 W power and maximum level up to 125 dB SPL for wide and even coverage
- 12-inch subwoofer with high volume for deep bass starting at 37 Hz
- Line array column 10 x 1.5 inch for excellent intelligibility
- Ultra-fast setup, built-in 2-channel mixer and Link function to expand the system or connect with a STAGEPAS 1K mkII
Manufacturer Information
Yamaha
https://www.yamaha.com
------------------------
Safety manager:
Yamaha Music Europe GmbH
Email: info@yamaha.de
Address:

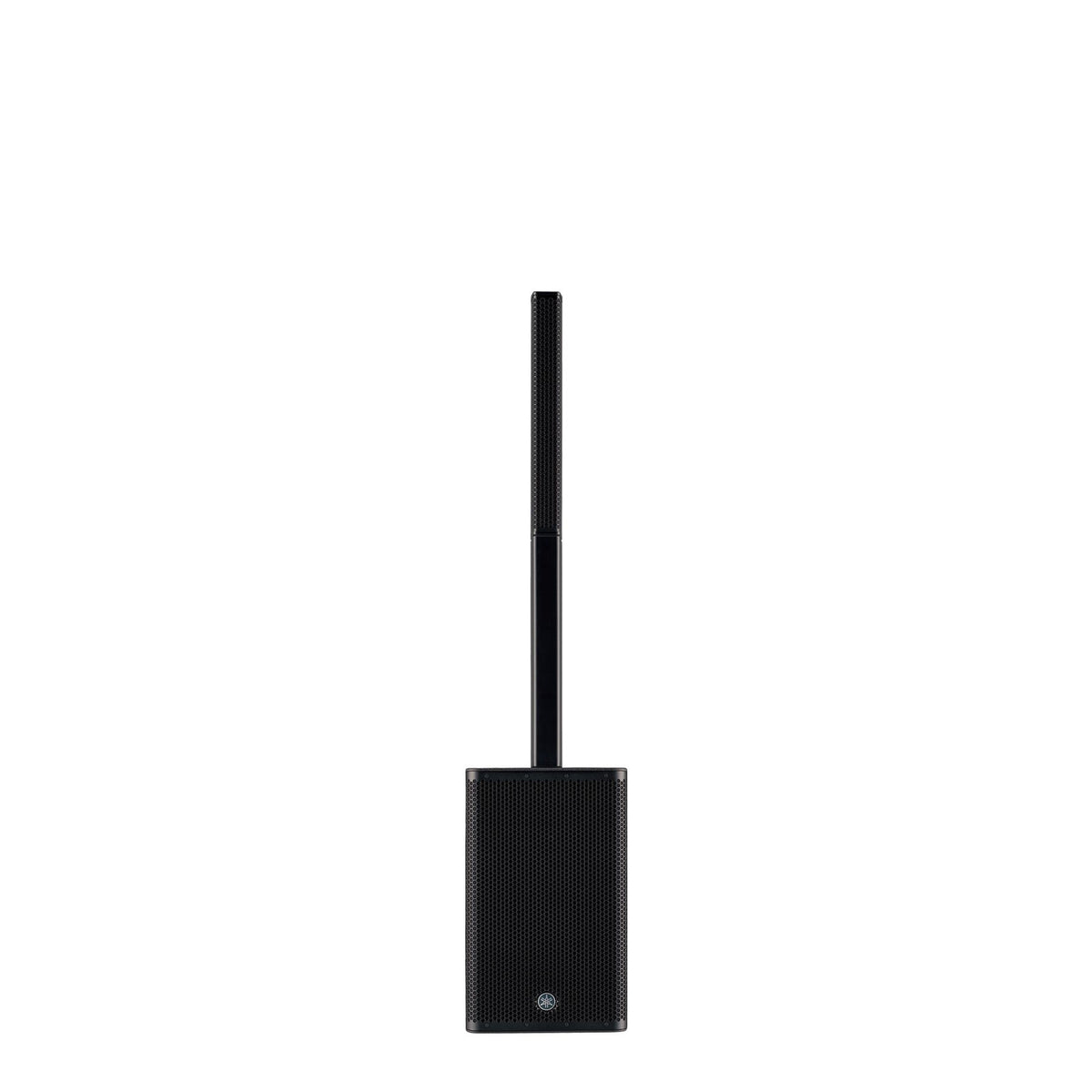

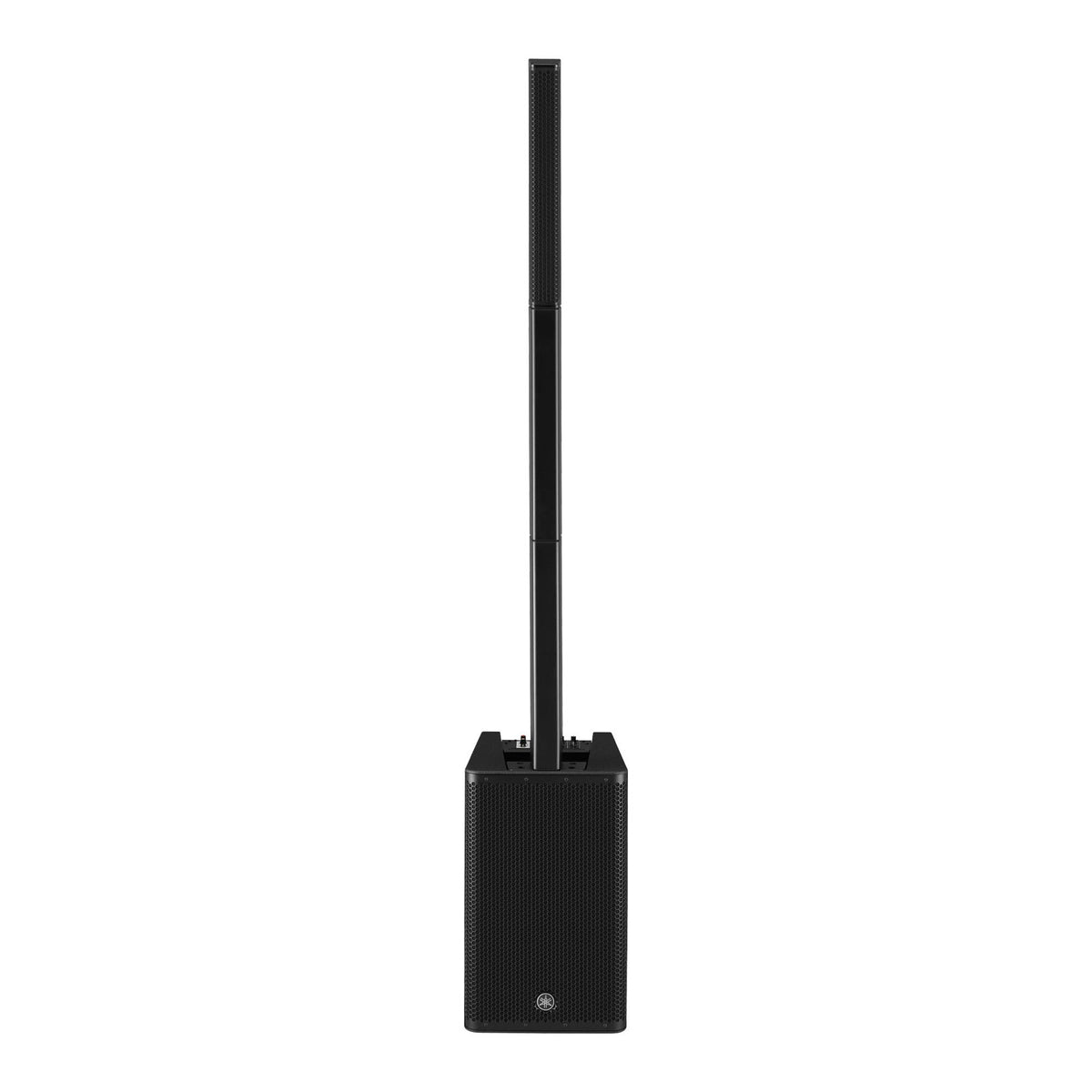

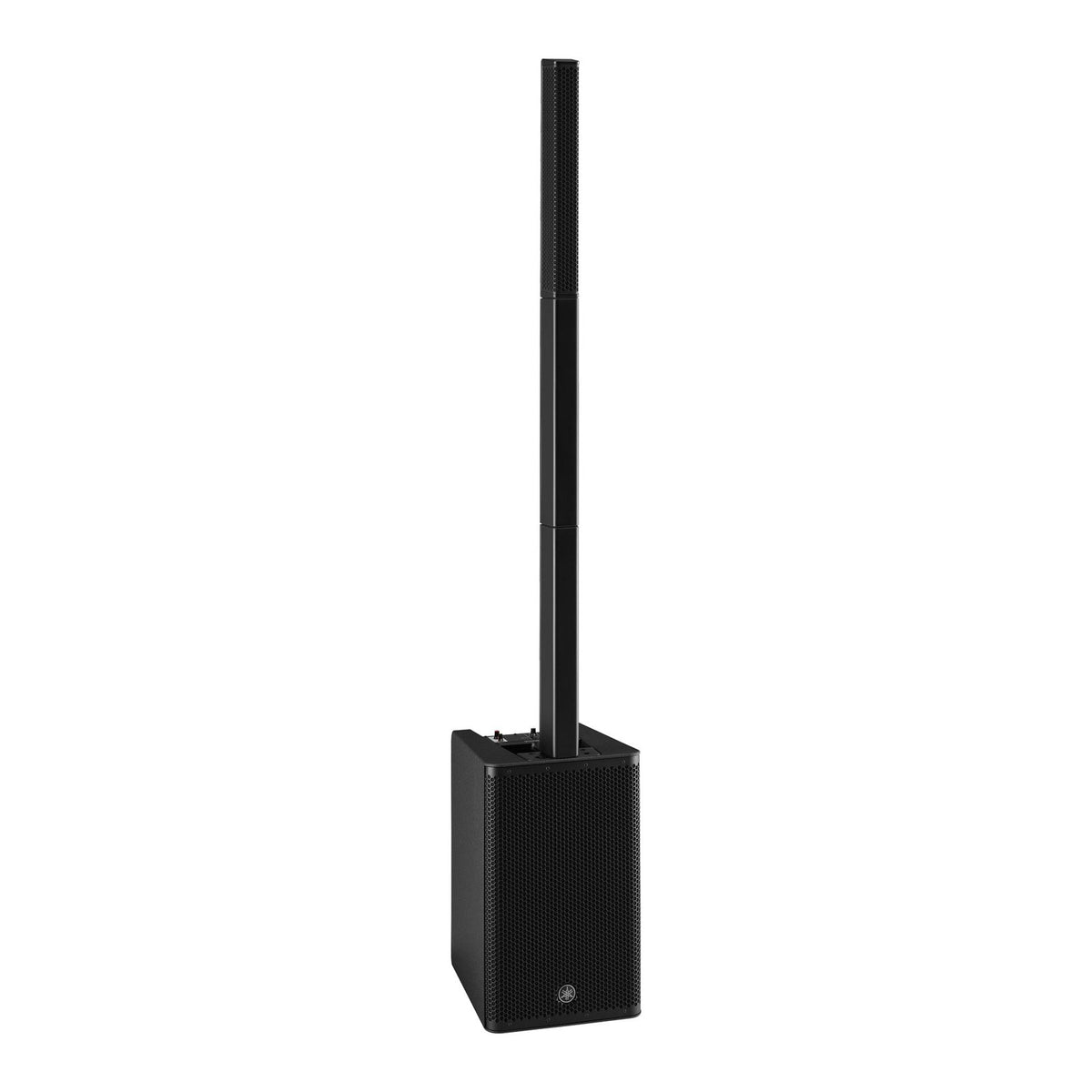

In the Tradition of Yamaha Column Systems
Designed to naturally integrate into the portable sound ecosystem, the DXL1K adopts the concept of a powerful subwoofer topped with a line array column, with simplified implementation. Used alone or in pairs, it can also be connected to a compatible STAGEPAS 1K mkII via the Link function to form a larger system without added complexity.
Who Is It For and What Are the Uses?
Ideal for mobile DJs, conferences, acoustic bands, fitness classes, or corporate events, the DXL1K offers wide projection (170deg H x 30deg V) and solid bass in small to medium-sized rooms. Its 2-channel mixer facilitates quick setups with microphone, keyboard, player, or compact console.
Power, Simplicity, and Expandability
The 1100 W Class-D amplifier module delivers comfortable dynamic headroom. The 12-inch subwoofer provides a solid low-end foundation, while the column's 10 x 1.5-inch drivers offer controlled directivity and excellent vocal clarity. The "SPEECH/MUSIC/CLUB" mode selector instantly adapts the sound to the context. Thanks to its Combo inputs and Link In/Out XLR ports, system expansion is immediate: connect two DXL1Ks together or combine with a STAGEPAS 1K mkII to cover larger spaces. Spacer mounting, the handle on the subwoofer, the included protective cover, and the optional DL-SP1K trolley facilitate transport and field logistics.
Technical specifications
| Battery | No | Speaker structure | wood |
| Number of channels | 2 channels | Inputs | XLR, combo XLR/jack |
| Bluetooth | No | Outputs | XLR |
| Speaker diameter | 1,5", 12" | Color | Black |
| Number of speakers | 11 | Power output | 1100 W |
| EQ | Yes | ||
| Type | Powered subwoofer with line array speaker | LINK IN | XLR x1 |
| Frequency range (-10 dB) | 37 Hz - 20 kHz | LINK OUT | XLR x1 |
| Coverage | 170deg H x 30deg V | Power supply by region | 100 V 50/60 Hz; 110-120 V 60 Hz; 220-240 V 50/60 Hz |
| Crossover | 240 Hz | Consumption | 25 W (idle), 91 W (at 1/8 power) |
| Maximum output level (1 m, on axis) | 125 dB SPL | Handle | on top of the powered subwoofer enclosure x1 |
| LF | enclosure with 30 cm (12-inch) cone speaker | Included accessories | power cord x1, cover x1 |
| HF | column with 10 x 3.8 cm (1.5-inch) speakers | Option | dedicated trolley DL-SP1K |
| Amplifier class | Class-D | System (max) | 334 x 2000 x 418 mm |
| Total rated power | 1100 W | Line array speaker | 67 x 582 x 86 mm |
| Processors | MODE selector (SPEECH / MUSIC / CLUB) | Powered subwoofer enclosure | 334 x 550 x 418 mm |
| Built-in mixer | 2 channels | Spacer | 67 x 555 x 86 mm (each) |
| INPUT 1 | Combo x1 (mic/line) | System | 23.0 kg (max) |
| INPUT 2 | Combo x1 (line) | ||
You will also like
Soundboks
Soundboks 4 Black USB-C
Soundboks
THE NEW SOUNDBOKS (GEN. 4)
Yamaha
STAGEPAS 600BT 2X340W
Bose
L1 PRO8
Yamaha
Stagepas 1K MKII
QSC Pro audio
CB10
Bose
F1 SYSTEM - 812 LOUDSPEAKER
Bose
SUB 2 - SUBWOOFER FOR L1 PRO 32 OR S1 PRO
Questions frequently asked
Is the Yamaha DXL1K suitable for a mobile DJ or an acoustic band?
This model is suitable for mobile DJs, acoustic bands, conferences, fitness classes, and corporate events. Its 170° horizontal and 30° vertical dispersion promotes wide coverage in small to medium-sized rooms.
What power and sound pressure level does this powered column deliver?
The Class-D amplification delivers a total rated power of 1100 W. The maximum advertised output level reaches 125 dB SPL at 1 m, on axis.
Can two column systems or a STAGEPAS 1K mkII be linked?
It is possible to link two systems via the XLR Link In and Link Out connectors. The Link function also allows pairing with a compatible STAGEPAS 1K mkII. This configuration extends sound coverage without adding connection complexity.
What inputs are available for a microphone and a line source?

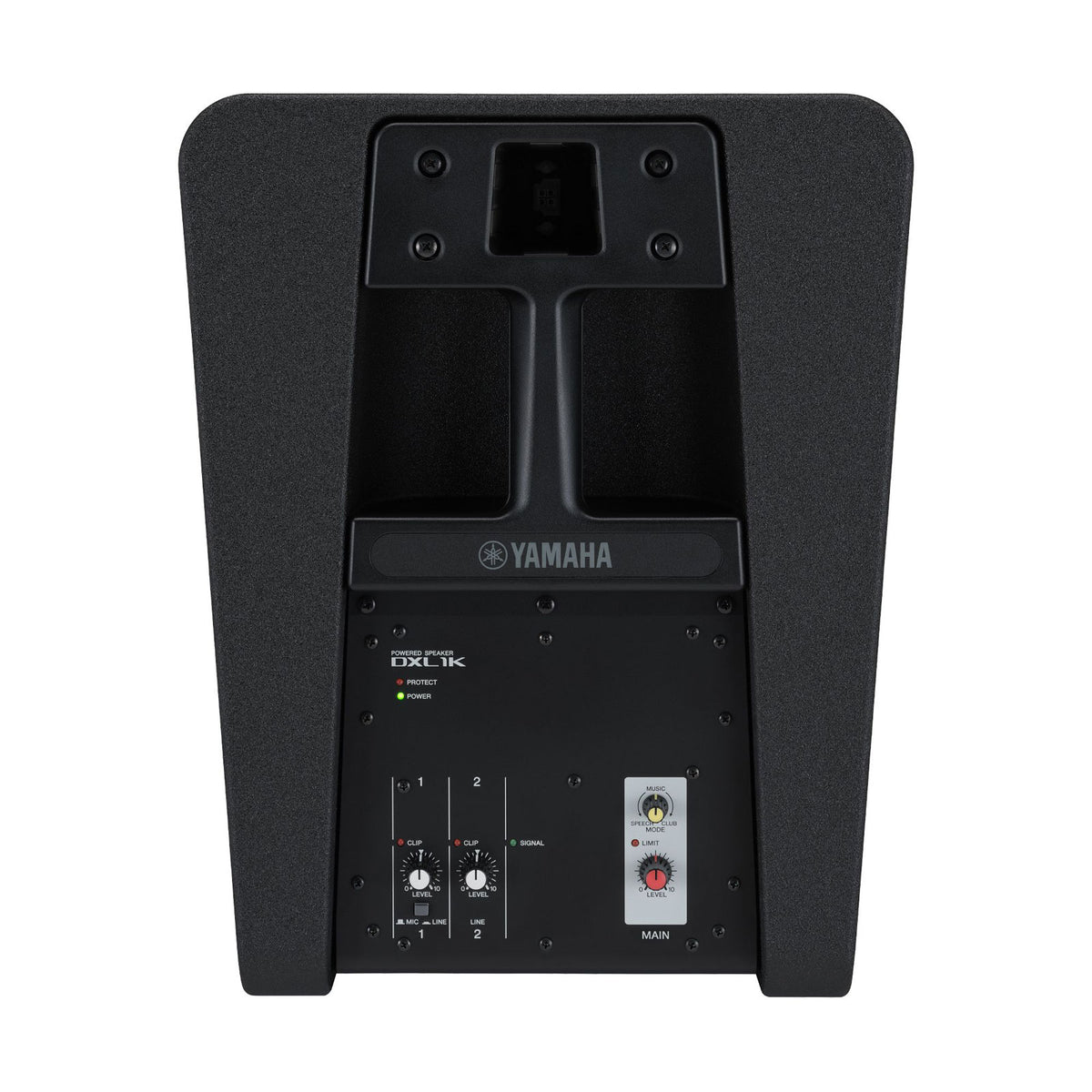

The built-in mixer has two channels: a Combo mic/line input on Input 1 and a Combo line input on Input 2.
Is the system easy to transport?

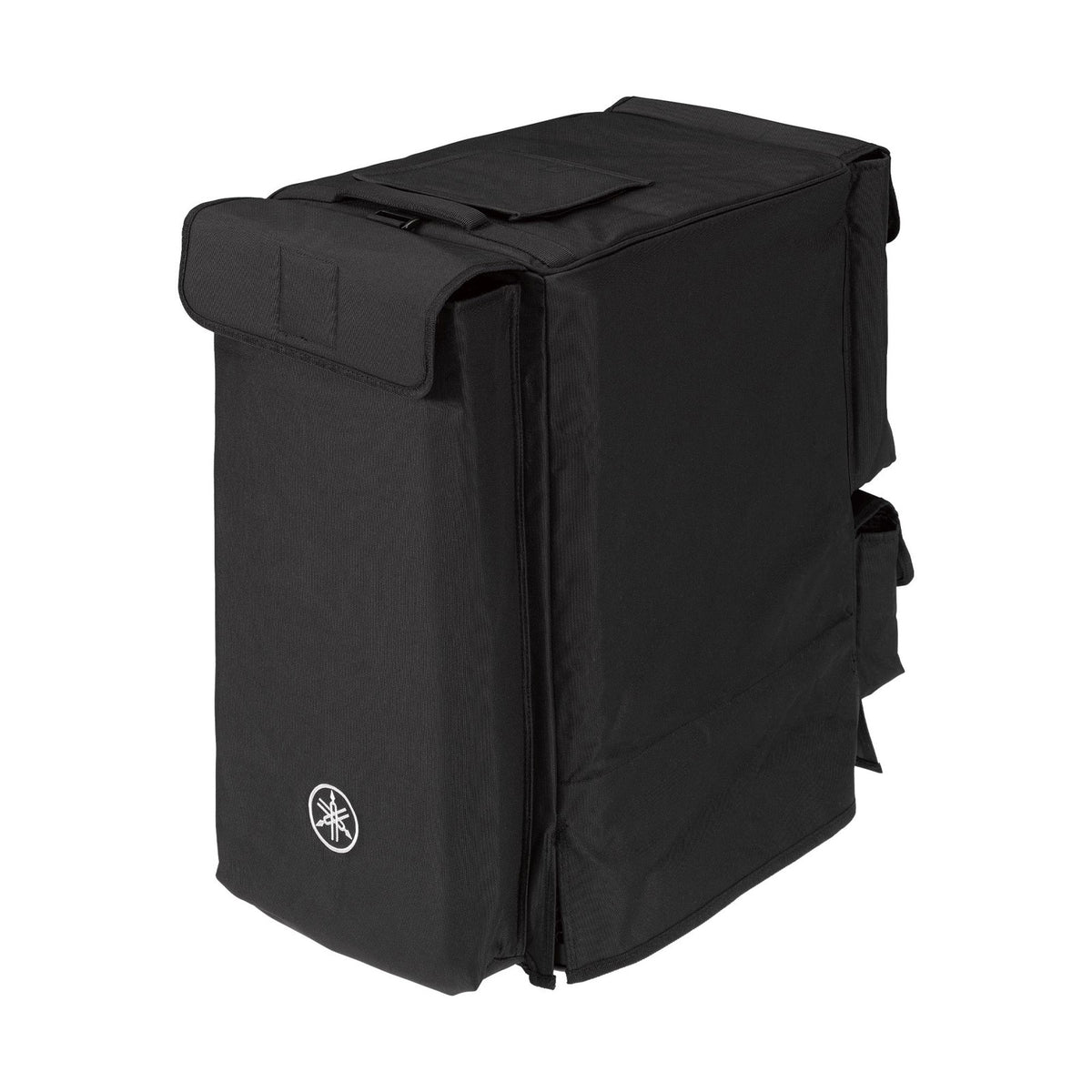

A handle is integrated on top of the bass cabinet, and a protective cover is provided. The complete system weighs 23 kg and measures up to 2000 mm high once assembled. An optional dedicated trolley DL-SP1K is available.
