Essential Information About the DXS18-XLF Subwoofer

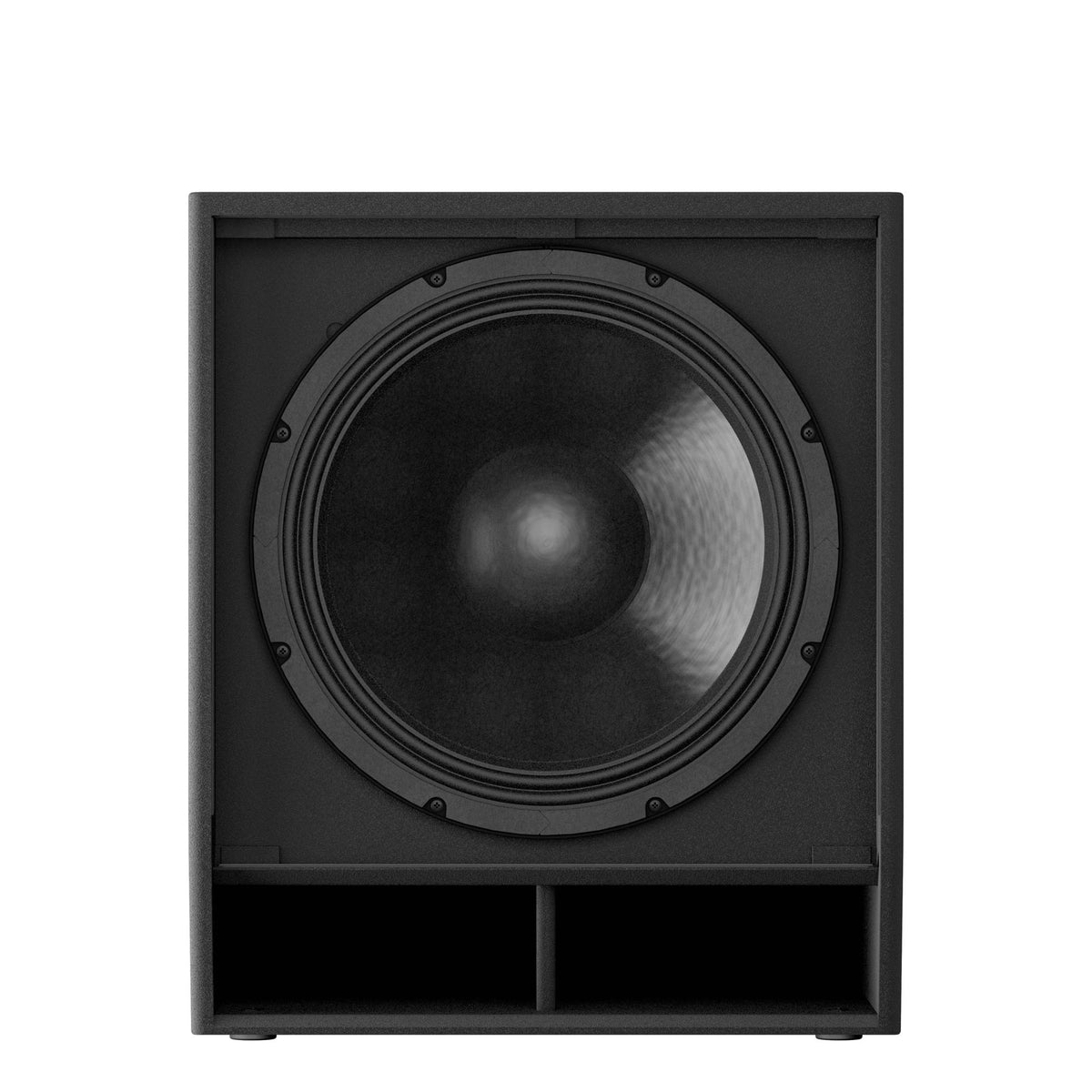

- Powerful and deep bass thanks to an 18-inch driver with a 4-inch voice coil, bass-reflex design, and 136 dB SPL peak output.
- Class D 1600 W amplification with 96 kHz DSP and FIR filters for ultra-low latency.
- Advanced control via LCD screen: presets, parametric EQ, delay and routing, plus D-XSUB processing and cardioid mode.

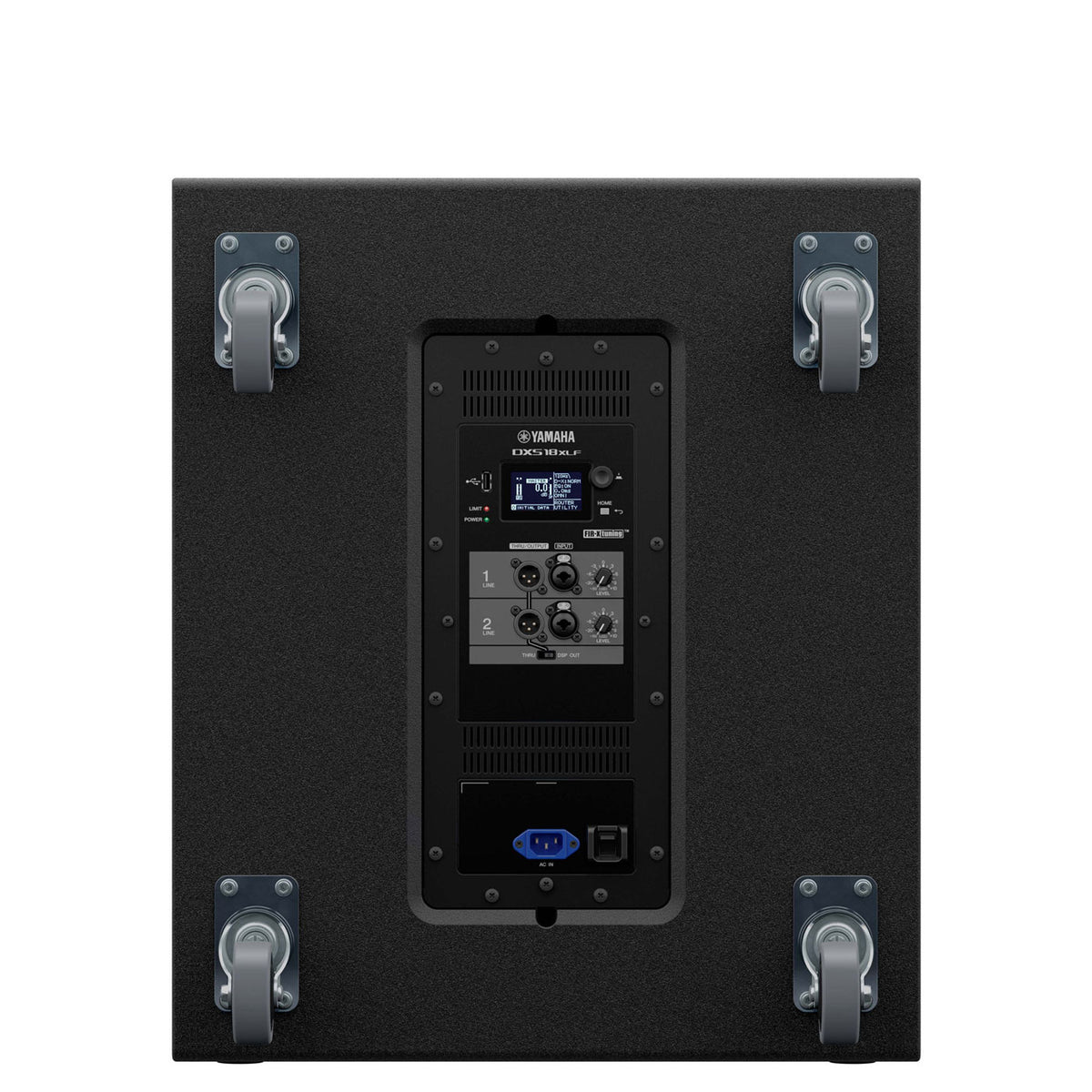

- Professional plywood construction with Polyurea coating, aluminum handles, optional SPCVR-DXS18X cover and SPW-1 casters.
Designed to Reinforce DZR Systems on Stage and in Installations
Designed to complement the DZR series loudspeakers, the DXS18-XLF provides very low frequency extension while preserving mix clarity. Its high headroom allows use on demanding stages as well as in fixed installations, with sound coherence and dynamic reserve suited for professional applications.
Who Is It For and What Are Its Uses?
This subwoofer is aimed at service providers, concert halls, clubs, and DJs seeking firm and controlled bass. The cardioid mode helps control energy behind the system, improving stage comfort and front-of-house clarity, while the DSP functions simplify integration into various configurations.
Technical specifications
| Battery | No | Cutaway | No |
| Number of channels | 1 channel | Speaker structure | wood |
| Bluetooth | No | Inputs | USB, combo XLR/jack |
| Speaker diameter | 18" | Outputs | XLR |
| Number of speakers | 1 | Color | Black |
| EQ | Yes | Power output | 1600 W |
Questions frequently asked
Yamaha DXS 18-XLF: what low-frequency extension does it offer?
The stated frequency response ranges from 30 Hz to 150 Hz (-10 dB), thanks to an 18-inch loudspeaker with a 4-inch voice coil. The maximum level reaches 136 dB SPL at 1 meter on axis.
Is the cardioid mode available on this Yamaha subwoofer?
The DSP processing includes a cardioid mode to control sound energy behind the system. This feature helps improve front-of-house clarity and stage comfort.
What connections are available on the DXS18-XLF?

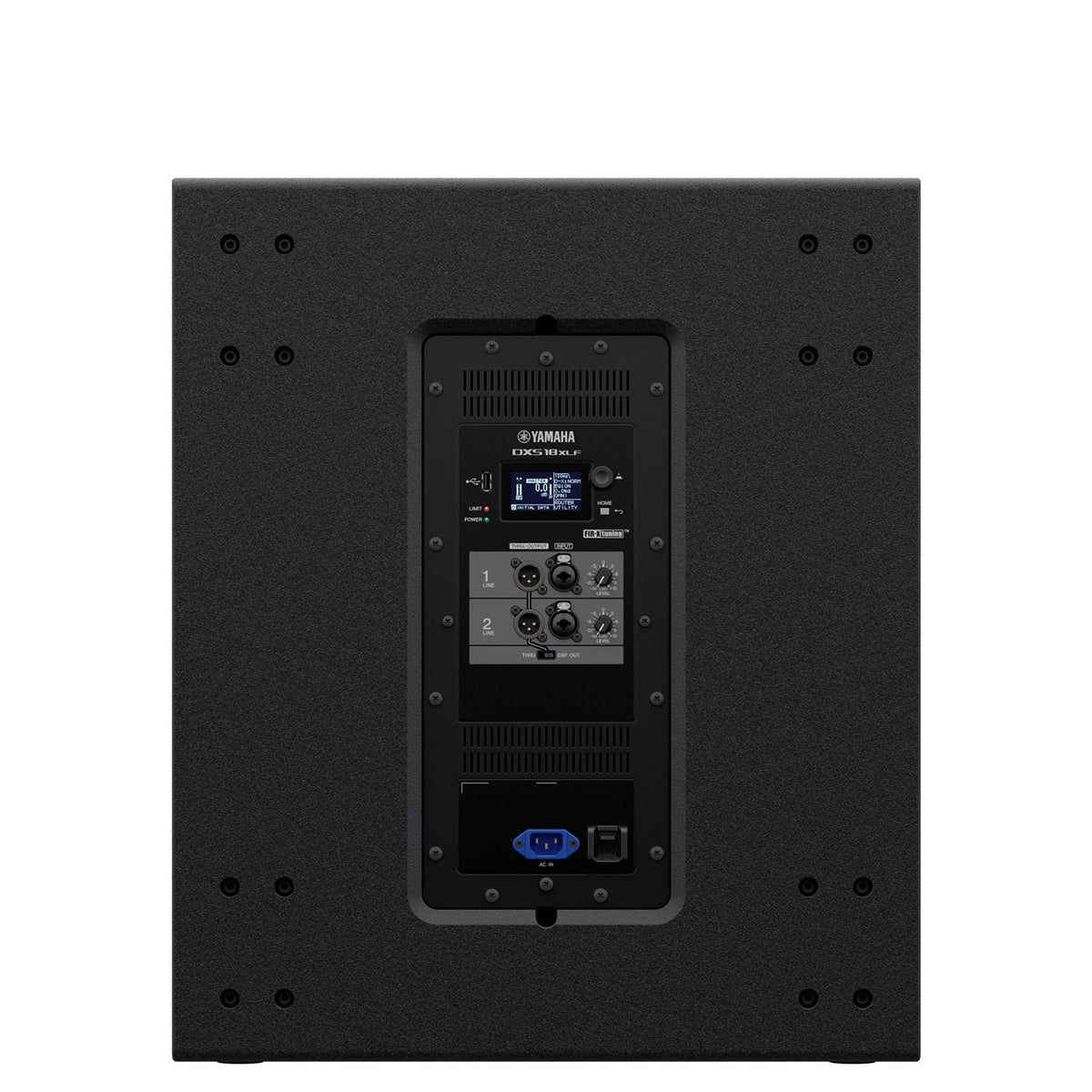

Two line-level analog combo inputs accept up to +24 dBu, with an input impedance of 20 kOhms. Two XLR outputs allow chaining in THRU or DSP OUT mode. A USB 2.0 Host port is provided for data storage and loading.
Can the DSP be adjusted directly on the subwoofer?
The LCD screen provides access to presets, parametric EQ, delay, and routing. The DSP operates at 96 kHz with FIR filters and offers D-XSUB processing.
What is the weight of the subwoofer and can a speaker be mounted on it?
Weighing 48.9 kg, this plywood subwoofer with Polyurea finish features two cast aluminum side handles. A 35 mm socket and M20 thread allow mounting a speaker on a pole.
