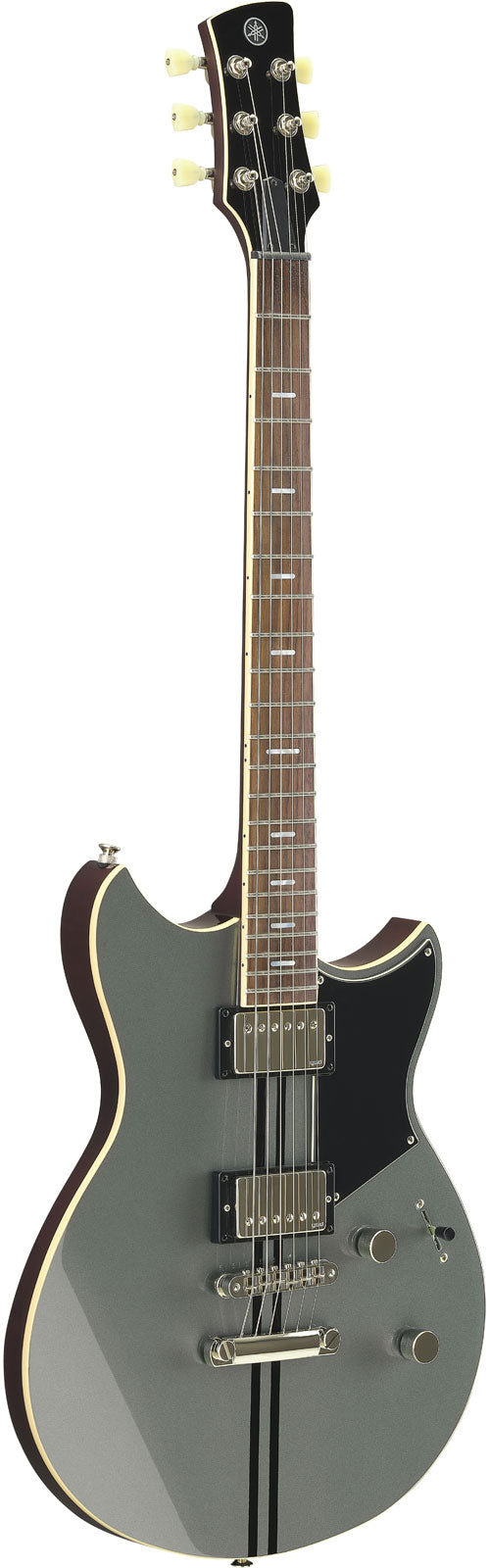

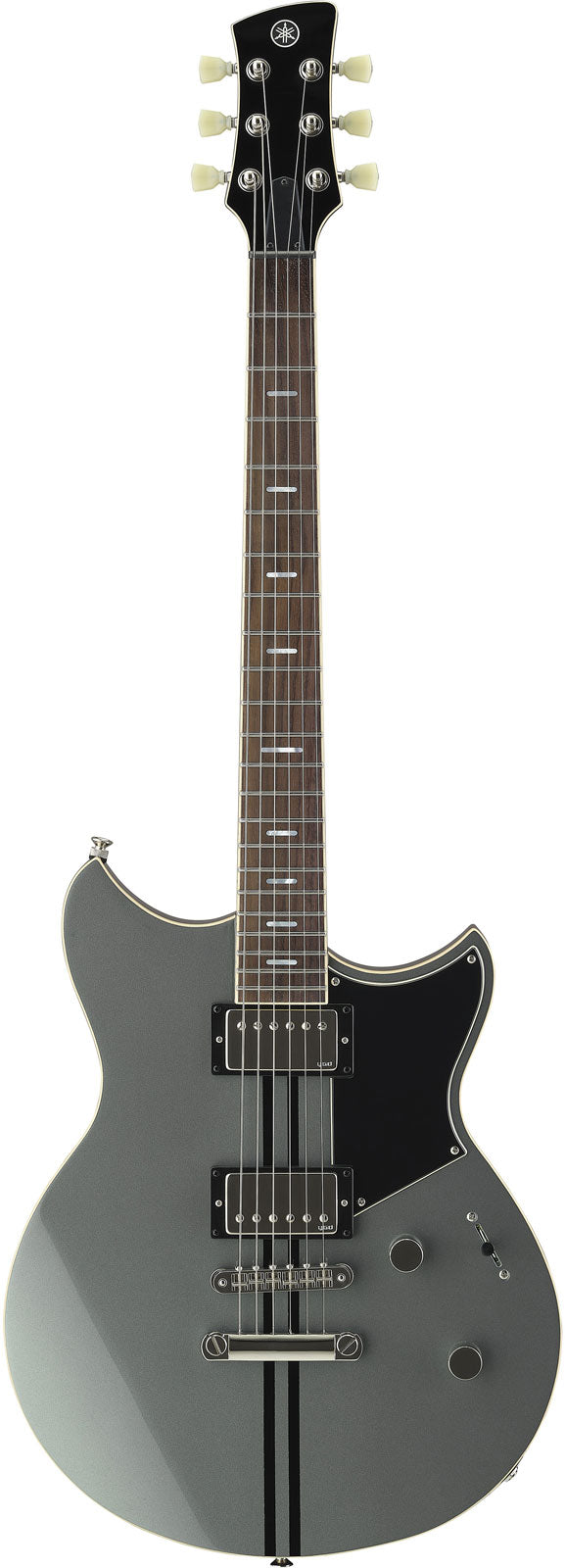

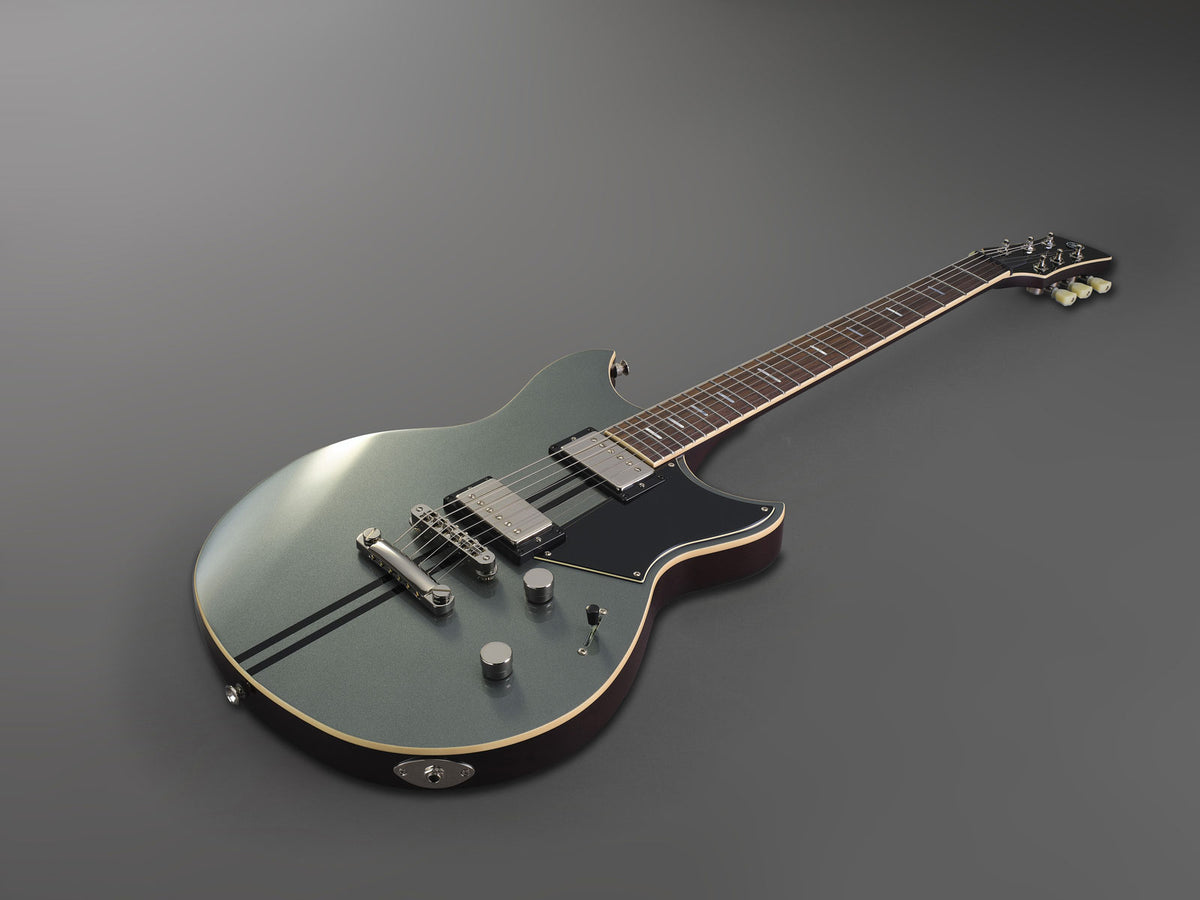

Yamaha Revstar Standard RSS20 Mist Green

A Modern Revstar, True to the "Café Racer" Spirit

Initially launched in 2015, the Revstar range marks Yamaha's return to the electric guitar segment after more than a decade, with an aesthetic identity inspired by the engineering and "racing" design of Yamaha Motor Co. The RSS20 belongs to the Standard series: a high-end approach in material selection, advanced acoustic work through the Yamaha Acoustic Design process, and innovative switching options to cover a wide range of musical situations.

For Which Guitarists and Styles

The Yamaha Revstar Standard RSS20 targets the intermediate to advanced guitarist seeking an expressive, stable, and versatile electric guitar for both stage and studio. Its two-humbucker configuration and switching possibilities make it an excellent foundation for rock, indie, pop, blues, punk, and any style requiring a thick sound, sharp attacks, and solid rhythms, while retaining finer options for cleans and combined positions.

The Sound

The RSS20 combines a chambered mahogany back with a maple top: mahogany provides body, rich low-mids, and natural sustain, while maple adds definition and attack to better cut through the mix. The chambered design, developed with Yamaha Acoustic Design, enhances the "alive" guitar feel and improves resonance, while reducing weight and promoting balance. On the electronics side, the VH5 Alnico V humbuckers deliver a full and articulate sound; the 5-position selector opens up more nuanced textures than typical 2-pickup combinations, and the Focus Switch (push/pull on tone) adds a passive boost with a denser character, ideal for thickening a riff or making a lead stand out without changing guitars.

Technical specifications

Electronics: microphone configuration	HH	Nbrs of frets	22
Category	Double cut	Body	Mahogany
Left handed	No	Bridge / tailpiece	Fixed
Strings	Steel	Electronics	Passive
Nbr of strings	6	Color	Green
Top	Maple	Finishing	Glossy
Fingerboard	Rosewood	Hardware	Chromed

Back	chambered mahogany	Tailpiece	stopbar
Finish	glossy polyurethane	String spacing	10.5 mm / 0.41"
Materials	3-piece mahogany with carbon reinforcements	Tuners	oil-bath (die-cast)
Radius	12" / 304.8 mm	Pickguard	3-ply black
Frets	jumbo stainless steel	Neck pickup	VH5n, humbucker, Alnico V
Number of frets	22	Bridge pickup	VH5b, humbucker, Alnico V
Nut	PPS	Controls	master volume, master tone (push-pull with "Focus Switch")
Neck width	at nut (0 fret) 41.9 mm / 1.65"; at 12th fret 56.8 mm / 2.24"	Pickup selector	5-position lever switch
Neck thickness	at 1st fret 21.0 mm / 0.83"; at 12th fret 23.9 mm / 0.94"	String gauge	Elixir Nanoweb Light 0.010-0.046
Construction	set neck	Case	gig bag
Scale length	24-3/4" / 628.6 mm	Weight	3.7 kg
Bridge	Tune-O-Matic
