Zoom ERL-6
Estimated Shipping Widget will be displayed here!

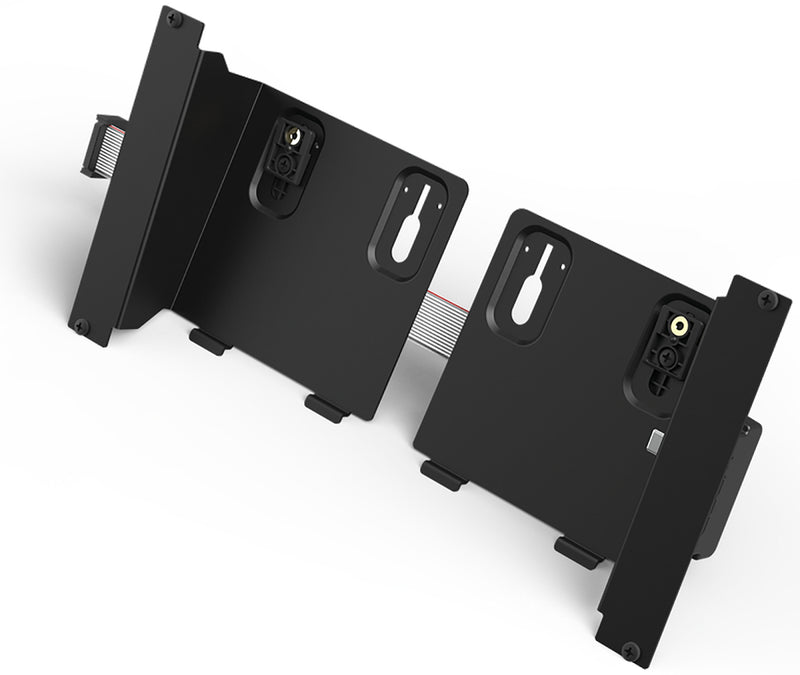

Essential Information About Rack Ears for L6 Console
Essential Information About Rack Ears for L6 Console
- Allows integration of the L6 / L-6 console into a Eurorack case with a 54HP format
- Includes a power converter from +12V (Eurorack standard) to +5.6V compatible with the L-6
- Includes a power connection cable for clean wiring inside the rack
- Easy installation thanks to the 8 screws provided
Manufacturer Information
Zoom
https://www.zoomcorp.com
zoom@sound-service.eu
------------------------
Safety manager:
Mogar Music France
Email: info@mogarmusic.fr
Address:
Integration Designed for Modular Setups
Designed for Eurorack environments, this rack ears kit facilitates the installation of your L6 / L-6 console directly within a modular system. The goal is clear: save space, secure the mounting, and achieve a cohesive setup ready for both studio and stage.
Who Is It For and What Is It Used For?
This product is intended for musicians and technicians who want to integrate the console into a Eurorack chassis, optimize the ergonomics of a live rig, or centralize a compact setup without any DIY.
Power and Mounting: Everything You Need in the Box
The included converter allows the use of a Eurorack +12V power supply while powering the console at +5.6V. The power cable and included screws complete the package for a quick and reliable installation.
Technical specifications
| Use | Mixing console | Inner width | 54 cm |
| Type | pair of rack ears for L6 / L-6 console | Screws provided | 8x mounting screws |
| Format | Eurorack | Included converter | +12V (Eurorack standard) to +5.6V compatible with the L-6 |
| Required space | 54HP | Power connection cable | included |
You will also like
Allen & Heath
CQ-12t-case
Presonus
NSB16.8
Allen & Heath
SQ5 RK19
QSC Pro audio
CP8-tote
Yamaha
RK5014 RACK KIT FOR EMX 5014 AND 5016
Allen & Heath
CQ-18t-case
QSC Pro audio
CP12-tote
Allen & Heath
TRANSPORT BAG
Questions frequently asked
Are the Zoom ERL-6 ears compatible with the L6 / L-6 console?
This pair of ears is designed to install a Zoom L6 / L-6 console into a Eurorack system.
How many HP are required to mount the L-6 with this kit?
The installation requires 54 HP in the Eurorack chassis. The indicated internal width is 54 cm.
Does the ERL-6 kit allow powering the L-6 from a Eurorack bus?
The included converter transforms the Eurorack +12 V power supply into +5.6 V compatible with the L-6. A power connection cable is provided. Integration can thus be done from a Eurorack power supply.
Which screws are supplied with the rack ears?
Eight mounting screws are included to fix the assembly into the Eurorack rack.
Is this kit suitable for a compact live Eurorack setup?
Its Eurorack format allows centralizing the L6 / L-6 console in a modular chassis. The rack ear mounting helps organize a live rig by limiting space outside the rack.
