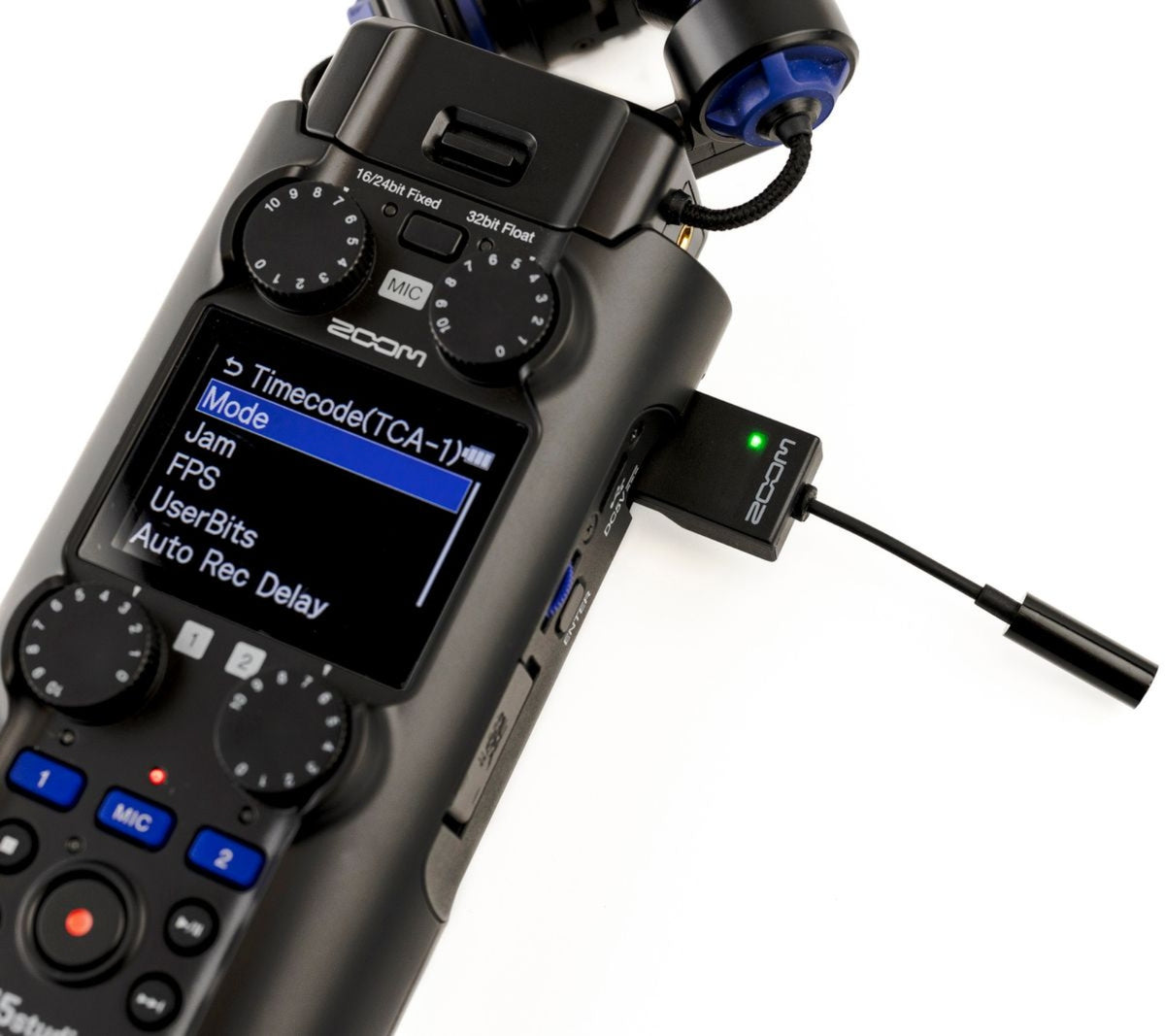

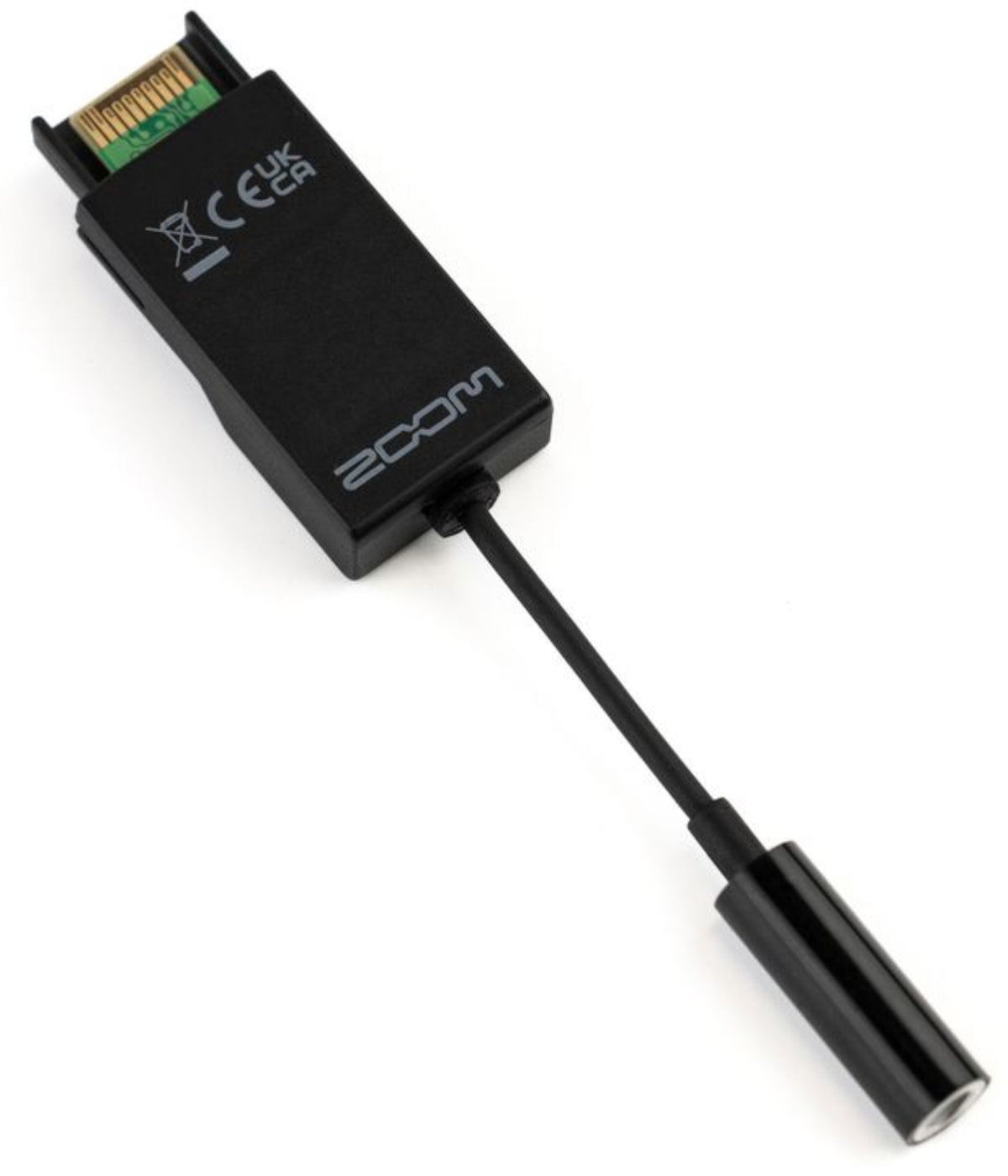

A Timecode Module Designed for ZOOM F, HStudio, and Hessential Series Recorders
The ZOOM TCA-1 was designed to address a key need on multi-source shoots and recordings: providing precise, easy-to-deploy timecode that is consistent with the ZOOM ecosystem. It serves as a compact solution dedicated to compatible series recorders to ensure reliable audio-video alignment and facilitate conforming in post-production.Who Is It For and What Are Its Uses?
The TCA-1 is aimed at sound engineers, camera operators, documentary teams, and content creators who record audio on a ZOOM device while shooting with a camera. It is particularly useful whenever you multiply takes, cards, and devices, or when you need to deliver a project where synchronization must be fast, clean, and reproducible.Precision, Operating Modes, and Compatibility: The Essentials for a Solid Timecode Workflow
A TCXO Clock to Minimize Drift
At the heart of the TCA-1, the temperature-compensated crystal oscillator (TCXO) ensures excellent long-term stability. With a specified accuracy of +/-0.2 ppm and a drift as low as 0.5 frames over 24 hours, you gain peace of mind during long shooting days, even when devices are not continuously connected.Modes Adapted for Shooting (and Post-Production)
Depending on your setup, you can generate internal timecode, sync to an external source, or automate recording based on the received signal. The various modes (Free Run, Rec Run, Time of Day, Ext, Ext Auto Rec) allow precise adjustment of the timecode behavior to your workflow, whether for fiction, reportage, interviews, or live capture.ZOOM Compatibility and Required Update
The TCA-1 is compatible with H6studio, H5studio, H6essential, H4essential, H2essential, and F3 recorders. To ensure compatibility, it is necessary to use the latest firmware version of the recorder.Technical specifications
| Type | precision timecode generator |
| Accuracy | +/-0.2 ppm |
| Stability (drift) | 0.5 frames over 24 hours |
| Modes | Off, Int Free Run, Int Rec Run, Time of Day, Ext, Ext Auto Rec |
| Timecode input/output | 3.5 mm TRS mini-jack |
| Recorder connection | via "remote connector" port (ZOOM compatible) |
| Compatible recorders | H6studio, H5studio, H6essential, H4essential, H2essential, F3 |
| Note | requires latest firmware version |
| Dimensions | 17 mm (L) x 93.5 mm (W) x 9.2 mm (D) |
| Weight | 5.9 g |
Questions frequently asked
Is the Zoom TCA-1 compatible with the F3?
The F3 is among the compatible recorders, along with the H6studio, H5studio, H6essential, H4essential, and H2essential. The recorder requires the latest firmware version.
What is the accuracy of the timecode generator?
The TCXO oscillator offers an accuracy of ±0.2 ppm, with a drift specified as 0.5 frames over 24 hours.
What timecode modes are available?
Six modes are provided: Off, Int Free Run, Int Rec Run, Time of Day, Ext, and Ext Auto Rec. The internal mode allows generating timecode from the module. The Ext and Ext Auto Rec modes sync to an external source, with the latter able to automate recording based on the received signal.
How does the module connect to the Zoom recorder?
Connection is made via the recorder’s ZOOM-compatible 'remote connector' port.
What are the dimensions of the TCA-1?
Measuring 17 mm in length, 93.5 mm in width, and 9.2 mm in depth, this module weighs only 5.9 g. Its form factor is designed to complement compatible recorders without adding bulk.
