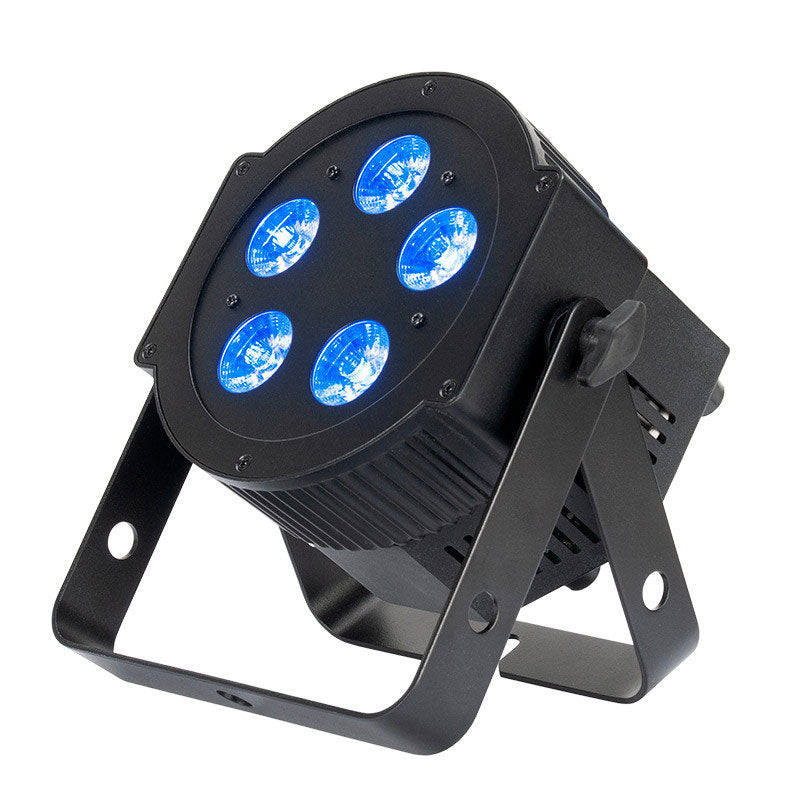

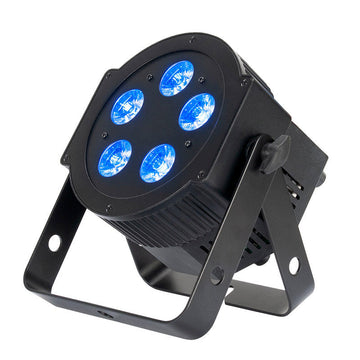

Essential Information About the ADJ 5PX HEX PAR Spotlight
Essential Information About the ADJ 5PX HEX PAR Spotlight
- Unlimited colors thanks to 5 12W 6-in-1 RGBAW-UV LEDs, for rich mixes including ultraviolet.
- Precise wash with a 30-degree beam, perfect for uplighting, stage monitors, and set designs.
- Flexible control via DMX (3- and 5-pin), 4 DMX modes, 5 operating modes, and 63 color macros.
- Quick installation with Locking Power In/Out for daisy-chaining up to 21 units, metal housing, and dual bracket.
Manufacturer Information
ADJ
https://www.adj.com
info@adj.com
------------------------
Safety manager:
ADJ Supply Europe B.V.
Email: info@adj.eu
Address:
A versatile wash for stage and uplighting
Compact and powerful, the 5PX HEX delivers a uniform wash of light to enhance concert stages, DJ booths, clubs, bars/restaurants, and event spaces. Its 30-degree beam effectively covers walls, totems, and structures in uplighting, while the UV adds creative touches for fluorescent decorations or blacklight effects. Flicker-free operation is suitable for video recording and TV productions.
For mobile DJs, event providers, and demanding lighting technicians
Designed for mobile DJs, event agencies, lighting technicians, and rental companies, this LED PAR combines reliability, quick setup, and professional output. It is also suitable for multipurpose rooms, theaters, and private users seeking a modern, scalable, and DMX-compatible lighting solution, equally adept in live events and fixed installations.
Technical specifications
| LED | 5 RGBAW + UV (red, green, blue, amber, white and UV) | Operation | flicker-free |
| Individual LED power | 12 W | Effects | strobe and pulse |
| Average LED lifespan | 50,000 hours | Color mixing | RGBAW + UV |
| Beam angle | 30 degrees | Housing | metal |
| Filter frame | included, for optional diffusion filters | Cooling | fan-cooled |

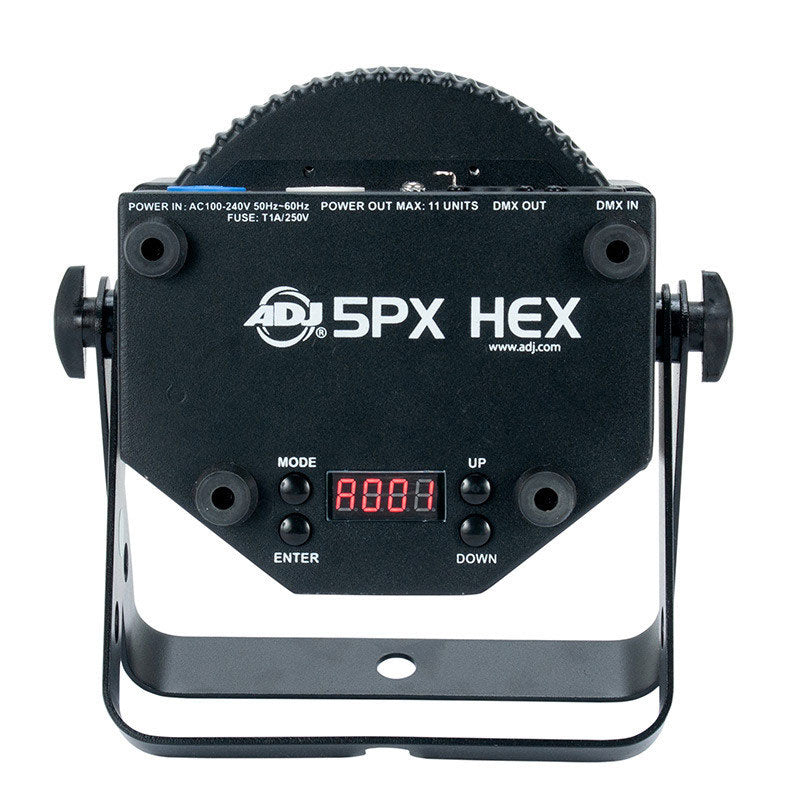

| Display | 4-button digital, on the rear | Bracket | dual, for floor standing or hanging |
| 5 operating modes | static color, RGBAW+UV dimmer, built-in sequences, "Sound Active" mode and DMX control | Automatic switching power supply | 100-240 V, 50/60 Hz |
| 4 DMX modes | 6, 7, 8 and 12 channels | Power consumption | 60 W |

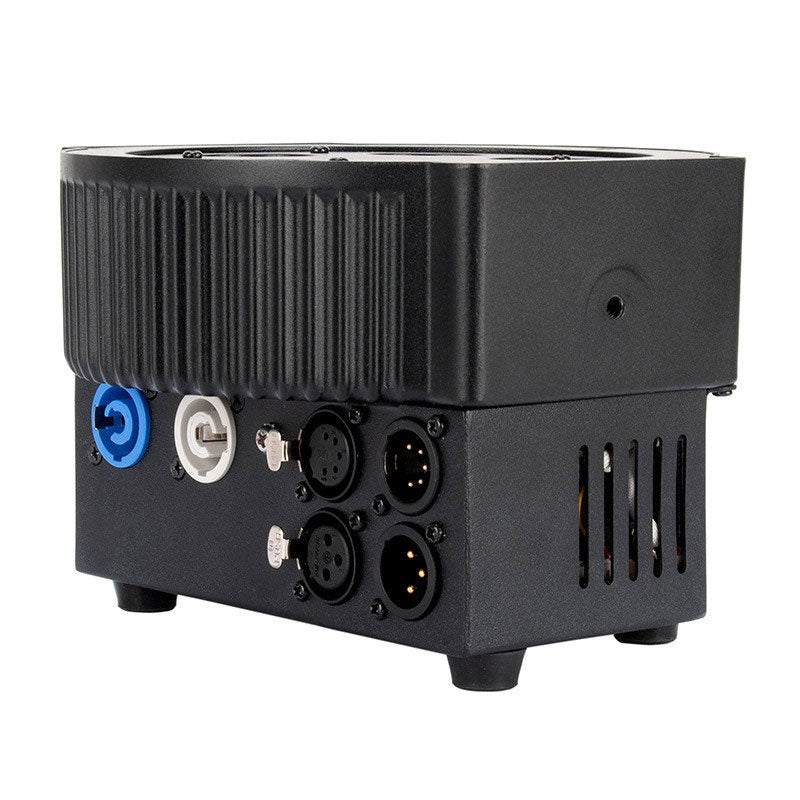

| Electronic dimming | 0 to 100% | DMX inputs and outputs | 3- and 5-pin lockable |
| Color macros | 63 built-in | Power inputs and outputs | locking (Locking Power) |
| Programs | 7 built-in, "Sound Active" mode | Power linking | up to 21 units via Locking Power In/Out |
| 5 selectable dimming curves | standard, stage, TV, architecture, theater | Dimensions (L x W x H) | 114 x 208 x 222 mm |
| Compatible remote control | Dotz PAR RF (optional) | Weight | 2.6 kg |
You will also like
Algam Lighting
PAR WASH 14X 15W RGBWW 4-IN-1 35° OPTIC
Algam Lighting
Slimpar 1210 Quad
Algam Lighting
Slimpar 710 Hex
Algam Lighting
PAR WASH 7X 30W RGBWW 4-IN-1 15° OPTIC
Algam Lighting
Slimpar 1210 Hex
Chauvet DJ
Slimpar H6 ILS
J.collyns
StagePar 7x30W Hexa
Chauvet DJ
Slimpar Q12 BT ILS
Questions frequently asked
ADJ 5PX HEX: how many DMX channels are available?
The DMX control offers 4 modes with 6, 7, 8, or 12 channels, featuring DMX input and output on 3- and 5-pin connectors.
What beam angle is used for uplighting?
A 30-degree beam angle is used to cover walls, totems, and structures with vertical lighting.
Can multiple fixtures be daisy-chained on a single power supply?
The Locking Power In/Out supply allows daisy-chaining up to 21 fixtures. Each unit consumes 60 W. The switching power supply accepts 100 to 240 V at 50/60 Hz.
Does the Sound Active mode respond to music?
The "Sound Active" mode is one of the 5 operating modes and enables reaction to music without a DMX console.
What colors and effects are offered?
Five 6-in-1 12 W LED sources combine red, green, blue, amber, white, and UV. The fixture includes 63 color macros, 7 built-in programs, and a strobe effect.
