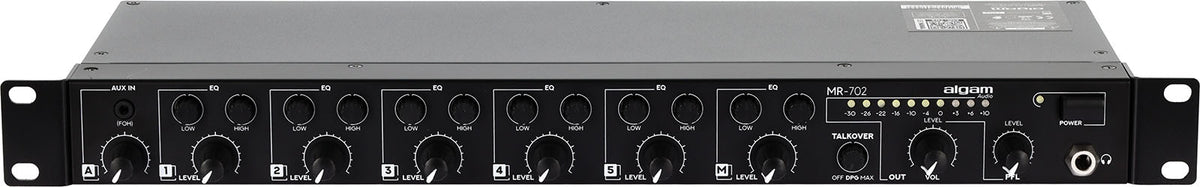

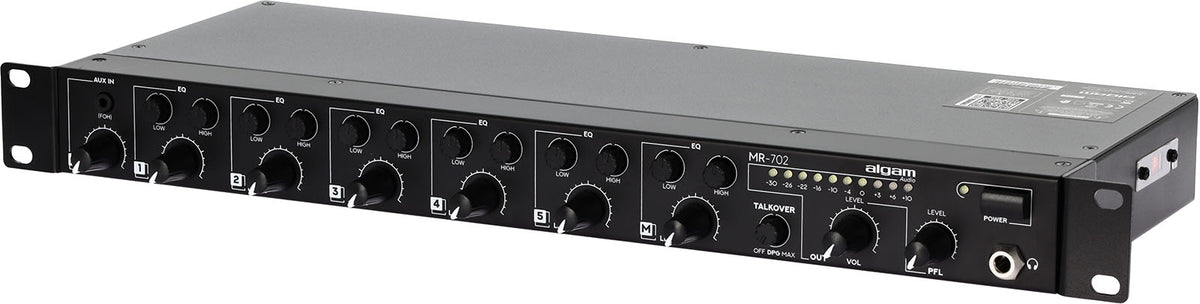

Algam Audio MR 702 - rack mountable 7-channel mixer
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Algam Audio
https://www.algam.net
contact@algam.net
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A 1U Mixer Designed for Installation: At the Heart of Clear and Controlled Sound Distribution
The MR-702 was designed as a rackmount audio mixer intended for environments where reliability, clear control settings, and priority management are essential. Its philosophy is simple: centralize multiple sources (microphones, players, console outputs, background music) in a 1U chassis ready for integration, while maintaining precise control over levels and signal hierarchy. In a conference room, event space, place of worship, or corporate installation, it naturally fits between sources and amplification to ensure consistent and secure sound distribution.
Who the MR-702 Is For: Conferences, Announcements, and Event Sound Reinforcement
The MR-702 is aimed at audio professionals and integrators who need reliable mixing without unnecessary complexity. Channels 1 to 5 manage microphones (speakers, podiums) or line sources (players, wireless receivers, auxiliary outputs), while channel A facilitates connection of a mixing console or dedicated balanced source. The M channel, a priority microphone, meets the typical needs of installations where speech must remain intelligible: announcements, hosting, moderation, public messages, without manually cutting the music.
Technical specifications
| Number of channels | 7 | Number of mic preamps | 6 |
| Phantom power supply | Yes | Recording | Rca |
| Rackable | Yes | Color | Black |
| Rack unit | 1 | Weight | 2.3 kg |
| Category | mixer | Dimensions (mm) | 483 x 44,5 x 152 |
Questions frequently asked
Can the Algam Audio MR-702 power condenser microphones?
Micro channels 1 to 5 have phantom power that can be enabled via jumpers on the PCB. The M channel features a balanced 6.35 mm TRS microphone input, with no phantom power mentioned in the specifications provided.
How does the talkover function work for microphone announcements?
The M channel automatically lowers the level of other sources when a microphone signal is detected. Both the trigger threshold and attenuation depth are adjustable. This feature ensures announcements remain audible over the music.
Is the mixer rack-mountable in 19-inch format?
The chassis is 1U high and measures 483 x 44.5 x 152 mm, suitable for installation in a 19-inch rack.
What source can be connected to the FoH A channel?
Input A accepts a balanced source via two 6.35 mm TRS jacks, typically a console output. A 3.5 mm mini-jack input is also available and switches automatically when a source is connected.
Which outputs are available for amplification and recording?
The main output is available on two balanced 6.35 mm TRS jacks and on Euroblock connectors, with a switchable mono summing option. A dedicated RCA output is provided for recording the mix. A 10-LED meter displays the main output level before any limiter action.
