Essential Information About the Allen & Heath AB168 Digital Stage Box

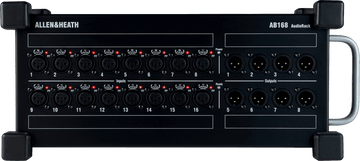

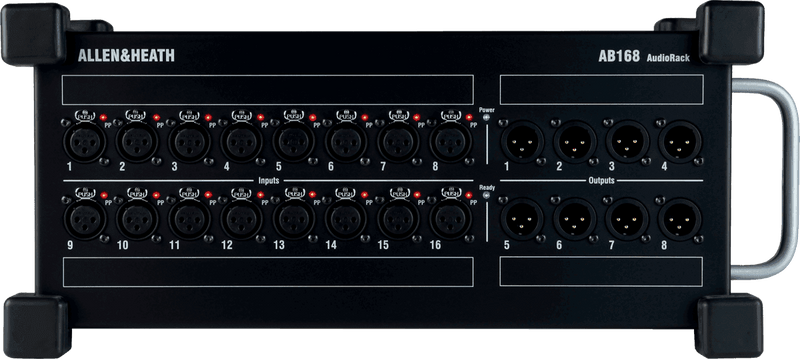

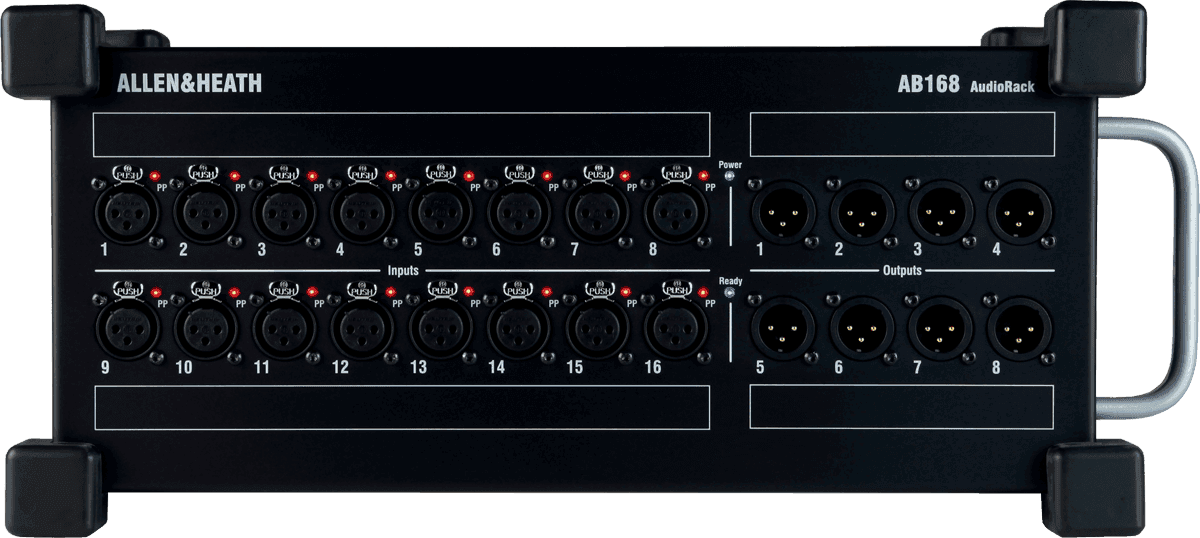

- 16 high-quality mic preamps with phantom power and 8 line outputs in XLR format.

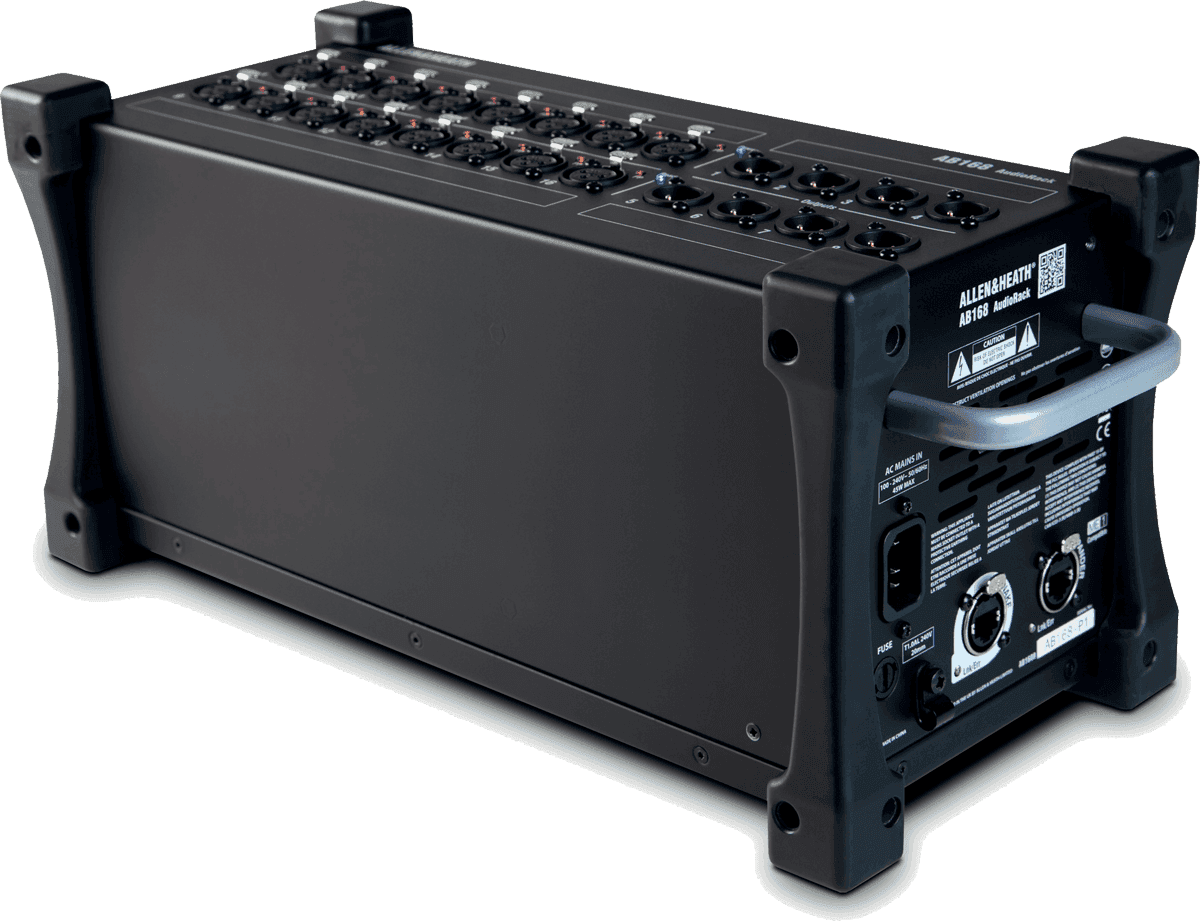

- dSnake network connection via RJ45 on Cat5 cable up to 120 m for simple and reliable remote operation.
- Flexible expansion: chain two AB168 units to reach 32 inputs / 16 outputs or combine with an AR2412 for 36 inputs / 16 outputs.

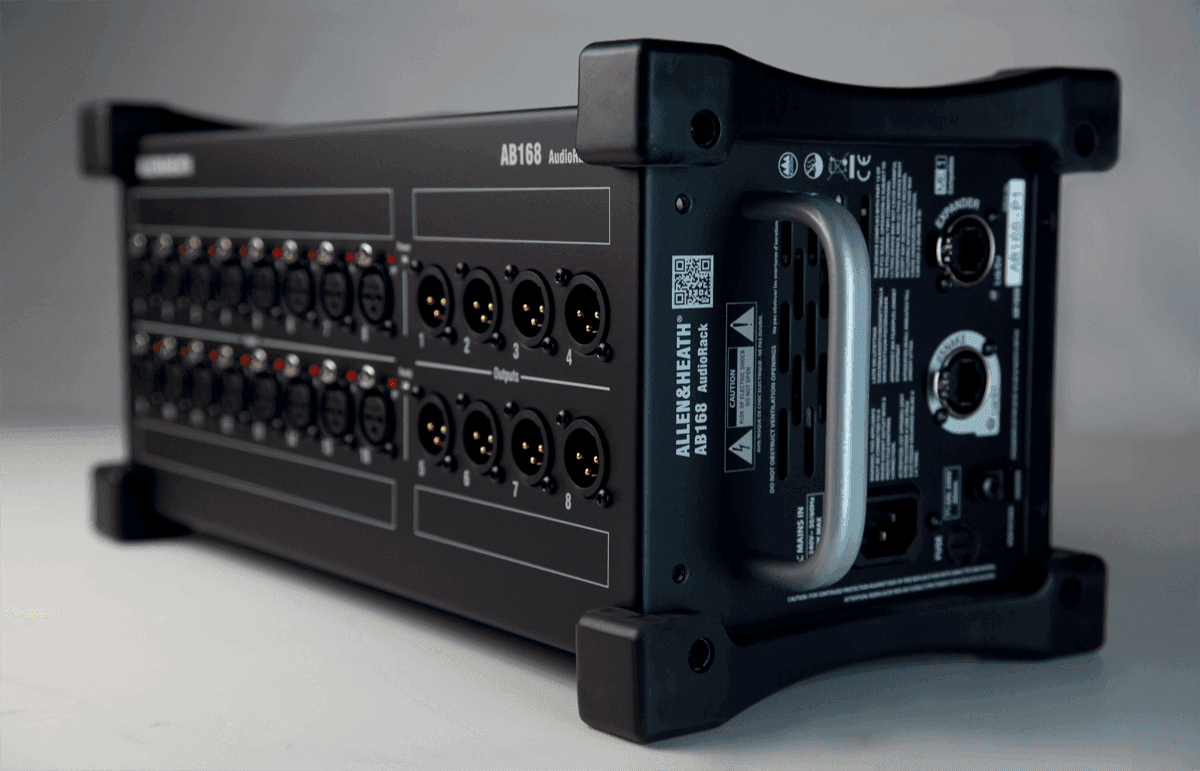

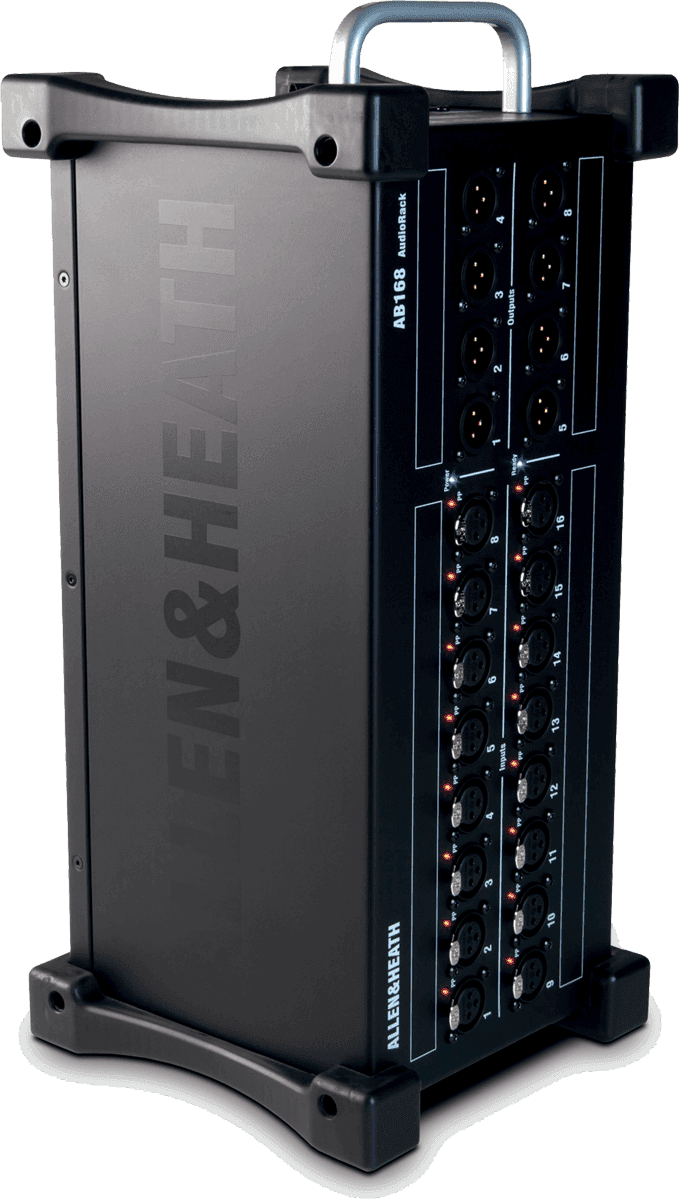

- Robust construction with side reinforcements, integrated handle, and optional 19-inch rack mounting (3U).
A Proven Standard in the Allen & Heath Ecosystem
Designed for Allen & Heath digital consoles from the "Qu", "GLD", and "SQ" series, the AB168 naturally integrates into live and installation setups. It unlocks the full potential of compact surfaces like the "Qu-PAC" or "Qu-SB" and the "SQ" series by providing I/O close to the stage, while remaining simple to cable and operate.
Who Is It For and What Are Its Uses?
Ideal for rental companies, houses of worship, multipurpose venues, clubs, and tours, the AB168 suits both mobile setups and fixed installations. Positioned on stage or mounted in a rack with the optional kit, it speeds up soundchecks, reduces analog cable lengths, and ensures reliable audio flows.
Technical specifications
| Number of channels | 16 | Number of mic preamps | 16 |
| Phantom power supply | Yes | Mic inputs | 16 x XLR |
| Bluetooth | No | Main outputs | 8 x XLR |
| EQ | No | Outputs (other) | dSnake for digital mixracks |
| Motorised faders | No | Color | Black |
| Rackable | With option | Display | LED |
| Rack unit | 4 | Weight | 4.8 kg |
| Category | digital stage box | Dimensions (mm) | 412 x 182 x 189 |
| Scalable remote operation | 1 x AB168 = 16/8 I/O; 2 x AB168 = 32/16; combined with AR2412 = up to 36/16. | Road-ready | compact chassis, rubber reinforcements, and transport handle for safe handling on stage. |
Questions frequently asked
Is the Allen & Heath AB168 compatible with an SQ or Qu mixer?
Compatibility is ensured with Allen & Heath consoles from the Qu, GLD, and SQ series via the dSnake protocol over RJ45. The Qu-PAC and Qu-SB surfaces are also listed among the supported configurations.
How many XLR inputs and outputs does this stage box offer?
This model features 16 XLR mic/line inputs with 16 mic preamps, as well as 8 XLR outputs. Phantom power is available on the mic inputs.
How is the AB168 connected to the mixer?
The dSnake digital connection is made via a Cat5 cable between the stage box and the mixer. This cabling allows placing the I/O as close to the stage as possible and reduces analog cable lengths.
Can a second Allen & Heath AB168 stage box be added?
It is possible to chain a second stage box via the Expander port to reach 32 inputs and 16 outputs. Pairing it with an AR2412 allows up to 36 inputs and 16 outputs.
Can the AB168 be rack-mounted in a 19-inch rack?
A 19-inch rack mount is available with an optional kit, occupying 4 rack units in height. The enclosure measures 412 x 182 x 189 mm and weighs 4.8 kg.
