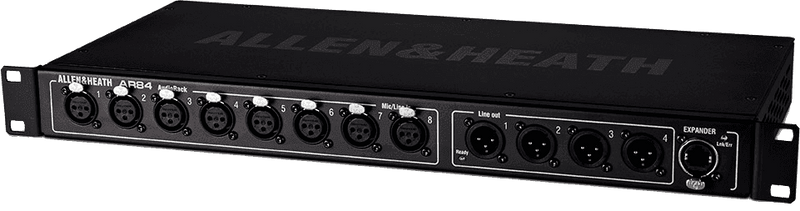

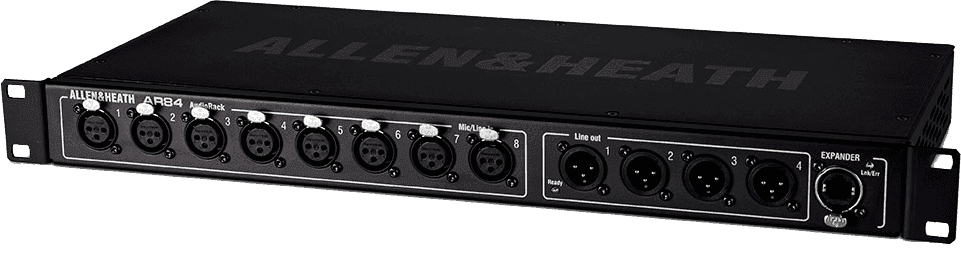

Allen & Heath AR 84 - SCENE RACK 8 IN MIC/LINE 4 OUT XLR
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Allen&Heath
https://www.allen-heath.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A Stage Extension Designed to Complement a GLD Console
In modern sound reinforcement setups, the FOH console and stage sources are often separated by several meters (or even tens of meters). A remote stage extension rack precisely meets this need: bringing inputs and outputs closer to where everything is actually connected. Designed for GLD consoles, this extension module allows you to increase I/O capacity exactly where you need it, while maintaining a clean setup that is quick to cable and easy to replicate from one event to another.
A Tool Tailored for Stage, Live Performance, and Installation
This extension rack is aimed at sound engineers, technicians, contractors, and venues looking to improve efficiency on stage. It is particularly useful when you need a few extra inputs to complete a stage setup (additional microphones, DI boxes, talkback, ambient mics, playback returns), or when you want additional XLR outputs near wedges, amplifiers, in-ear systems, or local processing.
During live events, it helps reduce the length of analog multicore cables, limits cable "spaghetti" at stage edges, and speeds up stage changes. In installations (halls, clubs, houses of worship, auditoriums), it also enables strategic connection points close to sources and sound systems, while maintaining a clear and stable patching logic.
Technical specifications
| Number of channels | 8 | Number of mic preamps | 8 |
| Phantom power supply | Yes | Mic inputs | 8 x XLR |
| Bluetooth | No | Main outputs | 4 x XLR |
| EQ | No | Outputs (other) | dSnake for digital mixracks |
| Motorised faders | No | Color | Black |
| Rackable | Yes | Display | LED |
| Rack unit | 1 | Weight | 3 kg |
| Category | digital stage box | Dimensions (mm) | 483 x 220 x 48 |
Questions frequently asked
Is the Allen & Heath AR84 compatible with a GLD console?
The dSnake connection is designed for digital stage boxes, and this rack unit is intended to complement a GLD console. It adds its inputs and outputs to the stage network of this setup.
How many microphone inputs and XLR outputs are available?
Eight mic/line inputs on XLR, with 8 mic preamps and phantom power, are available. Four assignable XLR outputs can be used to feed stage monitors or in-ear systems.
Can the AR84 rack be mounted in a 19-inch flycase?
Its 19-inch rack-mountable chassis occupies 1U. The stated dimensions are 483 x 220 x 48 mm, with a depth of 208 mm.
Can the AR84 be used to add outputs near stage monitors?
The 4 assignable XLR outputs can be positioned close to wedges, amplifiers, or in-ear systems. This setup reduces the length of analog runs between the front of house and the stage.
What is the weight of the Allen & Heath AR84 stage box?
Weighing 3 kg, this 1U rack unit fits into a stage rack or a compact flycase. Its form factor is suitable for mobile setups with limited depth.
