Avantis: a contemporary approach to Allen & Heath digital mixing

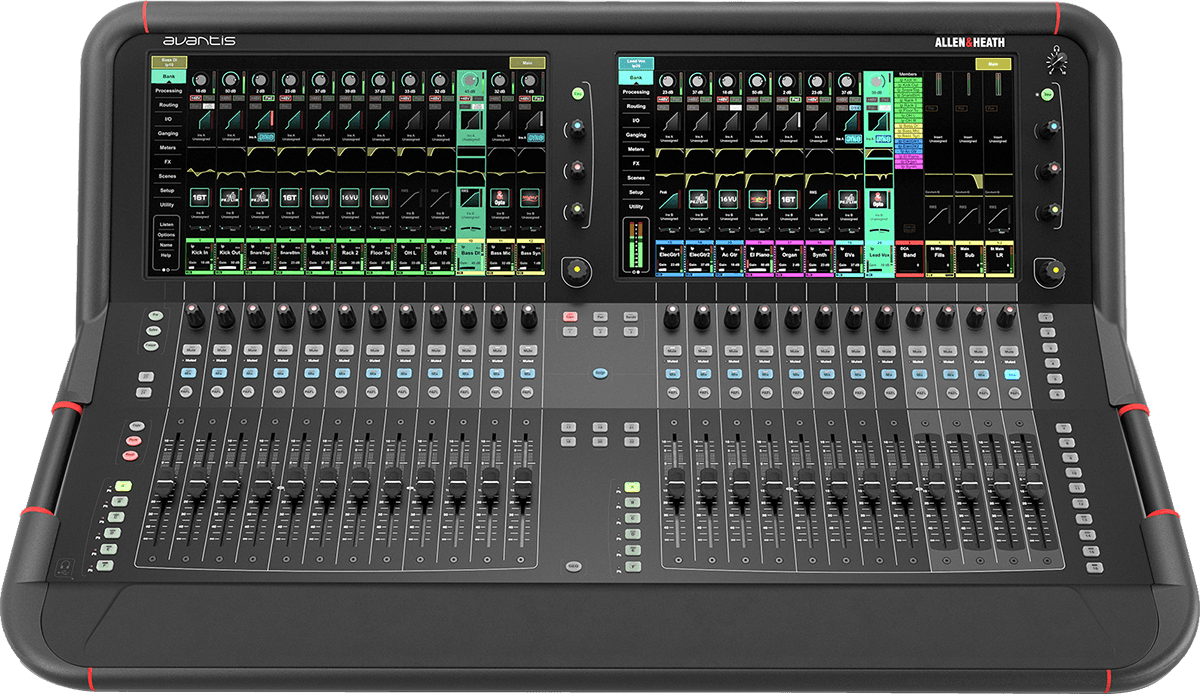

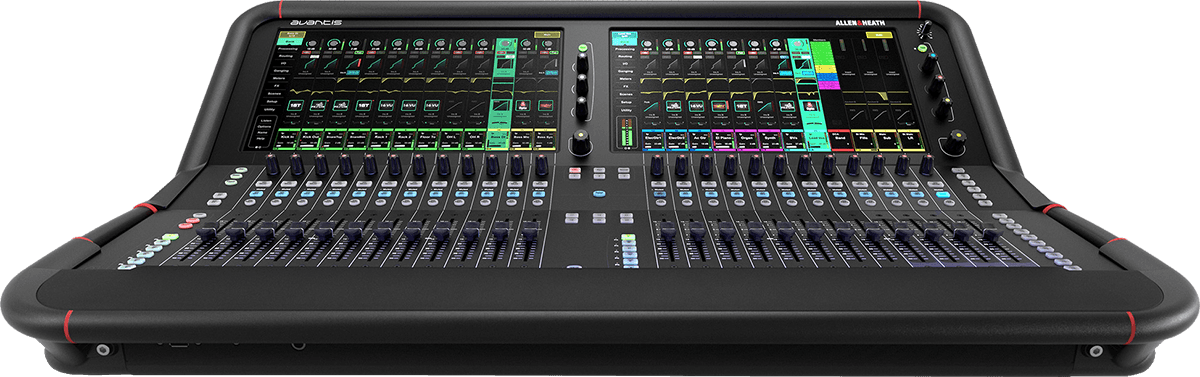

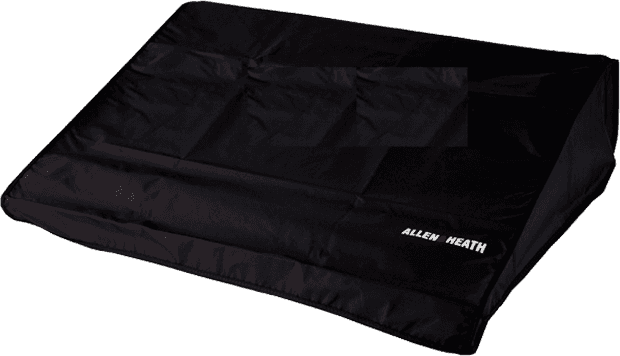

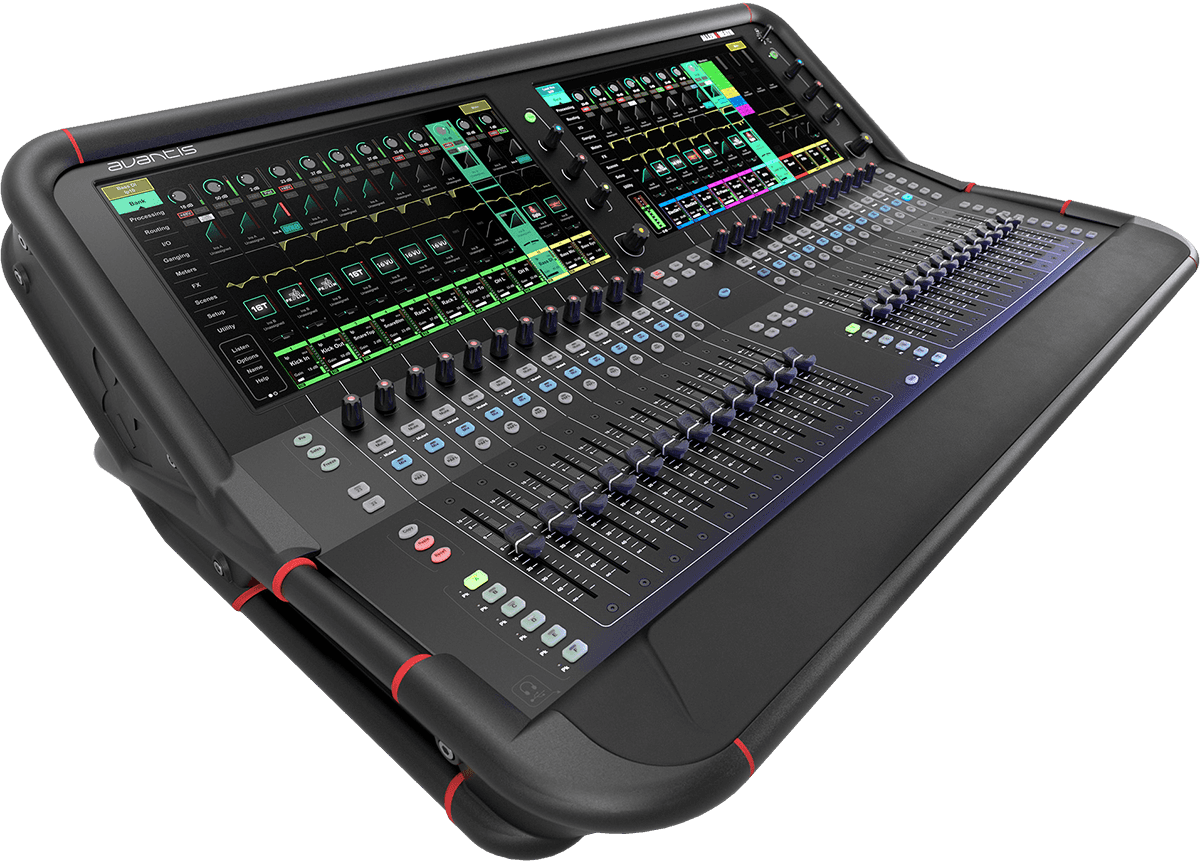

With Avantis, Allen & Heath offers a console designed to meet the demands of professional environments where versatility and speed of execution are essential. The ergonomics, centered around a large touchscreen and a customizable interface, aim to accelerate access to key functions while maintaining a "live" mixing console logic. This pack goes further by integrating the DPack to immediately expand processing possibilities, and a cover, essential for preserving the console during transport or storage.
For which uses and profiles is this Avantis pack designed?

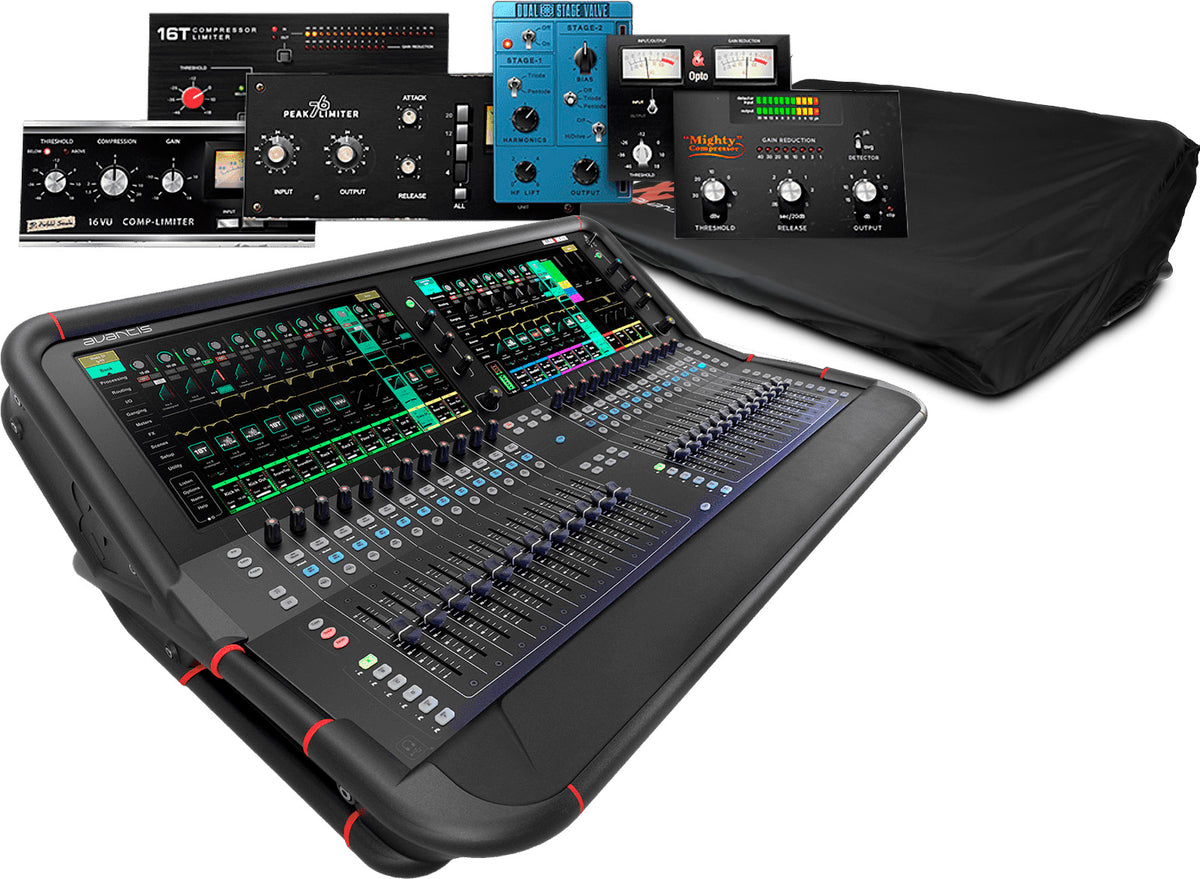

The Allen & Heath Avantis + DPack + cover pack is aimed at sound engineers, service providers, and stage managers seeking a high-performance digital console comfortable for front of house, monitoring, or FOH control. Its architecture adapts to varied contexts: concerts and festivals, shows, conferences, places of worship, or permanent installations requiring reliable control and consistent audio quality. The included cover secures the console daily, while the DPack offers creative and technical flexibility to process vocals, drums, guitars, keyboards, and buses more thoroughly.
Technical specifications
| Type | Digital | Slice name display | Yes |
| USB stereo recording / playback | Yes | Sound engineer app on tablet | iOS |
| Number of assignable keys | 24.0000 | Assignable faders | All assignable layers |
| Number of mixable channels | 64 | Motorised faders | Yes |
| Number of touch screen(s) | 2.0000 | Sampling frequency | 96 kHz |
| Number of fader layers | 6.0000 | Plugins | Provided |
| Number of DCAs | 16.0000 | Screen size | 15.6 " |
| Number of faders | 24 | Talkback | Yes |
| Number of mute groups | 8.0000 | Mic/line inputs | 12 XLR |
| Number of scene memories | 500.0000 | Line outputs | 12 XLR |
| Number of mixes | 42 configurable buses GROUP / AUX / FX / MATRIX mono or stereo | Headphone output | Jack 6.35 |
| Number of effects processors | 12 | Weight | 26 kg |
| Number of assignable rotary controls | 6.0000 | Dimensions (mm) | 917 x 627 x 269 |
| Number of expansion slots | 2.0000 | ||
Questions frequently asked
Q: How many inputs and buses can the Avantis console handle?
A: The console handles up to 64 configurable mono inputs and 42 configurable buses in GROUP, AUX, FX, or MATRIX modes, either mono or stereo. This architecture allows organizing monitor mixes, effects sends, and matrices according to the patch used.
Q: Is the DPack included with the Allen & Heath Avantis package?

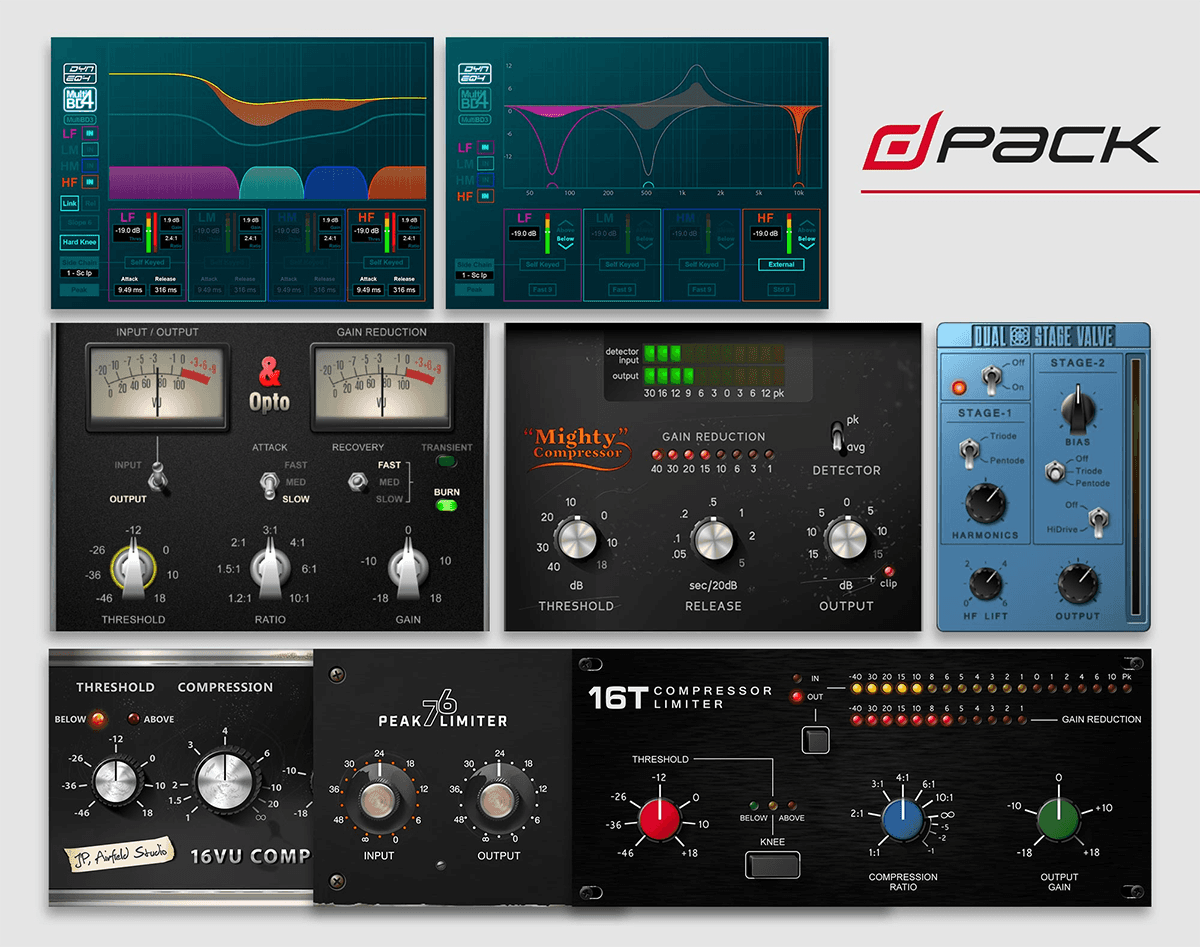

A: The DPack is included and provides DEEP Processing effects as well as advanced dynamics processing.
Q: What connectivity is available directly on the Avantis?

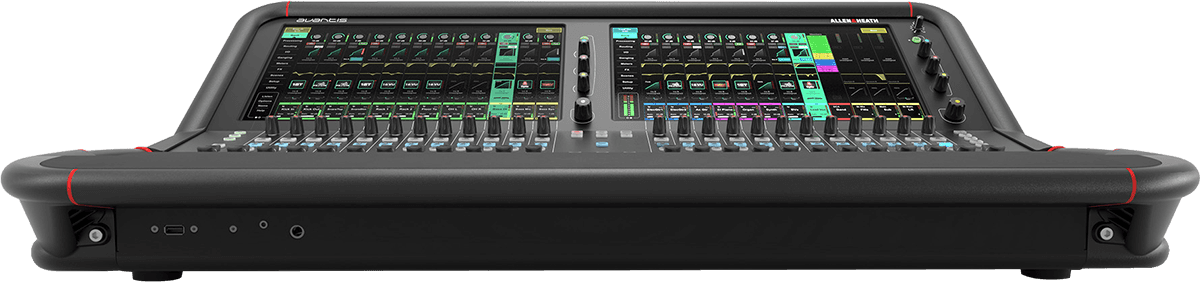

A: On the front panel or chassis, 12 mic/line inputs on XLR and 12 line outputs on XLR are available. A headphone output with a 6.35 mm jack is also integrated. Two expansion slots allow increasing connectivity depending on the installed card.
Q: Does Avantis have touchscreens and motorized faders?
A: Two 15.6-inch Full HD touchscreens facilitate access to settings and layer organization. The 24 motorized faders are assignable across 6 layers, with channel name displays.
Q: Is the console suitable for gigs and transport?
A: Weighing 26 kg and measuring 917 x 627 x 269 mm, this console is intended for professional rigs and live use. The included cover protects the device from dust, friction, and handling during transport or storage.
