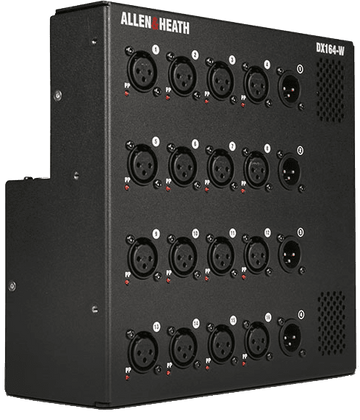

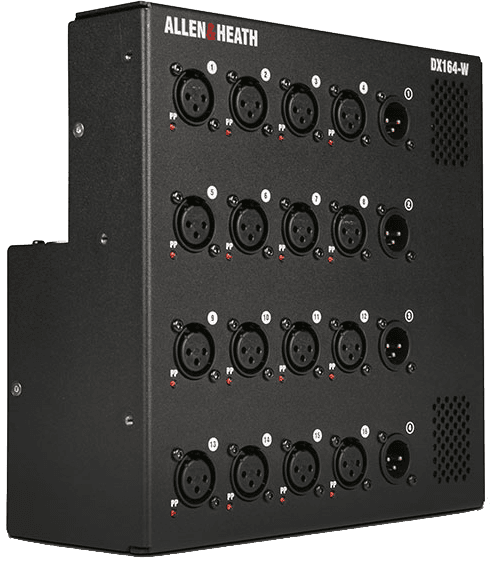

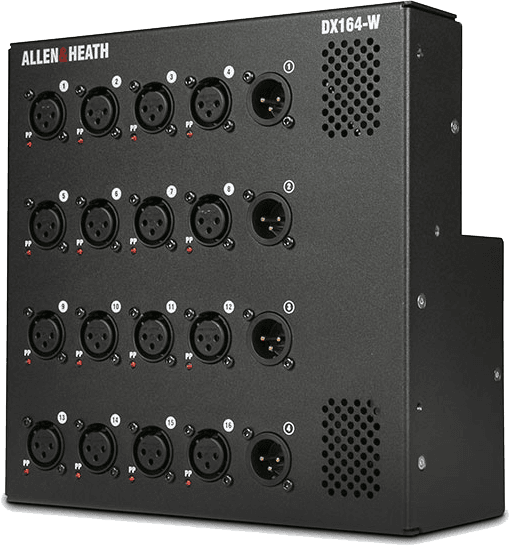

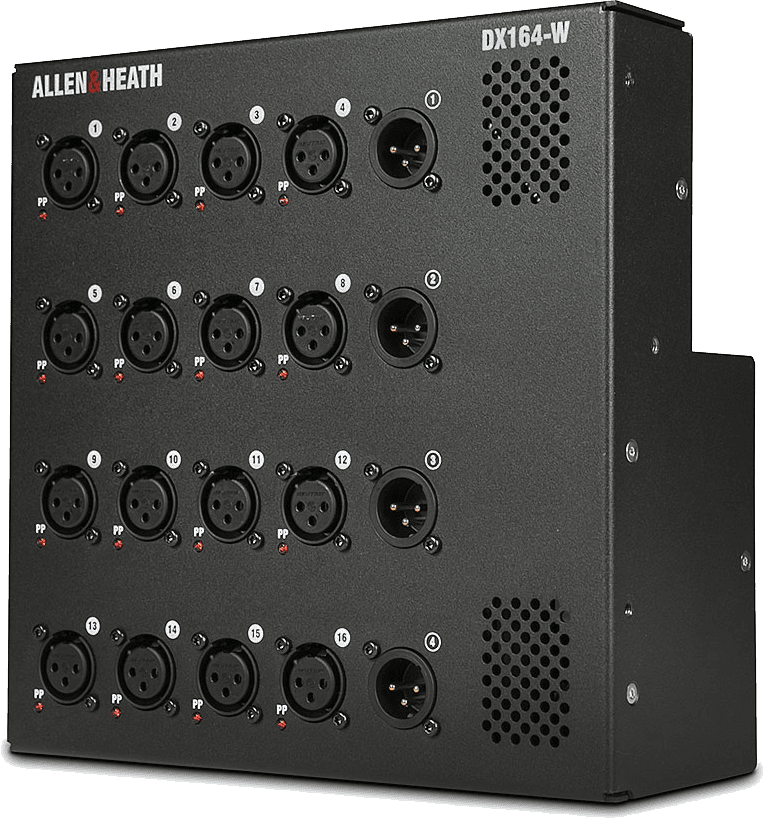

Allen & Heath DX164-W
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Allen&Heath
https://www.allen-heath.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
An Expander Designed for Installation and Stage, in the Spirit of dLive and SQ Systems
The DX164-W is designed to meet a simple and very practical need: to have audio I/O where the sources and destinations actually are, without having to run long analog lines all the way to the console. In a dLive or SQ setup, it serves as a convenient extension solution, particularly suited for fixed installations (rooms, places of worship, theaters, auditoriums) and stages requiring clean and accessible connection points. Its "wall box" design facilitates integration into a venue's architecture while maintaining a workflow logic close to that of a stagebox.
Who Is the DX164-W For and In Which Applications Does It Excel?
This wall box is intended for users who want to remote microphone inputs as close as possible to musicians, speakers, or actors, while keeping cabling controlled and the installation discreet. It is also very suitable for situations where XLR line outputs are needed at a specific location: sending to zone speakers, powering a monitor system, distribution to a remote control room, or connecting equipment located out of immediate reach of the console.
In a stage environment, it provides real operational comfort: connections remain accessible, hookups are faster, and stage organization gains clarity. In fixed installations, it allows creating a clean, robust, and integrated I/O point while maintaining a simple patching logic for technical teams.
Questions frequently asked
Is the Allen & Heath DX164-W compatible with an SQ mixer?
Compatibility is announced with Allen & Heath consoles from the dLive and SQ series.

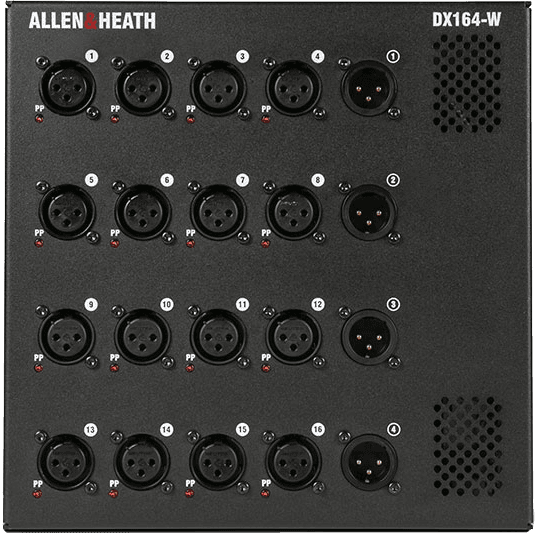

How many mic inputs are available on this wall box?

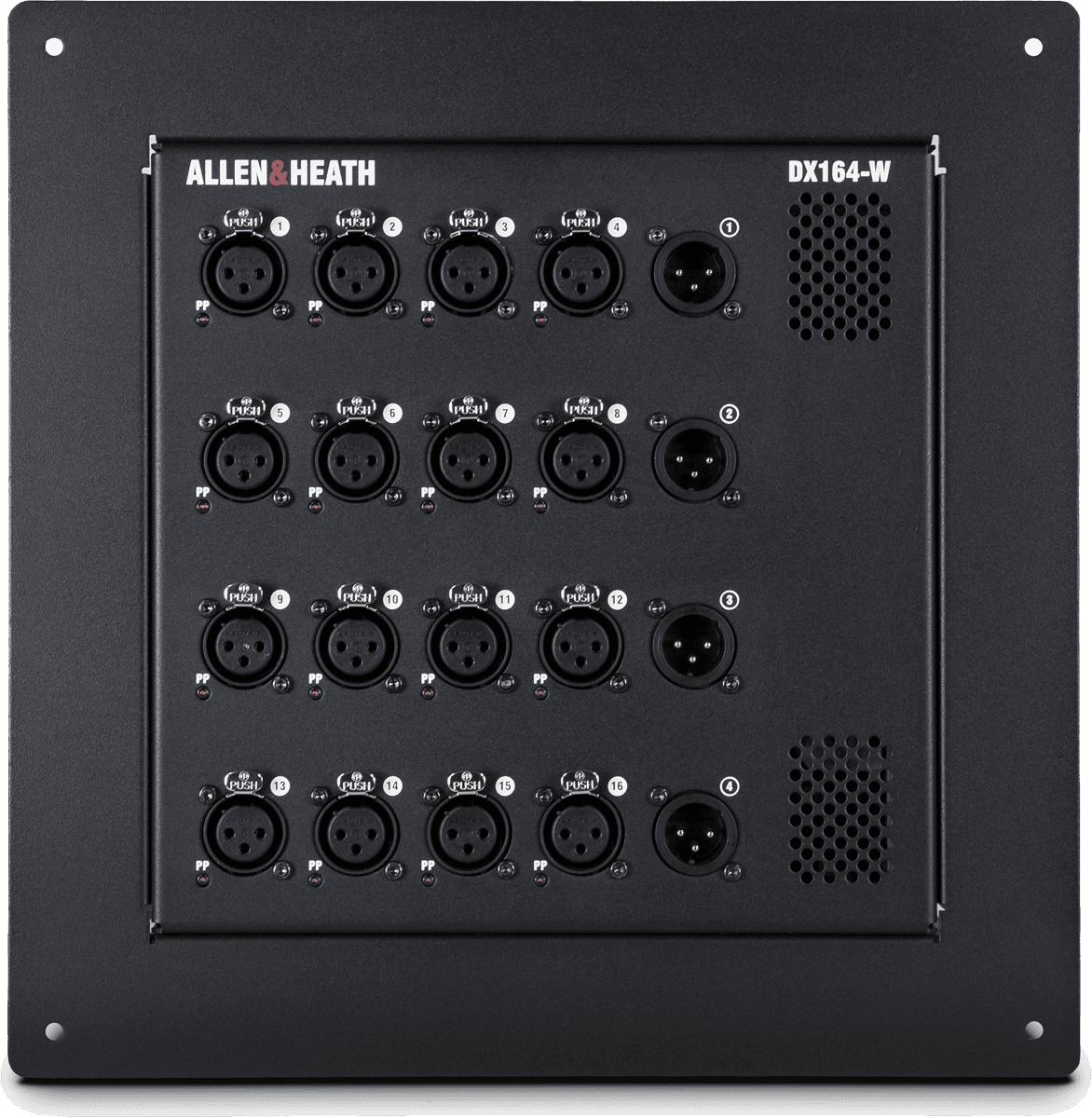

The unit integrates 16 mic preamps. Each channel has an independent LED indicator showing phantom power status.
What audio outputs does the DX164-W offer?
Four line outputs on XLR connectors are integrated. These allow feeds to monitor returns, local amplification, or an auxiliary control room. Outputs can thus be placed close to the relevant equipment.

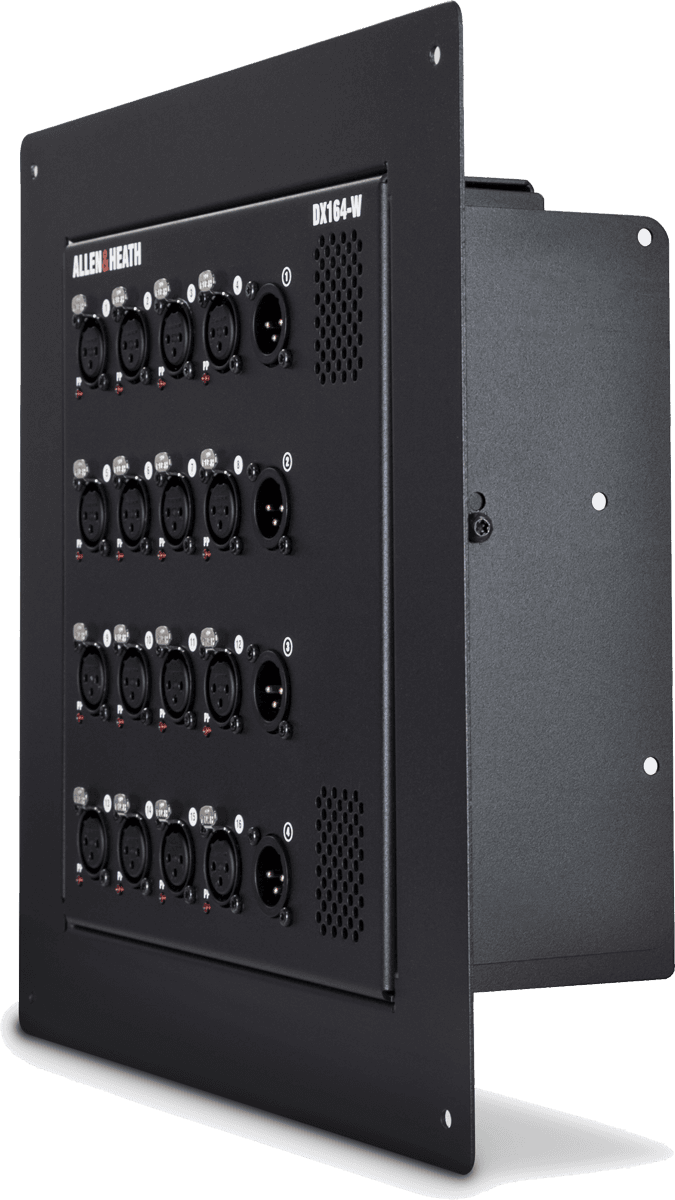

Can the DX164-W be recessed into a wall or stage?
The design allows for wall mounting or recessed installation on stage, providing 16 inputs and 4 outputs at a single connection point.
Do the mic inputs have visual phantom power control?
Each mic input has an independent LED indicator for phantom power, enabling immediate identification of the channels concerned.
