A Dante Expansion Designed for the SQ and AHM Ecosystem

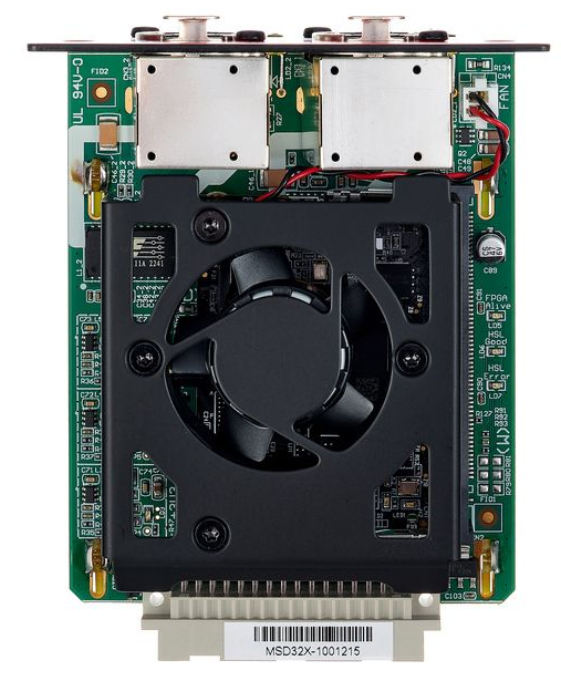

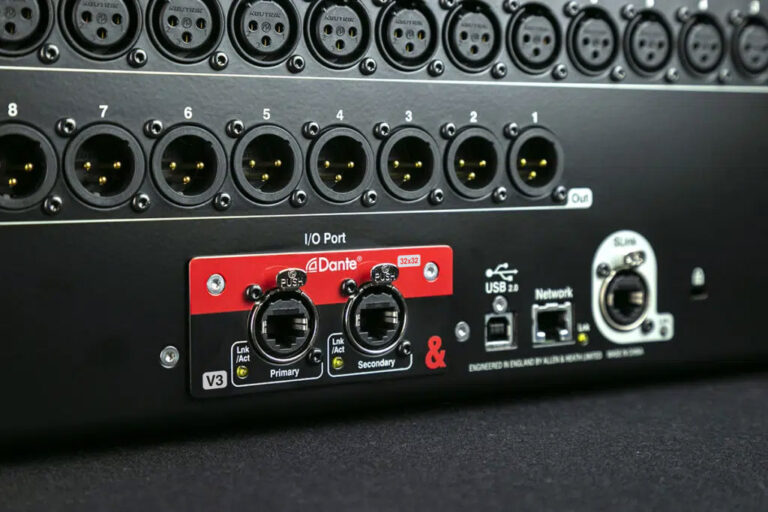

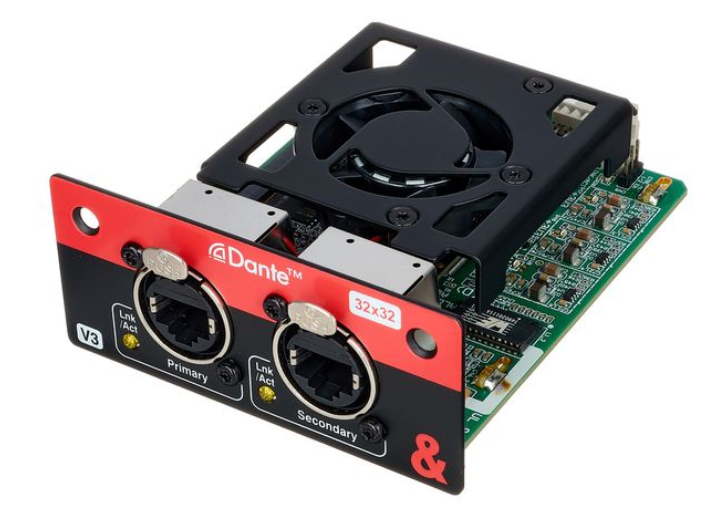

The SQ Dante 32x32 fits into the I/O port of Allen & Heath SQ consoles or AHM matrix processors to easily integrate a Dante network, whether for live sound control rooms, audiovisual installations, or broadcast environments.
Who Is This Dante Card For?
It is intended for users who want to transport multichannel audio over IP, perform digital splits, distribute signals between rooms, or connect an SQ console to an existing Dante network, while securing the connection with redundant mode.
Connectivity, Redundancy, and Recording Workflows
Robust Network and IT Integration
With its two ports (redundant/switch), internal control network bridge, and Dante Domain Manager compatibility, the card integrates cleanly into modern audio networks, including multi-room environments.
Multichannel Recording/Playback
For multitrack recording and playback, the card can be used with the Dante Virtual Soundcard (sold separately) to route up to 32x32 channels between your system and a computer.
Technical specifications
| Type | Dante | Host platform | For SQ |
| Channels | 32x32 audio channels and control over a network | Modes | redundant and switch |
| Sampling Rates | 96 kHz or 48 kHz | Control Network Bridge | internal |
| Compatibility | AES67, SMPTE ST 2110 | Connectors | lockable Ethercon |
| Ready for | Dante Domain Manager | Suitable for Processors | AHM-32 and AHM-16 |
| Network Ports | 2 | ||
Questions frequently asked
Is the Allen & Heath SQ Dante 32 card compatible with AHM processors?

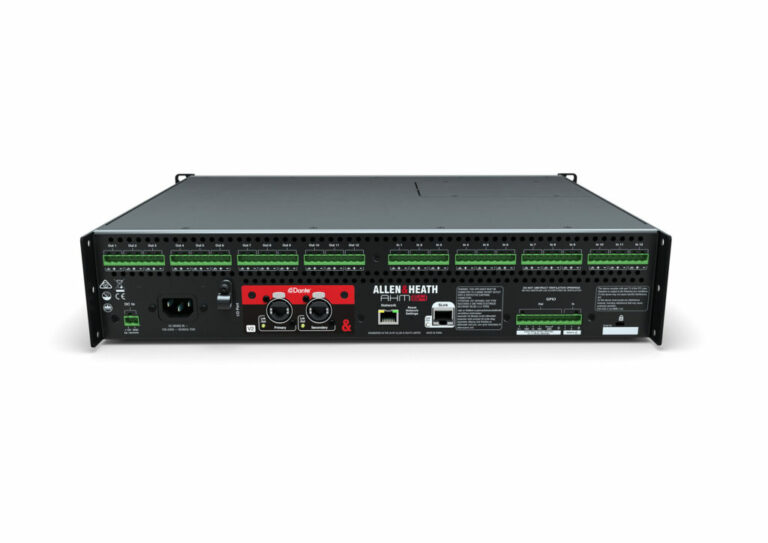

Compatibility is ensured with SQ mixers as well as with AHM-16 and AHM-32 processors via their I/O port.
How many Dante channels can this card handle?
Up to 32 audio input channels and 32 output channels can be transmitted over the Dante network, including network control transport.
Can two redundant Dante networks be used?
The two lockable EtherCon ports offer a redundant mode to secure the network connection. A switch mode is also available. The control network bridge is integrated internally.
What sample rates are supported?
Operation is supported at 96 kHz or 48 kHz.
How to record 32 tracks on a computer with this card?
Multitrack recording and playback can be done with the Dante Virtual Soundcard, sold separately. This setup allows routing up to 32 x 32 channels between the SQ or AHM system and a computer.
