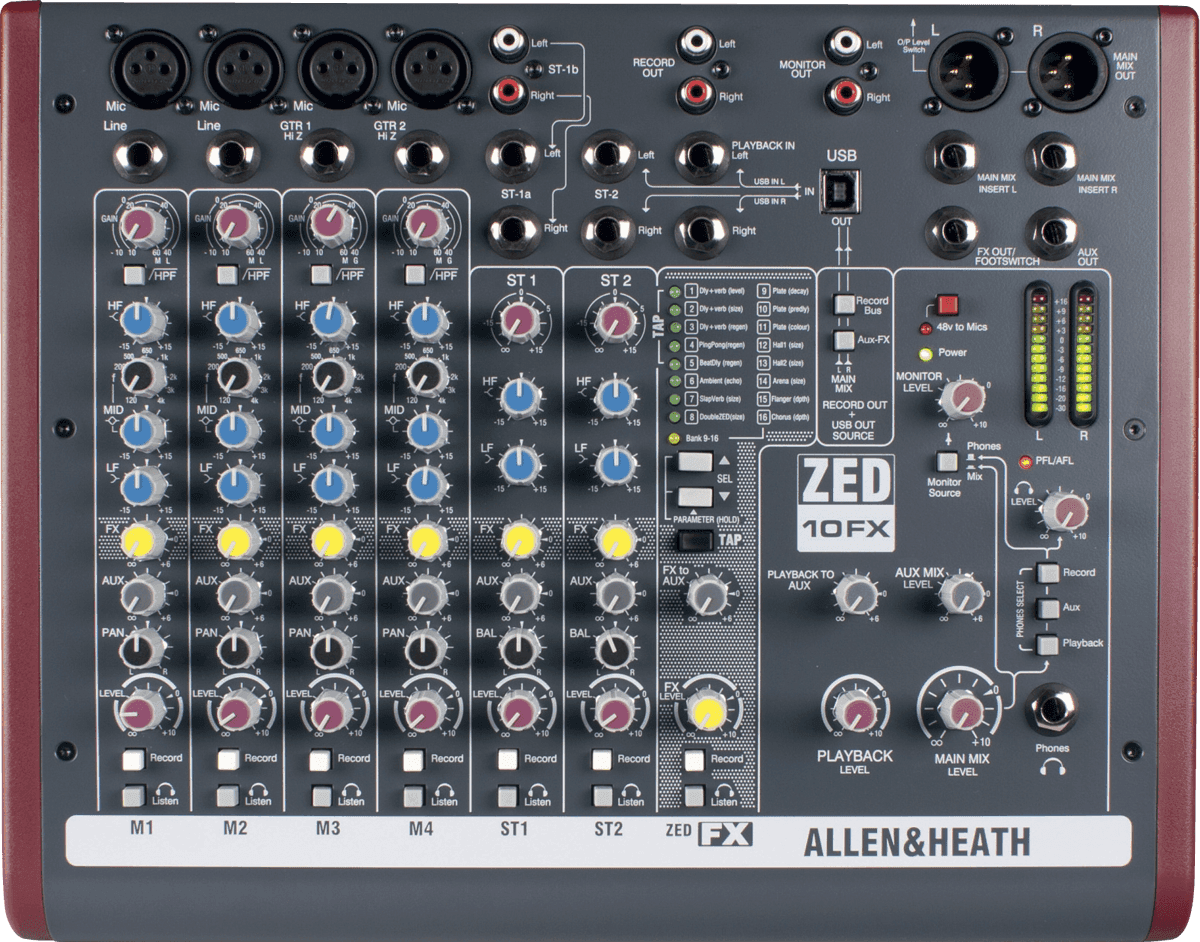

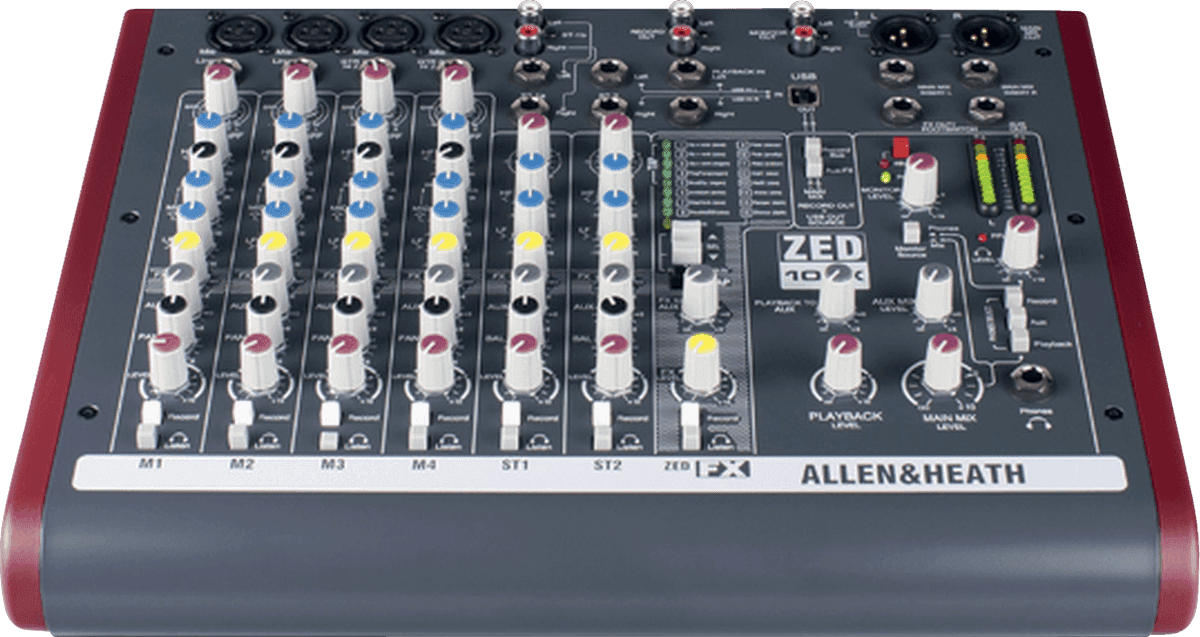

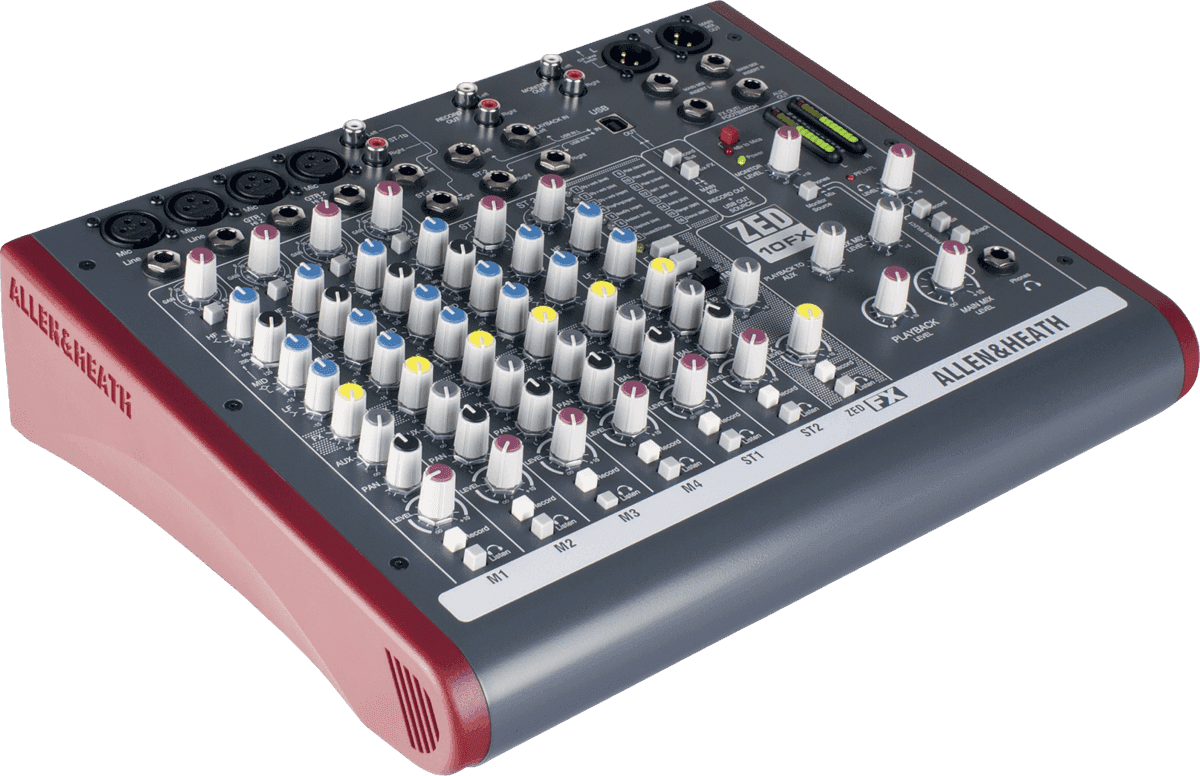

Allen & Heath ZED 10FX
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Allen&Heath
https://www.allen-heath.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
In the ZED Line: the ZED-10FX, an enhanced version for stage and home studio
Designed as a continuation of the ZED-10, the ZED-10FX maintains the Allen & Heath approach: a compact, robust, and intuitive analog console, while adding a high-quality internal effects processor. It stands out as a particularly coherent choice for lightweight setups where you want to keep the musicality of analog, immediate handling, and real mixing comfort without multiplying external devices.
A compact console for small bands, schools, events, and mobile mixing
The ZED-10FX targets small bands, indoor or outdoor performances, as well as schools and organizations looking for a reliable and portable mixer. Its connectivity and format facilitate quick setup for vocals, instruments, and stereo sources (keyboard, MP3 player, playback), while offering a practical monitoring section for on-stage or FOH monitoring. In a home studio, the USB interface simplifies capturing a stereo mix, ideal for archiving rehearsals or producing demos without complex configuration.
Technical specifications
| Insert | Yes | Recording | USB |
| Number of faders | 0 | Number of auxiliary sends | 2 |
| Number of channels | 10 | Mic inputs | 4 x XLR |
| Phantom power supply | Yes | Line inputs | 2 x stereo jack, 4 x jack, playback 2 x stereo jack |
| Bluetooth | No | Inputs (other) | USB |
| EQ | 3 channels | Main outputs | 2 x XLR |
| Motorised faders | No | Outputs (other) | USB, Aux jack, headphone 6,35 mm stereo jack, headphone 3,5 mm stereo jack, Record RCA |
| Filters | Low cut | Color | Grey |
| PFL/AFL mode | Yes | Built-in effects | Yes |
| Rackable | Yes | Display | LED |
| Category | analog mixer | Weight | 3.3 kg |
| Number of mic preamps | 4 | Dimensions (mm) | 336 x 275 x 50 |
Questions frequently asked
Does the Allen & Heath ZED-10FX allow USB recording?
Its configurable USB interface enables capturing a stereo mix on a computer. Separate 2-track recording outputs are also available.
Can a guitar be plugged directly into this mixer?

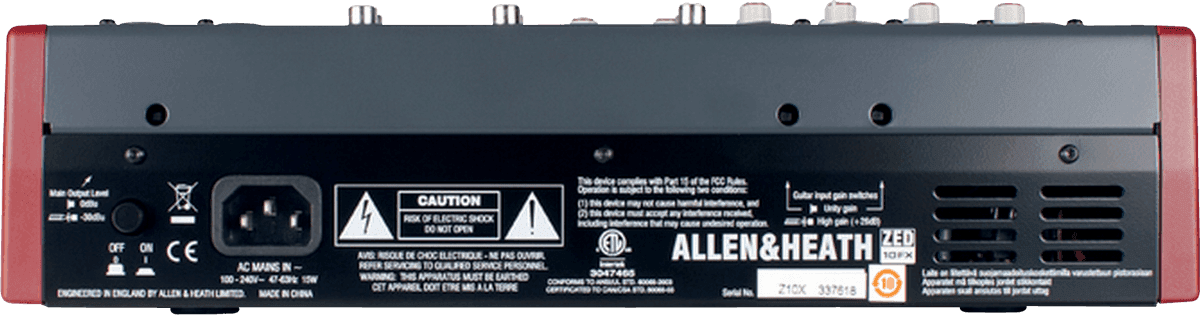

Channels 3 and 4 feature Class A high-impedance inputs suitable for direct guitar connection. A Class A FET circuit is integrated on these instrument inputs. Two rear switches add a 26 dB boost for low output instruments.
How many microphones can be connected?
Four XLR mic inputs with high-gain preamps and phantom power are available.
What effects are built into the ZED-10FX?
The internal processor offers 16 programs mainly including reverbs, delays, and echoes. A flanger is also among the available effects.
Is this console suitable for a small band concert?
With its 10 channels, 2 auxiliary sends, and XLR main outputs, this console fits light setups for small bands. The monitoring section and PFL/AFL modes facilitate level monitoring on stage or in the control room.
