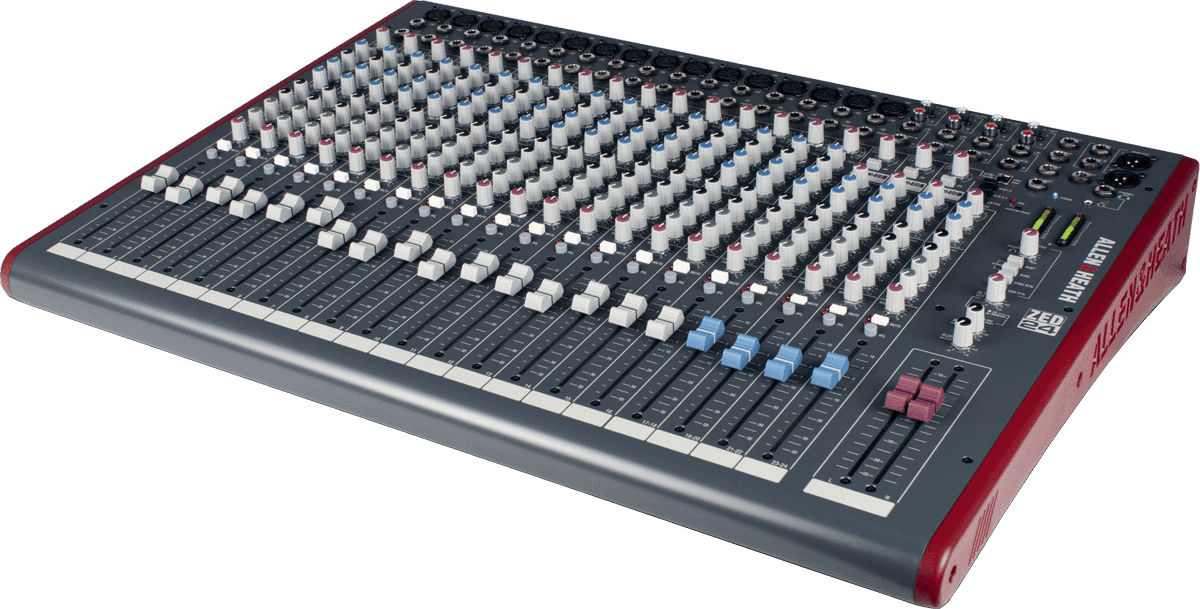

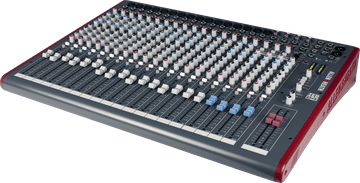

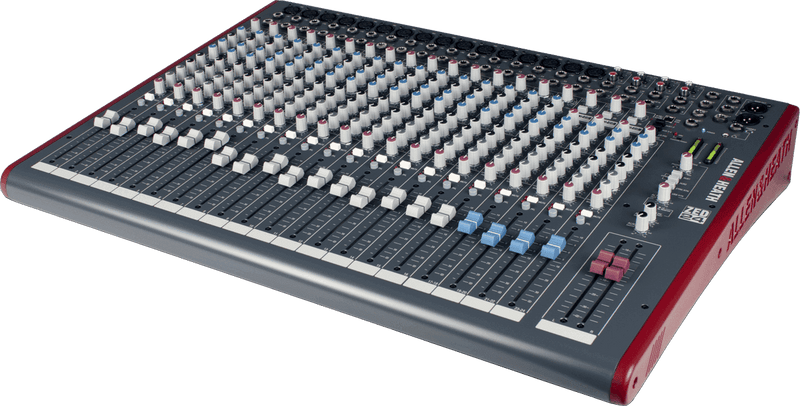

Allen & Heath ZED-24

Name: ZED-24
Brand: Allen & Heath
SKU: 188453
Price: 839.00 EUR
Availability: InStock

839,00 €VAT incl.

1,00 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 188453

EAN : 6938122230934

This item is covered for 3 years

Information

Essential Information About the 22-Channel Analog Mixing Console with USB
• 22 total inputs : 16 mono mic/line channels + 4 stereo line channels, plus 2 stereo effects returns for a complete stage or studio setup.
• Precise and comfortable mixing : ALPS 100 mm faders, Mute, PFL, pan/balance, and clipping indicators to maintain level control at all times.
• Flexible routing : 4 auxiliary sends (1 and 2 pre-fader, 3 and 4 post-fader) and main outputs on balanced XLR with insert, plus a dedicated mono summing output.
• Built-in stereo USB : recording/playback with selectable routing (L/R bus or Aux sends), 16-bit converters at 32 to 48 kHz.

ZED-24

839,00 €VAT incl.

1,00 € Ecotax included

Reference price

A "large console" architecture designed for demanding configurations

With its 16 mono inputs featuring a 3-band equalizer including a semi-parametric section, this console positions itself as a versatile mixing center for bands, houses of worship, associations, service providers, and studios seeking a comfortable control surface. The approach combines comprehensive connectivity (inserts, auxiliaries, returns) and ergonomics oriented towards live mixing, while remaining portable.

Who is it for and what are its uses?

This mixing console is ideal if you need to manage multiple microphones (vocals, drums, brass, ambient mics) while retaining stereo inputs for keyboards, players, modules, or PC returns. The 4 auxiliaries facilitate creating independent monitor mixes (Aux 1/2) and sending to effects processing (Aux 3/4), while the USB allows quick recording of a concert, rehearsal, or stereo capture without an external audio interface.

Technical specifications

Insert	Yes	Number of mic preamps	16
Number of faders	22	Recording	USB
Number of channels	24	Number of auxiliary sends	4
Phantom power supply	Yes	Mic inputs	16 x XLR
Bluetooth	No	Line inputs	16 x jack, 4 x stereo
EQ	3-band with semi-parametric mid	Inputs (other)	USB, inserts : jack for each mono input, 2 x phono
Motorised faders	No	Main outputs	mono jack, 2 x XLR
Filters	Low cut	Outputs (other)	headphone 6,35 mm stereo jack, headphone 3,5 mm stereo jack, 4 x Aux unbalanced Jacks, Record RCA, alternative (Rca), 2 x tracks (RCA)
PFL/AFL mode	Yes	Color	Grey
Rackable	No	Display	LED
Category	analog mixer	Weight	11.5 kg
Fader travel	100 mm	Dimensions (mm)	645 x 465 x 95

Questions frequently asked

How many microphones can the ZED-24 accommodate?

The console features 16 balanced mic inputs on XLR, each paired with a line input on a 6.35 mm jack. Each mono channel includes a 6.35 mm jack insertion point for an external processor.

Is it possible to record a concert on a computer via USB?

The USB port allows sending the L/R bus, Aux 1/2, or Aux 3/4 to the computer. The USB return can be routed to the L/R bus or stereo channel 3.

Do the auxiliary sends support stage monitor mixes?

Aux 1 and 2 are pre-fader and can feed two mono mixes or one stereo mix for monitors. Aux 3 and 4 are post-fader; Aux 4 is intended for internal effects and has no physical output. There are four auxiliary sends in total.

What equalizer is available on the microphone channels?

Each mono channel strip offers a 3-band EQ with a semi-parametric mid, complemented by a high-pass filter. A variable gain and a clip LED help adjust the input level.
