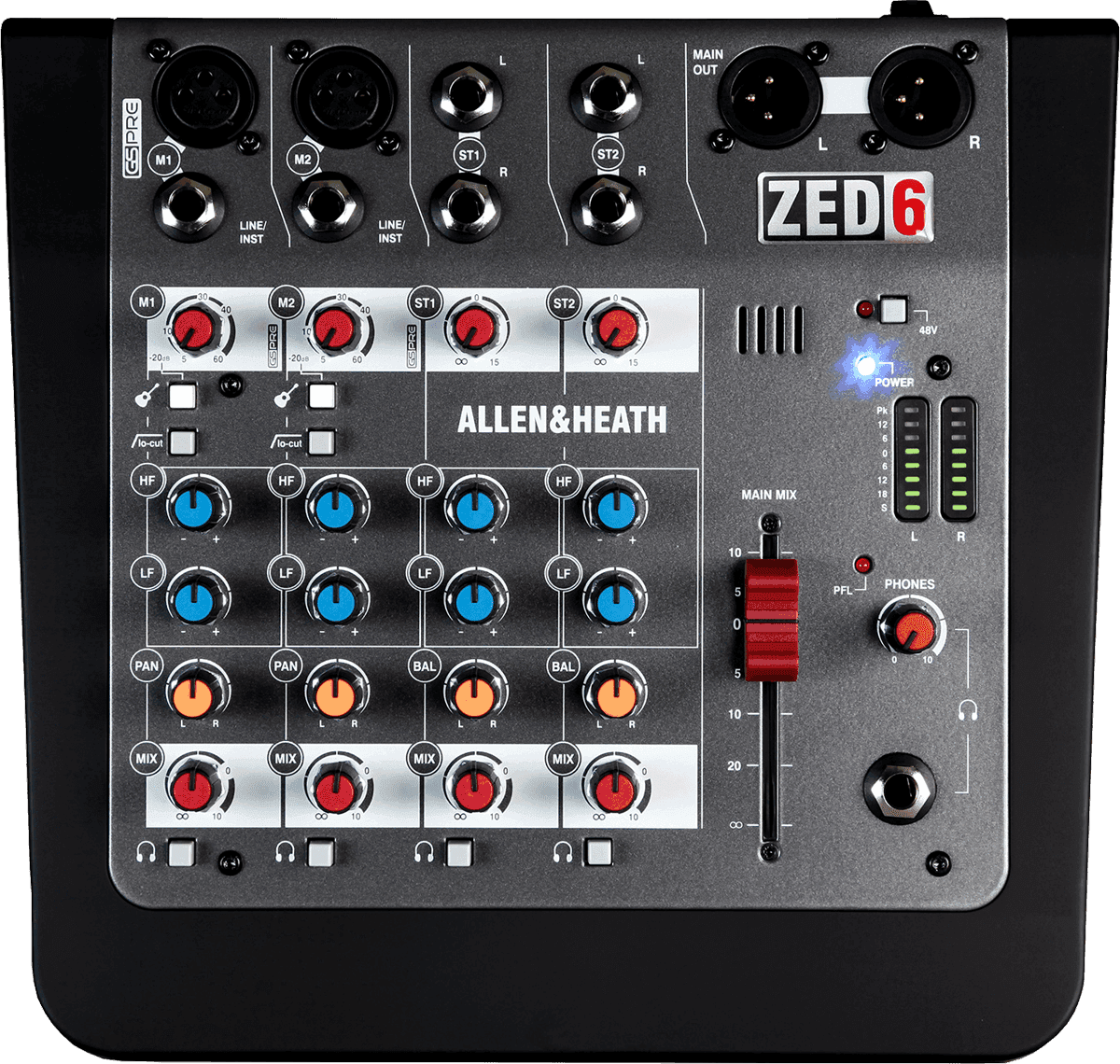

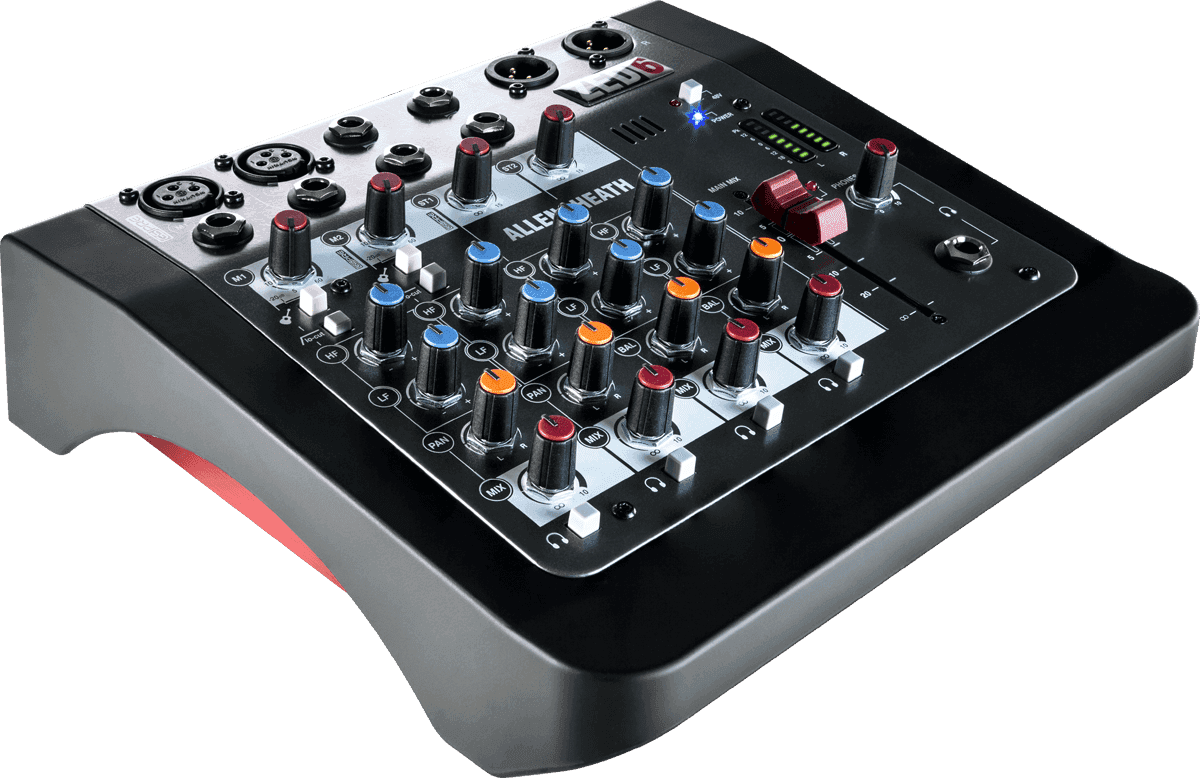

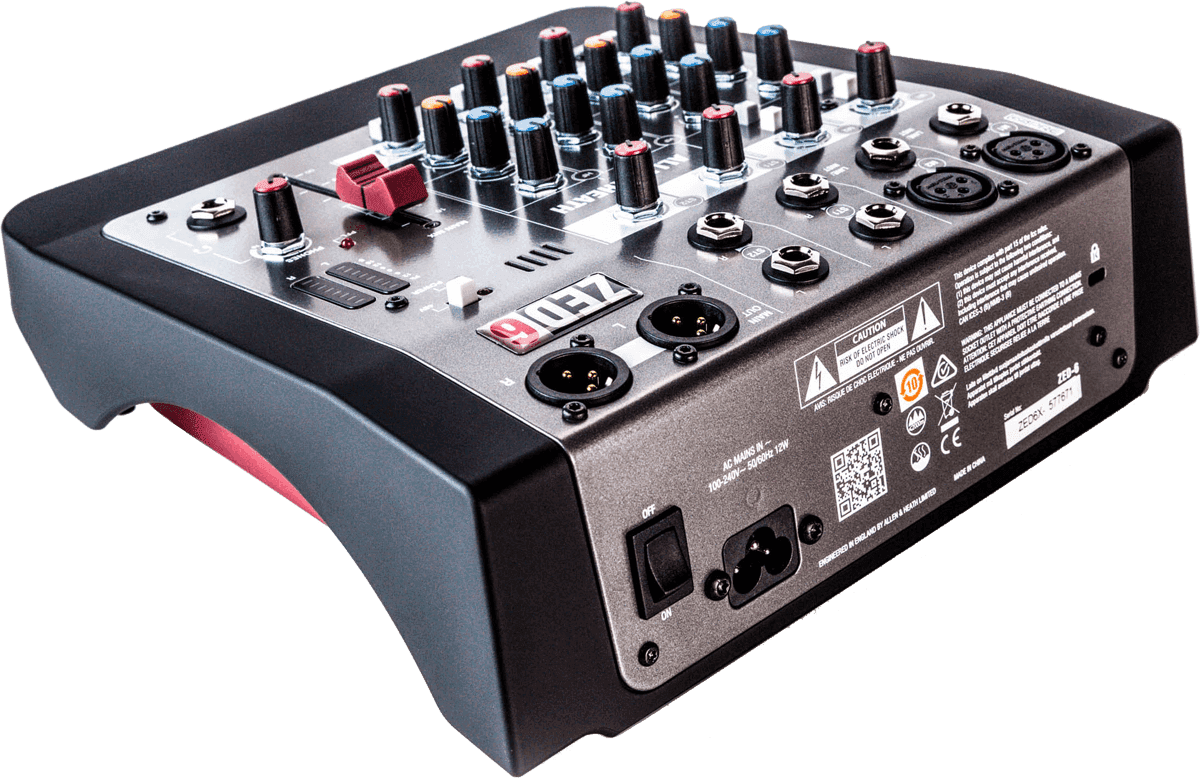

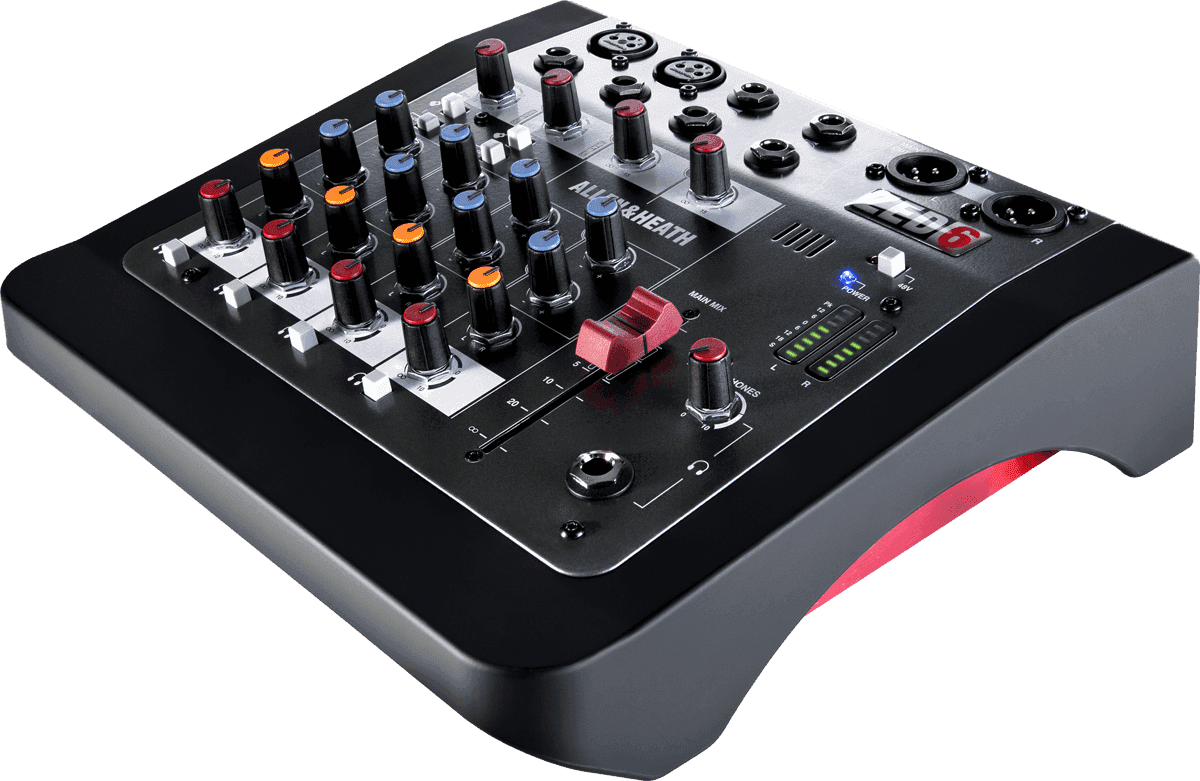

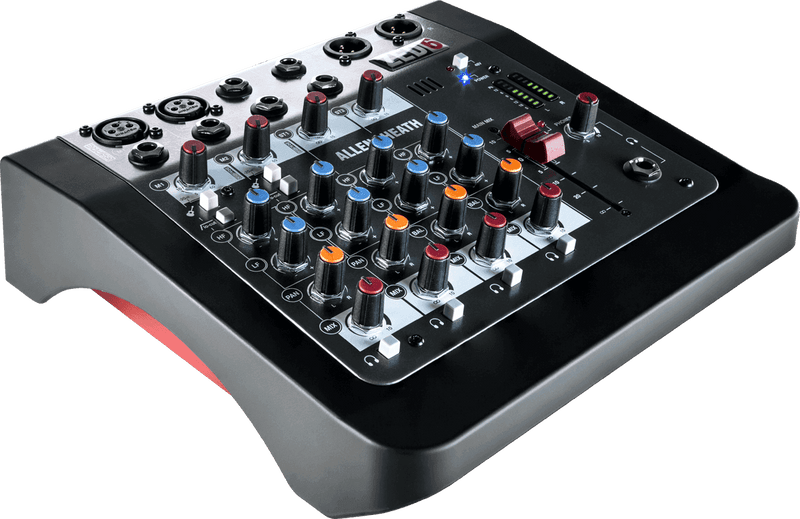

Allen & Heath ZED-6
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Allen&Heath
https://www.allen-heath.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A Mini ZED: Allen & Heath Heritage Serving Musicians
The most compact model in the ZED family, the Allen & Heath ZED-6 was developed for musicians and singer-songwriters who want an easy-to-transport analog console, yet worthy of a "real" mixing desk. It carries the fundamentals that have built the brand's reputation since the 1970s: solid construction, straightforward ergonomics, and sound quality that highlights vocals and instruments, whether you're rehearsing, on stage, or recording at home.Despite its small size, the ZED-6 fully embodies the spirit of the range: focusing on essentials without compromising on the most important elements in a mix, namely clean inputs, musical processing, and a reliable master section for playback or recording.
Intended Use? Intimate Live, Home Studio, Streaming, and Rehearsals
The ZED-6 is aimed at setups where every centimeter counts: small concerts, acoustic performances, keyboard/vocal setups, guitar-vocal duos, rehearsals, or content creation (demos, videos, social media). Its compact format allows it to easily fit into a bag while maintaining connectivity suited to real-world needs.It also suits home studio users looking for a simple analog console to manage a few sources, perform quick soundchecks, and monitor via headphones without complexity. The result: an immediate workflow, ideal for staying focused on performance and arrangement rather than menus.
Technical specifications
| Number of faders | 1 | Fader travel | 60 mm |
| Number of channels | 6 | Number of mic preamps | 2 |
| Phantom power supply | Yes | Mic inputs | 2 x XLR |
| Bluetooth | No | Line inputs | 2 x jack, 2 x stereo |
| EQ | 2 channels | Main outputs | 2 x XLR |
| Motorised faders | No | Color | Grey |
| Filters | Low cut | Display | LED |
| PFL/AFL mode | Yes | Weight | 1.3 kg |
| Rackable | No | Dimensions (mm) | 249 x 236,4 x 88,9 |
| Category | analog mixer | ||
Questions frequently asked
Does the Allen & Heath ZED-6 accept a condenser microphone?
The 2 XLR mic inputs feature GSPre preamps and built-in phantom power. This setup allows the use of condenser microphones compatible with phantom power.
Can a guitar be plugged directly into this mixer?
Two high-impedance D.I. inputs are provided to connect a guitar or bass directly, without the need for an external direct box.
How many sources can be connected to the ZED-6?

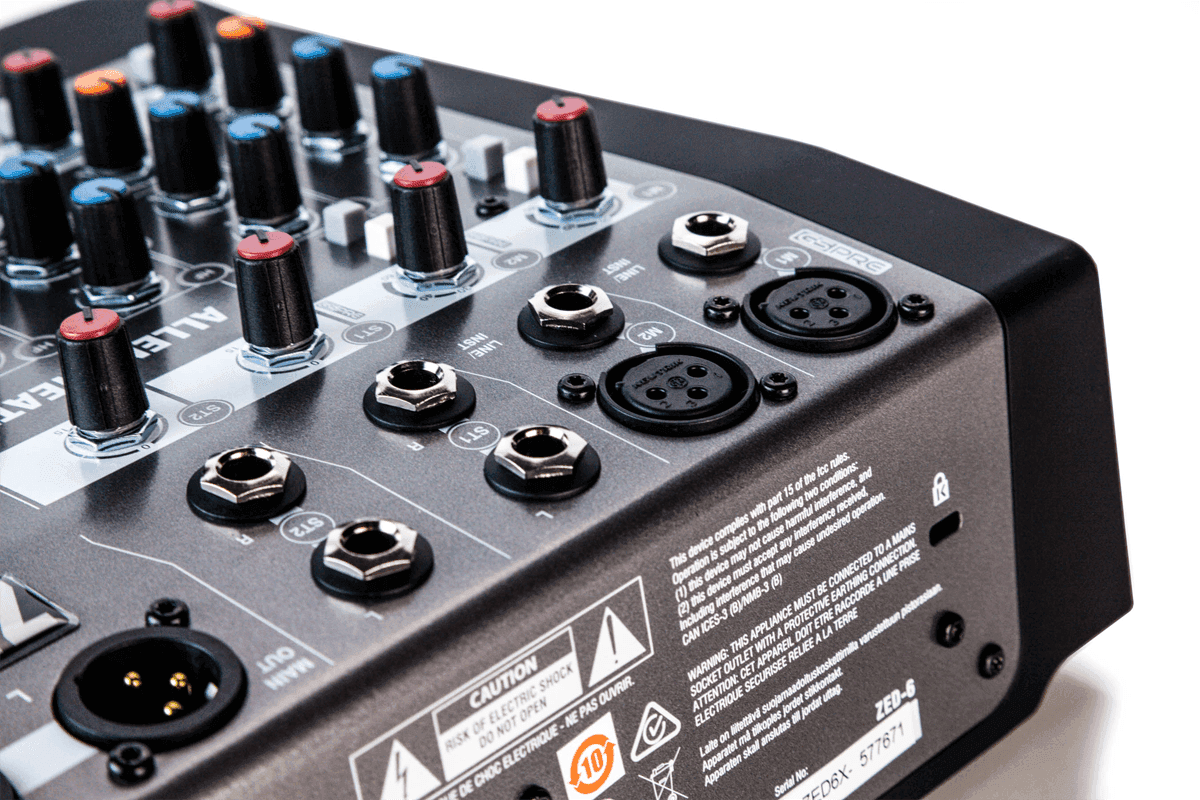

The mixer has 6 channels, with 2 XLR mic inputs, 2 instrument inputs, and 2 stereo inputs on 6.35 mm TRS jacks. Line inputs include 2 mono jacks and 2 stereo pairs. Main outputs are available on 2 XLR connectors.
Does the ZED-6 have built-in effects?
No built-in effects are specified. The available processing includes a 2-band EQ per channel and a low-cut filter to reduce unwanted bass frequencies.
Is the ZED-6 easy to transport for rehearsals?
With a weight of 1.3 kg and dimensions of 249 x 236.4 x 88.9 mm, this model is suitable for rehearsals and small performances.
