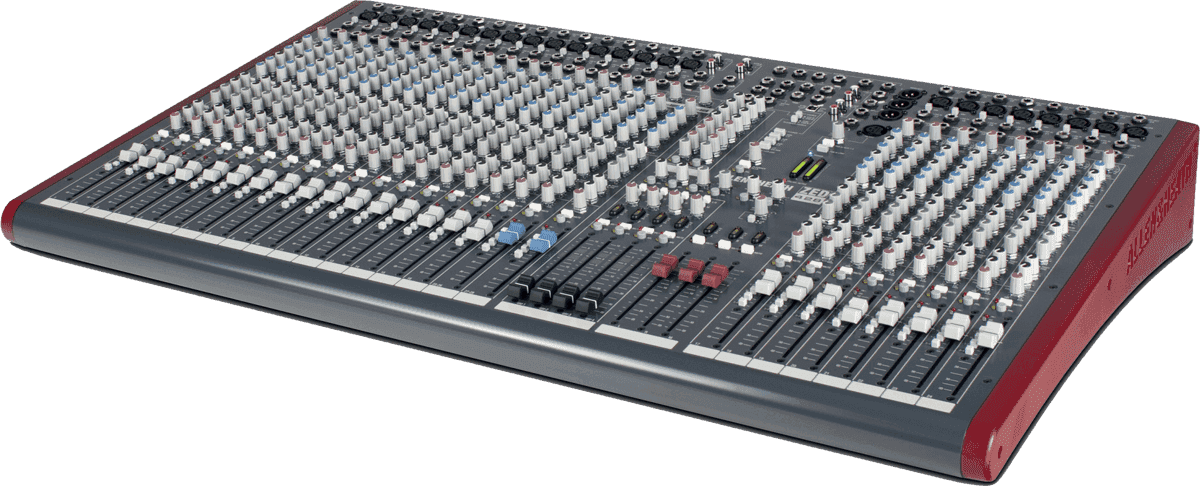

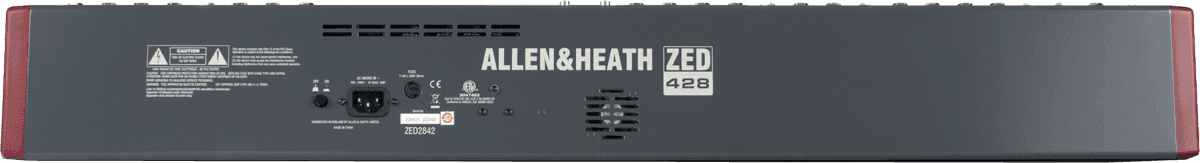

Allen & Heath ZED428
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
What you need to know
What you need to know
- 24 mic/line channels with preamps, inserts, direct outputs, and individual 48 V phantom power for ultra-flexible configuration.
- Live mixing + recording: USB interface with stereo send and return, routable to multiple buses (L/R, Aux, Matrix).
- Complete mix control: 4 subgroups, 6 auxiliary sends, 2 matrices, 100 mm faders, PFL/AFL, Mute, signal/clip LEDs.
- Advanced equalization: 4-band EQ on channels, with 2 semi-parametric mids on mono inputs and On/Off per channel.
Manufacturer Information
Allen&Heath
https://www.allen-heath.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A Console Designed as a True Analog "Mixing Hub" with a Direct Bridge to the Computer
This mixing console follows the great tradition of analog desks designed for live sound, rehearsals, and events, while integrating convenient USB connectivity to capture a stereo mix or send a signal from a computer. With its 24 balanced mic inputs, subgroups, auxiliaries, and matrices, it positions itself as a robust solution to manage full setups (drums, vocals, guitars, keyboards, brass) and build front-of-house, monitor, and recording mixes without multiplying devices.
Who and What For: Sound Reinforcement, Stage Monitors, Capture, and Broadcast
Ideal for bands, sound engineers, project studios, performance venues, places of worship, or corporate events, this console suits both precise front-of-house mixing and comprehensive monitor management. The 6 auxiliary sends allow powering multiple wedges or in-ear systems, while the matrices and subgroups facilitate sending to secondary zones, video control rooms, or recordings. The USB port provides a simple solution to integrate a PC/Mac into the chain (playback, interludes, capture) without changing the workflow of an analog console.
Technical specifications
| Insert | Yes | Busses / groups | 4 groups |
| Number of faders | 33 | Number of auxiliary sends | 6 |
| Number of channels | 28 | Mic inputs | 24 x XLR |
| Phantom power supply | Yes | Line inputs | 2 x Rca, 24 x jack, 2 x stereo jack |
| EQ | 4-band with upper and lower semi-parametric mid | Inputs (other) | USB, 2 channels RCA, inserts : jack for each group, inserts : jack for each mono input, talkback (XLR) |
| Filters | Low cut | Main outputs | 3 x XLR : LR + M |
| PFL/AFL mode | Yes | Direct outputs | 24 x balanced jacks |
| Category | analog mixer | Outputs (other) | 6 x Aux unbalanced Jacks, groups 4 x balanced jacks, Matrixes : 2 x balanced jacks |
| Fader travel | 100 mm | Display | LED |
| Number of matrixes | 2 | Weight | 18 kg |
| Number of mic preamps | 24 | Dimensions (mm) | 930 x 560 x 50 |
| Recording | USB | ||
You will also like
Yamaha
Tio 1608-D2
Solid State Logic
Big Six
Allen & Heath
DT168
Palmer
PPB 20S Pro
Dynacord
CMS 1000-3
Allen & Heath
ZED436
Allen & Heath
DX164-W
Allen & Heath
WZ4-16-2
Questions frequently asked
How many microphones can be connected to the Allen & Heath ZED428?
The mixer has 24 balanced XLR mic inputs, each with a preamp, individually switchable 48 V phantom power, and a low-cut filter. Each mono channel also accepts a line source on a 6.35 mm jack.
Can a mix be recorded to a computer via USB?
The USB port transmits a stereo mix to a computer at 16 bits, from 32 to 48 kHz. The source sent can be the L/R bus, aux 1/2, aux 3/4, or the matrix. The USB return can be assigned to L/R or stereo channel 3.
How many stage monitor mixes can this console handle?
The 6 auxiliary sends can feed multiple stage monitors or in-ear systems. Their configuration includes 2 pre-fader sends, 2 pre/post-fader sends, and 2 post-fader sends.
Are there direct outputs to record each track separately?
Each mono input has a direct output on a balanced jack, totaling 24 direct outputs. Inserts on jacks are also available on each mono channel to connect external processing.
Does the routing allow feeding multiple sound zones?
The 4 subgroups and 2 matrices offer dedicated outputs for secondary zones, video control rooms, or broadcast sends. The main L/R/M outputs are provided on 3 balanced XLRs, with insertion on the master.
