ALTO PROFESSIONAL TRUEMIX800FX

The Flagship Model of the TrueMix Series

Top of the line, the TrueMix 800 FX condenses the essentials of a modern analog mixer into a sleek and robust format. It carries forward the "ready to mix" spirit of the TrueMix series and adds an Alesis effects processor as well as extended connectivity to meet the needs of both home studios and small stages.

Designed for Creators, Bands, and Lightweight Installations

Podcasters, streamers, musicians, and service providers will find a flexible solution for capturing clear vocals, integrating line-level instruments, streaming a playlist or phone call, and sending dedicated mixes to each participant. Its ease of use makes it a reliable tool for sessions where speed is essential without sacrificing quality.

Comprehensive Connectivity, USB and Bluetooth Flow with Mix-Minus

Versatile Routing and Monitoring

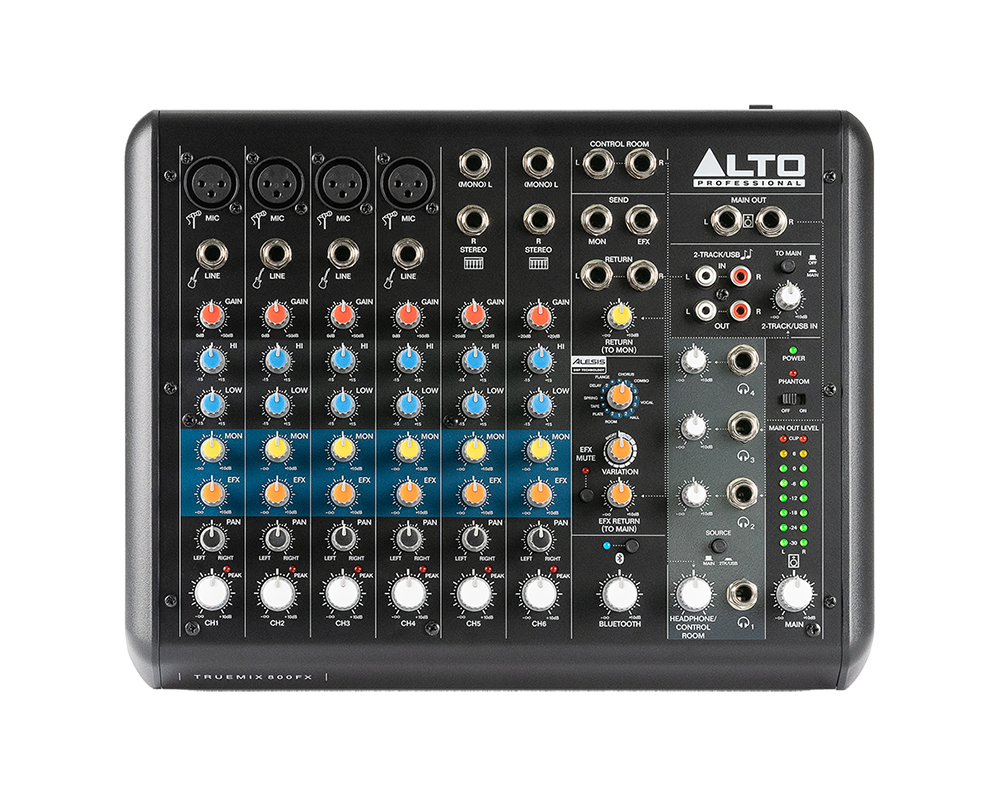

Each channel offers gain, 2-band EQ, monitor send, effects send, pan, and level. The Master section combines main outputs, Control Room, sends/returns, and four headphone jacks, ideal for providing each participant with a comfortable mix.

Bluetooth 5.0 with Mix-Minus

The Bluetooth integration allows pairing a smartphone to insert music or calls. The "Mix-Minus" function sends back the mix without the unwanted echo from the microphone return, preventing feedback loops during conversations.

Stereo USB Interface

Connect the console to a computer to record your performances in stereo and play back content from your DAW or streaming platform, convenient for livestreaming or podcasting.

Alesis Effects and Ergonomics

The Alesis DSP offers 16 selectable effects, with EFX Return control to the Main output and Variation to shape the texture. Each channel strip has a dedicated EFX send to precisely dose reverb or delay per source.

Technical specifications

Number of faders	0	Number of auxiliary sends	1
Number of channels	8	Mic inputs	4 x XLR
Phantom power supply	48V	Line inputs	4 x balanced jacks, 4 x jack
Bluetooth	No	Inputs (other)	Rca, Aux return 2 x unbalanced jacks
EQ	2 channels	Main outputs	2 x balanced jacks
Motorised faders	No	Outputs (other)	USB, Control room 2 x balanced jacks, stereo FX send 2 x jacks, 2 x tracks (RCA), headphones 4 x jacks
Rackable	No	Color	Black
Category	analog mixer	Built-in effects	Yes
Number of mic preamps	4	Display	Meter
Number of auxiliary returns	1	Weight	2.04 kg
Recording	USB, Rca	Dimensions (mm)	305 x 238,5 x 79

Number of microphone preamps	4	Channel-strip controls	2-band EQ, monitoring send level and effects send level adjustment
Phantom power	48V	Frequency response	20 Hz - 22 kHz
Microphone inputs	4 x XLR	Total harmonic distortion (THD+N)	< 0.005% @4 dB, 1 kHz
Bluetooth input	5.0 with dedicated level control and "Mix-Minus" anti-feedback function	Visual indicators	Power LED, 16-LED master VU meter, 6 Peak LEDs, Bluetooth LED, +48V power LED, EFX Mute LED
Alesis DSP FX multi-effect	16 effects with EFX Return adjustment to Main, Variation (effect modulation), effects send on each channel	Weight (kg)	2.04
