A New Chapter for the Orion Icon
For over ten years, the Orion 32 has been a benchmark in studios and broadcast installations. With the Gen4, Antelope Audio consolidates this lineage: the same 1U chassis serving demanding environments, but with modernized performance and workflow to meet current standards for multichannel and immersive audio.Designed for Multichannel Studios and Immersive Audio
The Orion 32+ Gen4 targets studios equipped with large consoles, analog summing configurations, hardware synth rigs, broadcast stages, and post-production. Its MADI/Thunderbolt capacity, direct zero-latency monitoring, and Dolby Atmos calibration/monitoring option make it an ideal hub for large sessions and live setups.Key Features and New Additions of the Gen4
Conversion and Reference Clock
The AD/DA converters deliver a dynamic range up to 130 dB at 24-bit/192 kHz. The 4th generation 64-bit clock technology and jitter management algorithm ensure stability, crisp transients, and stereo depth.Massive Routing, Daisy-Chaining, and Extended MADI
The number of channels via Thunderbolt and MADI is doubled compared to the previous generation. Up to four Orion 32+ Gen4 units can be daisy-chained for configurations reaching hundreds of simultaneous I/Os.Modernized Software Control
The new control panel offers full preset recall (routing, levels, mix, monitoring) and a flexible patch matrix designed to reduce complexity. The monitoring widget facilitates output control with instant access to snapshots.Direct Monitoring and Summing
Four 32-channel stereo mixers with zero latency allow creation of dedicated return mixes, management of parallel listening, or internal summing before recording.Technical specifications

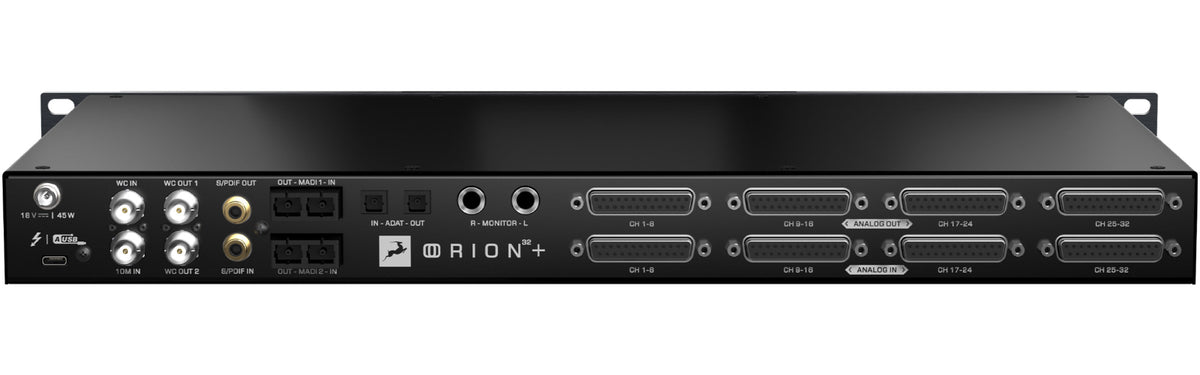

| Compatibility | PC, Mac |
| Sampling frequency | 192 kHz |
| Max resolution | 24-bits |
| Headphone outputs | No |
| 32 analog line inputs | 4 x DB25 |
| 32 analog line outputs | 4 x DB25 |
| 2 monitor outputs | 6.35 mm jack |
| S/PDIF input/output | RCA |
| 10M input for Antelope Atomic Clock | BNC |
| Wordclock input | BNC, 75 Ohm |
| 2 Wordclock outputs | BNC, 75 Ohm |
| Installation size | 19 inches / 1U |
| Dimensions | 483 x 280 x 44 mm |
| Weight | 3.4 kg |
| Included | power supply and USB-C cable |
Questions frequently asked
How many analog inputs and outputs are available?
The interface features 32 line inputs and 32 line analog outputs, distributed over 4 DB25 connectors on each side. Two monitor outputs on 6.35 mm jack complete this connectivity.
What conversion quality does the Antelope Orion 32+ Gen 4 offer?
The AD/DA conversion operates up to 24-bit / 192 kHz, with a dynamic range announced up to 130 dB. The fourth-generation 64-bit clock ensures synchronization stability and jitter management.
Can multiple Orion 32+ Gen4 units be daisy-chained over MADI?
Up to four units can be daisy-chained via Thunderbolt and MADI to create a setup totaling hundreds of simultaneous inputs and outputs.
How does the latency-free monitoring work?
Four 32-channel stereo mixers allow the creation of latency-free monitor mixes. Parallel listening can be managed from these mixers. Internal summing can also be performed before recording.
What clock connections are available?
External synchronization is provided by a 75-ohm BNC Wordclock input and two 75-ohm BNC Wordclock outputs. A 10M BNC input allows connection to an Antelope Atomic Clock.
