- Synergy Core platform with 6 DSPs and 2 FPGAs to run real-time effects at very low latency and free up your CPU.
- 12 discrete microphone preamps (75 dB) + direct line path (124 dB dynamic range) and 4 Hi-Z inputs for guitars and basses.
- Hybrid connection via Thunderbolt 3 and USB 2.0, 130 dB A/B monitoring, 2 independent headphone outputs, 2 reamp outputs, 16 line outputs, ADAT, S/PDIF, and Word Clock.
- 50 Antelope plug-ins included and DC-coupled I/O for CV/Gate, with patchbay and zero-latency mixer in the control software.
Manufacturer Information
Antelope
https://en.antelopeaudio.com
------------------------
Safety manager:
Elektrosfera ltd.
Email:
Address:
Following the Orion Line, Synergy Core Power for Modern Studios
A direct descendant of the Orion series, the Orion Studio Synergy Core builds on Antelope's expertise in conversion and clocking and adds hardware effects processing. This generation emphasizes stability at 192 kHz, the proprietary 64-bit "Acoustically Focused Clocking," and connectivity ready for ambitious hybrid setups.Who Is It For? Sound Engineers, Producers, and Multi-Source Creators
Designed for multitrack recording (vocals, drums, live takes), guitar reamping, and hybrid mixing, it suits professional studios as well as demanding creators working in home studios. Flexible routing, A/B monitoring, and real-time effects processing facilitate a smooth workflow, whether you're managing outboard gear, modular synths (CV/Gate), or heavy virtual instrument sessions.Key Features for an Uncompromising Workflow
Real-Time Processing, Controlled Latency
The 6 DSPs and 2 FPGAs run Antelope plug-ins without burdening the computer's processor. You can reduce buffer size, stabilize large sessions, and monitor with effects either printed or in real time.Conversion, Preamps, and Reference Clock
The 12 "Discrete MP" preamps offer up to 75 dB of transparent gain. Line inputs bypass the preamps to achieve 124 dB dynamic range into the A/D converters. The 64-bit AFC clock, with Word Clock I/O, ensures precise stereo imaging and excellent temporal coherence.Comprehensive Connectivity and Powerful Routing

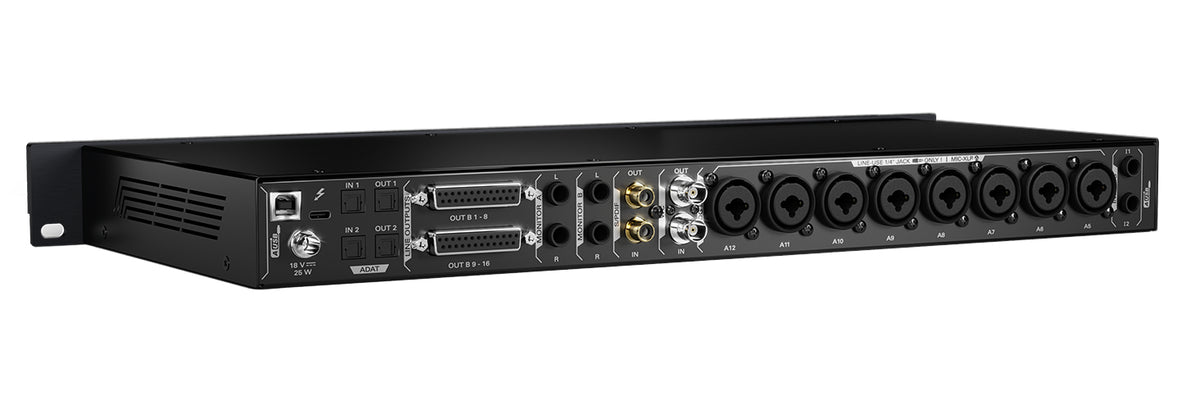

Thunderbolt 3 and USB 2.0 provide broad Mac/PC compatibility, with the ability to power/recharge a MacBook. Monitoring outputs deliver 130 dB dynamic range and switch between parallel or A/B modes, complemented by 2 independent headphone outputs, 2 reamp outputs, 16 DB25 line outputs, 2 ADAT ports, S/PDIF, and DC-coupled I/O for controlling modular systems. The digital patchbay and zero-latency mixer are managed via the software control panel.Antelope Effects Ecosystem

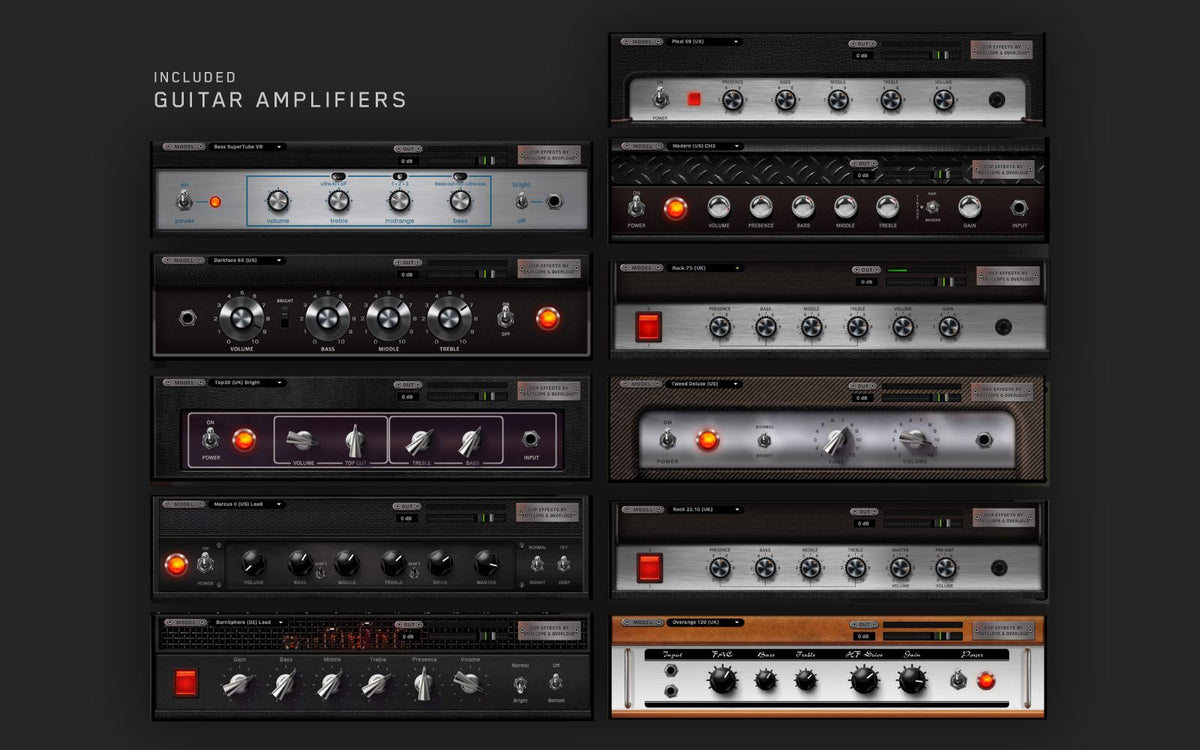

50 real-time effects are included (preamps, compressors, equalizers, reverb, guitar amps, and cabinets). Thanks to Synergy Core, you can stack multiple effects per channel without sacrificing responsiveness or stability.Technical specifications
| Compatibility | PC, Mac | Max resolution | 32-bits |
| Sampling frequency | 192 kHz | Headphone outputs | Yes |
You will also like
Universal Audio
Apollo X16D Analog Classics
Universal Audio
Apollo X4 Gen2 Analog Classics Pro
Universal Audio
Apollo X6 Analog Classics
Universal Audio
Apollo X6 Analog Classics Pro
Focusrite
RedNet TNX
Universal Audio
Apollo X8 Analog Classics
Focusrite
Red 8 Line
Antelope
Orion 32+ Gen 4
Customer reviews
What customers say
Summarized and selected by AI from recent customer reviews
Customers praised this professional audio interface for exceptional sound quality with "129db dynamics" and "impeccable audio quality." The 12 high-quality preamps, integrated DSP effects (AFX), and comprehensive I/O connectivity in 1U rack format impressed shoppers. Routing software is complex initially but powerful. One concern: AFX2DAW Windows support needed.
Review highlights
- âWhat sound! The AFX are a marvel, truly stunning!â
- âVery good interface, the preamps are super, sound quality is clear and precise.â
- âStable, transparent, powerful. Integrated effects are of excellent quality.â
Based on 8 reviews
- 4 stars, 0 reviews
- 3 stars, 0 reviews
- 2 stars, 0 reviews
- 1 star, 0 reviews
The review form didn't open. Please try again.
-
The dream! This is the interface I was looking for!
Impeccable audio quality, I am rediscovering sounds thanks to the 129db of dynamics on the monitor outputs.
All the I/O connections you need to evolve a studio based on hybrid mixing in 1U, the choice of inputs such as MIC/LINE/Direct and Hi-Z (Hi-Z on front panel input only) make this professional device very very flexible because it acts as a simple converter or preamp according to our needs.
So the AFX are breathtaking, I have never had the opportunity to work with a UAD but these AFX are simply amazing, also by the fact that the effects are already on our card and that you just have to buy them as you go to unlock them, and to make updates when new ones come out when they come out so that they are integrated into our machines really makes it a piece of hardware in its own right..
I wouldn't talk about the control panel in detail but it's very easy to use, just be careful where you go so as not to close up;)
It's a powerful tool and you can feel it! It exudes solidity and reliability, I recommend 1000 times.
PS: it's just a shame that my package arrived in its presentation box, with only a black film around it.. I don't know if Woodbrass sent me the package as it was, or if Chronopost sent the box to me?.. despite its dubious packaging and the recommendation not to open if the box is damaged, there was no mark on the cardboard, with 2 corners barely inserted, which correspond to the weight of the animal once the cardboard was put... I was afraid that it would be damaged internally, but when opened it was flawless and everything worked perfectly! Enough to get through the discomfort.. for the price of the bike it chilled me all the same..
After 2 weeks of using RAS! Great product.Automatically translated
-
The dream! This is the interface I was looking for!
Impeccable audio quality, I am rediscovering sounds thanks to the 129db of dynamics on the monitor outputs.
All the I/O connections you need to evolve a studio based on hybrid mixing in 1U, the choice of inputs such as MIC/LINE/Direct and Hi-Z (Hi-Z on front panel input only) make this professional device very very flexible because it acts as a simple converter or preamp according to our needs.
Also, the AFX are breathtaking, I have never had the opportunity to work with a UAD, but these AFX are simply amazing, also by the fact that the effects are already on our card and that you just have to buy them as you go to unlock them, and to make updates when they come out new ones, and to make updates when they come out new ones so that they are integrated into our machines, really, a piece of hardware in its own right...
I wouldn't talk about the control panel in detail, but it's very easy to use, just be careful where you go so as not to close up;)
It's a powerful tool and you can feel it! It exudes solidity and reliability, I recommend 1000 times.
PS: it's just a shame that my package arrived in its presentation box, with only a black film around it... I don't know if it was Woodbrass who sent me the package as it was, or if Chronopost sent the box to me?... Despite its dubious packaging and the recommendation not to open if the box is damaged, there was no mark on the cardboard, through 2 corners, barely pressed, which correspond to the weight of the animal once the cardboard was put... I was afraid that it would be damaged internally, but when opened it was flawless and everything worked perfectly! Enough to get through the discomfort... for the price of the bike it cooled me down all the same..
After 2 weeks of using RAS! Great product.Automatically translated
-
What a sound! I hesitated to take an Apollo 8+ UAD but I went with this beautiful machine for several reasons: 12 preamps of quality equivalent to UAD, a routing software that is complex at first glance, but formidable when you master it, integrated DSPs (AFX are a marvel), 2 integrated reamp outputs, several listening outputs, all possible connections to connect other interfaces, all in the format 1U rack.
In short, it's amazing!Automatically translated
-
This interface corresponds perfectly to my expectations. It's stable, transparent, powerful,...
In addition, the integrated effects are of excellent quality, they provide significant comfort for sound recording.
All that's missing is the support of AFX2DAW on Windows for it to reach perfection in my eyes.Automatically translated
-
This interface corresponds perfectly to my expectations. It's stable, transparent, powerful,...
In addition, the integrated effects are of excellent quality, they provide significant comfort for sound recording.
All that's missing is the support of AFX2DAW on Windows for it to reach perfection in my eyes.Automatically translated
No reviews match this filter.
Reviews can't be loaded right now. Please try again.
Automatically translated
Questions frequently asked
Is the Orion Studio Synergy Core compatible with Mac and PC?
Compatibility is ensured on Mac and PC via Thunderbolt 3 or USB 2.0. The Thunderbolt 3 connection also allows powering or charging a MacBook.
How many mic preamps and inputs does this interface offer?
Twelve Discrete MP preamps are integrated, providing up to 75 dB of gain. The line inputs bypass these preamps and reach 124 dB of dynamic range up to the A/D conversion.
Is it possible to record with effects without noticeable latency?
The 6 DSPs and 2 FPGAs process Antelope plugins in real time without loading the computer's CPU. The software mixer allows zero-latency monitoring with printed effects or with effects only monitored. Fifty effects are included, such as compressors, equalizers, reverbs, and guitar amp simulations.
What connectivity is available for a hybrid studio?
Sixteen line outputs on DB25, 2 ADAT ports, S/PDIF, and Word Clock I/Os are available. Two reamp outputs and DC-coupled I/Os also allow integration of external gear and modular systems.
Are there two headphone outputs and A/B monitoring?
Two independent headphone outputs and switchable A/B monitoring outputs are present. The dynamic range specified for the monitoring outputs reaches 130 dB.
