ATC SCS70 Pro
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the ATC SCS70 Pro Studio Subwoofer
Essential Information About the ATC SCS70 Pro Studio Subwoofer

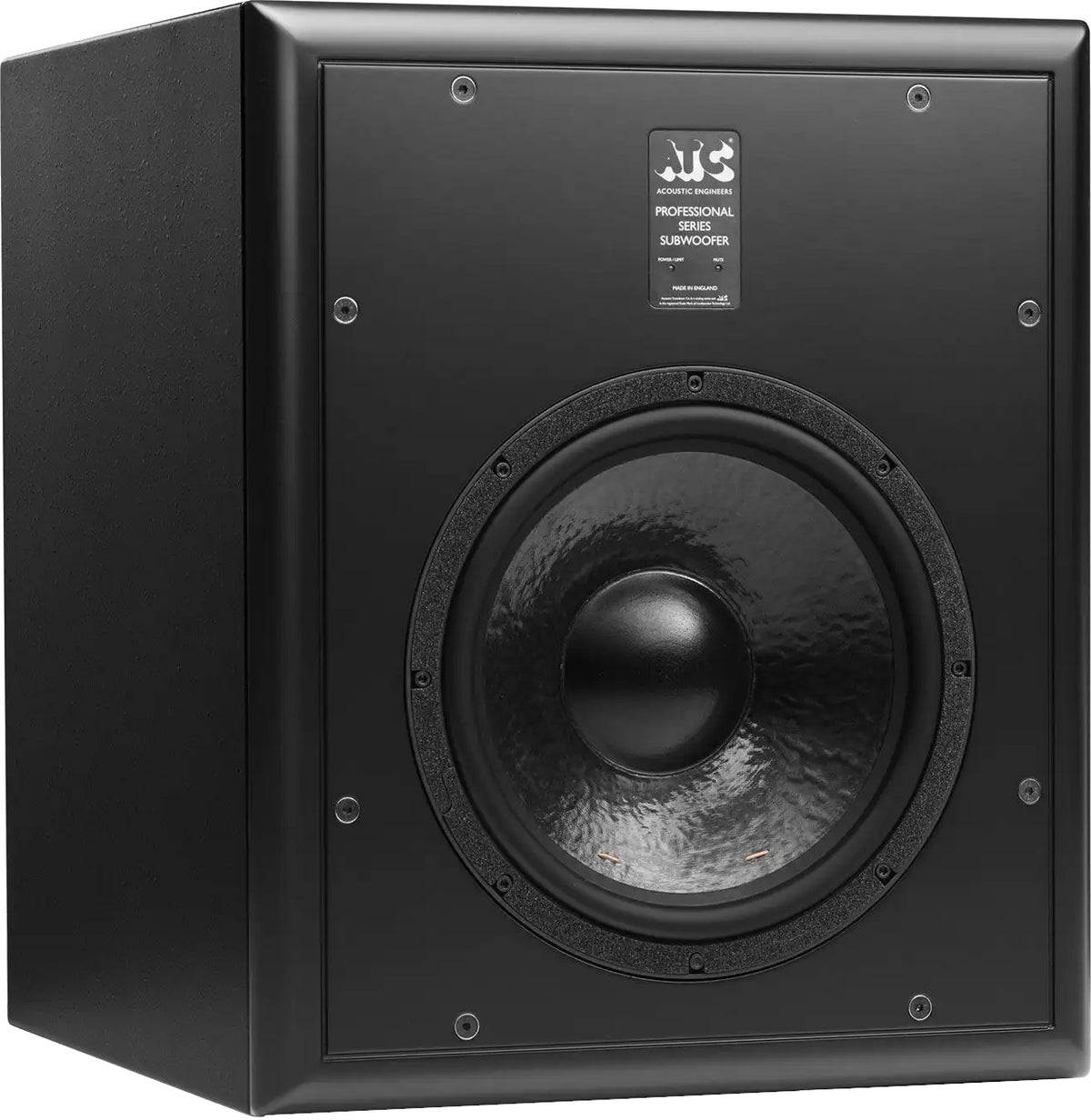

- 12-inch/300 mm high-excursion driver SS75-314SC handmade, delivering deep bass and extremely low distortion.
- 300 W Class AB MOSFET amplification discreet, dynamic, and musical, designed for long studio sessions.
- Selectable 24 dB/oct Linkwitz-Riley filtering (50/65/80/320 Hz) with level, phase, and polarity adjustments for precise alignment.
- Versatile studio integration thanks to balanced XLR "Link" inputs/outputs and remote mute via footswitch.
Manufacturer Information
ATC
https://www.atc.audio
info@atc.gb.net
------------------------
Safety manager:
Funky Junk Italy srl
Email: sales@funky-junk.com
Address:
ATC Heritage and Position in the Range
The SCS70 Pro continues the legacy of ATC active monitors by providing bass reinforcement designed to preserve the transparency and stereo imaging that the brand is known for. Its in-house, hand-assembled driver and discreet amplification ensure ideal sonic continuity with ATC monitors in professional control rooms.
Who Is It For and What Are Its Uses?
Intended for sound engineers, music mixers, and post-production professionals, the SCS70 Pro excels in stereo, multichannel surround, and immersive setups such as Dolby Atmos. Its fine alignment control facilitates phase matching with main monitors for a linear bass response, whether in compact control rooms or larger stages.
Technical specifications
| Battery | No | Inputs | XLR |
| Number of channels | 1 channel | Color | Black |
| Bluetooth | No | Power output | 300 W |
| Connection | XLR | Quantity | 1 |
| Speaker diameter | 12" | Nominal mode power consumption (Wh) | 500 W |
| Number of speakers | 1 | Sleep power consumption (Wh) | 8 W |
| EQ | No | Standby power consumption (Wh) | 8 W |
You will also like
Dynaudio
Core Sub
Adam Audio
SUB 2100
Adam Audio
Sub 15
Neumann
KH 805 II
Focal
Sub 12
Dynaudio
Core Sub Compact
Genelec
7370 AP
Hedd
Bass 12
Questions frequently asked
Does the SCS70 Pro reach low enough frequencies for mixing and post-production?
The 12-inch SS75-314SC woofer reaches 22 Hz at -6 dB in half-space, with the low-pass filter set to 80 Hz. This extension allows control of very low frequencies in a monitoring setup.
How to set up the SCS70 Pro with ATC main speakers?
Low-pass cutoff frequencies can be selected at 50, 65, 80, or 320 Hz via a 4th order Linkwitz-Riley filter. A phase adjustment from 0 to 180° and a polarity inverter assist in aligning with the monitors. The level is adjustable from 0 to -11 dB in 1 dB steps, with gain positions at 0, +6, or +10 dB.
What sound level does this ATC subwoofer deliver?
With 300 W MOSFET Class A-B amplification, this model achieves 110 dB continuous and 116 dB peak at 1 m, according to IEC half-space measurements.
What connectivity is available on this subwoofer?

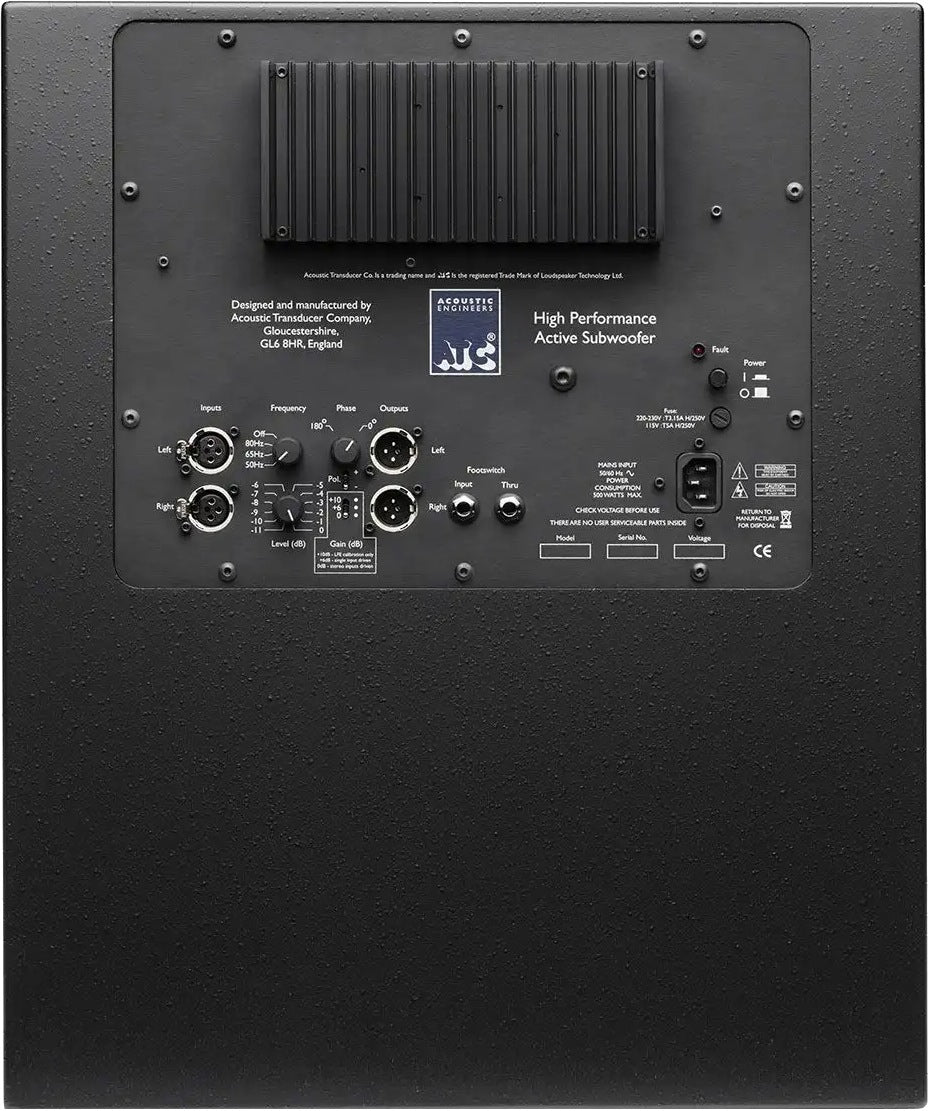

The audio connection uses balanced XLR inputs and "Link" outputs for daisy-chaining. A 6.35 mm jack accepts a latching footswitch, sold separately, to mute sound remotely.
Is the SCS70 Pro suitable for a Dolby Atmos setup?
Integration in stereo, multichannel surround, or Dolby Atmos configurations is supported thanks to filtering, phase, and level adjustments. Its net weight is 44 kg, so a stable location should be planned.
