Neumann KH 805 II

Name: KH 805 II
Brand: Neumann
SKU: 423074
Price: 2799.00 EUR
Availability: InStock

2.799,00 €VAT incl.

0,14 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 423074

EAN : 4044155277883

This item is covered for 3 years

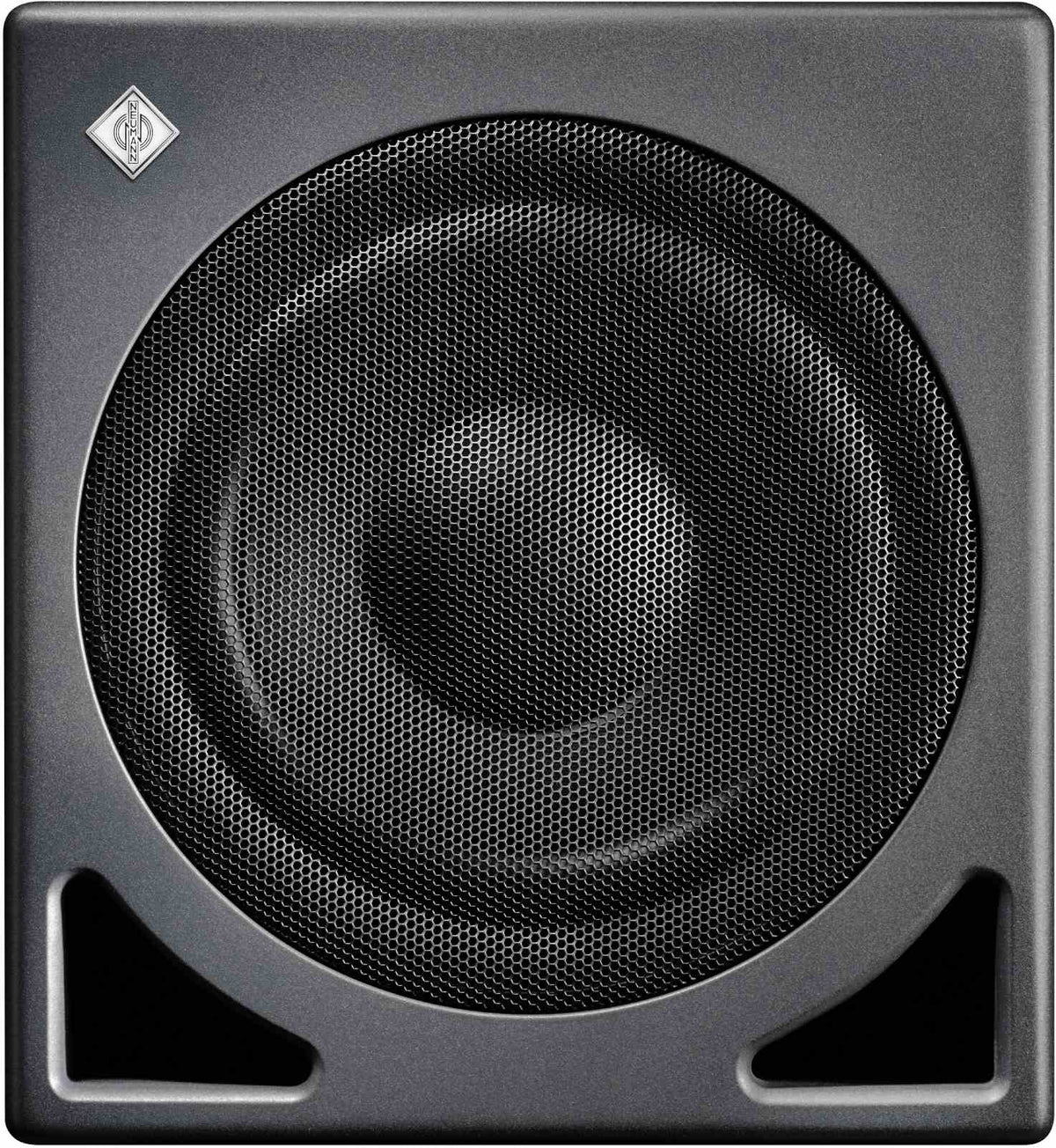

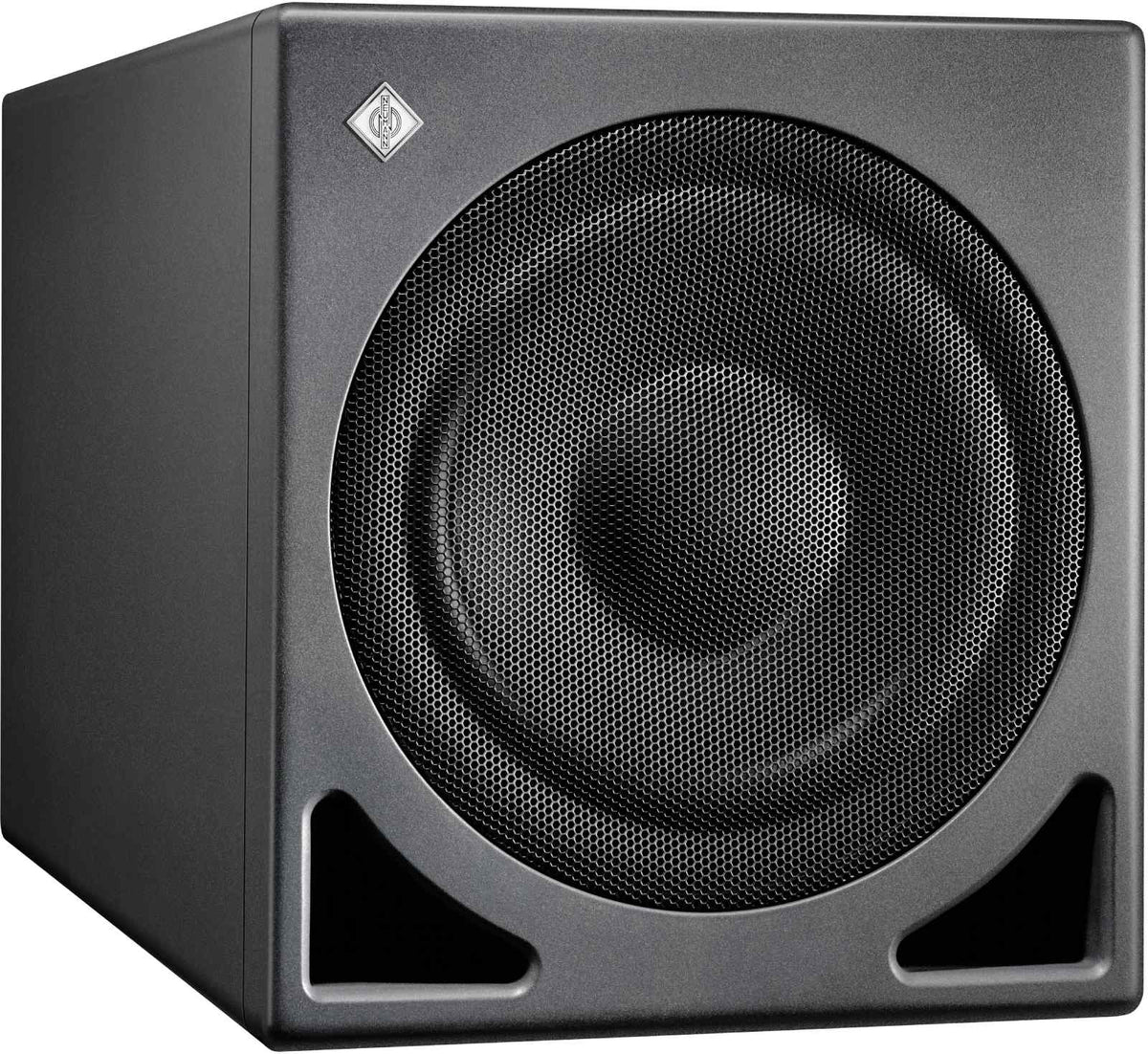

Essential Information About the Neumann KH 805 II Subwoofer

Ultra-deep bass down to 16 Hz, high SPL level, and remarkably low distortion thanks to the 10-inch ELFF woofer and intelligent limiters.
Amplification power approximately doubled compared to the KH 750 DSP to strengthen KH 150, KH 310 systems and beyond.
Internal DSP processing and automatic alignment via MA 1, including multichannel extension (optional "MA 1 Multichannel Extension").
7.1 bass management, balanced XLR inputs/outputs, and BNC AES3/S/P-DIF digital input up to 192 kHz/24 bit.

KH 805 II

2.799,00 €VAT incl.

0,14 € Ecotax included

Reference price

Complete your order

Adam Audio

A77H

1.273,00 €VAT incl.

3,10 € Ecotax included

Reference price

Woodbrass

MC22 - XLR / XLR - 6 m

7,50 €VAT incl.

0,05 € Ecotax included

Reference price

Focal

Twin 6 ST6

1.998,00 €VAT incl.

0,14 € Ecotax included

Reference price

Cordial

MICROPHONE CABLE XLR 20 M

44,00 €VAT incl.

0,05 € Ecotax included

Reference price

A New Milestone in the KH Subwoofer Line

Big brother to the KH 750 DSP, the KH 805 II modernizes the KH 805 concept with increased power reserve and exemplary bass performance. Its long-excursion ELFF transducer, loaded in an optimized bass-reflex enclosure, pushes the response well below the audible threshold while preserving linearity. The result: a reference subwoofer to complement medium-sized monitors or drive immersive setups.

Intended Uses and Studios

The KH 805 II is aimed at demanding music, broadcast, and post-production studios. It integrates equally well into a nearfield stereo system as into a mixing or mastering control room and naturally fits into 5.1/7.1 multichannel setups where phase accuracy and LFE channel management are crucial.

Technical specifications

Battery	No	Inputs	XLR, AES/EBU
Number of channels	1 channel	Color	Grey
Bluetooth	No	Power output	222 W
Connection	RJ45, AES3, XLR	Quantity	1
Speaker diameter	10"	Nominal mode power consumption (Wh)	290 W
Number of speakers	1	Standby power consumption (Wh)	35 W
EQ	No

Questions frequently asked

Is the Neumann KH 805 II suitable for a 5.1 or 7.1 studio setup?

The bass management supports 7.1 / 7+Sum configurations and offers several LFE modes: 80+re-routing, 80, 120, and wide. An LFE gain of 0 or +10 dB is available for integration into multichannel workflows.

What is the frequency response of this 10-inch subwoofer?

The free-field response ranges from 18 Hz to 310 Hz at ±3 dB. With the bandpass filter, it covers 19 Hz to 310 Hz at ±2 dB.

Can it be calibrated with the Neumann MA 1?

The built-in DSP enables alignment via the MA 1 tool, sold separately. The correction affects the system's frequency response and phase. The analog monitors KH 120 A, KH 310, and KH 420 can thus benefit from full stereo calibration.

What audio connections are available?

Two electronically balanced XLR inputs/outputs are provided, with an input impedance of 13 kΩ. A digital BNC input accepts AES3 and S/P-DIF signals up to 192 kHz / 24 bit, and an RJ45 port is also present.
