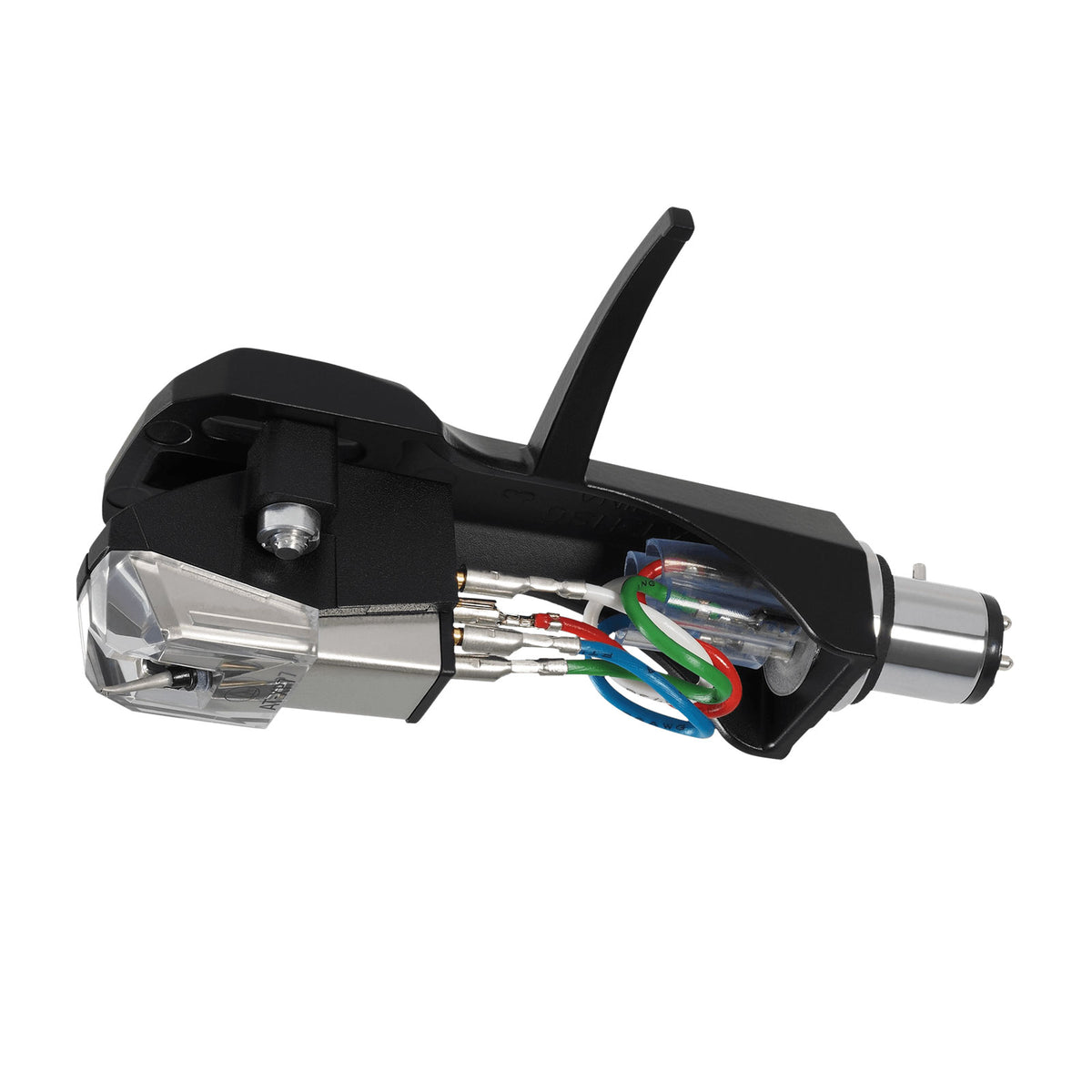

Audio Technica AT-XP7/h
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Audio Technica
https://www.audio-technica.com
------------------------
Safety manager:
Audio-Technica Dutch Branch
Email:
Address:
A "DJ Sound + Hi-Fi Spirit" Reference in the XP Series
The Audio-Technica XP series was developed to meet a concrete need of vinyl DJs: to maintain essential mixing features (stability, groove hold, robustness) while gaining finesse and sonic definition. The AT-XP7/H positions itself as a high-end solution in the range, aimed at those who want more detailed and balanced reproduction without sacrificing the reliability needed in a DJ environment.
At the heart of the concept is the VM Dual Magnet technology: two magnets work complementarily to improve playback precision and channel separation. Within the XP range, some models come with a conical stylus, appreciated for its tolerance and durability in DJ use. The AT-XP7/H, however, emphasizes tracking finesse with a bonded elliptical stylus, which is more precise in the groove.
For Which DJs and Setups?
This cartridge is intended for DJs who mix on vinyl turntables and want a cleaner and more nuanced sound: house, techno, disco, funk, hip-hop mixes, or open format sets where clarity in the upper spectrum and bass control make a difference on a sound system. It is also suitable for DJs who record their sets and want better definition in the capture, as well as for fixed installations (bars, clubs, studios) where the quality of the phono chain is a real criterion.
The suspension design and compliance of the XP series styli are adapted for DJ use with the possibility of manual cueing forward and backward. However, the use is not suitable for intensive scratching due to the VM Dual Magnet architecture: for very aggressive practices, a cartridge specifically oriented towards scratching is more appropriate.
Features and Innovations
The AT-XP7/H combines robust mechanics with precise playback. Its cantilever made of carbon fiber reinforced ABS and its suspension are designed to ensure consistent groove contact, an essential point to limit skipping during DJ manipulations and maintain playback stability on turntables subjected to vibrations (booth, stage, monitors).
The bonded elliptical stylus provides an audible gain in precision: elliptical styli follow groove variations more finely than conical styli, resulting in a more controlled frequency response, better phase accuracy, and lower distortion. This is a relevant choice if you are looking for more detail on vocals, transients (snare, hi-hat), and a better defined stereo image.
Regarding compatibility, the cartridge is compatible with ATN-XP5 and ATN-XP7 styli. The electromagnetic generator of the XP series is also compatible with all replacement styli from the VM95 series, with a higher output voltage than VM95 cartridges to optimize adaptation to the phono inputs of professional DJ mixers (often less generous in gain than Hi-Fi equipment). Conversely, the electromagnetic generator of the VM95 series can accept XP series styli but with a lower output voltage to favor Hi-Fi compatibility.
To remember for setup: the recommended tracking force with an XP series stylus is 3 g, while those of the VM95 series are generally designed for 2 g. In practice, respecting these values improves playback stability, groove hold, and sound coherence, while limiting premature wear of the diamond and records.
Technical specifications
| DJing type | Monitoring, Mix | Diamond tip | elliptical |
| Category | cartridge and cartridge holder | Color | Transparent |
| Type | cell | Quantity | 1 |
| Destination | hifi, DJ | ||

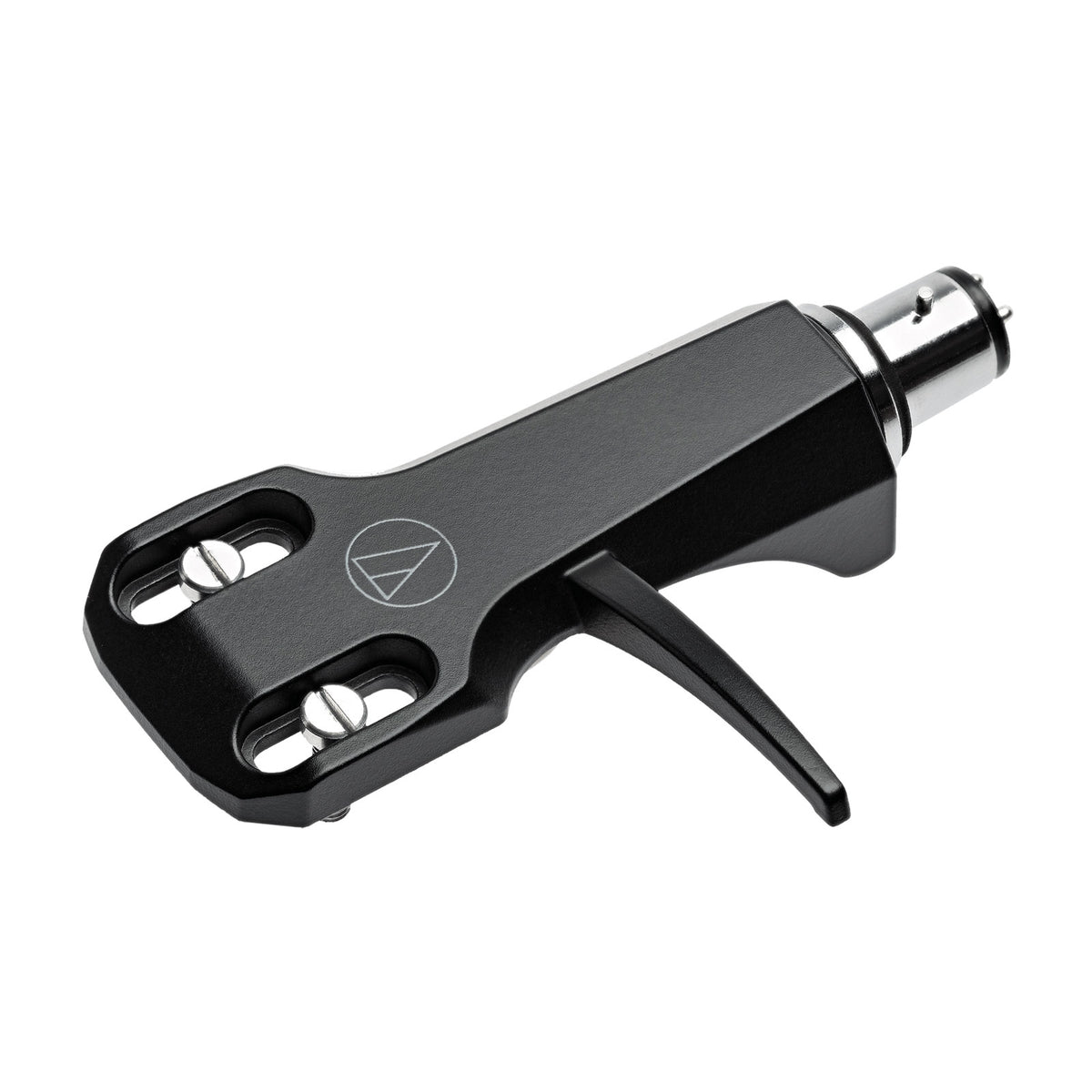

| Technology | VM Dual Magnet (dual moving magnet) | Pre-mounted | on AT-HS7BK headshell |
| Design | rigid and reliable for high-quality DJ playback | Headshell | aluminum |
| Cantilever | carbon fiber reinforced ABS | Headshell mass | 9 g |
| Suspension | designed to ensure precise groove contact | Configurations mentioned in the range | cartridge (AT-XP3), stylus (ATN-XP3), cartridge combined with AT-HS6BK headshell (AT-XP3/H) |
| Stylus | bonded elliptical | Frequency response | 20 - 20,000 Hz |
| Diamond mounting | Bonded Round Shank | Channel separation | 22 dB (1 kHz) |
| Stylus compatibility | ATN-XP5, ATN-XP7 | Vertical tracking angle | 20 degrees |
| Series compatibility | XP generator compatible with VM95 styli (output voltage higher than VM95) | Tracking force (Vertical Tracking Force) | 2.0 to 4.0 g (standard 3 g) |
| Inverse compatibility | VM95 generator compatible with XP styli (output voltage lower than XP) | Compatibility note | recommended tracking force with XP styli is 3 g, versus 2 g for VM95 series styli |
| Usage | manual cueing forward/backward possible; not suitable for intensive scratching (VM Dual Magnet architecture) | ||
Questions frequently asked
Is the Audio-Technica AT-XP7/H suitable for mixing and manual cueing?
This cartridge is designed for listening and mixing, with the possibility of manual cueing forward and backward. Its suspension and carbon fiber reinforced ABS cantilever promote consistent tracking in the groove.
Is this DJ cartridge suitable for intensive scratching?
Intensive scratching is not suitable for the VM Dual Magnet architecture. The cartridge is better suited for mixing techniques that require stable and detailed playback.
What tracking force should be set with an XP stylus?
The recommended tracking force is 3 g with a stylus from the XP series, adjustable within a range of 2 to 4 g. This setting helps ensure playback stability and limits premature wear of both the diamond and records.
Which replacement styli are compatible?
The ATN-XP5 and ATN-XP7 styli are directly compatible. The XP generator also accepts all replacement styli from the VM95 series, with a higher output voltage than a VM95 cartridge.
What sound does the elliptical stylus of the AT-XP7/H provide?
The bonded elliptical stylus follows the groove more precisely than a conical stylus. The frequency response covers 20 Hz to 20 kHz, and channel separation reaches 22 dB at 1 kHz. Vocals, transients, and the stereo image thus benefit from a more defined reproduction.
