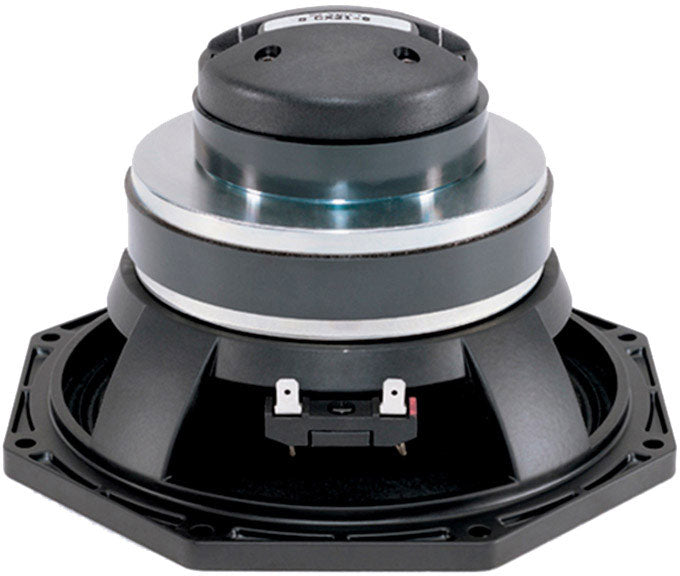

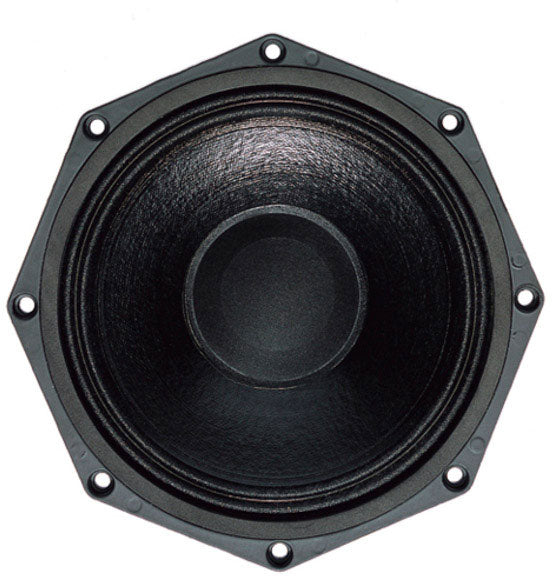

B&C Speakers 8CX21

A B&C Coaxial Designed for Compact and Demanding Speakers

With the 8CX21, B&C offers an 8-inch coaxial format aimed at efficiency in reduced volume, while maintaining power handling suitable for professional applications. The coaxial design provides a more stable sound image and a more natural transition between the mid-bass and high frequencies, a particularly sought-after advantage when the speaker needs to remain compact, discreet, and easy to position.

This type of speaker is often chosen to simplify the architecture of a 2-way speaker (single point source), facilitate placement as a stage monitor, or achieve even coverage in installations. The 8CX21 fits this logic: a single transducer capable of covering a large part of the spectrum while withstanding level, transport, and reliability constraints typical of field use.

Who Is the B&C 8CX21 For and What Are Its Applications?

The B&C 8CX21 is aimed at speaker manufacturers, integrators, and DIYers who want to design a serious 2-way coaxial speaker: compact stage monitors, small front-of-house speakers, nearfield reinforcement, or sound reinforcement in constrained environments (bars, rehearsal rooms, places of worship, multipurpose rooms).

Thanks to its recommended enclosure volume of 10 liters, it is well suited for projects where compactness is a priority, while maintaining an extended response and sensitivity adapted to realistic amplification. It is also a good candidate when controlled directivity and a more "focused" listening experience are desired, especially at short and medium distances.

Design and Key Features: Coherence, Power Handling, and Dispersion Control

Coaxial Architecture and Coverage

The 8CX21 combines an 8-inch low-frequency driver and a 1-inch HF driver to achieve a more coherent output than a classic 2-way setup where the woofer and tweeter are physically separated. This approach contributes to better clarity of vocals and instruments and facilitates integration into speakers where a consistent sound is desired as the listener moves.

The 100-degree coverage helps target wide dispersion, useful for stage monitoring or nearfield applications, with more predictable on- and off-axis behavior.

Ferrite Motor and Real-World Durability

The ferrite magnet follows a robust and proven design philosophy. Combined with an AES power rating of 400 W (LF) and 50 W (HF), the 8CX21 is built to withstand long sessions, sustained levels, and operational demands typical of sound reinforcement and installation systems.

Diaphragm and Suspension Elements: Stability and Mechanical Durability

The mid-bass section uses a dual-roll LF suspension to support cone excursion, and an exponential cone with water-resistant front treatment, useful for enhancing membrane durability in environments where the speaker may be stressed (transport, moderate humidity, intensive use).

On the high-frequency side, the HF driver features a polyester diaphragm. The overall design aims for a relevant compromise between precision, reliability, and integration in compact systems.

Technical specifications
