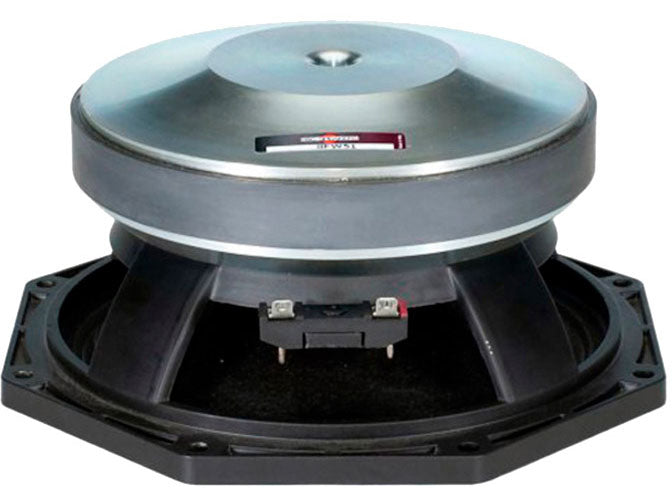

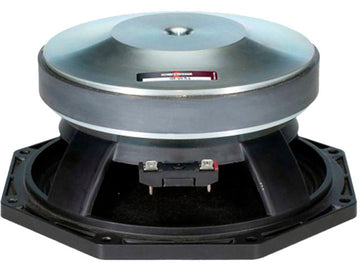

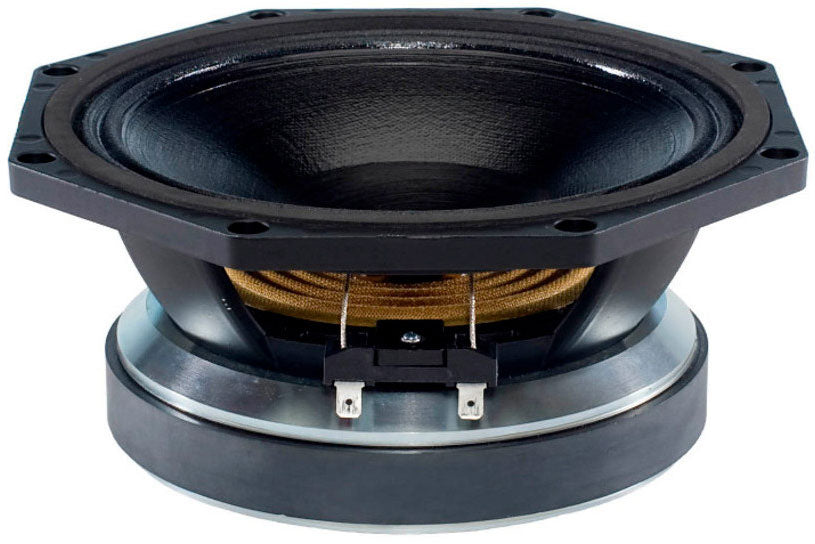

B&C Speakers 8FW51

An 8-Inch Driver Designed for Compact PA and Bass-Reflex Enclosures

The B&C 8FW51 belongs to the family of 8-inch (21 cm) drivers engineered to combine impact in the low spectrum with clarity in the midrange. This size is particularly sought after when you want to keep a speaker compact while maintaining real dynamics, whether for a small front-of-house speaker, stage monitor, installation speaker, or custom project. With parameters focused on control and efficiency, this model naturally fits into the midbass driver category capable of handling power while remaining precise.

Who Is It For and What Are Its Applications?

This speaker is aimed at users who build or repair passive speakers and expect reliable performance in real-world conditions: sound contractors, musicians, integrators, and DIY enthusiasts. The 8FW51 is an excellent choice for a midbass section in a compact speaker when the goal is to achieve a crisp attack, clean midrange, and good high-level power handling. It is also well suited for replacement (recone/maintenance) when specifications require an 8-inch 8-ohm driver with high power capacity.

Design and Key Points: Efficiency, Control, and Durability

Power Handling and Efficiency

With 400 W AES and a 97 dB sensitivity (1 W/1 m), the B&C 8FW51 aims for energetic reproduction without sacrificing safety margin. This combination facilitates achieving a comfortable sound level in a reasonably sized enclosure while limiting the risk of thermal compression during extended use.

Ferrite Motor and 2-Inch (51 mm) Copper Voice Coil

The ferrite magnet motor provides a solid and stable foundation, while the 2-inch (51 mm) copper wire voice coil contributes to robustness and power management. This setup is particularly relevant for a driver intended to operate in the midbass range, where mechanical and thermal stresses can be significant.

Mechanical Behavior: Excursion and Suspension

The 6.0 mm Xmax provides the necessary excursion to reproduce the low spectrum coherently with an 8-inch driver. The dual roll suspension promotes good excursion control, useful for maintaining clarity in attacks and limiting unwanted behavior at high levels. The single spider contributes to the overall balance between control, sensitivity, and mobility.

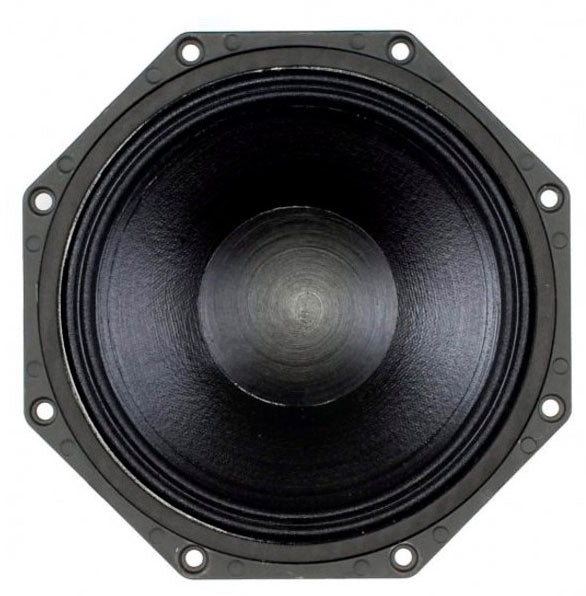

Moisture-Resistant Exponential Cone

The exponential cone is designed to maintain good midrange definition while delivering an efficient response. Its waterproof treatment front and back is a real advantage for speakers expected to operate in challenging environments (transport, humidity variations, occasional outdoor use under protection), helping to stabilize cone behavior over time.

Load Optimization: Recommended Volume and Tuning

The manufacturer specifies a recommended enclosure volume of 142 liters with a tuning frequency of 74 Hz. This information is valuable for guiding a bass-reflex design and achieving a response consistent with expected behavior. The parameters Fs 74 Hz and Qts 0.21 indicate a driver with a controlled character, designed to operate efficiently in a well-tuned enclosure, with a clean response and good power handling.

Technical specifications

Rackable	No	Type	Speakers
Category	sound reinforcement accessory

Brand / Model	B&C 8FW51	Xmax	6.0 mm
Nominal diameter	8 inches (21 cm)	Recommended enclosure	142 liters tuned to 74 Hz
Nominal impedance	8 ohms	Voice coil	2 inches (51 mm), copper wire
Weight	5.3 kg	Magnet	ferrite
Power	400 W AES	Suspension	dual roll
Sensitivity	97 dB (1 W/1 m)	Cone	exponential with waterproof treatment front and back
Frequency range	70 Hz - 5 kHz	Spider	single
Fs	74 Hz	Total diameter	225 mm
Qts	0.21	Height	100 mm
