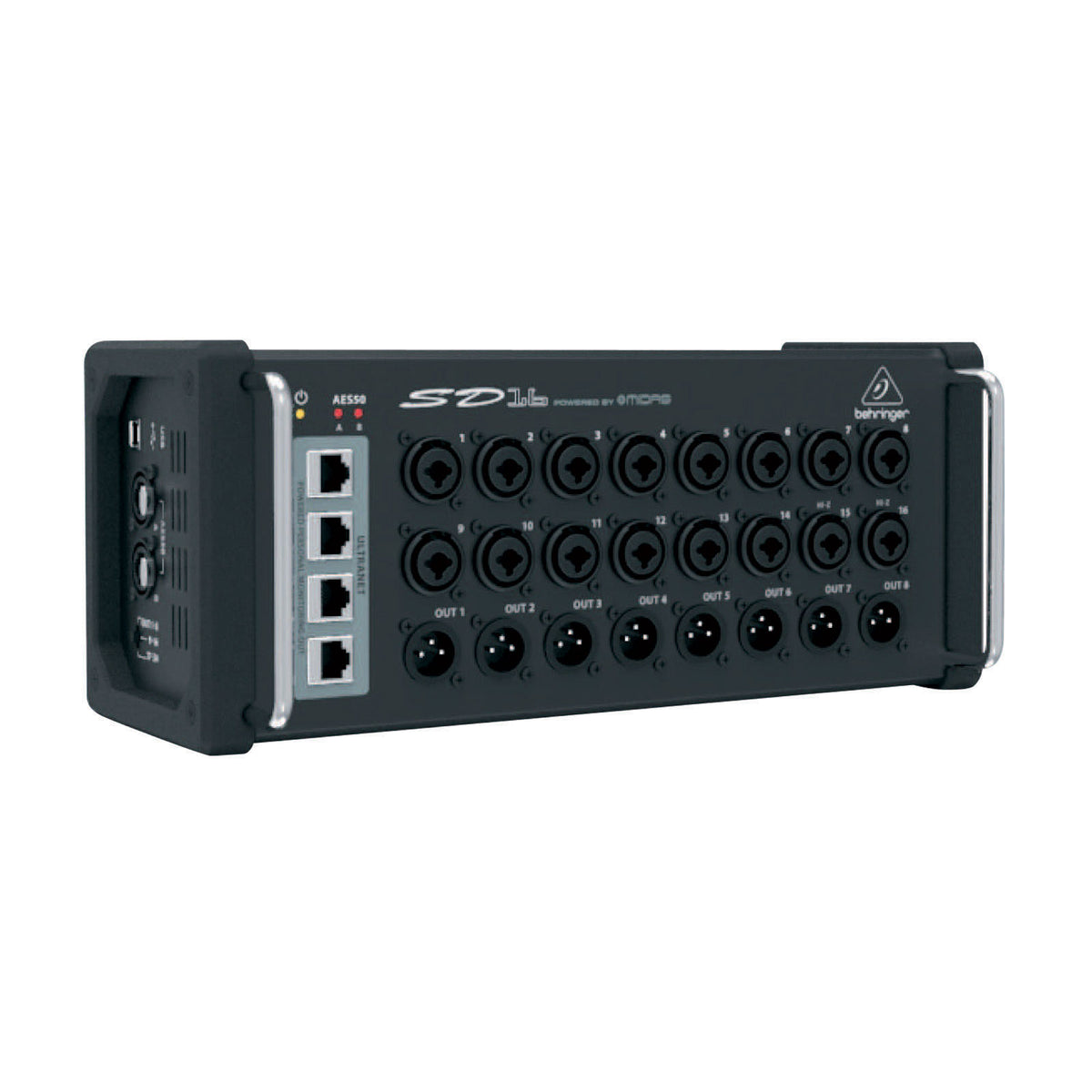

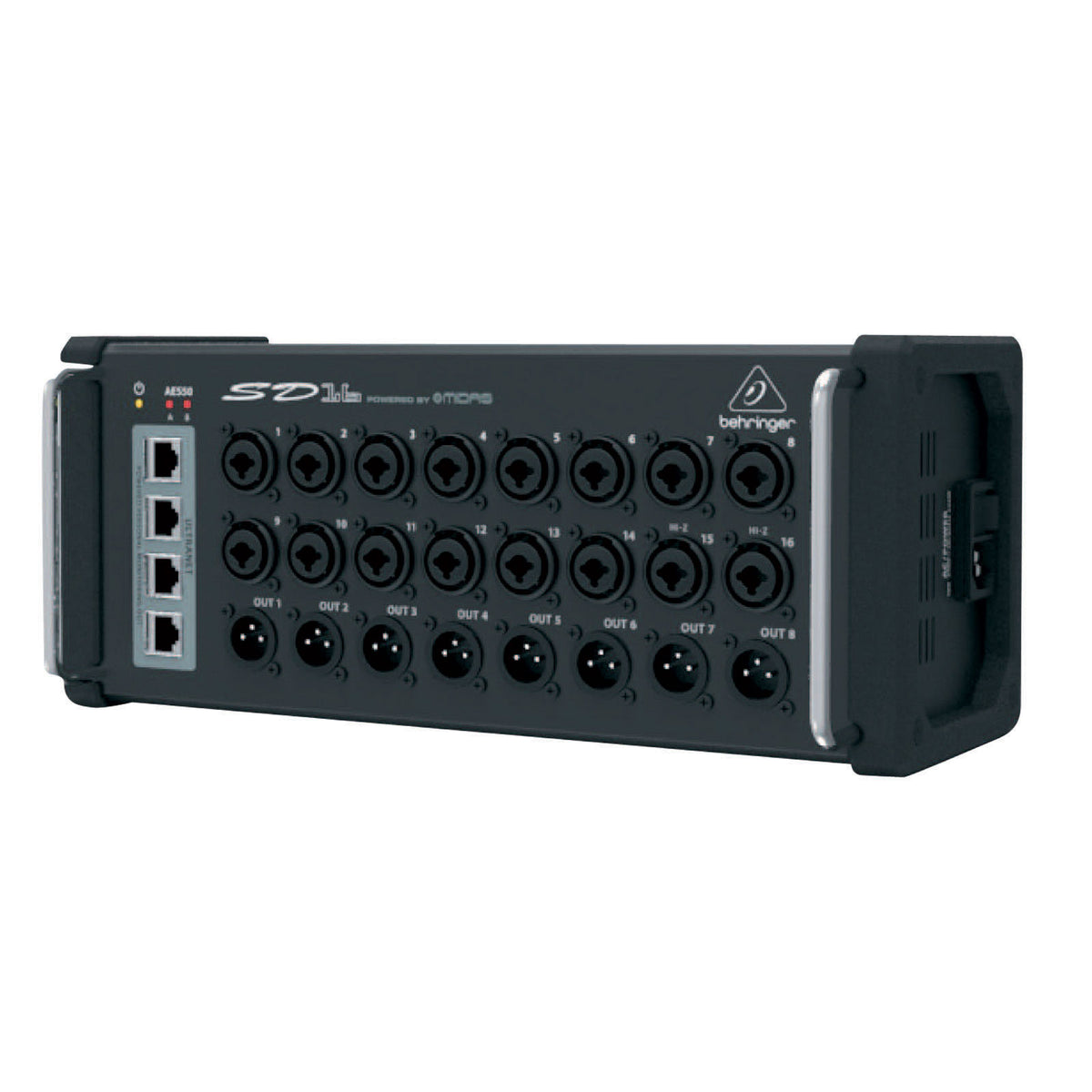

Essential Information About the Behringer SD16 Digital Stage Box
- 16 fully remote-controllable MIDAS microphone preamps for faithful on-stage capture

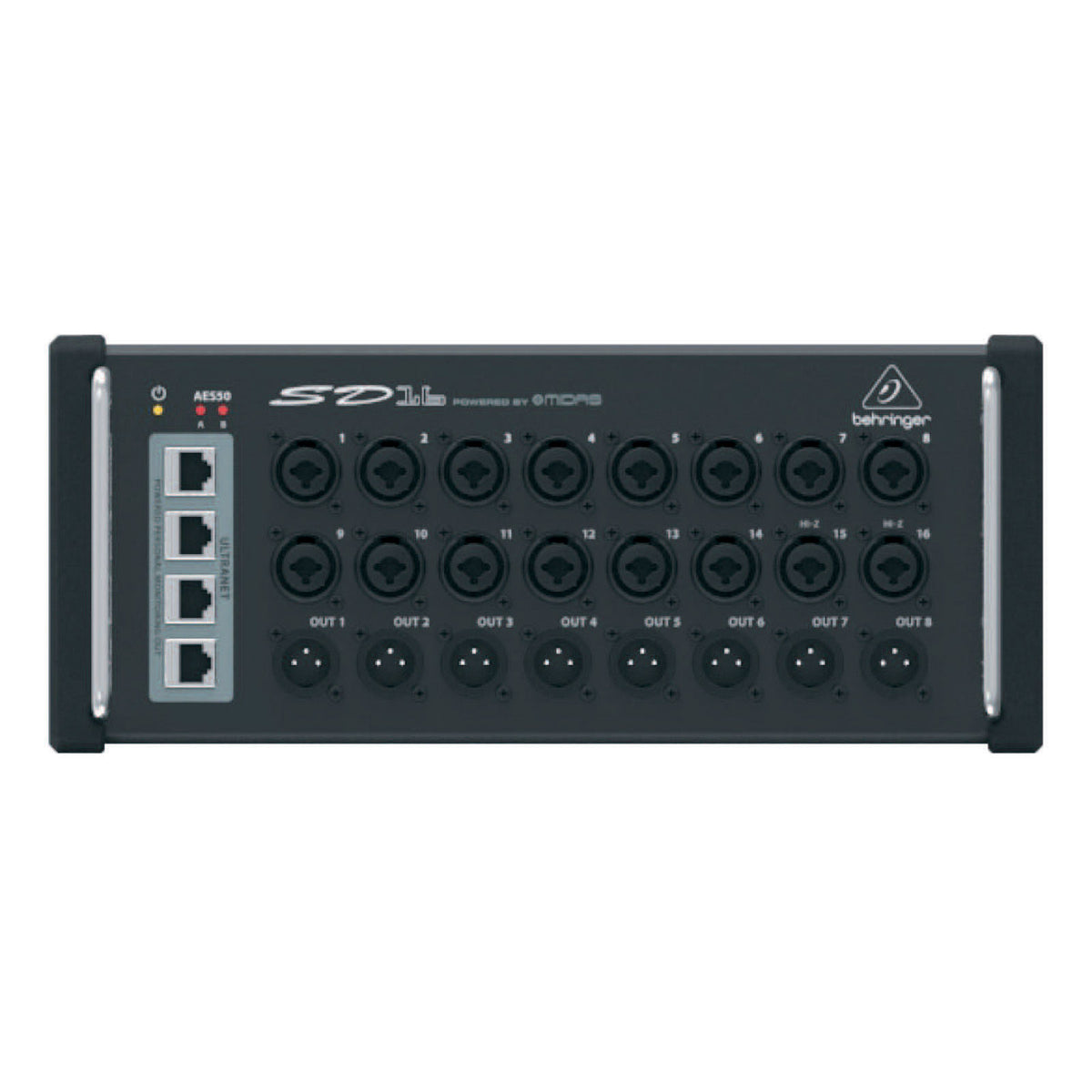

- 16 combo XLR/6.35mm Jack inputs (including 2 high-impedance Hi-Z inputs) and 8 XLR outputs
- Dual AES50 network ports with KLARK TEKNIK SuperMAC technology for linking/chaining up to 100 m over CAT5e
- 4 ULTRANET ports + built-in hub for TURBOSOUND systems and P16-M personal monitoring
Designed for the Modern Stage and the X32 Ecosystem
Designed to integrate seamlessly with the X32 series consoles via AES50, the SD16 replaces bulky analog multicore cables. You gain reliability and cleaner signal quality, reducing the risk of "buzz" between stage and FOH thanks to a robust digital connection.
Who Is It For and What Are Its Uses?
Ideal for live contractors, touring bands, houses of worship, and theaters, the SD16 is installed close to the musicians. Adjustments are made from the console at FOH or front of house, speeding up soundchecks and simplifying logistics while securing the audio flow.
Technical specifications
| Type | Digital | Rackable | Yes |
| Number of faders | 0 | ||
Questions frequently asked
Is the Behringer SD16 compatible with an X32 mixer?
The AES50 connection allows integration with the X32 series mixers. The 16 MIDAS preamps can then be remotely controlled from the mixer.
What length of AES50 cable can be used?
A CAT5e cable connection can reach up to 100 m.
How many inputs and outputs are available?
The unit features 16 combo XLR/6.35 mm jack inputs, including 2 Hi-Z inputs. Eight XLR outputs are also provided for monitors or audio sends.
Can multiple SD16 stage boxes be daisy-chained?

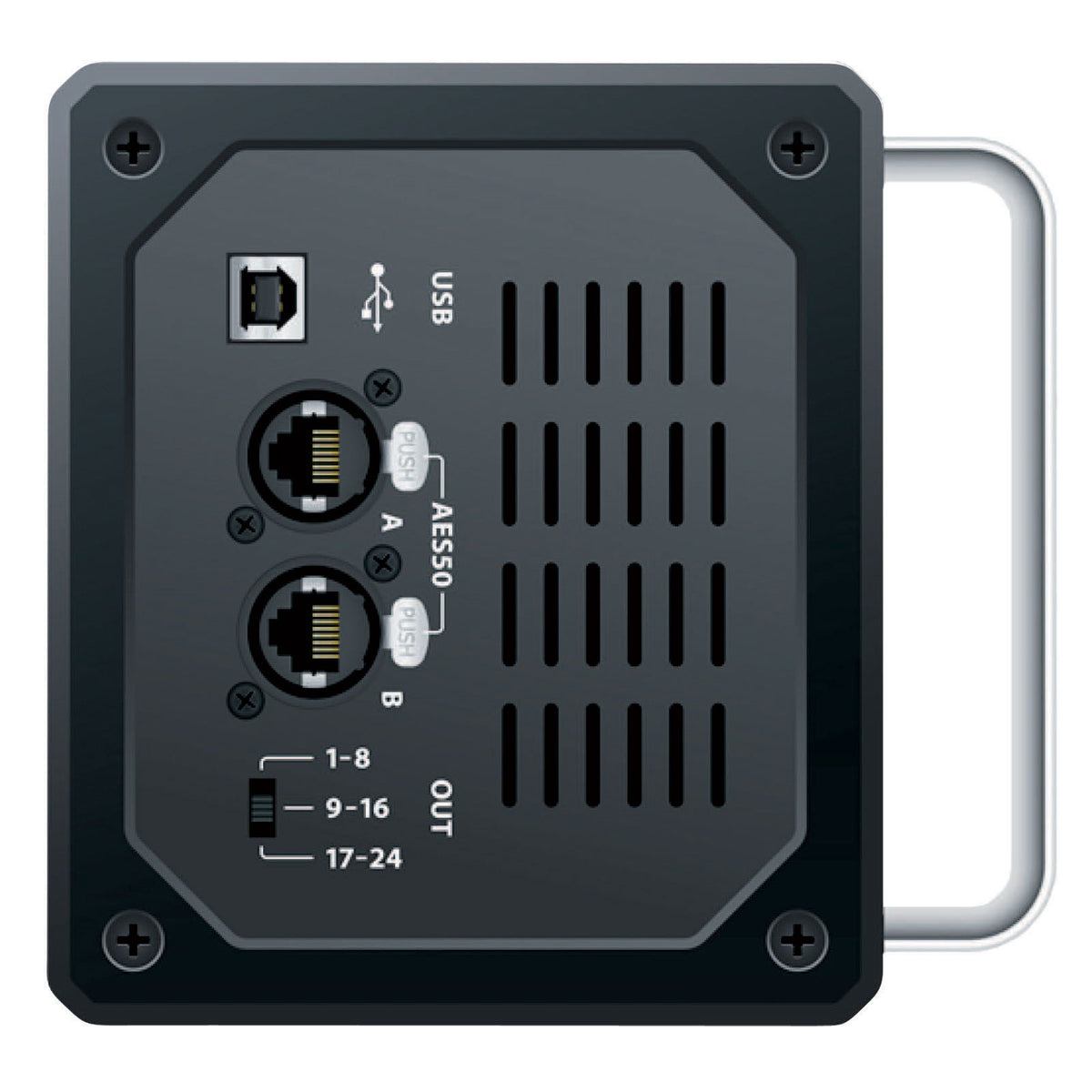

Two AES50 ports allow daisy-chaining one or more additional boxes without a router. The communication relies on KLARK TEKNIK's SuperMAC technology. This setup reduces the need for analog multicore cables between stage and FOH.
Does the SD16 support ULTRANET personal monitoring?
Four ULTRANET connectors provide audio distribution to TURBOSOUND systems, while the built-in hub facilitates connection of a pair of P16-M units.
