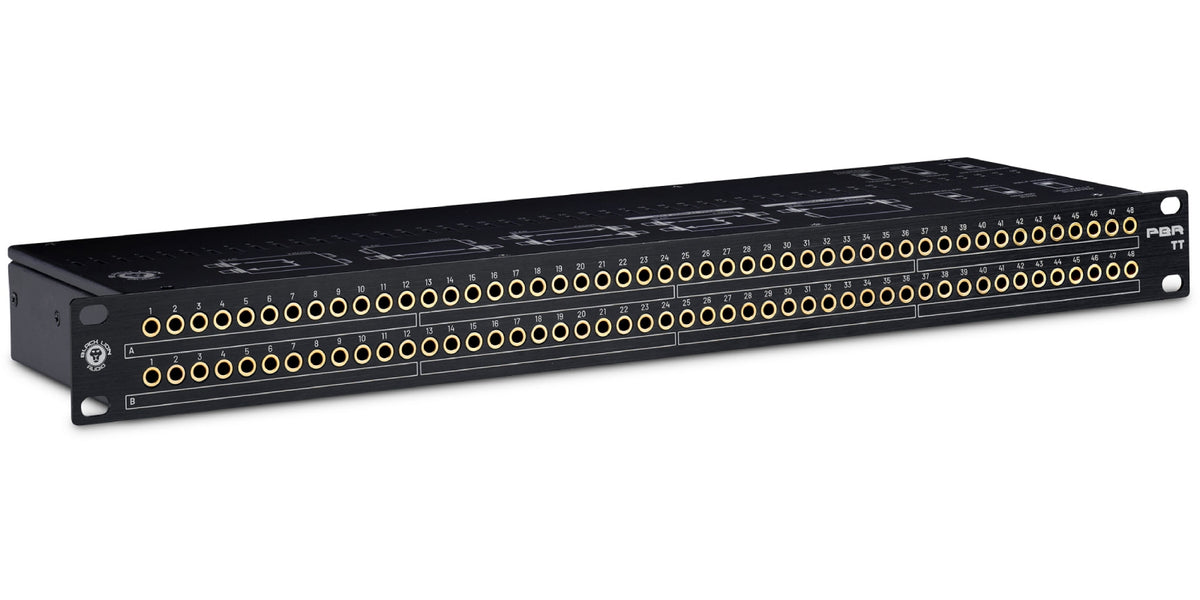

Black Lion PBR TT

The TT Standard and D-Sub 25: A "Large Studio" Approach for a Modern Rack

The patchbay is one of the most effective tools to make a studio workflow smooth: it avoids constantly unplugging the back of devices, protects connectors, and saves you considerable time once your setup exceeds a few peripherals. Here, the choice of the TT-Phone 4.4 mm format (often associated with professional control rooms) allows for high density and a precise patching feel while maintaining a clear layout within 1U. Combined with 12 D-Sub 25 connectors wired according to the Tascam standard, this patchbay naturally integrates into current setups based on multichannel audio interfaces, converters, and summing mixers.

A Patchbay Designed for Studios with Extensive Routing: Recording, Hybrid Mixing, Post-Production

This patchbay is aimed at advanced home studios as well as professional studios that want to structure a routing system without complicating maintenance. It is ideal for normalizing "default" chains (preamps to converters, compressor inserts, sends to effects) while retaining the freedom to repatch on the fly. Thanks to the D-Sub connections, you can wire everything with ready-to-use looms, meaning no soldering skills required to achieve a clean, reliable, and easily modifiable installation.

Normalization Flexibility, Clean Wiring, and Reliability: The Heart of the Workflow

Switchable Normalization for Each Pair: Isolated, Normalized, or Semi-Normalized

The key feature of this model is the switchable normalization for each pair of jacks. In isolated mode, no connection is made unless you patch: perfect for "free" points (effects inputs/outputs, reamp lines, synth returns). In fully normalized mode, the default connection is established and breaks when a patch is inserted, useful for securing a standard chain. In semi-normalized mode, the connection remains active even if you patch in a signal, facilitating doubling, parallel listening, and certain monitoring routings.

12 D-Sub 25 (Tascam standard): Density, Order, and Simplified Maintenance

With 12 D-Sub 25 connectors following the Tascam standard, this patchbay is tailored for multichannel environments: audio interfaces with numerous inputs/outputs, AD/DA converters, compact consoles, or preamp racks. The D-Sub connectors mounted on a steel plate enhance mechanical durability, a crucial detail when plugging, unplugging, and handling looms in a control room. The result: neater wiring at the back of the rack, less strain on connectors, and a more readable organization over time.

Gold-Plated Contacts: Contact Stability and Longevity

The gold-plated contacts contribute to daily patch reliability by limiting contact issues and premature wear over time. In a studio, "quality of life" also depends on consistency: a reliable patchbay reduces false contacts, crackling, and endless troubleshooting when a signal seems to "disappear" during a session. Combined with the 1U rack format, this model becomes a true nerve center for organizing your audio signal without sacrificing accessibility.
